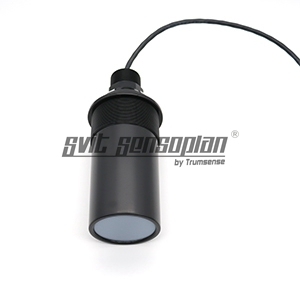

Ordinary Split Type 34khz Ultrasonic Transducer 0.5 To 12 Meters Range For Ultrasonic Level Gauge, Monitoring, Collision Avoidance, Security And Other Industries

Range: 0.5~12m
Working temperature: -40~+80℃
Frequency: 34KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!
Description Admittance Curve Of The Transducer Mechanical Size Review
Description

Basic Information :
Range: 0.5~12m
Working temperature: -40~+80℃
Frequency: 34KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!


Technical Parameter:
Frequency: 34KHz±5%
Suggested range: 0.5~12m
Minimum impedance: 550Ω±20%
Electric capacity: 7100pF±20% @1KHz
Sensitivity: Load driving voltage: 650Vpp, distance 0.6m, echo amplitude 370mV
Working voltage: peak voltage <1500Vpp
Working temperature: -40~+80℃
Pressure: ≤3kg or 0.3MPa
Angle: (beam width) half power [email protected]: 8°±10%, sharpness angle: 19°±10%
Shell material: ABS
Purpose: Ultrasonic level gauge, monitoring, anti-collision, security... ...
Installation size:  refer to the "Mechanical Size"
Protection level: IP68
Weight: 1630 g±5% , Wire length: 10 meters
Wiring instructions
Split (four wires): red: transducer +, white: transducer -, blue, black temperature sensor line (MF58);
Split (three-wire): red: transducer +, blue: temperature sensor +, black: public -;

This product is suitable for: ultrasonic level gauge, ultrasonic monitoring, ultrasonic anti-collision, ultrasonic security, ultrasonic switch
Admittance Curve Of The Transducer
Mechanical Size
