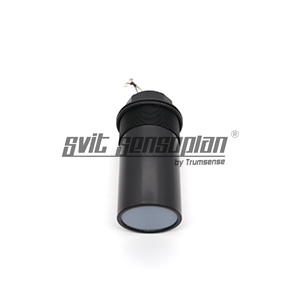

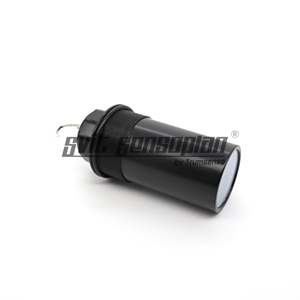

34khz Ordinary Ultrasonic Transducer With A Range Of 0.5 To 12m Is Not Suitable For Occasions With Anti-corrosion Requirements

Range: 0.5~12m
Working temperature: -40~+80℃
Frequency: 34KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!
Description Admittance Curve Of The Transducer Mechanical Size Review
Description

Basic Information :
Range: 0.5~12m
Working temperature: -40~+80℃
Frequency: 34KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!


Technical Parameter:
Frequency: 34KHz±5%
Suggested range: 0.5~12m
Minimum impedance: 600Ω±20%
Electric capacity: 7000pF±20% @1KHz
Sensitivity: Load driving voltage: 650Vpp, distance 0.6m, echo amplitude 400mV
Working voltage: peak voltage <1500Vpp
Working temperature: -40~+80℃
Pressure: ≤3kg or 0.3MPa
Angle: (beam width) half power [email protected]: 8°±10%, sharpness angle: 19°±10%
Shell material: ABS
Purpose: Ultrasonic level gauge, monitoring, anti-collision, security... ...
Installation size:  refer to the "Mechanical Size"
Protection level: IP68
Weight: 1180 g±5%
Wiring instructions
Integrated: interface (3PIN, 2.54mm terminal): red positive, white negative, black shielded wire;
Interface (3PIN, 2.0mm terminal): White and black are temperature sensor wires (MF58);

This product is suitable for: ultrasonic level gauge, ultrasonic monitoring, ultrasonic anti-collision, ultrasonic security, ultrasonic switch
Admittance Curve Of The Transducer
Mechanical Size
