Genuine Trumsense XKC-Y26A-NPN Contactless Liquid / Water Level Sensor

Specially For Liquid / Water Hose with 4 to 10 mm Diameter

Jaw Type Installation Sensing

Suitable for any Liquid with Conductivity

Suitalble for any Non-metallic Material Liquid / Water Hose

1. Working Principle of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensor or Detector :

Intelligent non-contact liquid level sensor produced by Shenzhen Trumsense Technology Co.,Ltd. uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid approaching the sensor, due to the presence of distributed capacitance on the sensor, there is a certain static capacitance on the ground of the sensor. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to the static capacitance, so that the final capacitance value of the sensor becomes larger, the changed capacitance signal is then input to the control IC for signal conversion, the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value. The capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value It is considered that the liquid level has reached the sensing point.

2. Brief Introdution of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensor or Detector :

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of the wall thickness of the container and realizes the true non-contact detection of the liquid level height in the closed container.The liquid level sensor (probe) is installed above and below the outer wall of the container under test (the high and low levels of the liquid level). There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.

XKC-Y26A-xxx series products are specially developed for liquid level detection in non-metallic pipelines. This series of liquid level sensors supports three signal output interfaces, namely high and low level output interface, NPN output interface, and PNP output interface; the output methods of the three models correspond to the following three models:

          High and low level output interface--Model: XKC-Y26A-V

          NPN switch output interface--model: XKC-Y26A-NPN (5-12V), XKC-Y26A-NPN (24V)

          PNP switch output interface-model: XKC-Y26A-PNP (5-12V), XKC-Y26A-PNP (24V)

3. Elite Features of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

● Trumsense XKC-Y26A-XXX non-contact liquid level sensor, suitable for all kinds of non-metallic containers, the outer wall of non-metallic pipes does not need to be in direct contact with the liquid, will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scale or other debris. It can be completed outside the container or pipeline to detect whether there is liquid inside.

● Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, multi-point series wiring can be realized.It can support high and low level output, NPN, and PNP signal output (please contact the manufacturer for instructions when selecting the model).

● The detection is accurate and stable, and the liquid level of boiling water can be detected.

● Pure electronic circuit structure, non-mechanical working method, stable performance and durable life.

● High stability, high sensitivity, strong interference ability, not subject to external electromagnetic interference, special treatment for power frequency interference and common-mode interference is made to be compatible with all 5~24V power adapters on the market.

● Strong compatibility, penetrates containers and pipes of various non-metallic materials, such as plastic, glass, ceramics and other containers, and the diameter of the sensor tube is 3-10 (mm); it is suitable for liquid level detection of various curved, curved, and cylindrical containers or pipes.

● Wide voltage range (5~24V), suitable for connecting various circuits and product applications.

4. Application Prerequisites of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

The viscosity of the measured liquid medium:

Normal measurement when the dynamic viscosity is <10mPaS.10mPaS30mPaS, it cannot be measured because a large amount of liquid is attached to the wall of the container.

Note: As the temperature increases, the viscosity decreases, and most high-viscosity liquids are more significantly affected by temperature. Therefore, when measuring viscous liquids, pay attention to the influence of liquid temperature.

5. Electrical Application Environment of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

a. XKC-Y26A-NPN (5-12V)

It is only applicable under good EMC environment conditions.For example, the docking with the MCU, as well as some relatively simple load applications, such as LED indicators, piezoelectric buzzers, etc.And there is no high-power capacitive and inductive load and harsh electromagnetic environment on the power bus.

b.XKC-Y26A-NPN (24V)

This model is carefully designed for harsh industrial environments.Professional EMC components have been added, such as spike absorption, electromagnetic compatibility, transient suppression and surge protection.It can be directly connected to PLC, electromagnetic relays, etc.It has a very strong anti-interference ability and is suitable for all harsh industrial application environments.

6. Parameters of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

7. Size of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

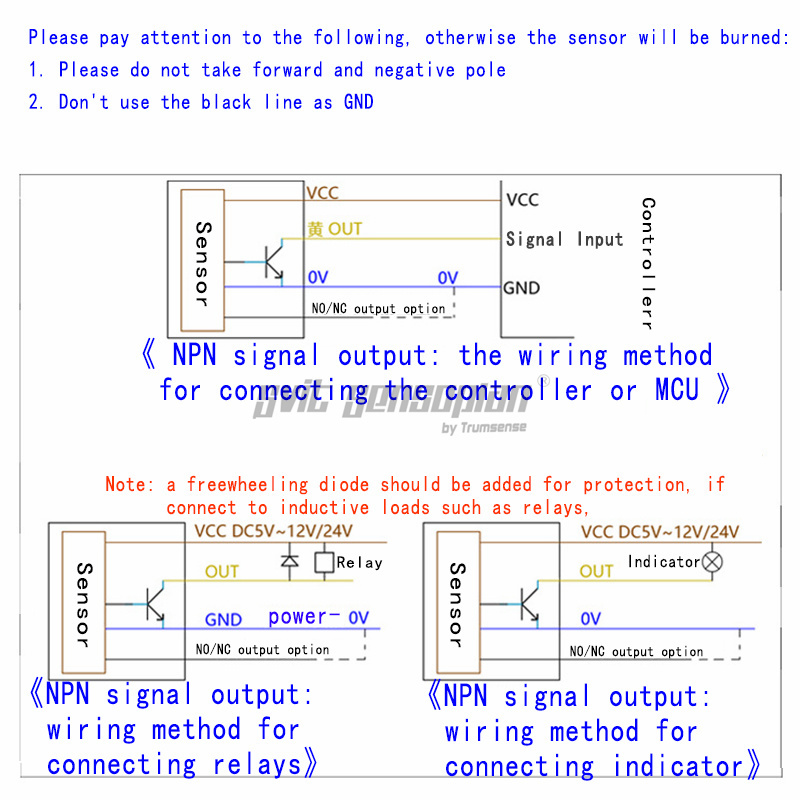

8. Wiring Diagram of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

NPN output drive small relay (coil current≤100mA) working principle:

a. Normally open output when the black line is floating or connected to a high level:

When the liquid is sensed, the transistor is turned on and closed, and the relay is energized and sucked in; when the liquid is not sensed, the transistor is turned off and disconnected, and the relay is powered off and not sucked in.

b.When the black wire is grounded (connected to the negative electrode of the power supply 0V), it is a normally closed output:

When the liquid is sensed, the transistor is turned off and disconnected, and the relay is powered off and does not absorb; when the liquid is not sensed, the transistor is turned on and closed, and the relay is energized and absorbed.

9. Sensitivity Admustment of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

Use a small screwdriver to rotate the potentiometer at the side of the sensor. The anti-clockwise rotation sensitivity increases, and the clockwise rotation sensitivity decreases. As show below:

10. Installation of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

11. Trouble Shooting of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

12. Product Maintenance of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

Pay attention to keeping the liquid level gauge clean, try to prevent corrosion and avoid violent collisions and strikes by other objects.When installing outdoors, avoid direct sunlight on the main body of the level gauge, stay away from heat sources and pay attention to ventilation. If the ambient temperature exceeds the rated temperature, corresponding cooling and protection measures should be taken.

When the ambient temperature is too low, the instrument protection box or other protective devices can be used for antifreeze protection, and care should be taken to keep the liquid level meter dry.

The sensor should be regularly maintained and inspected.(The detection time interval is determined by the unit used according to the specific circumstances).

13. Typical Application of Trumsense XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector :

The liquid level sensor (probe) is installed above and below the outer wall of the container under test (the high and low levels of the liquid level). There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used. ​ ​ ​

14. You Will Receive the XKC-Y26A-NPN (5 to 12V) Non Contact Liquid / Water Hose Level Sensoror Detector , Totally Same as Below Detail Photos:

​ ​ ​

15. The above sensor is used for Non-metallic material liquid container, if your liquid hose or container is metal ,please refer to the below product, which is specially designed for the metal material contaner or hose because its working principle is ultrasonic:

​Ultrasonic Working Ultrasonic Liquid Level Detector For Metal Container Wall Used For Special Industry Contactless Level Sensor:

https://www.aliexpress.com/item/32948776110.htmlhttps://www.aliexpress.com/item/1005002071930161.html

We are the original factory, if the above parameters can not satisfy your ​specific needs, contact at any time, our technician team will offer you ​the proposal within 24 hours.
