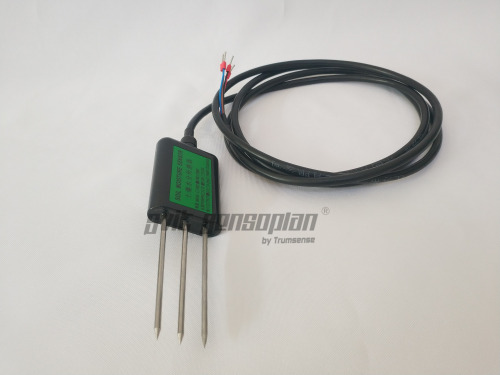

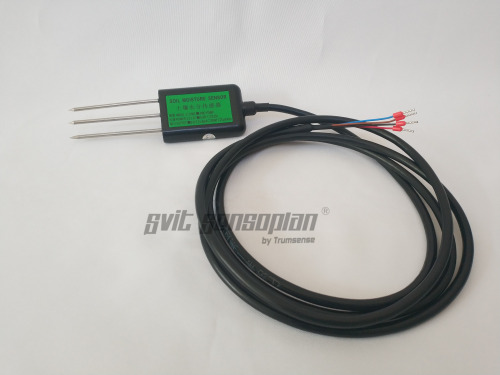

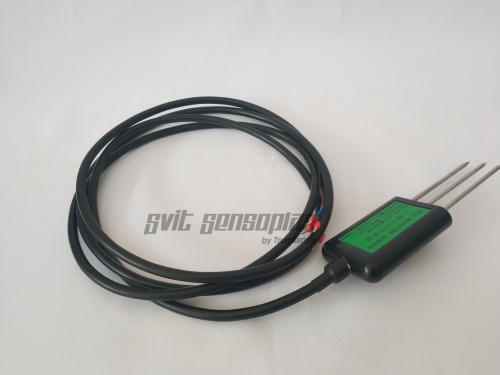

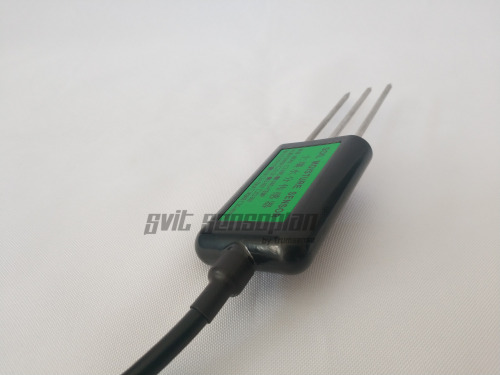

Trumsense IP68 Soil Moisture AND Temperature Sensor Soil Content Measurement 4 to 20 mA or Modbus RS485 or 0 to 2V Output For Agriculture Science Monitor

Item No.: 00533
● Protection Grade: IP68

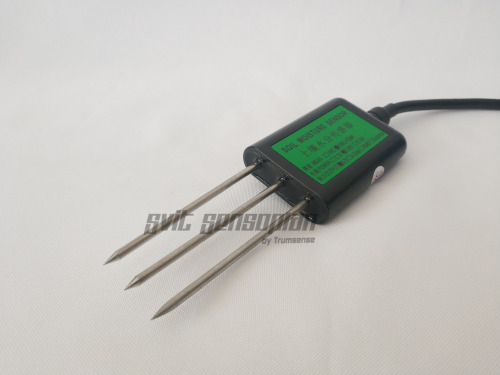

● Probe Needle: stainless steel,55mm Length. 3mm diameter
● Output Options: 0 to 2V DC,0.4 to 2V DC,0 to 20 mA,4 to 20 mA,Modbus-RUT RS485 ...
● Apply for: green house,ranch,plant cultivation,scientific research... ...
Description Review
Description


Soil Humidity Temperature Sensor + Soil Moisture Content Transmitter

Range 0-100%




​ ​ ​ ​

​ ​ ​ ​

​ ​ ​ ​

​ ​ ​ ​

​ ​ ​ ​

​ ​ ​ ​

​ ​ ​ ​ ​ ​ ​

ca

ca

ca

Installation Notes
Rapid measurement method: select the appropriate measurement location, to avoid the stones, to ensure that the needle does not hit hard objects such as stones,
According to the required depth measurement planing surface soil, to maintain the original soil below the degree of tightness, grip the sensor vertically into the soil, insert,
Not before and after the rock, to ensure close contact with the soil, a small measure of the proposed measurement points to obtain the average of several measurements.
Buried measurement method:
Vertical digging diameter greater than 20 cm pit depth according to the measurement needs, and then the depth of the probe will be inserted into the pit depth of the hole, the pit fill compaction to ensure that
And soil in close contact with the stability of a period of time, can be continuous for several days, months or even longer measurement and recording.
If you are teaching hard surface measurements, you should drill holes (the diameter should be less than the diameter of the probe)
And then inserted into the soil and soil compaction and measurement, the sensor should be to prevent severe shock and shock,
More can not use a hard object percussion. As the sensor is a black package, in the light of the second sensor rapid warming, (up to 50C or more)
In order to prevent excessive temperature on the sensor temperature measurement have an impact, please pay attention to shade in the field or field use and protection.

Signal output type

voltage output 0-2V Output impedance

Current output 4-20MA Load resistance<500ohm

RS485 port, Modbus

Supply voltage

5-24V/DC

12-24V/DC

5-24V/DC

Maximum power

40MA@24VDC

80MA@24VDC

30MA@24VDC

Soil moisture measurement area

The center of the probe.diameter 7CM. heigth 7Cm Cylinder

Response time

<1S

Soil moisture measurement range

0-100%

Accuracy of Soil Moisture Measurement

+-5%

Accuracy of soil temperature measurement

+-0.5C

Soil temperature measurement range

-40~80C

Degree of protection

IP68

Operating environment

-40~85C

Wiring instructions

Voltage output

Red(V+)

Black(G)

Bule (01)output temperature

Brown(02)humidity

Yellow: Dont connect

White: Dont connect

Green: Don't connect

Current output

Red(V+)

Black(G)

Bule (01)output temperature

Brown(02)humidity

Yellow: Dont connect

White: Dont connect

Green: Don't connect

RS485

Red(V+)

Black(G)

Blue 01:Don't connect

Brown 02 : Dont connect

Yelllow (T+): RS485+/A/T+

​ ​

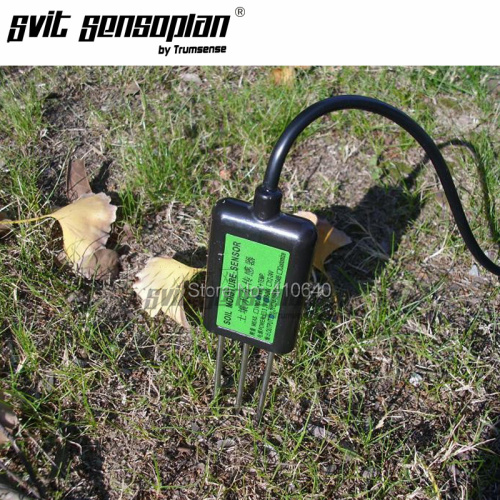

Application pictures

​ ​ ​ ​
