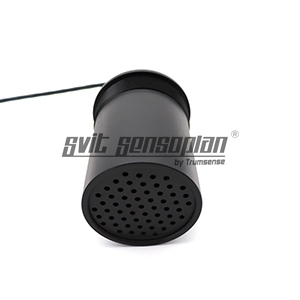

Ultrasonic Transducer Split Installation 21khz Common Type For Gas Medium 1 To 30 Meters Range For Gas Medium Distance Measurement

Range: 1~30m
Working temperature: -40~+80℃
Frequency: 21KHz±5%
Working voltage: Peak Voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!
Description Admittance Curve Of The Transducer Mechanical Size Review
Description

Basic Information :
Range: 1~30m
Working temperature: -40~+80℃
Frequency: 21KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!


Technical Parameter:
Frequency: 21KHz±5%
Suggested range: 1~ 30 m
Minimum impedance: 700Ω±20%
Electric capacity: 11000pF±20% @1KHz
Sensitivity: Load driving voltage: 560Vpp, distance 0.6m, echo amplitude 1000mV
Working voltage: peak voltage <1500Vpp
Working temperature: -40~+80℃
Pressure: ≤3kg or 0.3MPa
Angle: (beam width) half power [email protected]: 11°±10%, sharpness angle: 27°±10%
Shell material: POM
Purpose: Ultrasonic level gauge, monitoring, anti-collision, security... ...
Installation size:  refer to "Mechanical Size"
Protection level: IP68
Weight: 1860 g±5%
Wiring instructions
Split (four wires): red: transducer +, white: transducer -, blue, black temperature sensor line (MF58);
Split (three-wire): red: transducer +, blue: temperature sensor +, black: public -;

This product is suitable for: ultrasonic level gauge, ultrasonic monitoring, ultrasonic anti-collision, ultrasonic security, ultrasonic switch
Admittance Curve Of The Transducer
Mechanical Size
