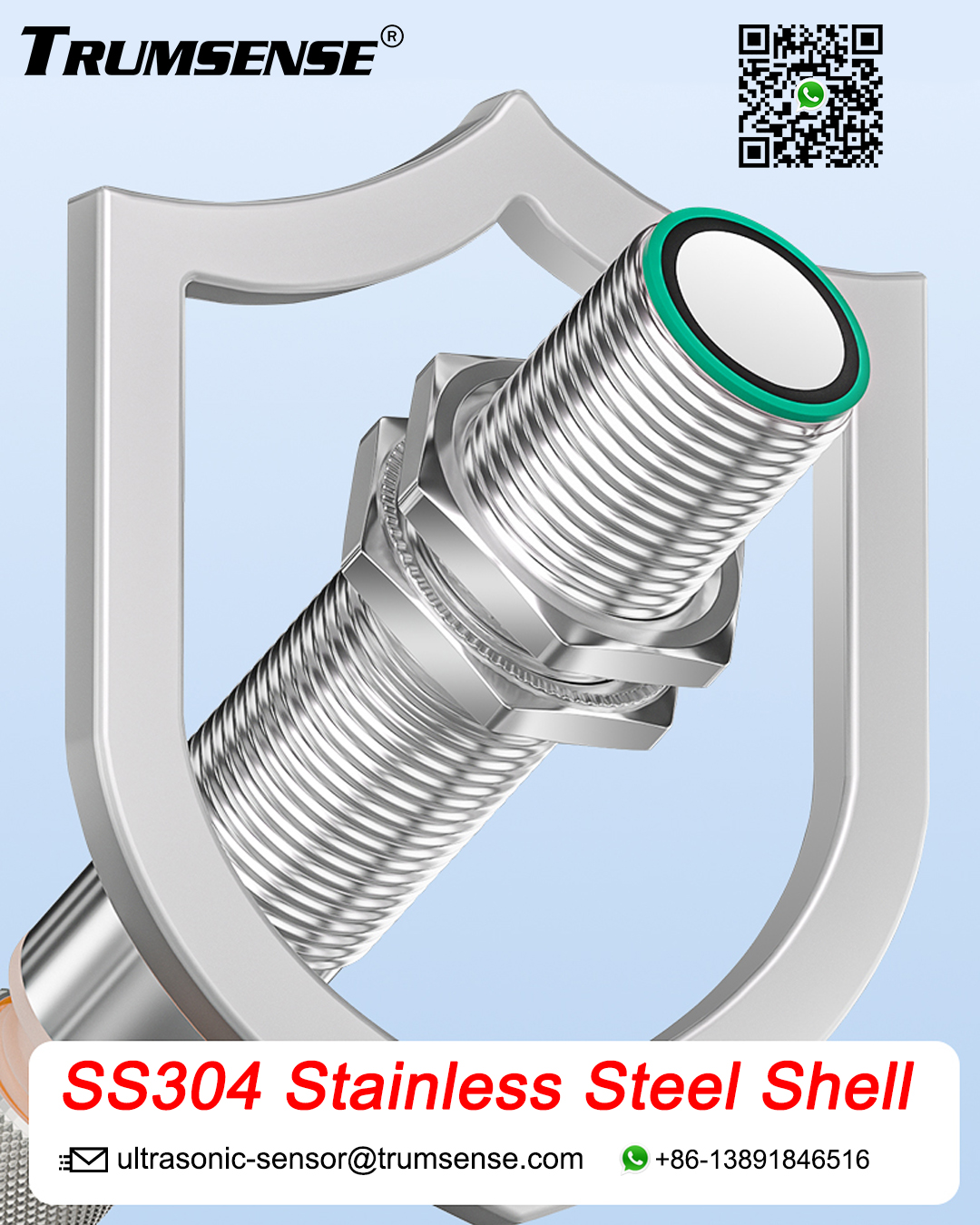

Trumsense® M18 or M30 Ultrasonic Sensor Module With SS304 or ABS Housing Optional Outputs for NPN or PNP or 4 to 20mA or 0 to 5V or 0 to 10V or RS485

▶ultrasonic-sensor@trumsense.com
▶Business What's App: 008613891846516

●Product Category: Cylindrical
●Product Type: Switch Output
●Operating Voltage: 12~24VDC or 15~30VDC
●Measuring Range: 60~6000mm (optional)

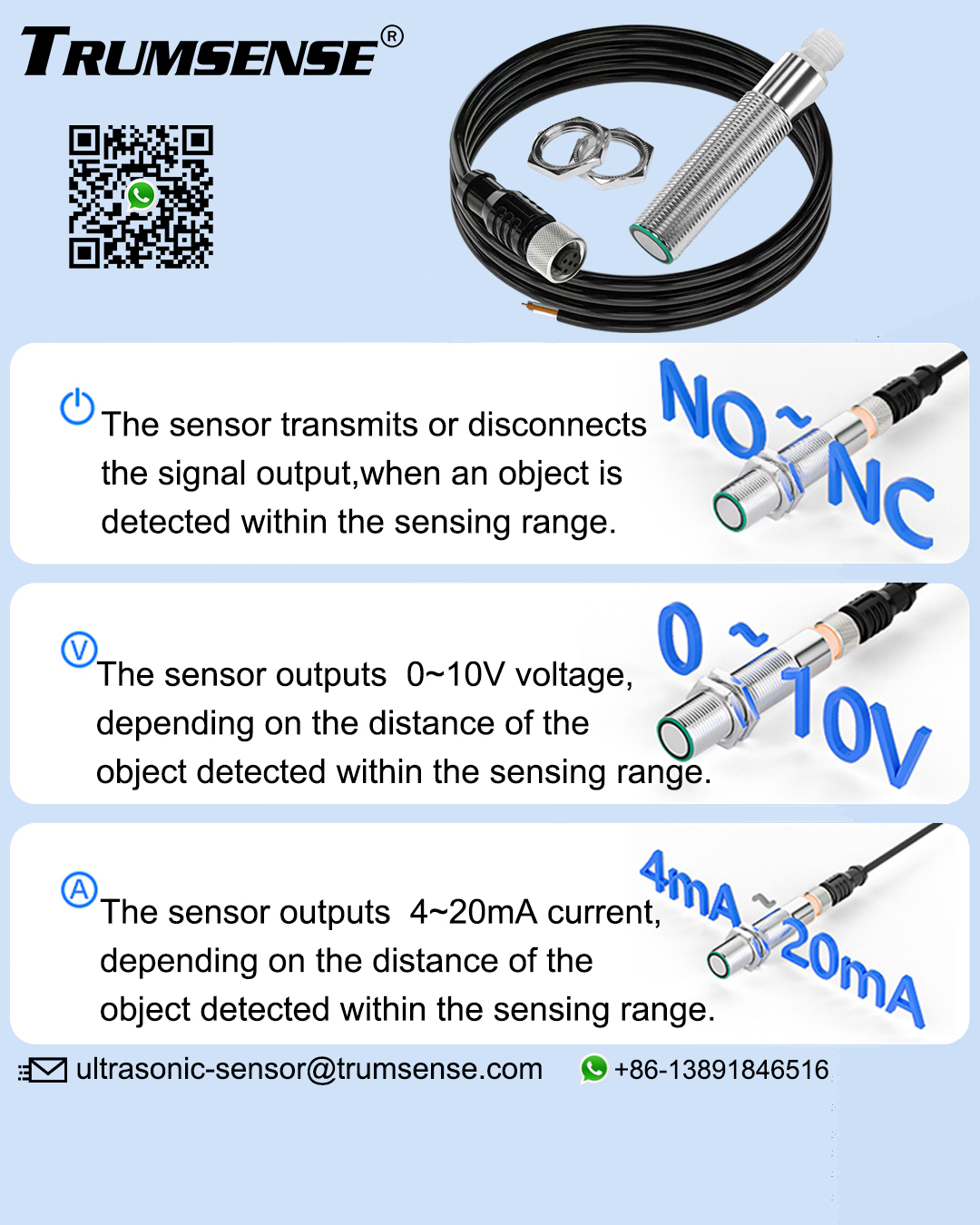

●Output: Optional among NPN or PNP or 4 to 20mA or 0 to 5V or 0 to 10V or RS485 and TTL
●Sensor Frequency: 40Khz,75Khz,112Khz, 175Khz , 200Khz or 400KHz or customized one
●Angle: 7° or 15° or 25° or customized one
●Repeatability: 0.3% or customized one
●Temperature Drift: 0.05%/℃ (Built-in Temperature Compensation)
●Linearity: 1% or customized one
●Response Time: 25ms or 80ms 225ms or customized one
●Standard Detection Board: 300*300mm
●Power Consumption: below 20mA
●Operating Temperature: -20℃~+80℃
●Cable Length: 2 meter
●Protection Grade: IP67
● Electromagnetic Compatibility Standards:
  IEC 61000-4-2:2001
  ​EN 61000-4-2:2009
  ​ANSI C63.4:2014
  ​ANSI C63.16:2015
  ​AS/NZS 61000.4.2:2013
​
​IEC 61000-4-4:2004
​EN 61000-4-4:2012
​AS/NZS 61000.4.4:2012

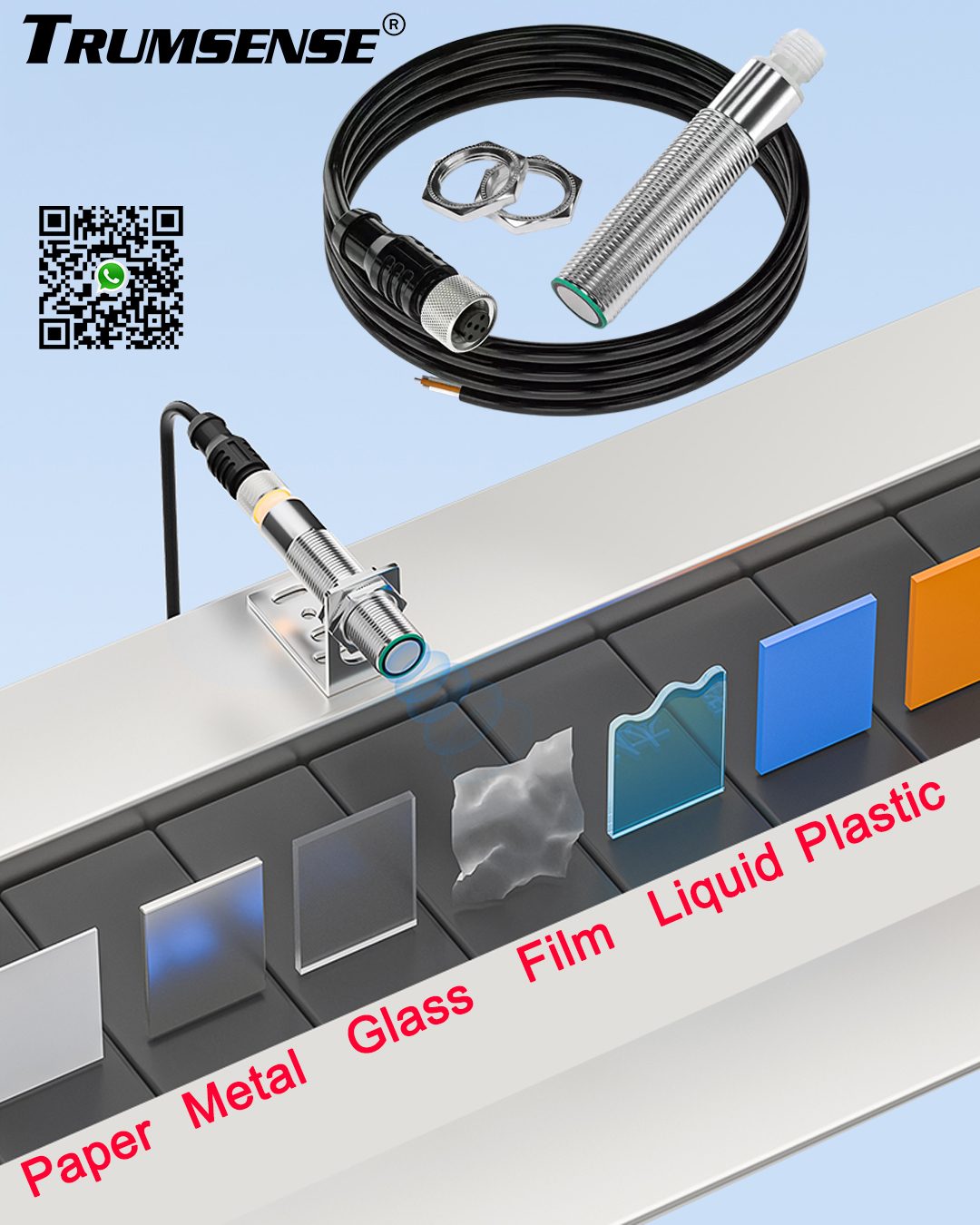

Application Example:
√ Check the diameter
√ Diameter inspection of foil extruders
√ Presence detection
√ Horizontal control
√ Liquid or Material or Powder Level control
√ Small container filling detection
√ Detect obstacles
√ Height and/ or width measurement
√ Edge detection of flat objects
√ Human detection for counting
√ Positioning
√ Quality control
√ Robotic arm positioning
√ Robotic sensing
√ Loop control
√ Wire break detection
√ Stack height control
√ Monitor pallets
√ Sonic reflector
√ Packing packing control
√ Volume flow detection
√ Ultrasonic barrier
√ Contouring or profiling using ultrasonic systems
√ Roll diameter, tension control, winding and unwind
√ Thru beam detection for high-speed counting
√ Full detection
√ Thread or wire break detection
√ 45° Deflection; inkwell level detection; hard to get at places
√ Contouring or profiling using ultrasonic systems
√ Vehicle detection for car wash and automotive assembly
√ Irregular parts detection for hoppers and feeder bowls
√ Box sorting using multi-transducer ultrasonic monitoring system
