Trumsense WS08G2A-S2-BW Smart Mirror Two Key Touch Sensor Switch Brightness Adjusting Control Defogger for Bathroom Hotel 12V 5A

Buying options explanation:

▶WS08G2A-S2-BW:

K1 Control single color LED strip on off, steplessly adjust the brightness

K2 Control the mist-removing film on off

★ Product principle: capacitive sensing touch

★ Suitable mirror thickness：5mm

★ Rated voltage: DC 12V

★ Rated current: 4.5 A

★ Loading power: 54 W

★ Size: 66x42x10mm, 78x76x10(with bracket)

★  Trumsense Factory Warehouse Directly Delivery

●   Model: WS08G2A-S2-BW

●  K1 Steplessly Adjust the Brightness of 1 Color LED Strip

●  K2 Control Anti-fog Film On Off

●  Suitable for Below 5 mm Thickness Mirror

●  Slowly become brighter or darker, protect your eyes

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ...

​

1: Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch Wholesales Price Reminding:

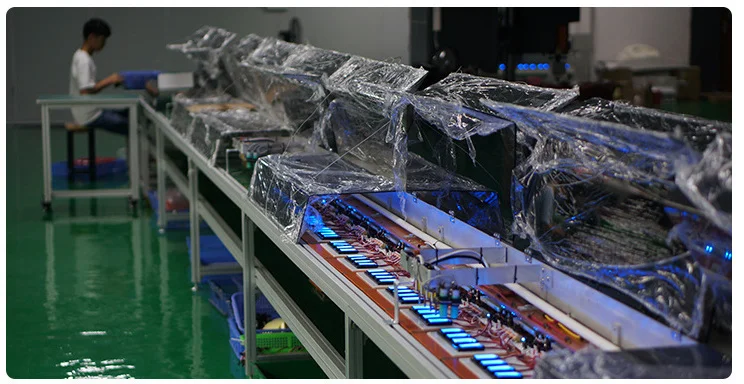

    ●We design,develop and produce with our own teams for the mirror touch switch, hand wave sensor switch and human sensing       radar switch

    ●The components and chip are top quality, ensure the perfect sensitivity and long life-span

    ●Our major clinets are famous smart mirror factory worldwide in America,European,South-America,Africa, Mid-east... ...

    ●Please ignore the RETAIL price you are seeing, if you has bulk quantity purchasing pla, will offer you bottom price.

2: Important Before You Place An Order of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch

In This Link:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror IR hand waving sensing switch, on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our mirror IR hand waving sensing switch,                 please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.

      f: We are the factory, we will make the mirror IR hand waving sensing switch work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your

          province or your country.

3: Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch Working Principle:

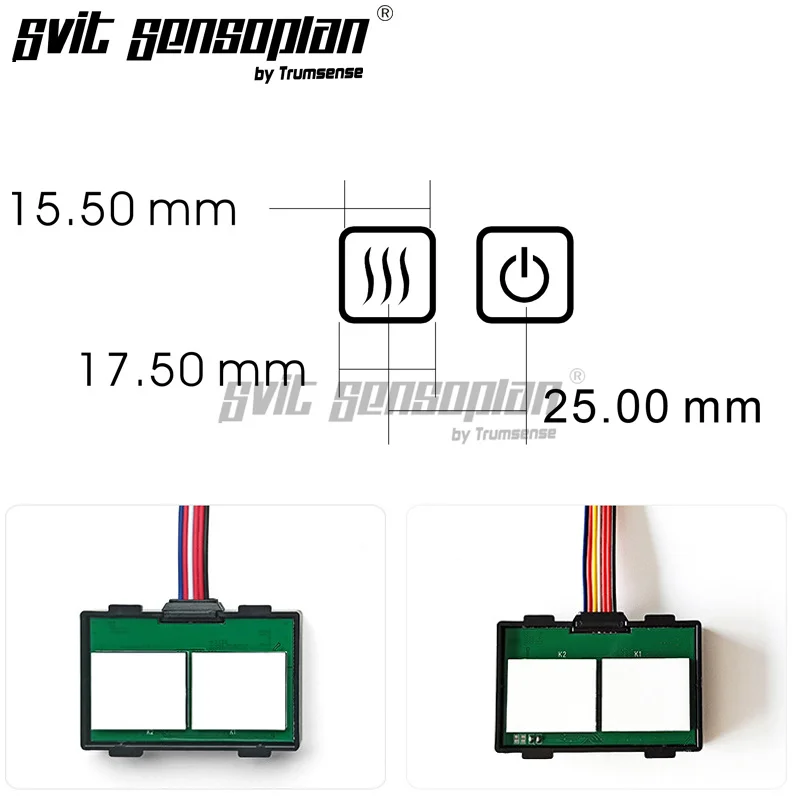

This product is a double-button touch switch. The sensing principle is capacitive sensing. When the watermark laser on the back of the mirror is removed to form a touch icon, it is installed in the corresponding area behind the mirror, and then the mirror touch operation is realized on the front of the mirror. ​

4: Basic Function of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch:

●K1 is a LED strip light control switch, which can be switched and brightness adjusted.

●K2 is an anti-fog control switch, which can directly control the low-voltage DC anti-fog film or control the high-voltage anti-fog film

  through the relay ;

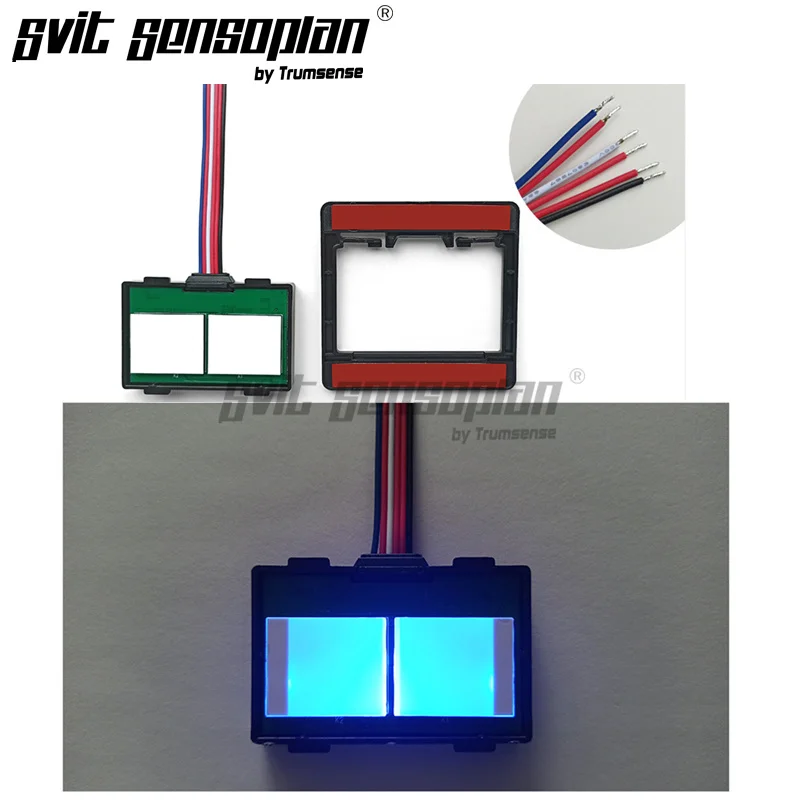

●Power on, touch buttons bright blue backlight.

  Short press K1 can turn on the light, and at the same time, the key backlight becomes white. After the short press turns off the

  light, the key backlight turns back to blue, recycle.

 The brightness can be adjusted steplessly according to K1 in the light-on state ;

●short press K2 can open the anti-fog output, and the key backlight becomes white. Short press again can close the anti-fog

  output, and the key backlight becomes blue.

●The LED light switch channel is gradually closed.

5: Parameters of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch :

Product name: Control single colour LED strip with anti-fog film on off control

Model: WS08G2A-S2-BW

Working voltage: DC12V ± 10%

Switching current: 4.5 A

Quiescent current: 30 mA

Control method: Capacitive induction

Support mirror thickness: ≤5mm

Brightness adjustment range: 5%~ 100%

Color temperature adjustment: not available (Available for WS08G2-S7-BW)

Icon Backlight: White for on, blue for off

Load power: 54 W

​

6: Installation of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch :

a: Removing the mercury of the mirror (refer to the similiar video here: https://youtu.be/rGfZ5Cd3Vks):

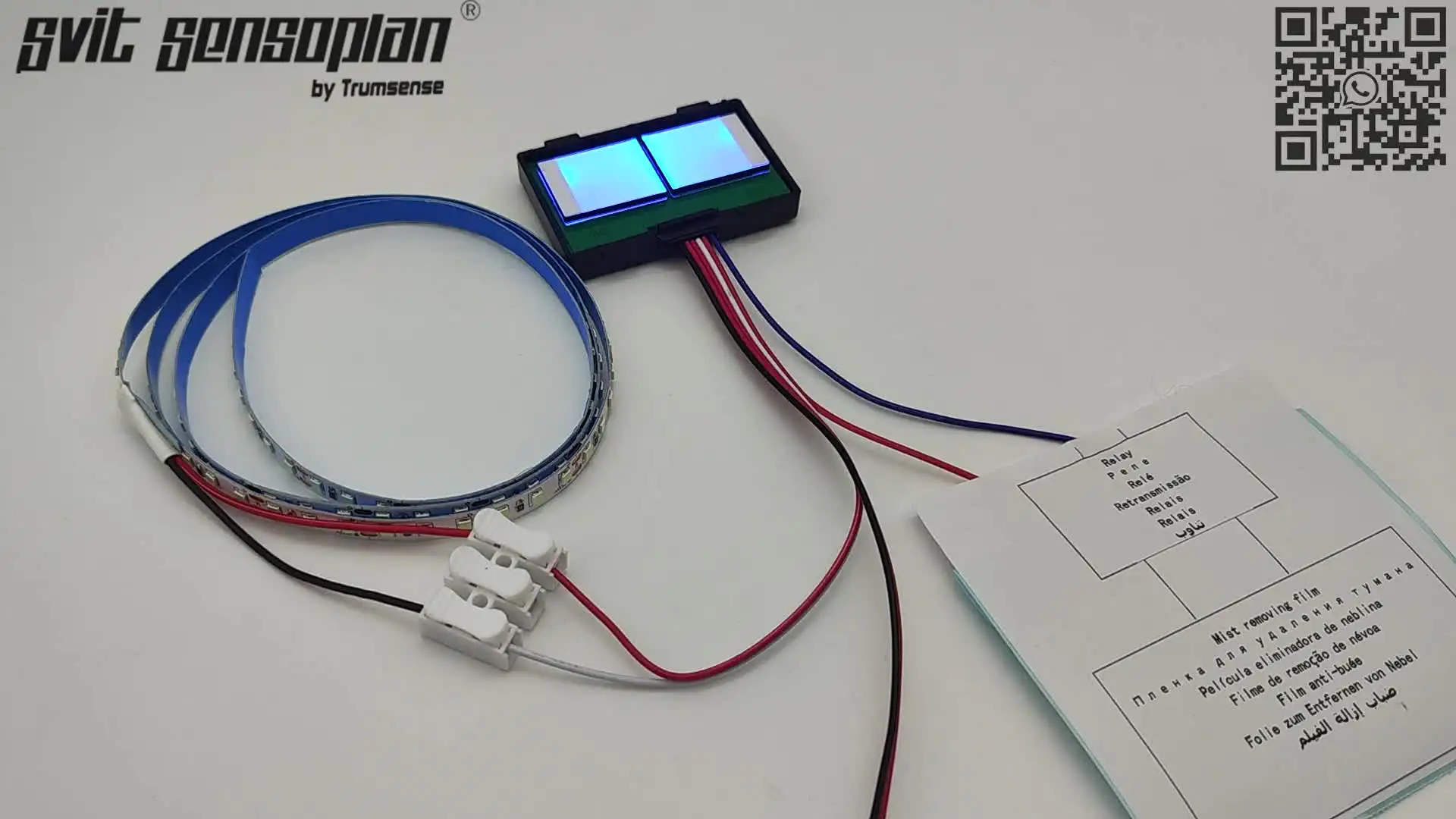

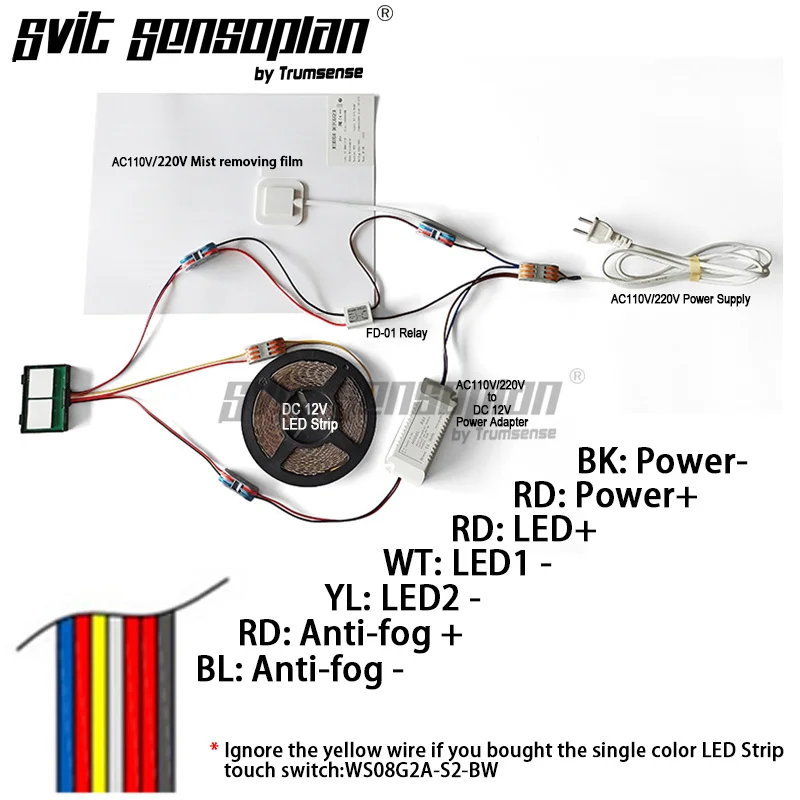

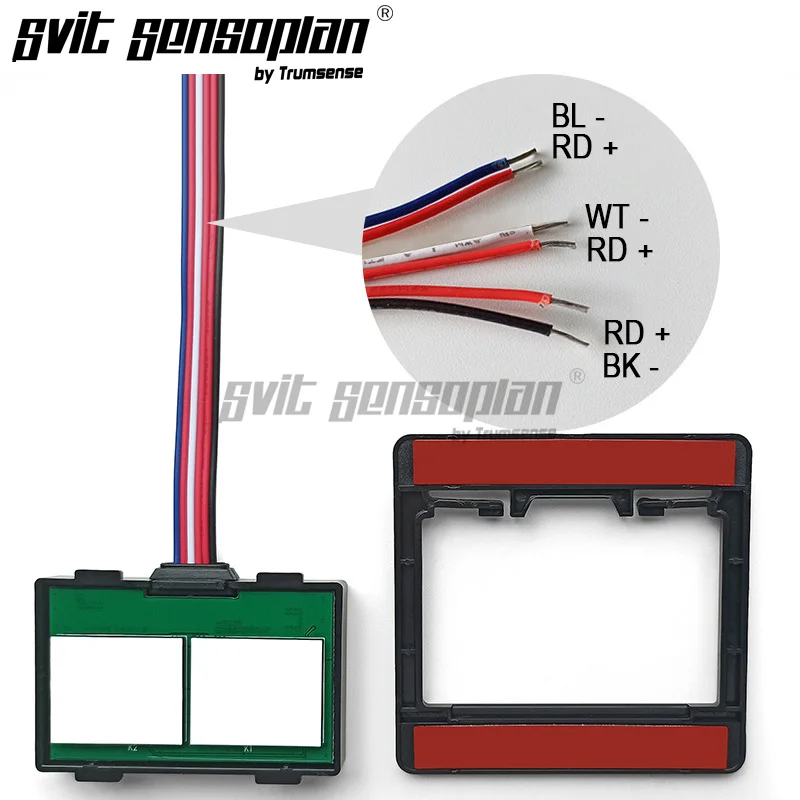

b: Wiring Diagram:

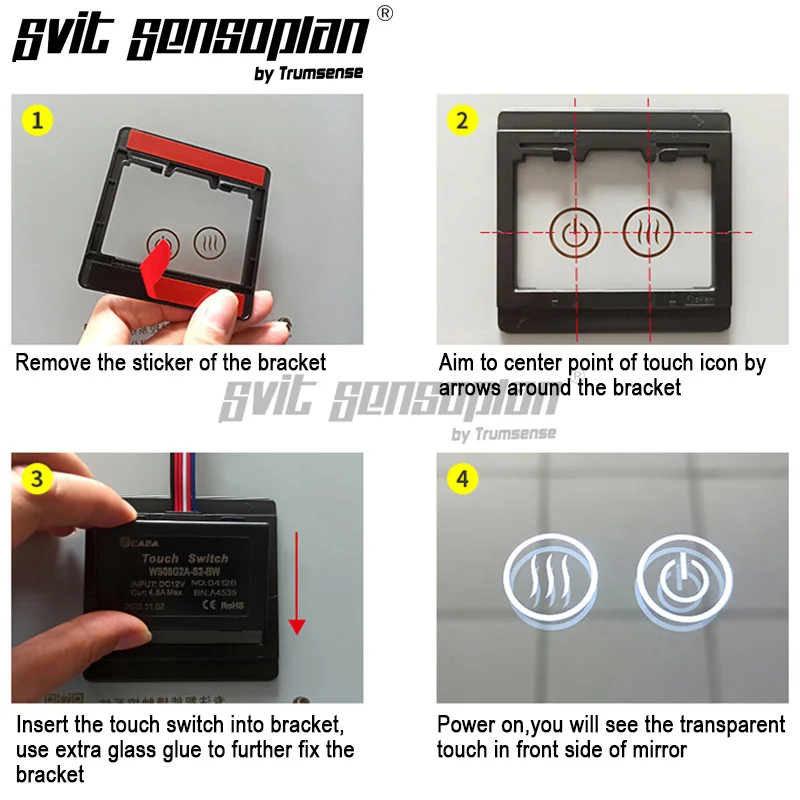

c: installation:

7: Applications of the Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch ,used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

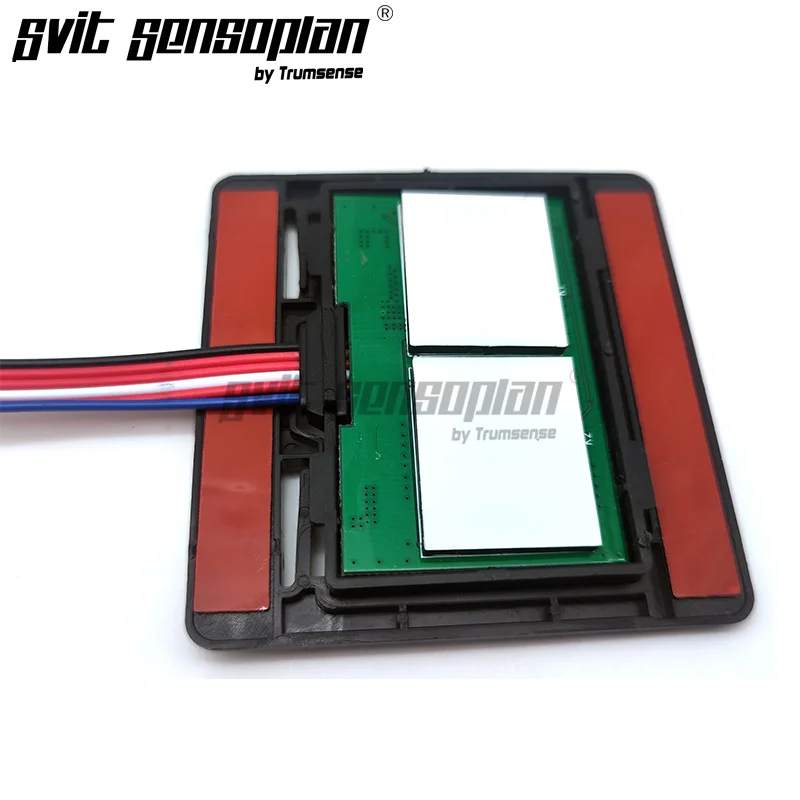

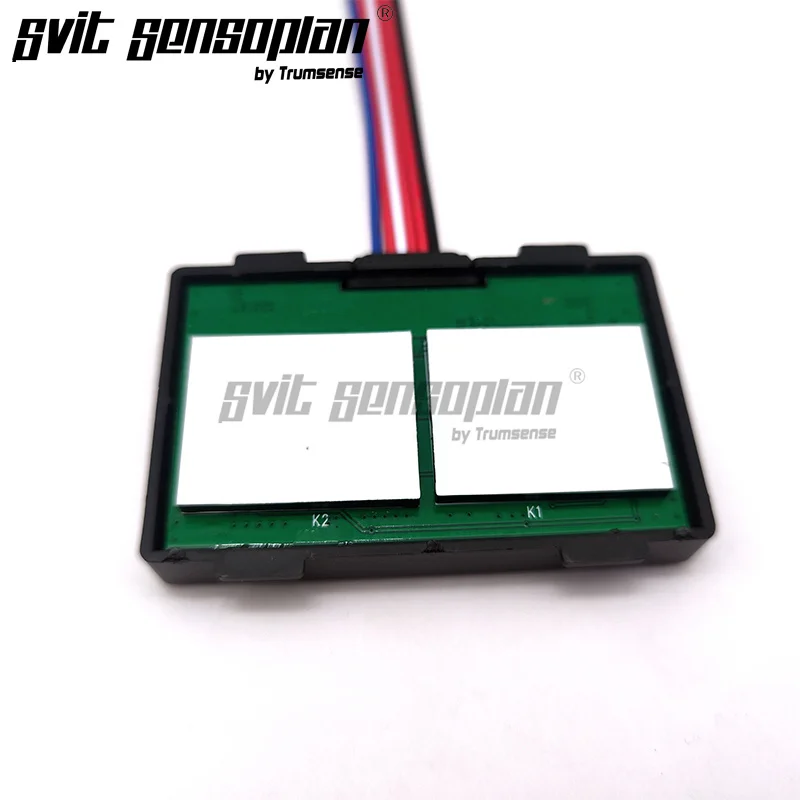

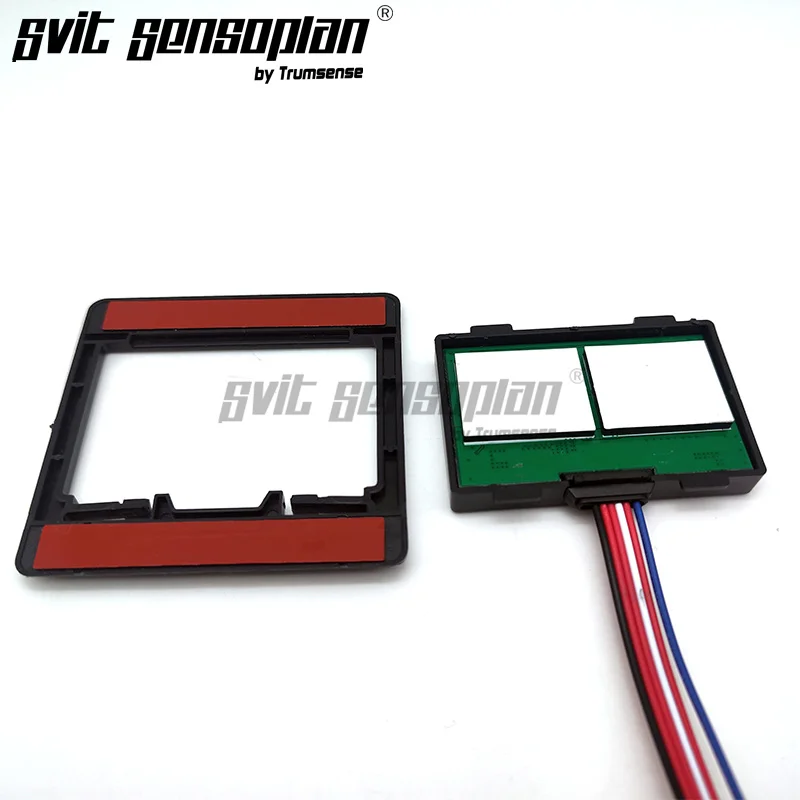

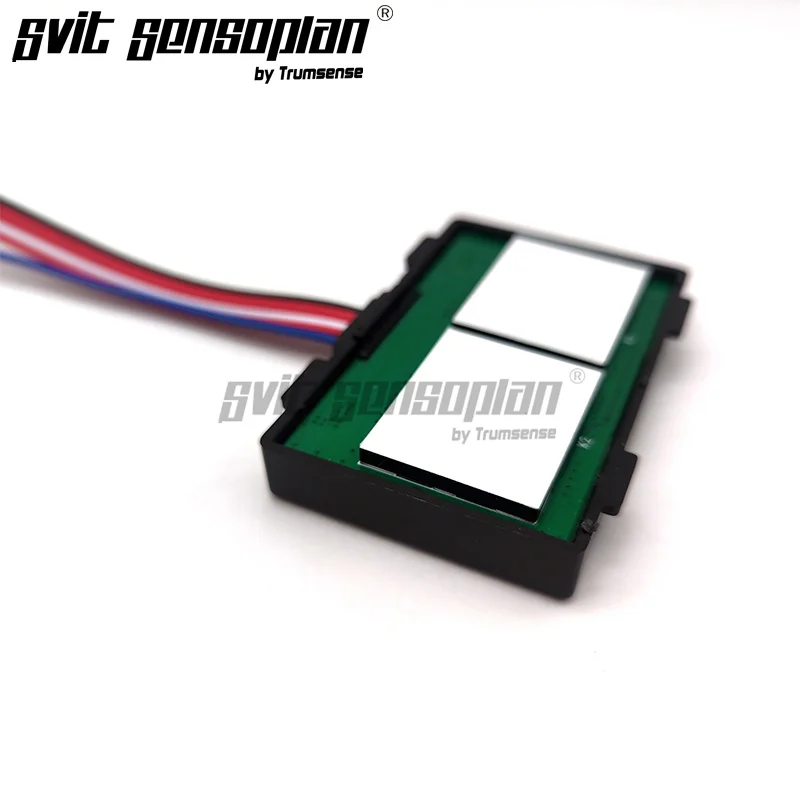

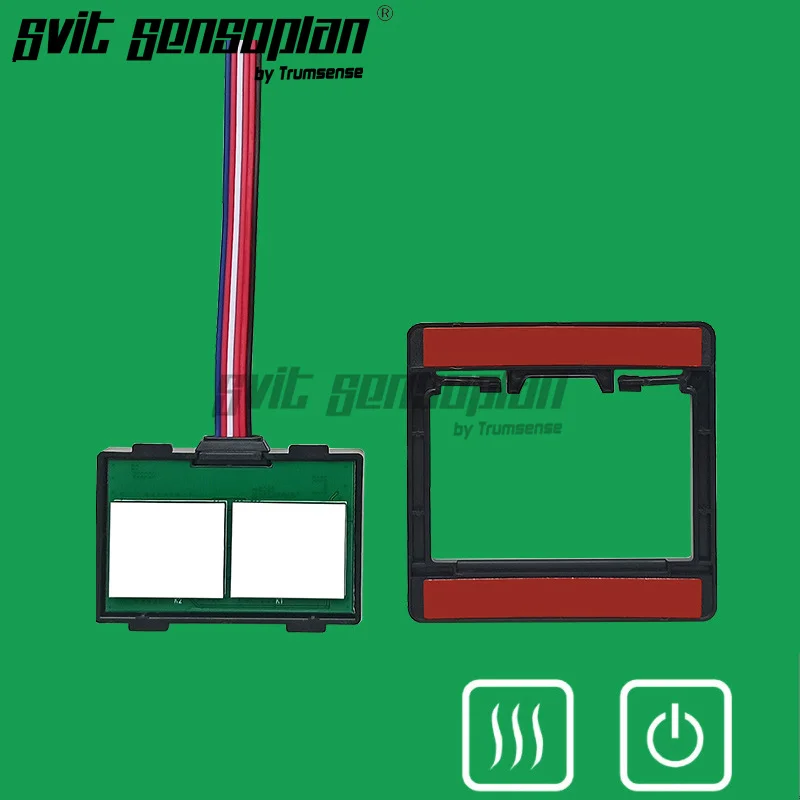

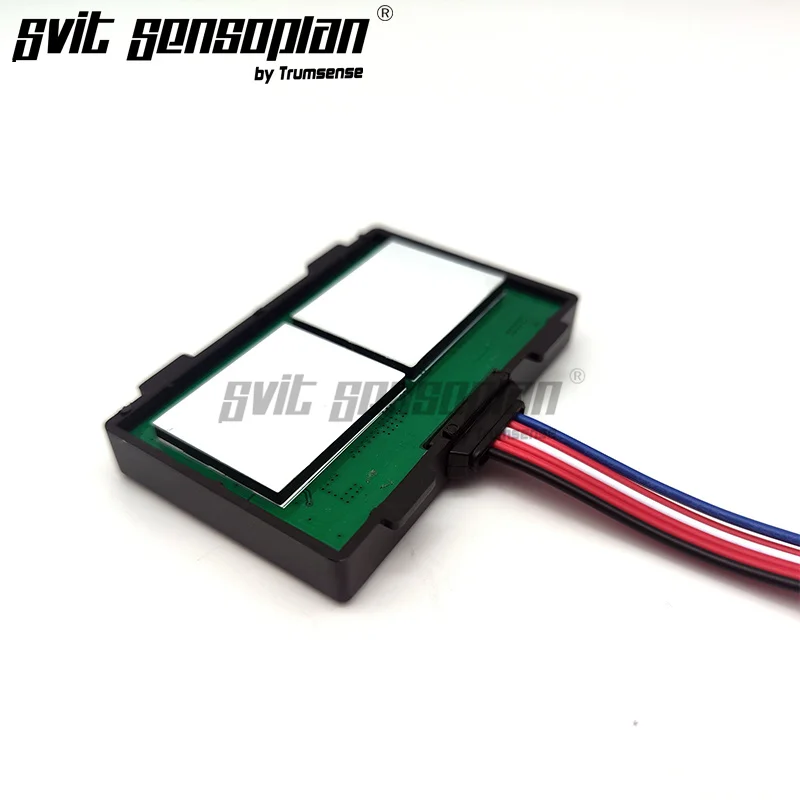

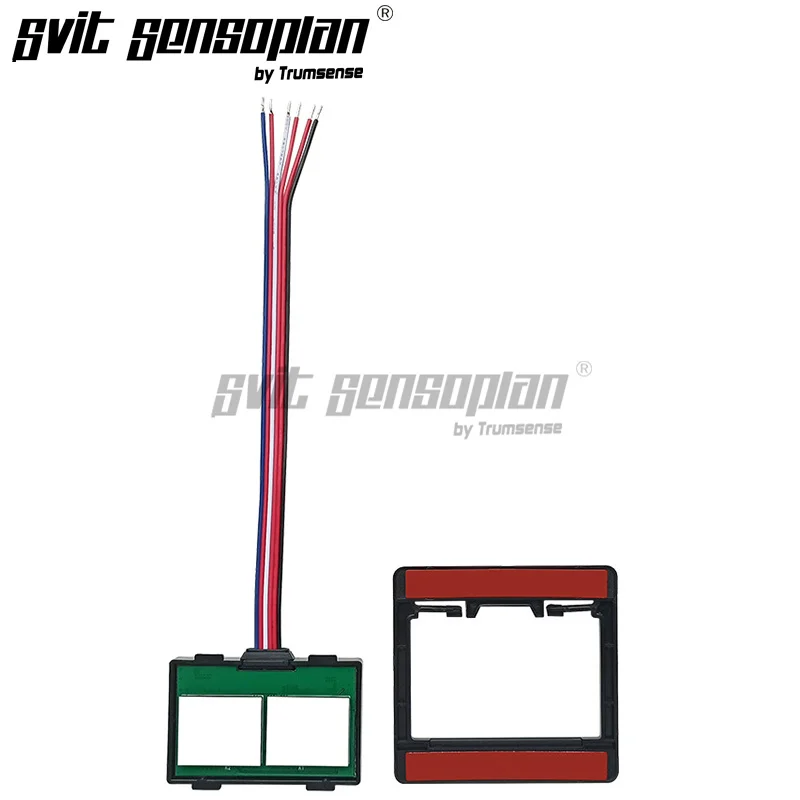

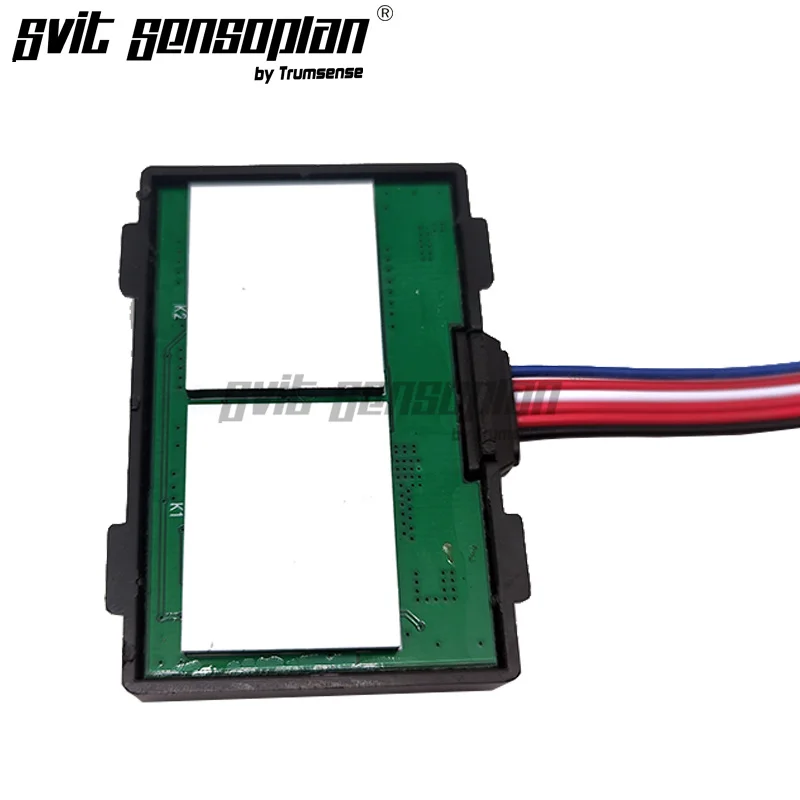

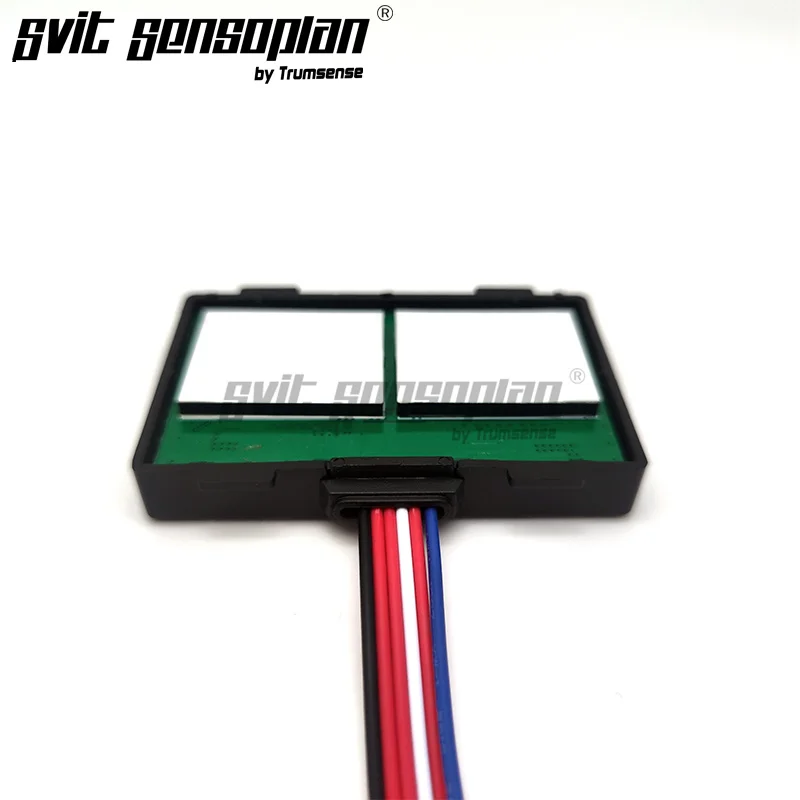

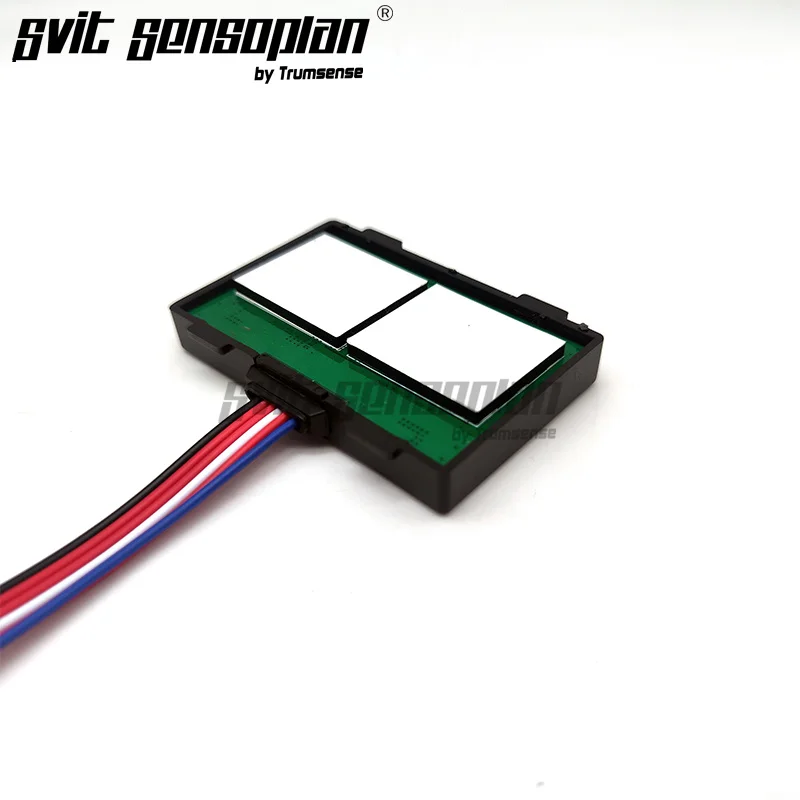

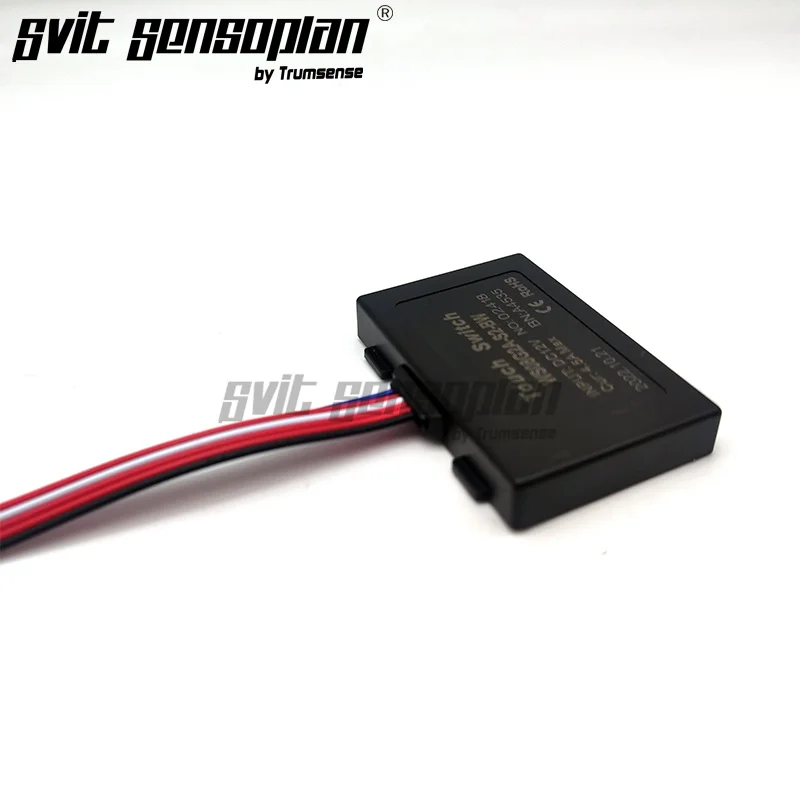

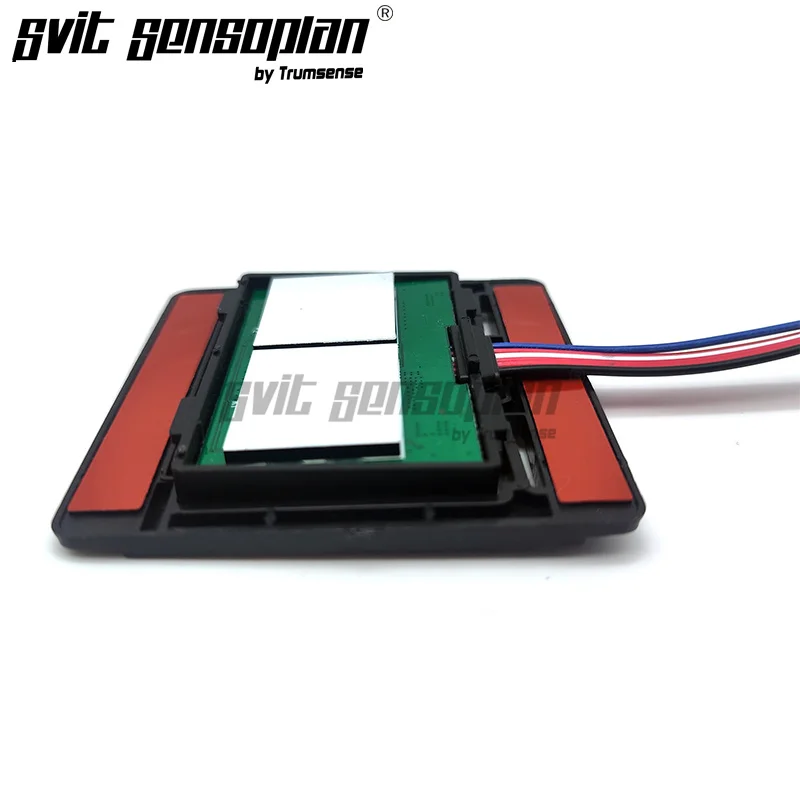

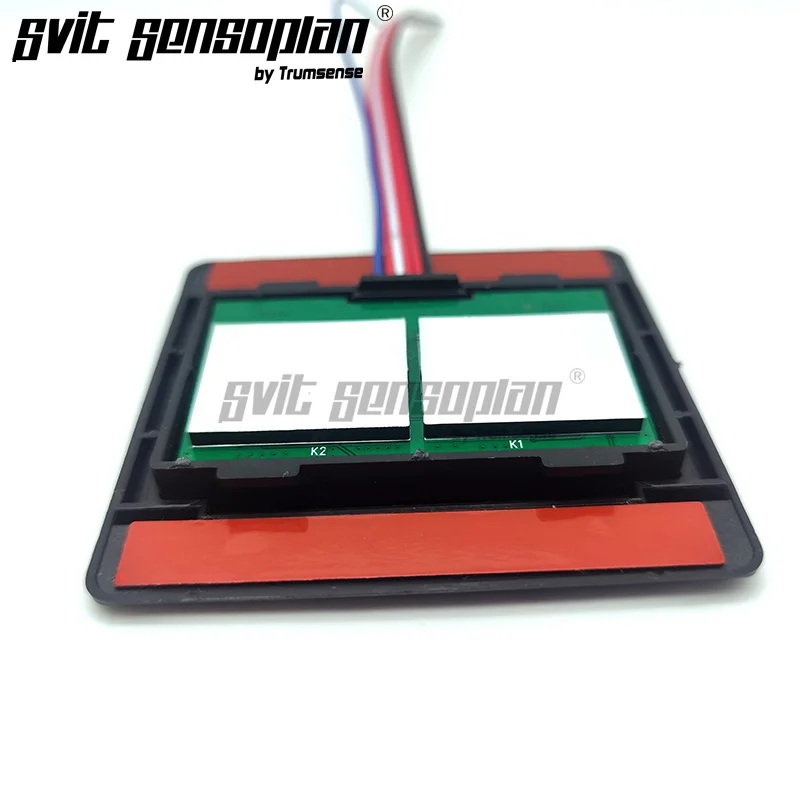

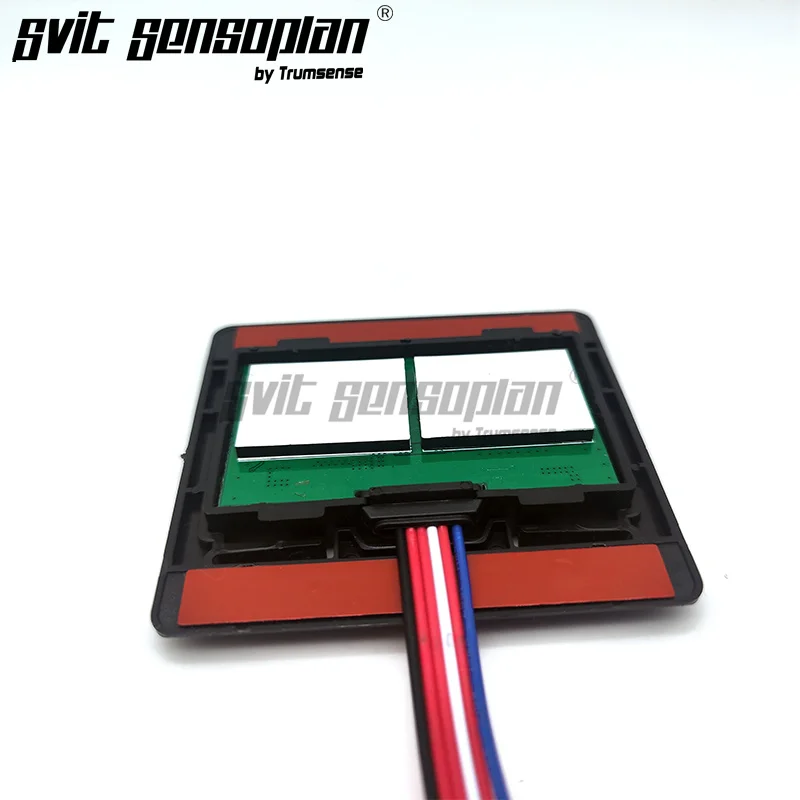

8: You Will Receive The Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch , model : WS08G2A-S2-BW ,Totally Same As the Detail Photos Showed Below:

9: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.

​
