Electromagnetic Flowmeter DN80 with PTFE Lining and SS316L Electrode 4-20mA/Pulse Output 9-120 m³/h Flow Rate AC220V Power
We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

Trumsense STTEF220420P DN80 PTFE Lined SS316L Electromagnetic Flowmeter for Corrosive Liquids DN80 Flange 9-120 m³/h 4-20mA and Pulse Dual Output

Item No.: 00697
●Official Whats app: 008613891846516
●Pure copper excitation coil, improved anti-interference
●PTFE lining. 0.5% Accuracy. 、
●Fully automatic flow calibration.
●Suitable for sewage, wastewater, slurry, and pulp.
●IP68 protection rating.
Description Review
Description

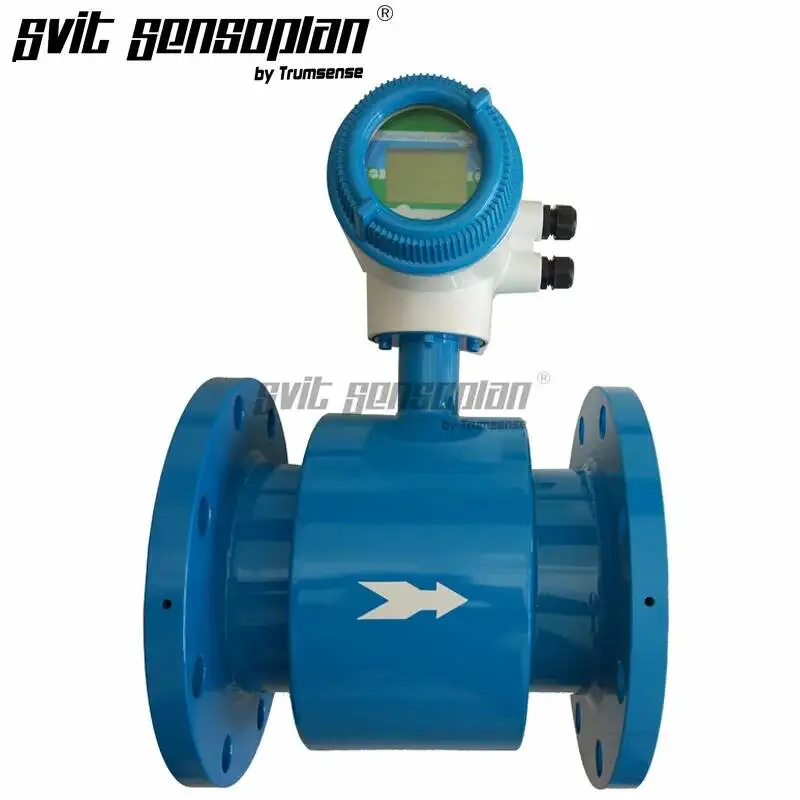

Trumsense DN80 Electromagnetic flowmeter



You will receive the electromagnetic flowmeter, same as below parameters:

● Size: DN80

● Power Supply: AC220V

● Output: 4 to 20mA + Pulse

● Display: LCD

● Flow Range: 9 to 120 m3 per hour

● Accuracy: 0.5%

● Pressure: 1.6 Mpa

● Temperature resistance: 70 celsius degree

● Electrode: SS316L

● Lining: PTFE

● Connection: Flange

● Instantaneous flow measuring: yes

● Cumulative flow amount measuring: yes

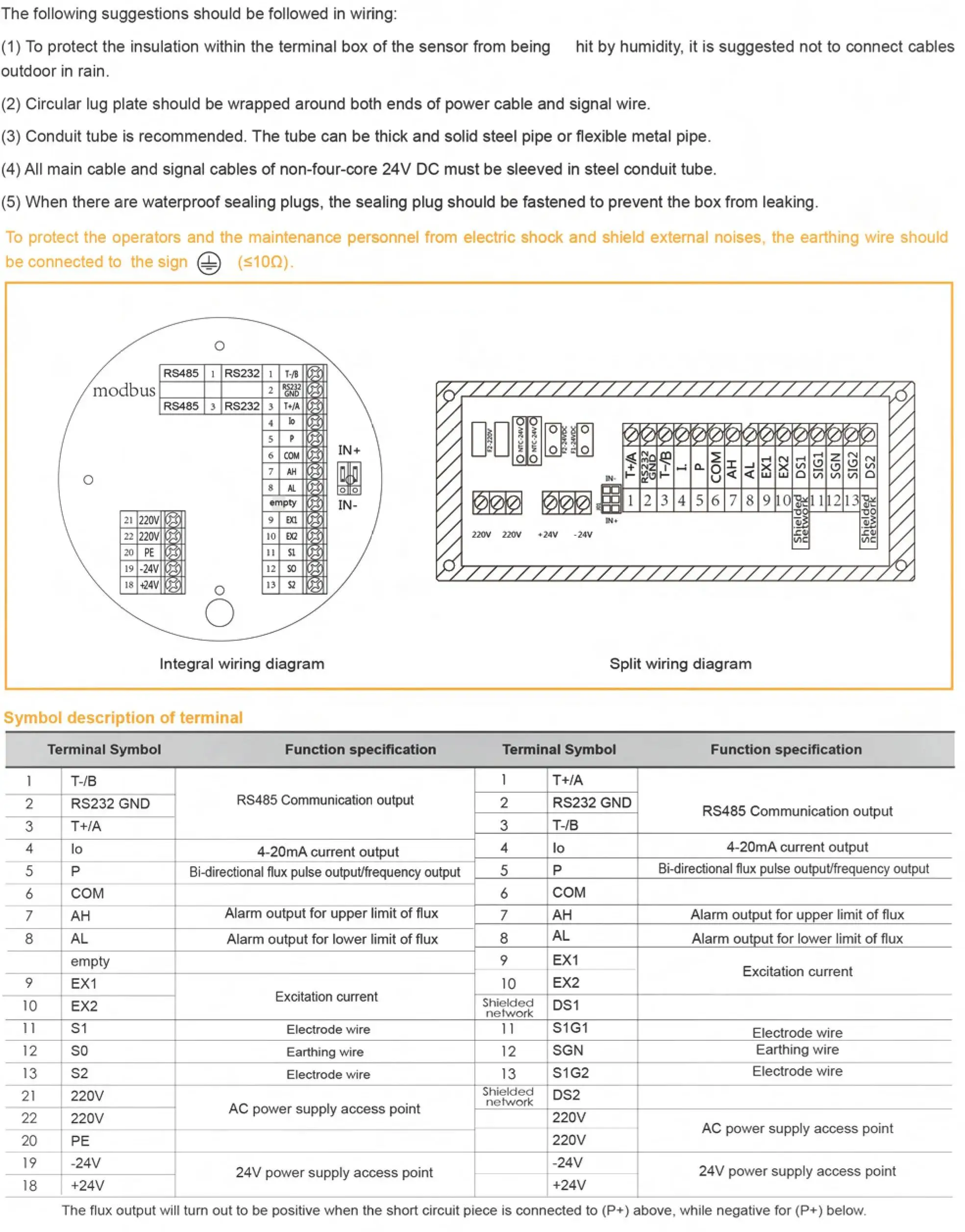

Wiring of Trumsense Electromagnetic flowmeter

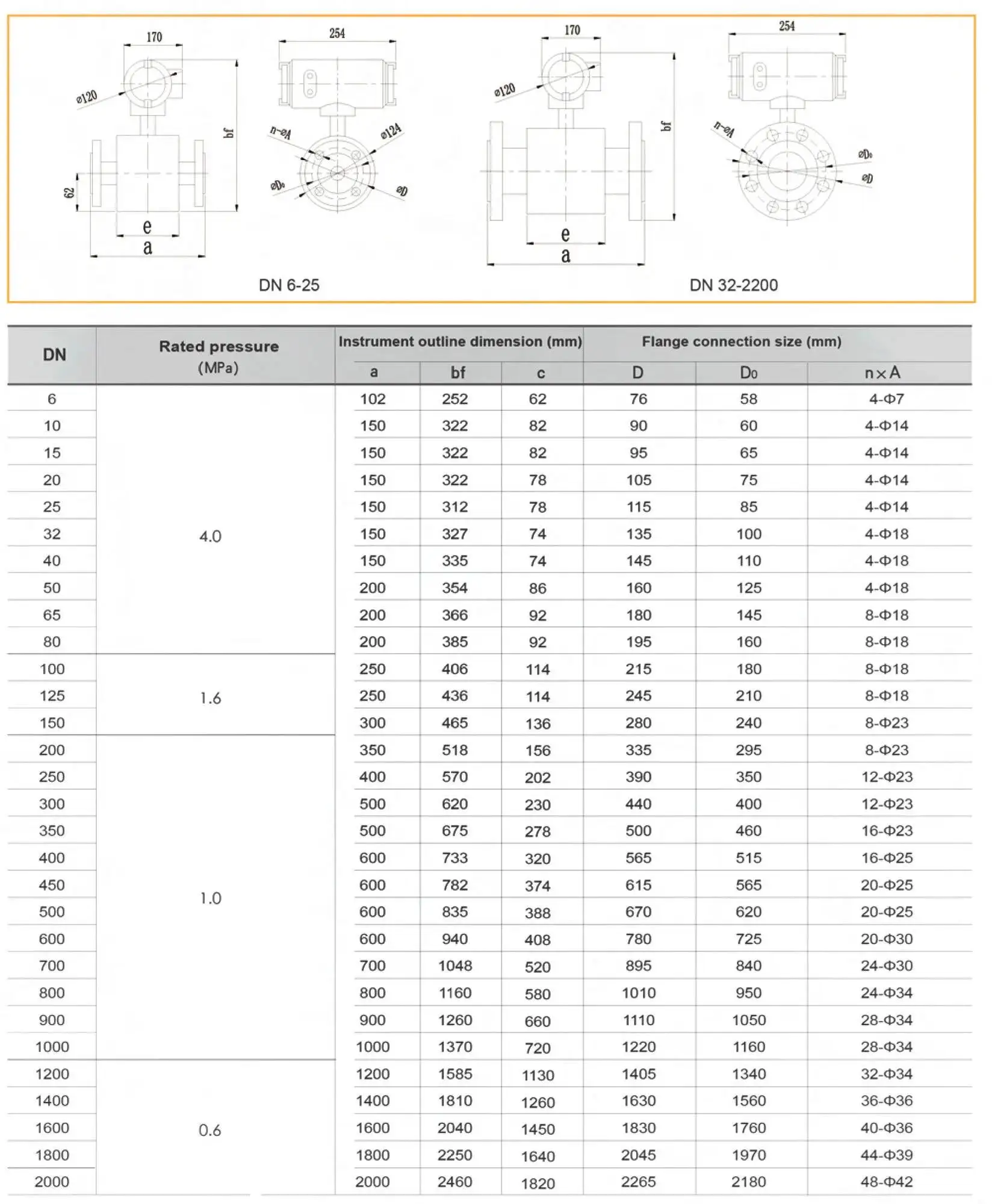

Size of Trumsense Electromagnetic flowmeter
