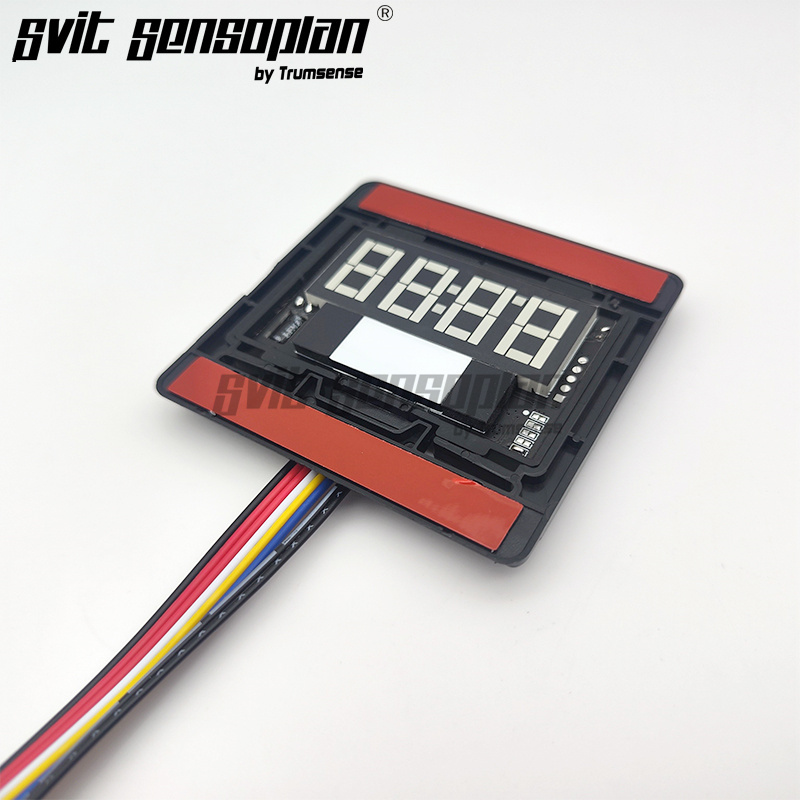

Trumsense K3103B-S7-WW Hand Wave Sensor Switch Time Temperature Display for Bathroom LED Mirror Stepless Dimming Defog Control

Trumsense K3103B-S7-WW Hand Wave Sensor Switch Time Temperature Display for Bathroom LED Mirror Stepless Dimming Defog Control

Name: Trumsense K3103B-S7-WW Hand Wave Sensor Switch Time Temperature Display for Bathroom LED Mirror Step
Brand: Trumsense Precision Technology
SKU: 00713
Availability: InStock
Rating: 5 (1 reviews)

Item No.: 00713

●ledmirror-touchswitch@trumsense.com
●Time, temperature, anti-fog switch, and 3-color light control are all achieved with a simple wave of the hand.
●15cm long sensing distance ensures greater sensitivity.
●light gradually brightens design

Request Quote Contact Us PDF Format

Trumsene Sensor Switch Catalog 231101 V2.1

Free Sample

Description What Specail? Wiring And Installation Why Choose Trumsense®？ Review

Description

Buying options explanation:

▶K3103B-S7-WW

Control 2 colour LED strip

12 or 24 hour time mode display

Celsius or Fahrenheit temperature mode display

Wave your hand to turn on the light.

Wave your hand to switch among "cold light- natural light-warm light-off",

When the hand covers the sensor window, the brightness can be adjusted steplessly

Wave hand again to turn off the light.

* Anti-fog film on off will be synchronized with above mentioned LED light on off actions.

★ Trumsense Factory Warehouse Directly Delivery

● Model: K3103B-S7-WW

● No need to touch, only need hand sweep

● Steplessly adjust the brightness

● Dimming among "cold light- natural light-warm light-off"

● Suitable for below 6 mm thickness mirror

● Slowly become brighter or darker, protect your eyes

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ...

1: Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control Wholesales Price Reminding:

We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.

2: Important Before You Place An Order of Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control In This Link:

a: We only produce and sell touch switch sensor,do not produce and sell mirror.

b: We will only send you the touch switch sensor, do not send mirror.

c: You will only receive the touch switch, you will not receive any mirror.

d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

possible places,only with the purpose to show the final performance or functions, after you install our mirror IR hand waving sensing switch, on your old/existing mirrors.

e: The most important job is: remove the mercury, to make it transparent, to match our mirror IR hand waving sensing switch, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.

f: We are the factory, we will make the mirror IR hand waving sensing switch work perfectly with our instruction, after your parcel was received.

g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.

3: Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control Detail Video :

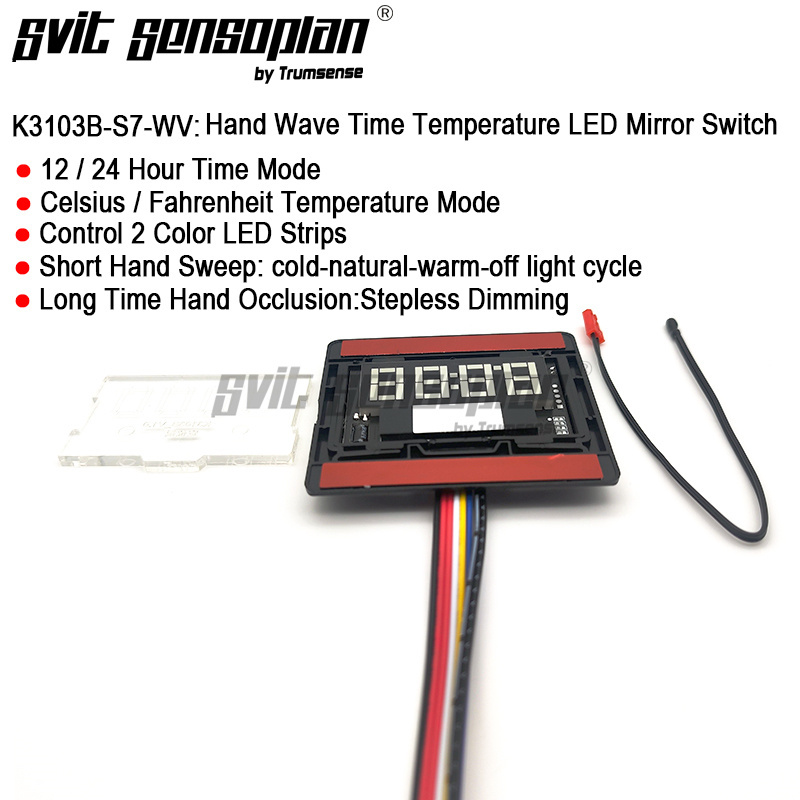

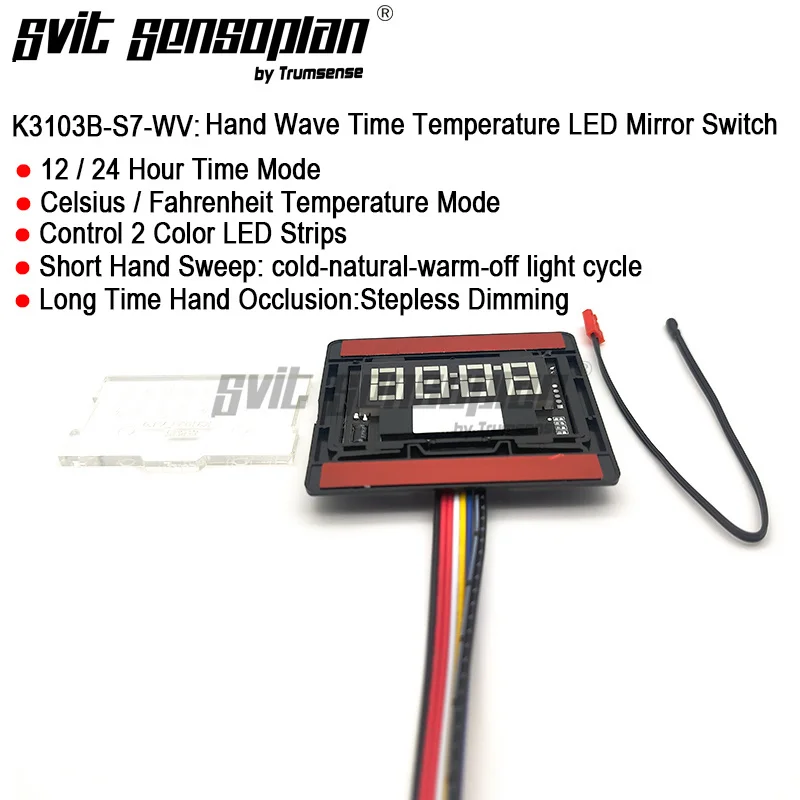

4: Basic Function of Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control:

Control 2 colour LED strip

12 or 24 hour time mode display

Celsius or Fahrenheit temperature mode display

Wave your hand to turn on the light.

Wave your hand to switch among "cold light- natural light-warm light-off",

When the hand covers the sensor window, the brightness can be adjusted steplessly

Wave hand again to turn off the light.

* Anti-fog film on off will be synchronized with above mentioned LED light on off actions.

5: Parameters of Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control:

Switch name: mirror infrared sensor switch

Item model number: K3103B-S7-WW

Working voltage: DC12V

Switching current: 4A

Quiescent current: 35mA

Control method: Active infrared sensing

Induction distance: 10-15cm

Support mirror thickness: ≤6mm

Brightness adjustment range: 5%~ 100%

Color temperature adjustment: stepless color temperature / 3 color temperature

Load power: 48W

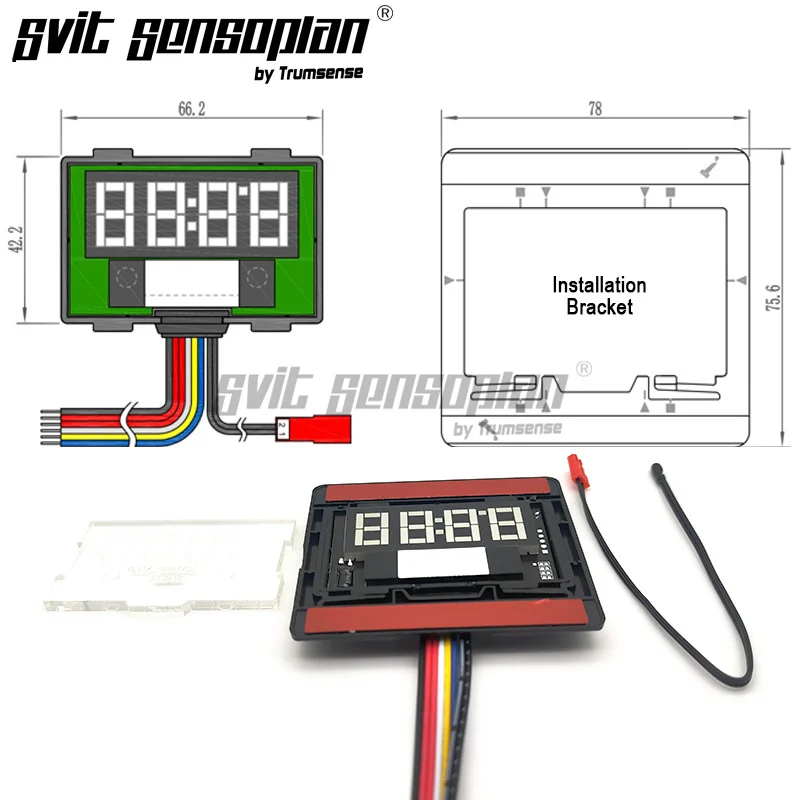

Size: 66.2x42.2x10 mm

6: Installation of Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control :

a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction: ( refer to the similiar video here: https://youtu.be/rGfZ5Cd3Vks ):

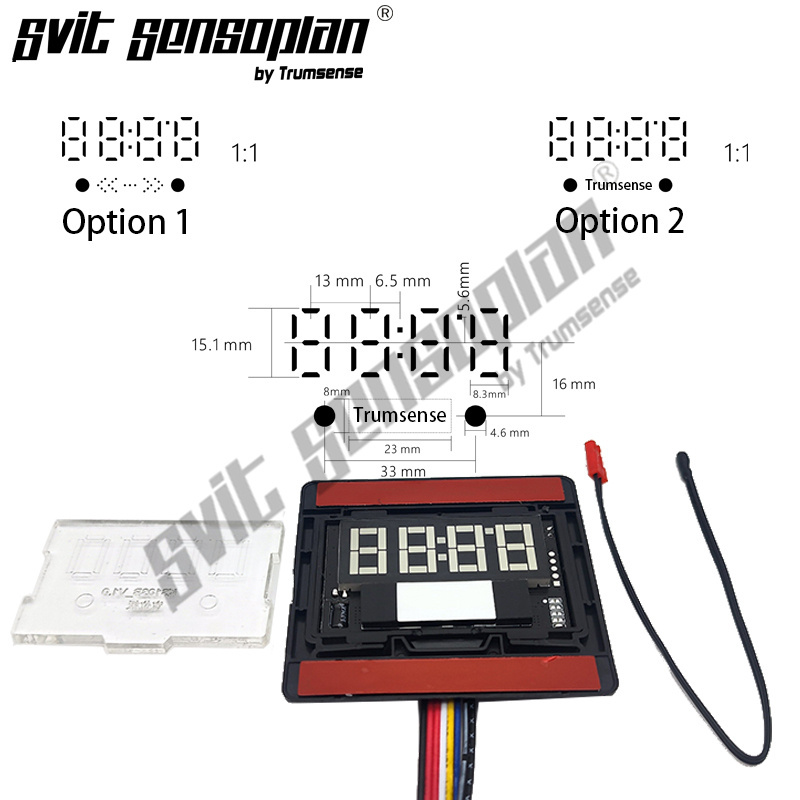

for the sensing window icon ,you has 2 options to choose:

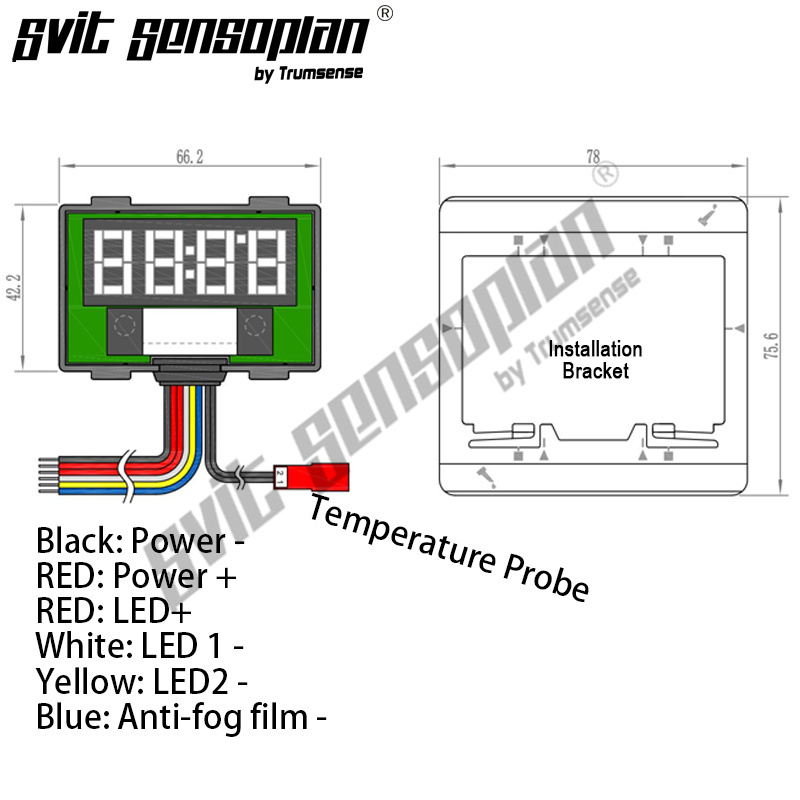

b: wiring Diagram:

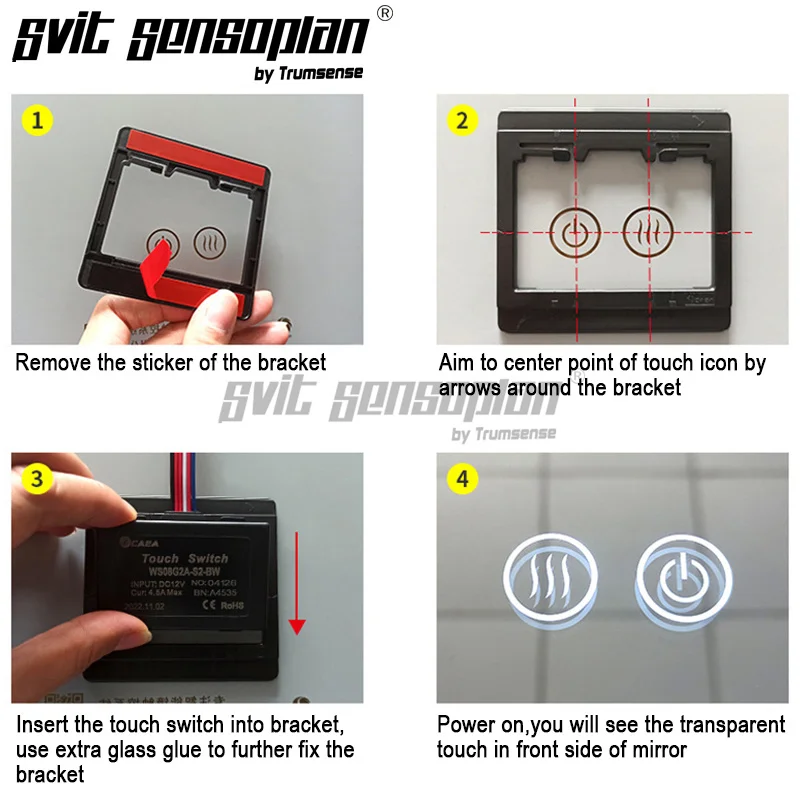

c: installation:

7: Applications of the Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control,used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

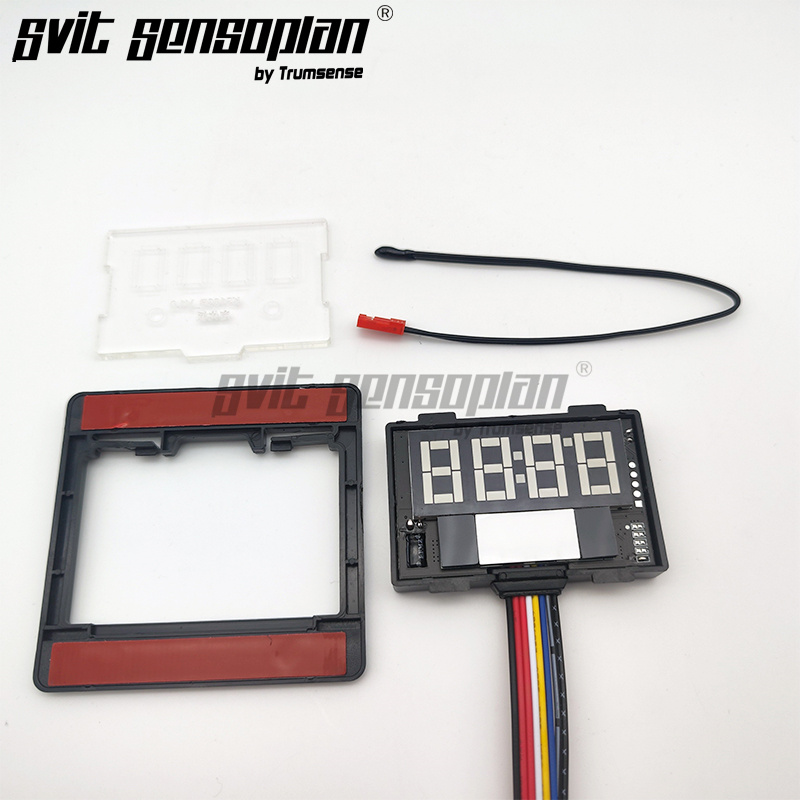

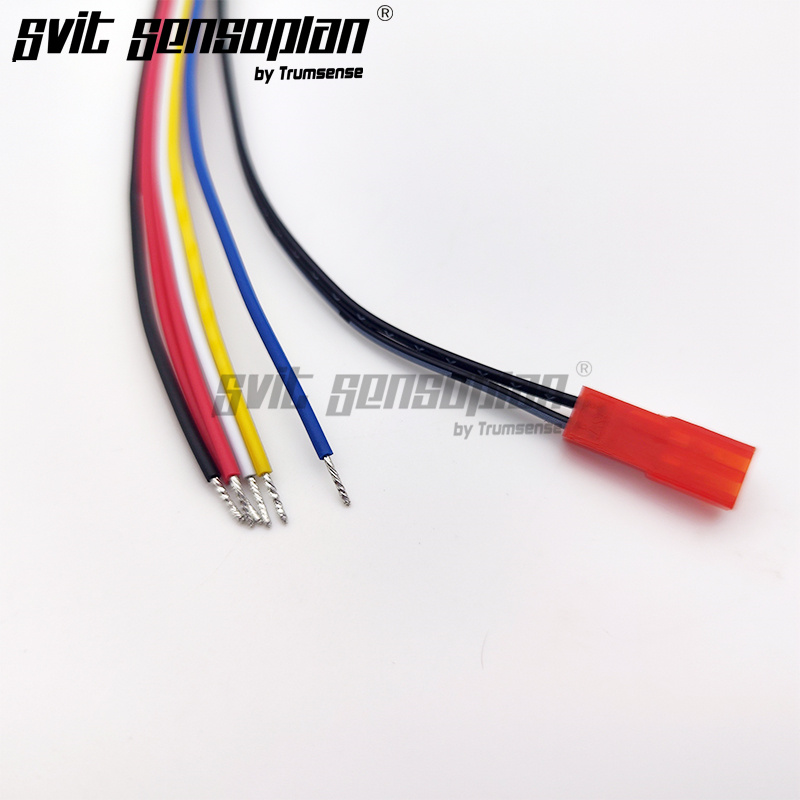

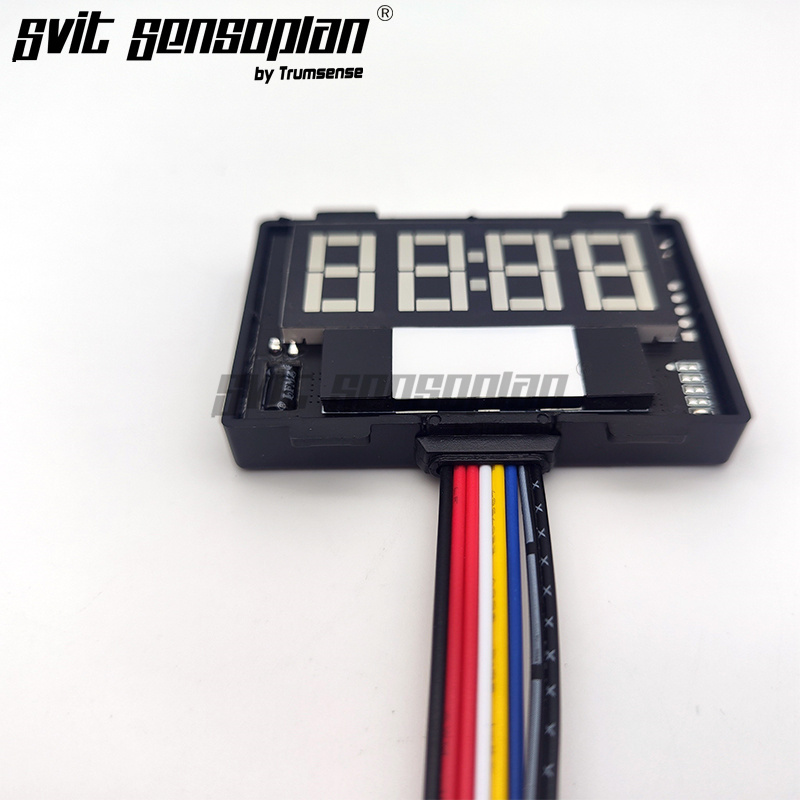

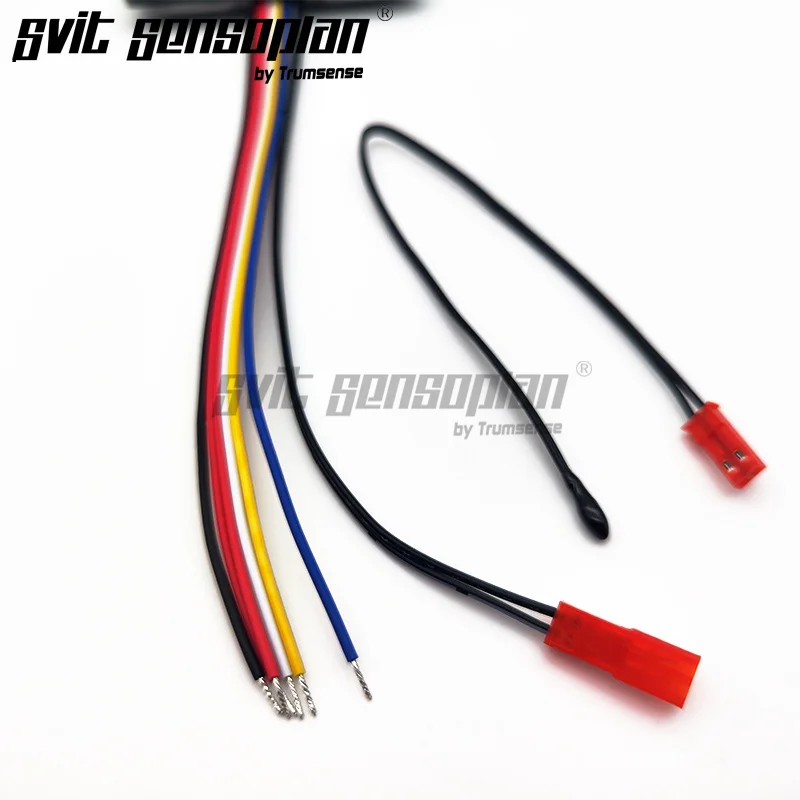

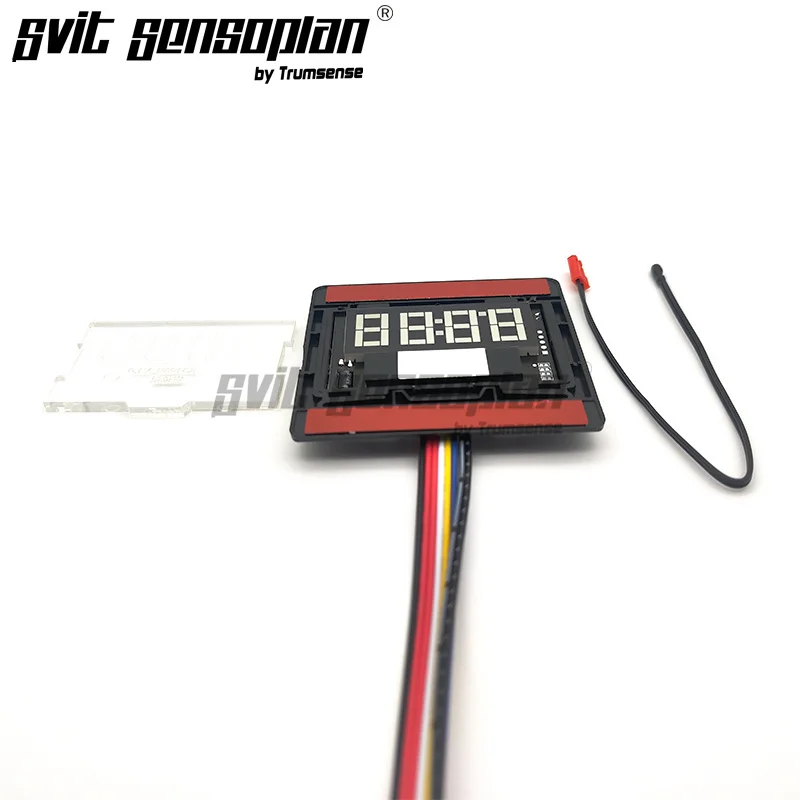

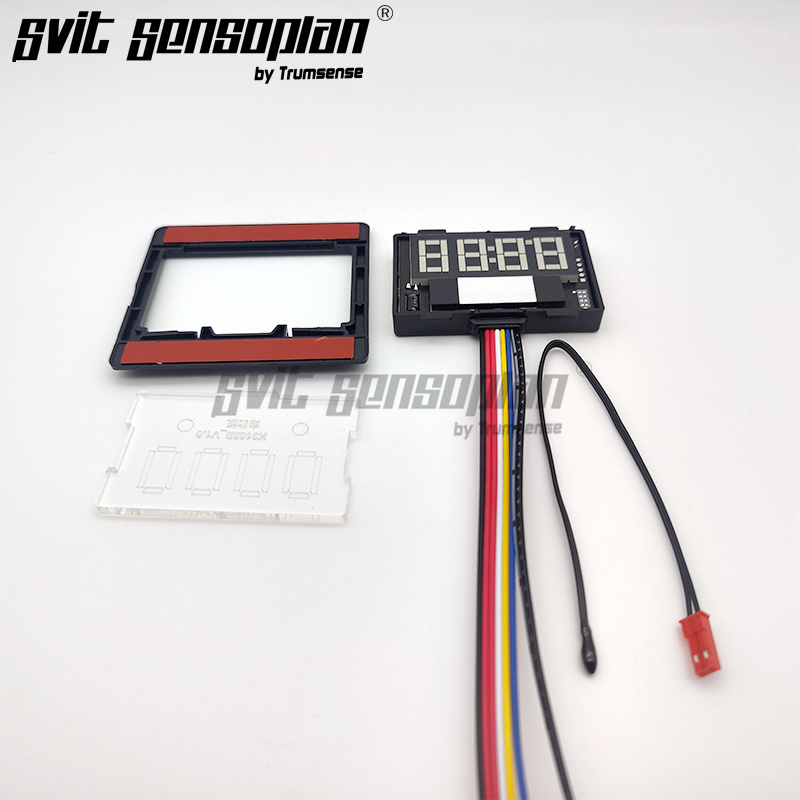

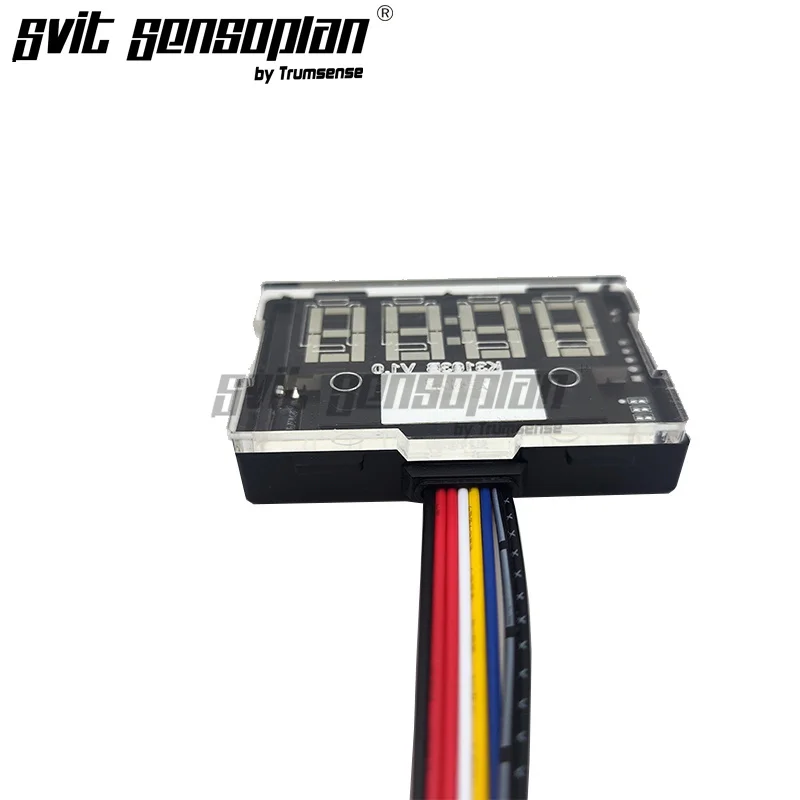

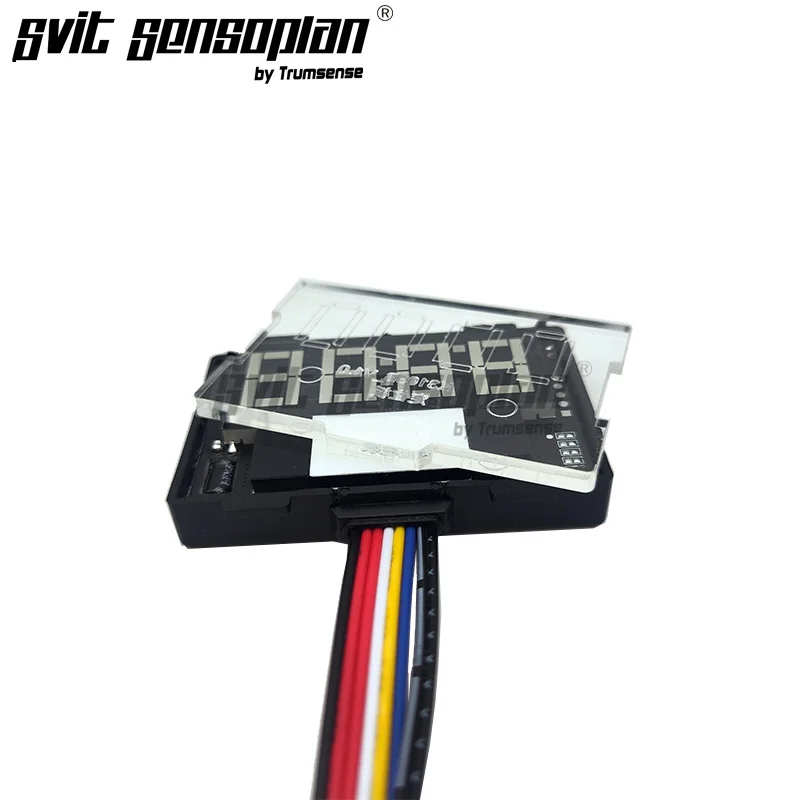

8: You Will Receive Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control, Totally Same As the Detail Photos Showed Below:

K3013BA，K3013CA，WS08CA，WS08CB，WS08D1，WS08D2，WS08F2，WS08F3，WS08，EX-01,FD-01，FD-04,

K3013,K3014A,k3014AF,K3030B,k3015CA,K3015CAL,K3015CAH,K3015CBF,k3015CA-USB,K3015CBH,WS08CB-S5A-BW,WS08CB-S1-BW,WS08CB-S2-BW,WS08CB-S4-BW,WS08CA-A0-B,WS08CA-A0-W,WS08CA-A2-BW,WS08CA-A1-B,WS08CA-A1-W,WS08D1-S3A-BW,WS08D1-S4-BW,WS08D1-S5-BW,WS08D1-S5A-BW,K3013BA-S1-BW,K3013BA-S1-RB,K3013BA-S1-B,K3013CA-A0-B,K3013CA-A2-BW,K3013CA-A1-B,K3013CA-A3-BW,K3013CA-A1-W,K3013CA-A0-W,K3100C-WB,K3102A-S2-WB,K3102A-S5A-WB,WS08F2-S2-BW,WS08F2-S3-BW,WS08F2-S3A-BW,WS08F2-S5-BW,WS08F2-S5A-BW,WS08D2-S1-BW,WS08D2-S2-BW,WS08F3-M2-BW,WS08F3-M2A-BW,

china smart sensor, trumsense, trumsense precision technology,svitsensoplan,

svitsensoplan by trumsense,smarter sensor,smarter sensor by kaishengsi, speaker,3D speaker,water proof speaker,speaker for bathroom,speakers with high quality，foshan,power amplifier, led power converter,LED mirror,led,bathroom mirror,

washroom mirror,closet mirror,hotel bathroom touch mirror, mirror with touch switch, mirror with dimmer,led mirror with bluetooth,K3015CA, K3015CA-USB,K3015CBF， K3015CBH, K3015CBS, led mirror with touch panel, led mirror with radio, foshan,led mirror with temperature, mirror with clock, mirror with mist removing , anti-fog mirror, smart mirror, intelligent touch mirror,intelligent led mirror, intelligent bathroom mirror, power amplifier,current amplifier,current amplifier,power enlarger,D14,power adapter,

led strip converter,led converter,led power converter,D24,big power led converter,K3030B,WS08 touch switch, K3014AF,foshan,touch swith with anti-fog,anti-fog led mirror,WS08F3,2 key touch switch, 3 key touch switch, 4 key touch switch,foshan,5 key touch switch,led light mirror, mirror,led mirror,light mirror,touch dimmer,light dimmer,led light dimmer,3 key touch switch, 4 key touch switch, 5 key touch switch, guangdong,6 key touch switch,dual key touch switch, double key touch switch, 1 key touch switch, single touch switch,miror,led light,led light mirror,led mirrors,china, smart, sensor,trumsense,trumsense precision, foshan led strip, foshan led mirror, foshan touch switch,touch switch on mirror touch switch for bathroom mirror touch switch touch switch mirror touch mirror switch on/off touch switch for mirror lamp hotel bathroom touch switch touch switch with time display touch switch with temperature display anti fog mirror touch switch for mirror glass touch switch glass touch switch panelglass panel touch switch touch switch glass panel touch switch glass touch switch crystal glass switch panel dimmer touch glass switch touch switch white crystal glass glass switch panel touch sensor wall switch touch glass switch 220v 1 way touch switch crystal glass touch switch white crystal glass panel

What Specail?

√ Time, temperature, anti-fog switch, and 3-color light control are all achieved with a simple wave of the hand.

√ A 5mm mirror-penetrating sensor turns on the light simply by swiping your palm across the sensor area; the switch is entirely under your control.

√ No contact with the mirror is required; a 15cm long sensing distance ensures greater sensitivity.

√ The light gradually brightens as your palm sweeps across the sensor area, allowing your eyes a brief adjustment period.

Wiring And Installation

Installation of Trumsense K3103B-S7-WW IR Hand Waving Sensor Dimming Switch With Time Temperature Display and Anti-fog Film On Off Control :

a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

for the sensing window icon ,you has 2 options to choose:

b: wiring Diagram:

c: installation:

Why Choose Trumsense®？

In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above functions can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
