The ducted wind speed sensor, the shell is made of high temperature resistant and corrosion resistant material, the sensor is based on the principle of heat dissipation, and the breeze can also be detected. Even in harsh environments, the performance is stable and reliable; compared with other traditional wind speed sensors, better stability can be obtained, which can ensure faster and accurate micro wind measurement and accuracy. Linear compensation and temperature compensation are realized automatically, so the accuracy and High resolution; no zero offset, excellent long-term stability, and high cost performance. In addition, this series of sensors can withstand instantaneous high wind speed and high wind pressure.
Application fields:
It can be widely used in meteorology, ocean, environment, airport, port, laboratory, industry and agriculture, transportation and other fields. Mainly used in HVAC heating, ventilation and air conditioning, flue gas processing pipelines, coal mines and various pipeline systems. It is also suitable for small wind speed measurement in operating room, clean room, biological laboratory, electronic medicine environment and other fields.
Technical Parameter:
Measuring range: 0~ 1m/s
or 0~ 3m/s or 0~5m/s or 0~ 10m/s
or 0~ 15m/s or 0~ 20m/s or 0~ 30m/s
Air volume range: 0~ 9999999 m3/h
Cross-sectional area range：0.01 ~ 100 m2
Accuracy: ±(0.2+2%FS) m/s
Resolution: 0.01m/s
Starting wind speed: ≤0.1m/s
Sampling frequency: 5Hz
Output form: RS485 (default Modbusm, optional: ASCII or SERVER) 0-5V 4-20mA
Powered by: DC 5-30V (The cable must be greater than or equal to 0.5mm2, and the length should be less than or equal to 5 meters when the power is supplied by 5V)
Instrument cable length: Standard: 0.8 meters or customized length
Maximum power consumption: 3W
Probe length: 190mm
Working environment: Temperature: -40°C~ +80°C
Humidity: 0 ~ 100%RH without condensation
Protection level: IP64
Cable grade: Rated voltage: 300V 80°C

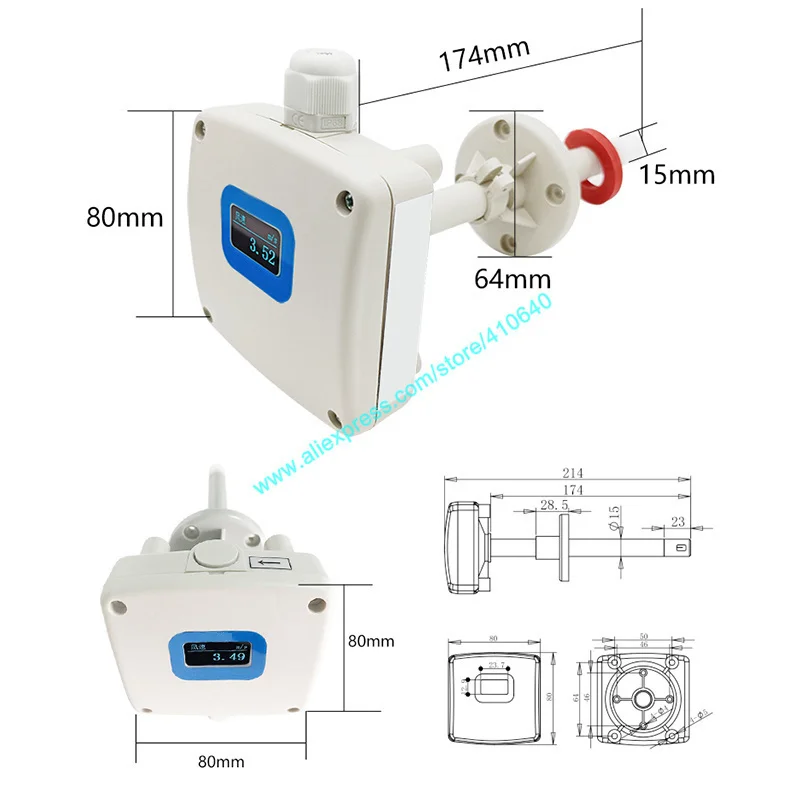

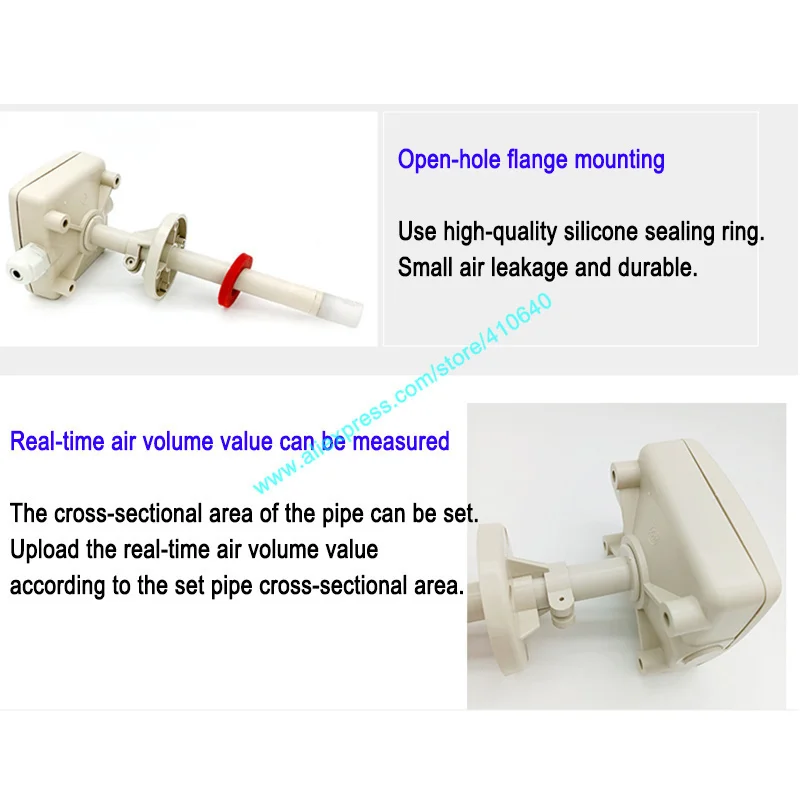

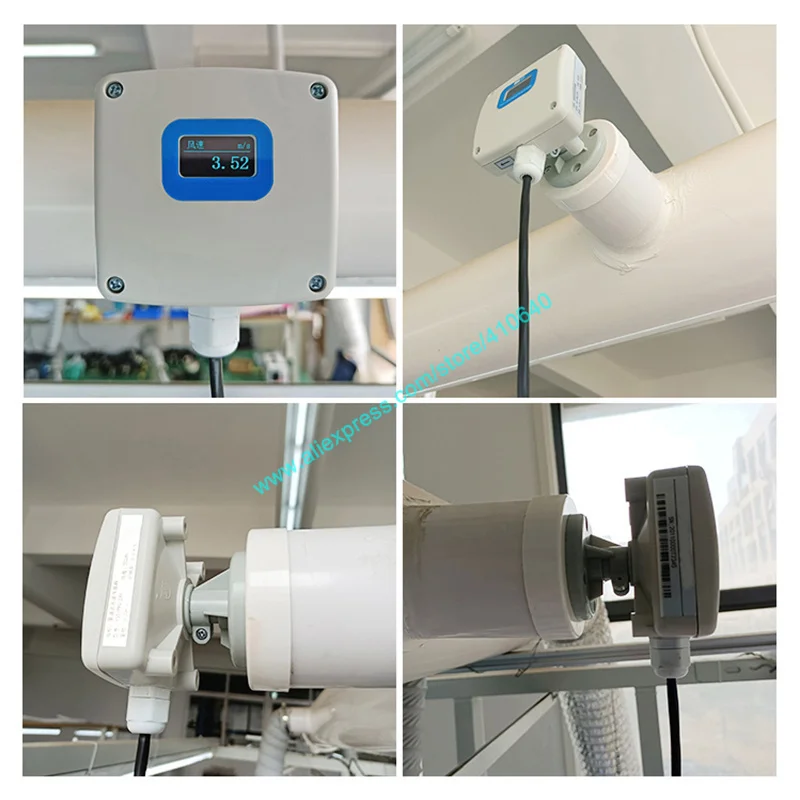

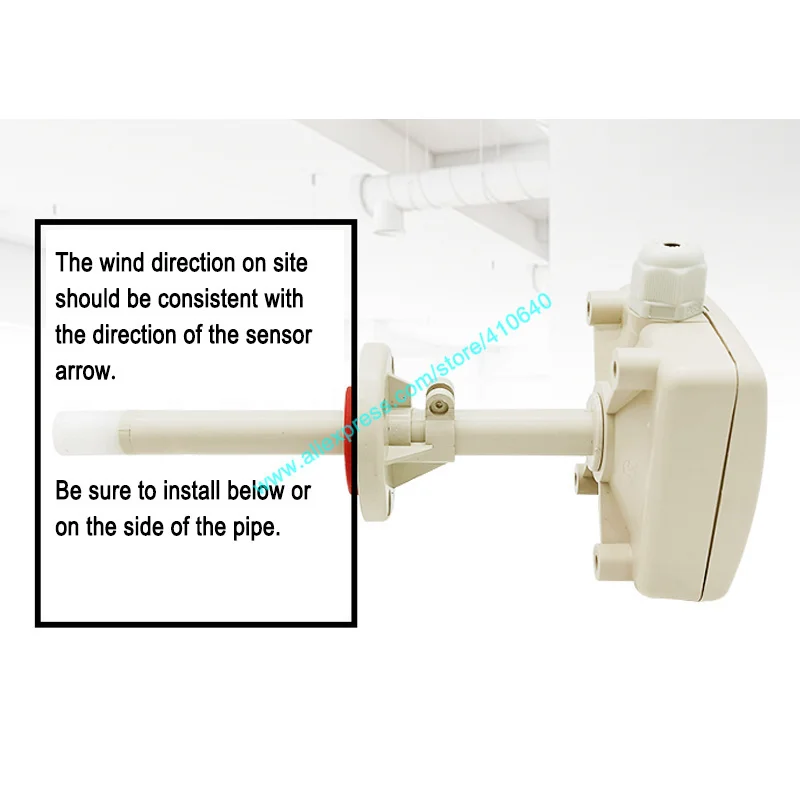

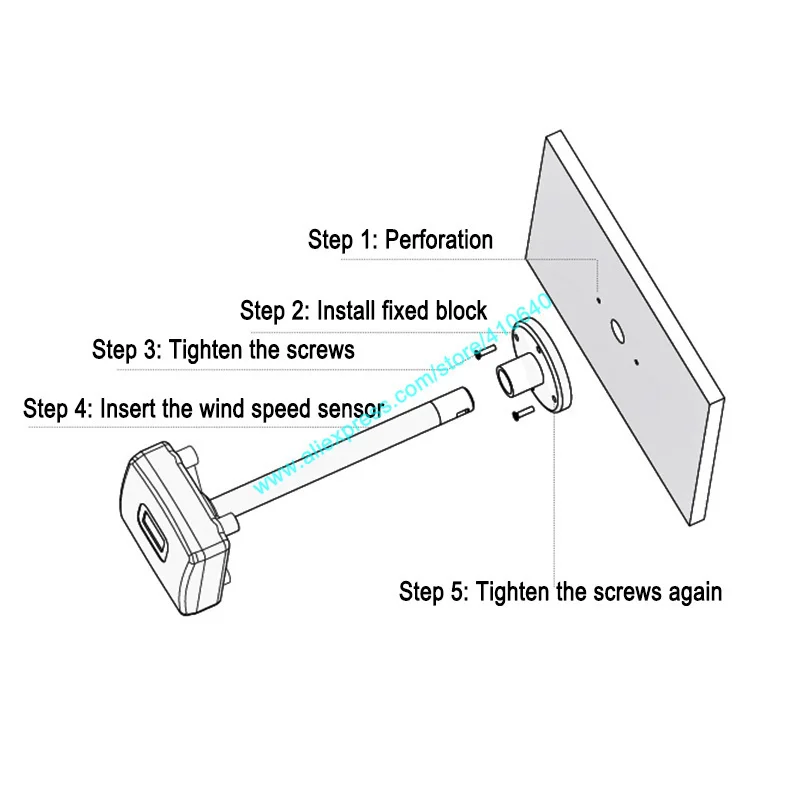

Installation of the ducted type wind speed sensor:

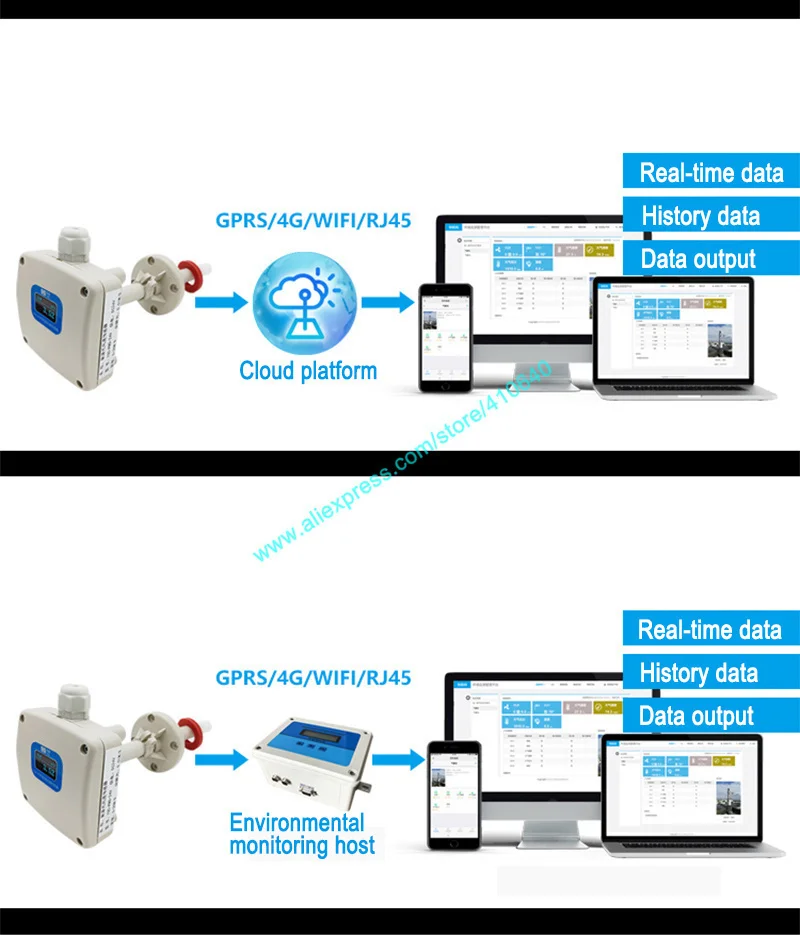

Data transmission methods of the ducted type wind speed sensor:

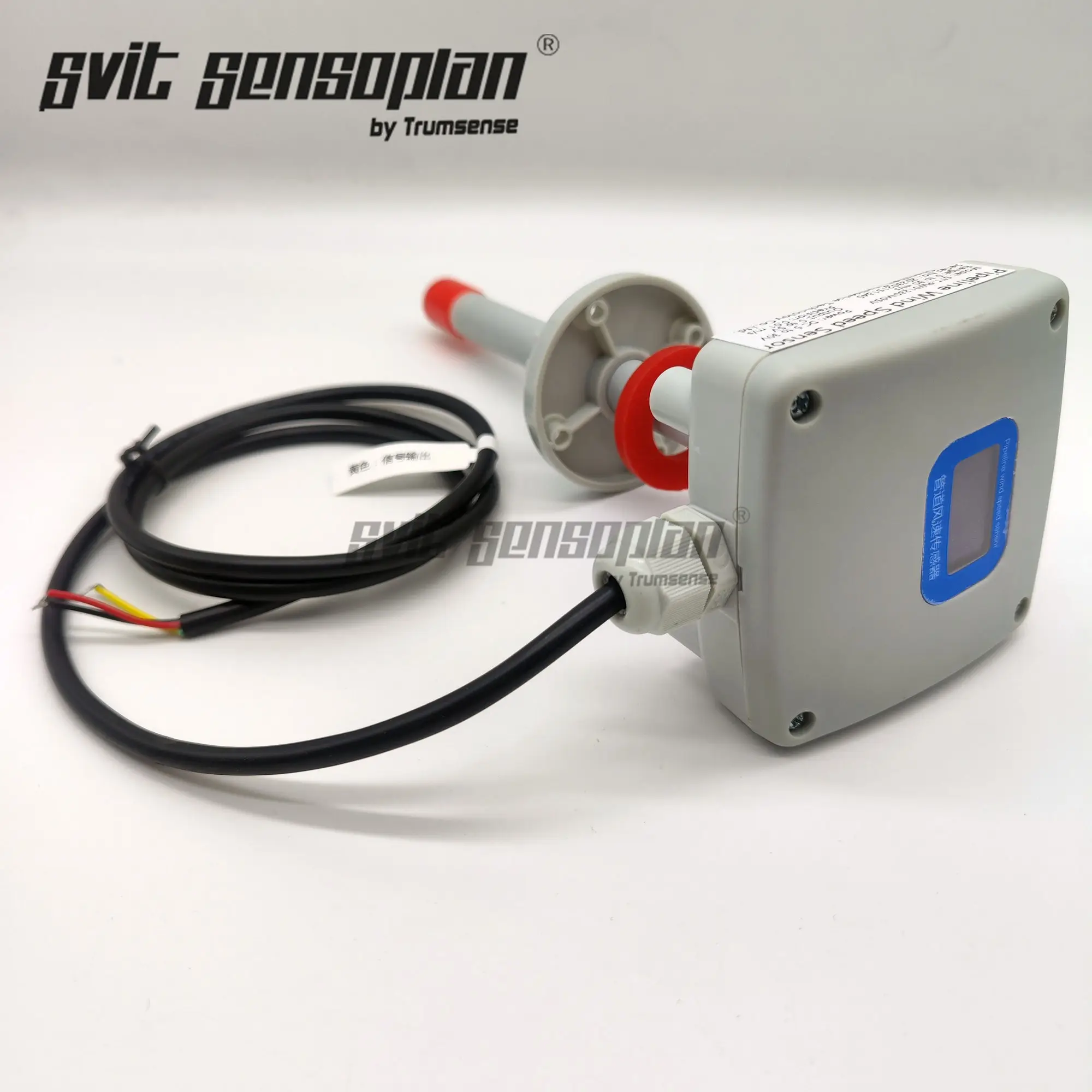

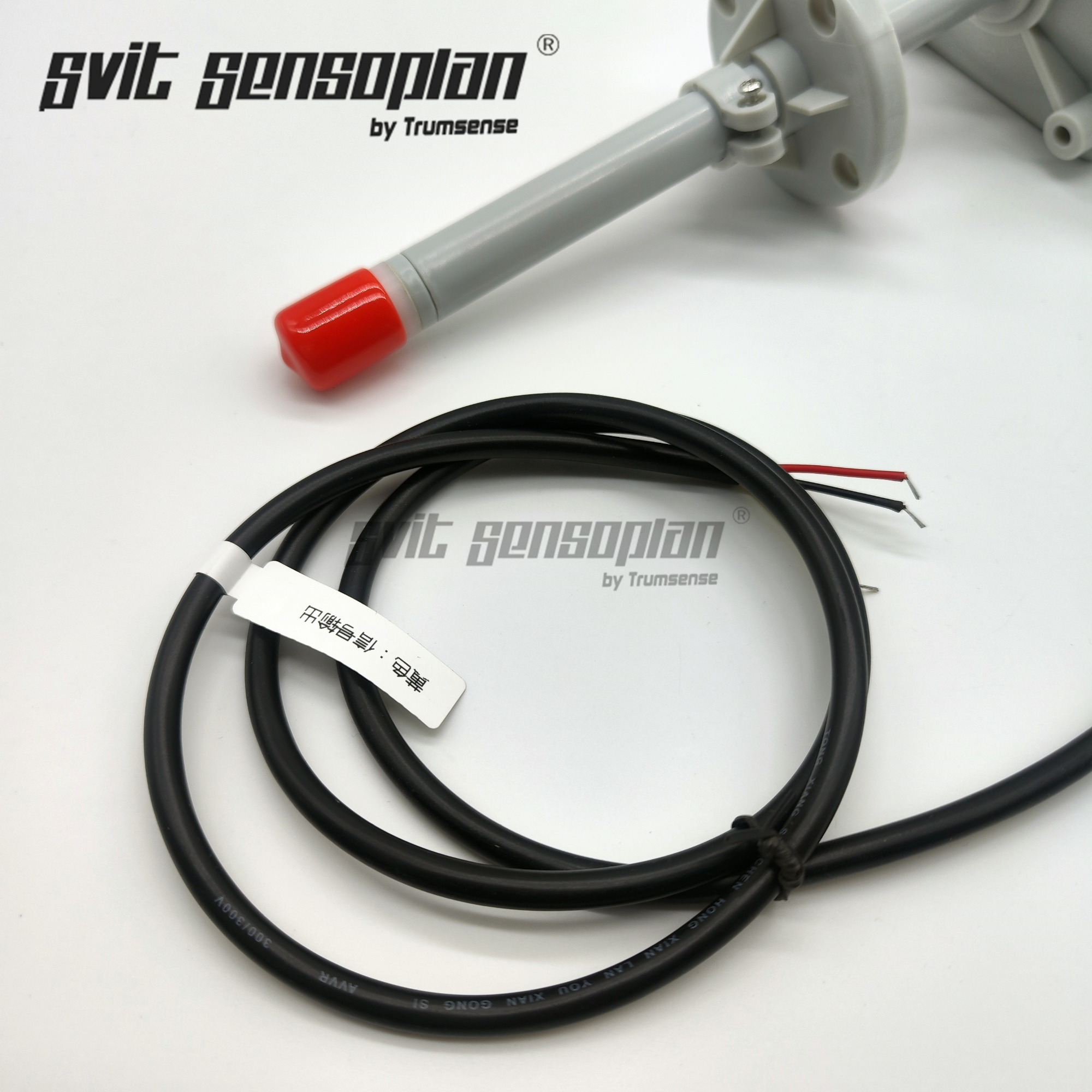

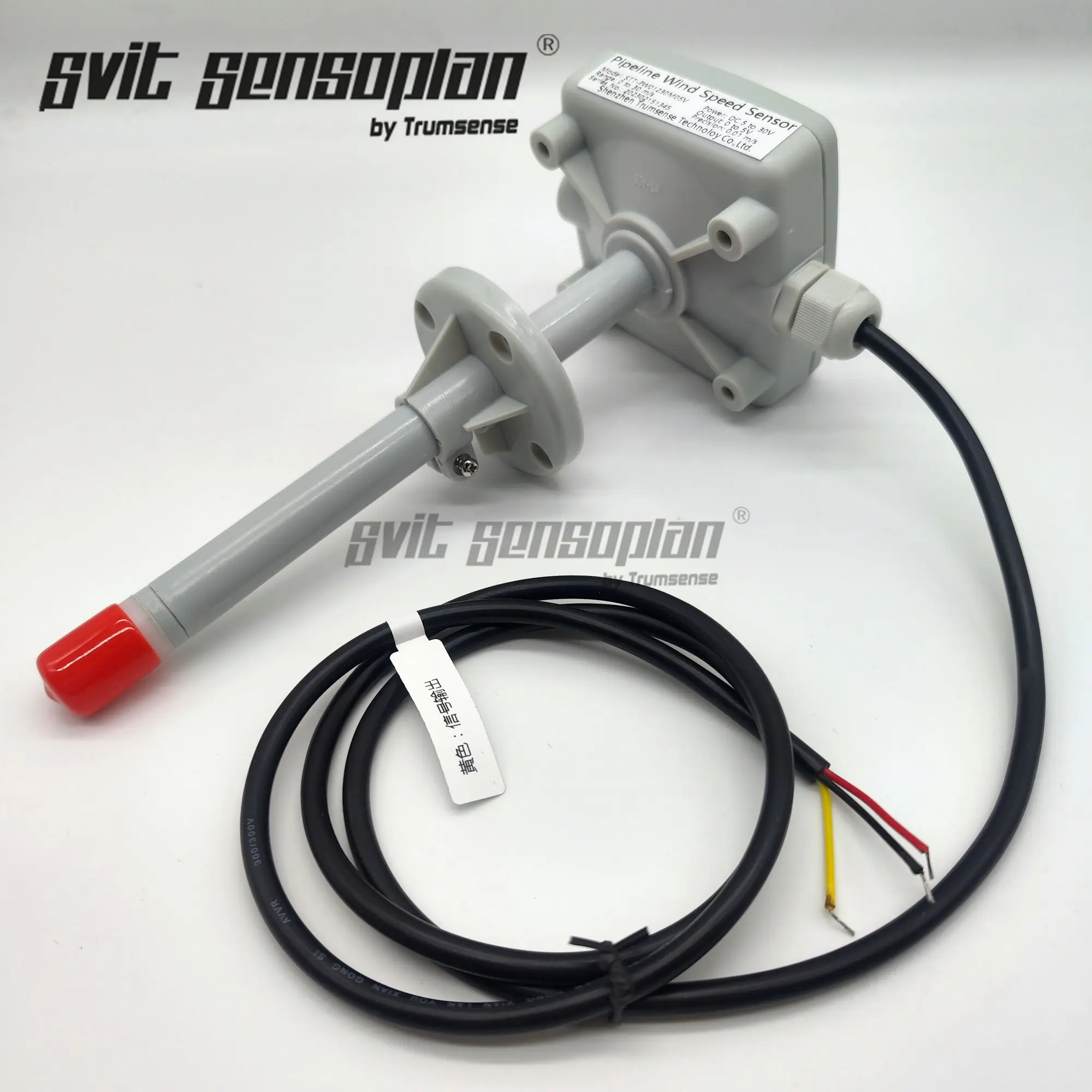

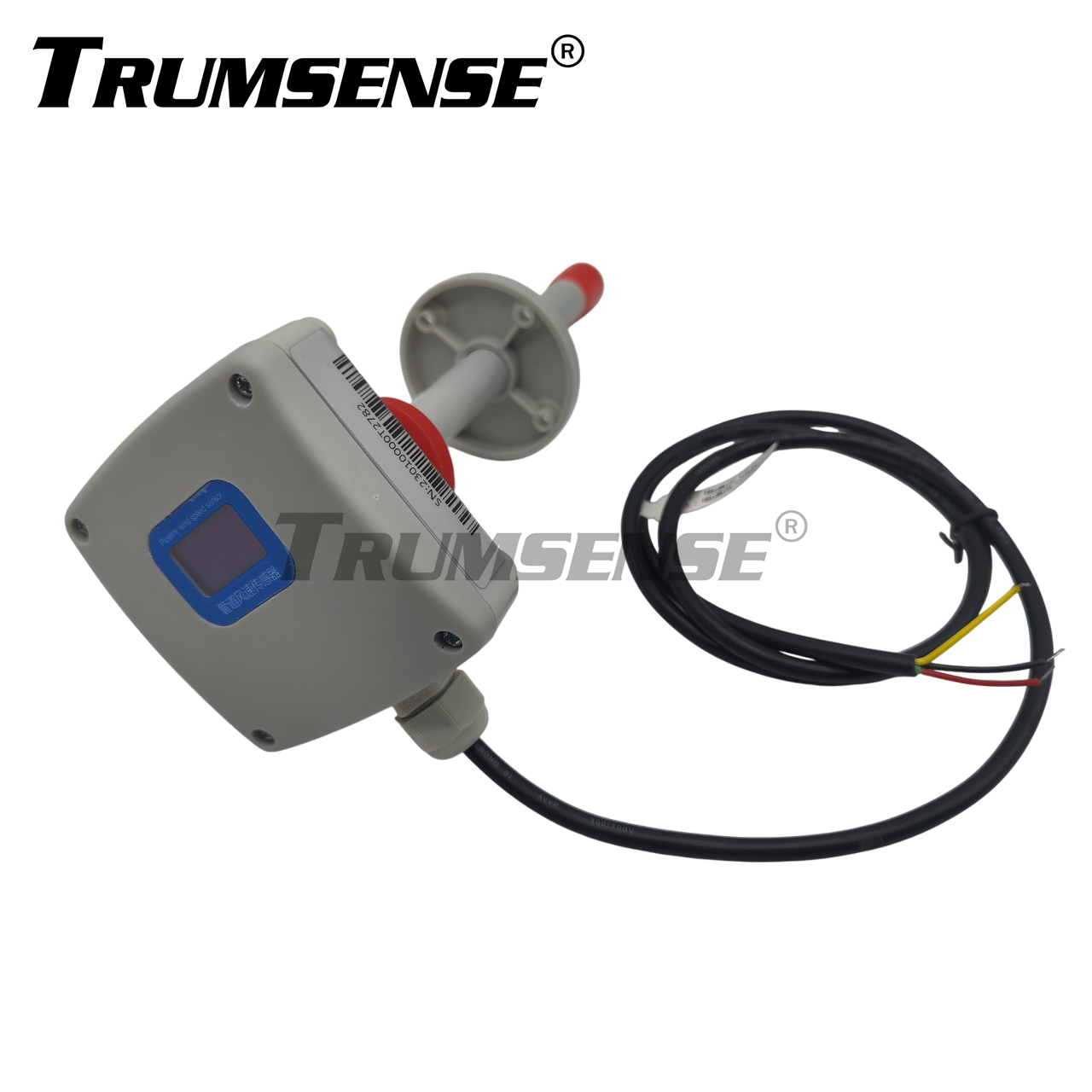

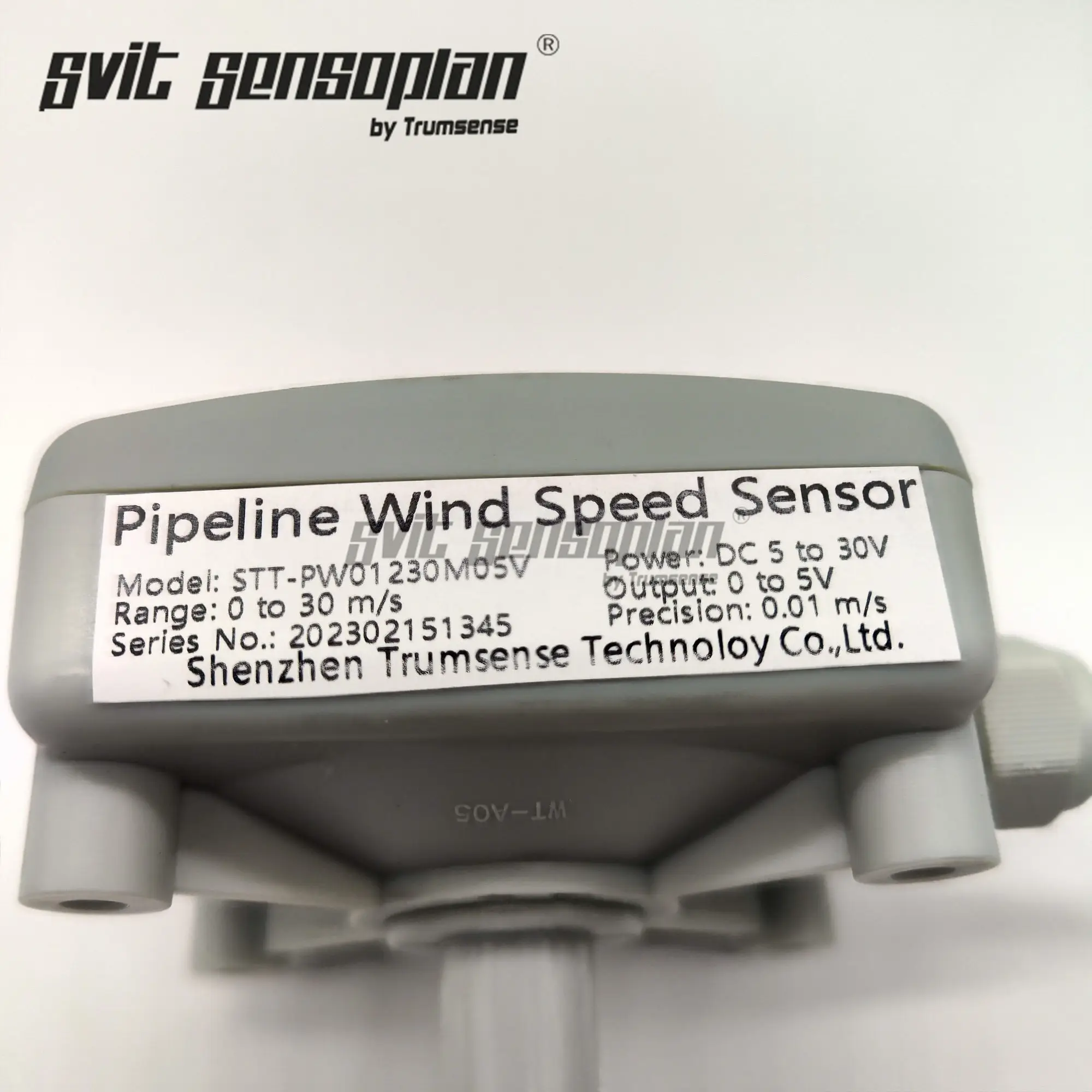

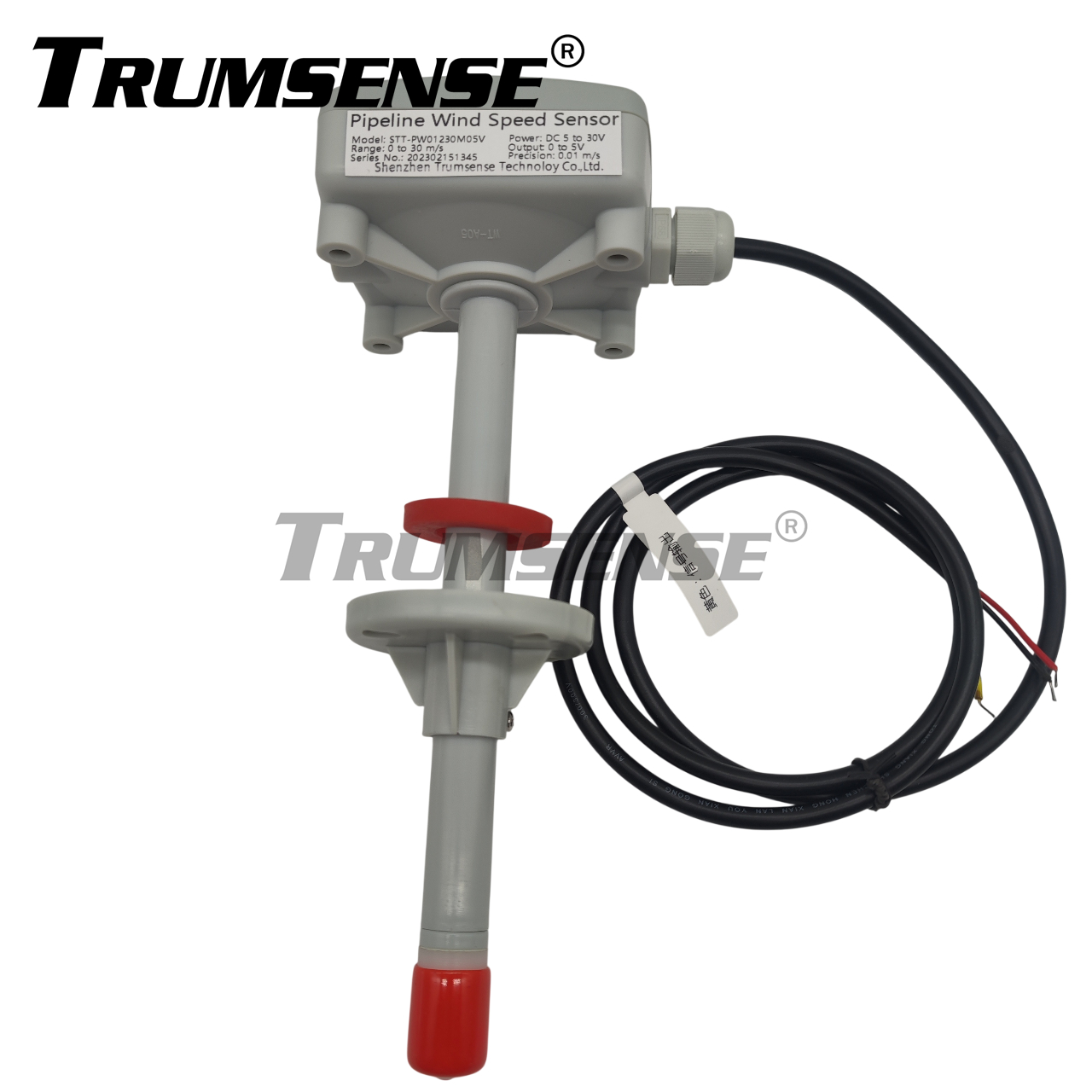

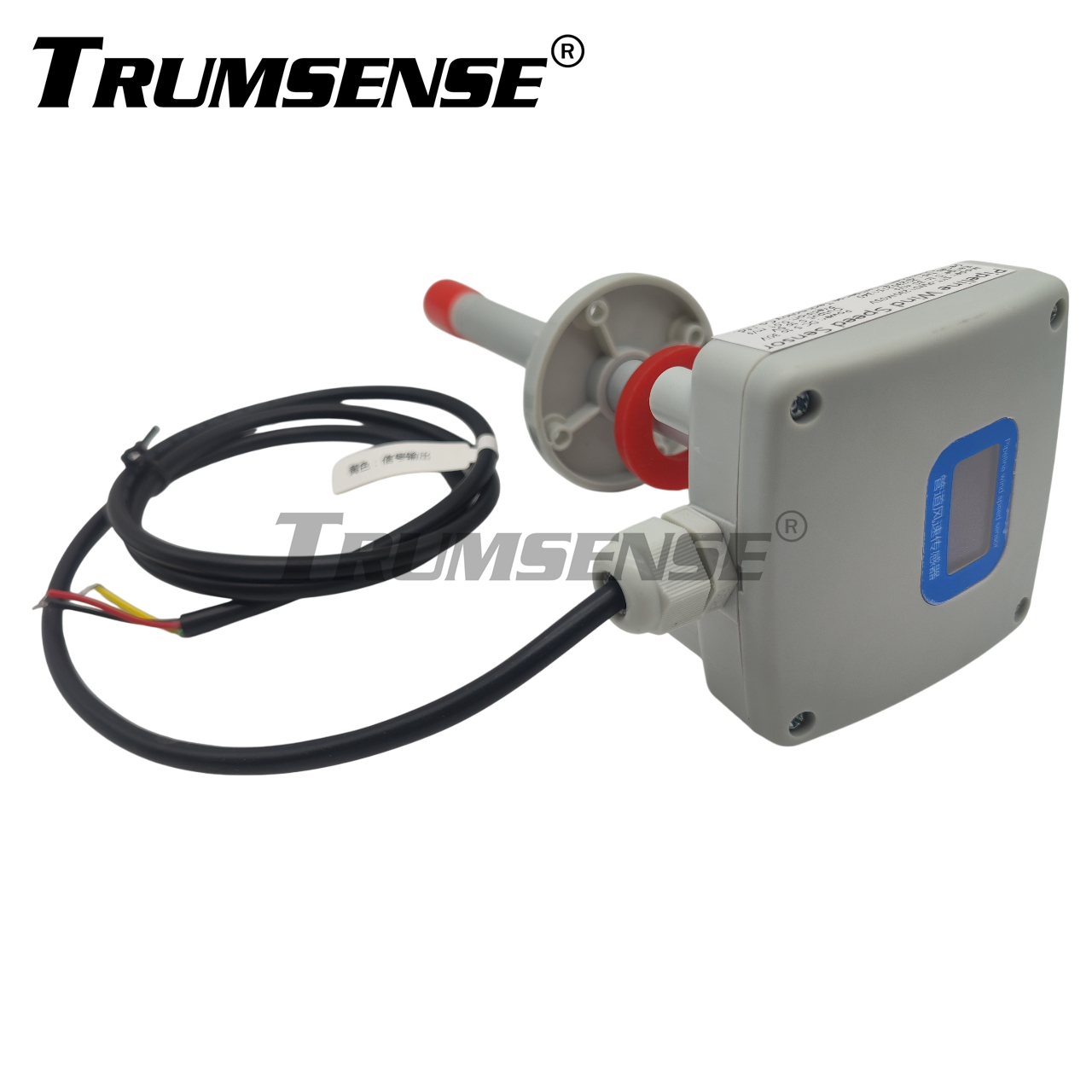

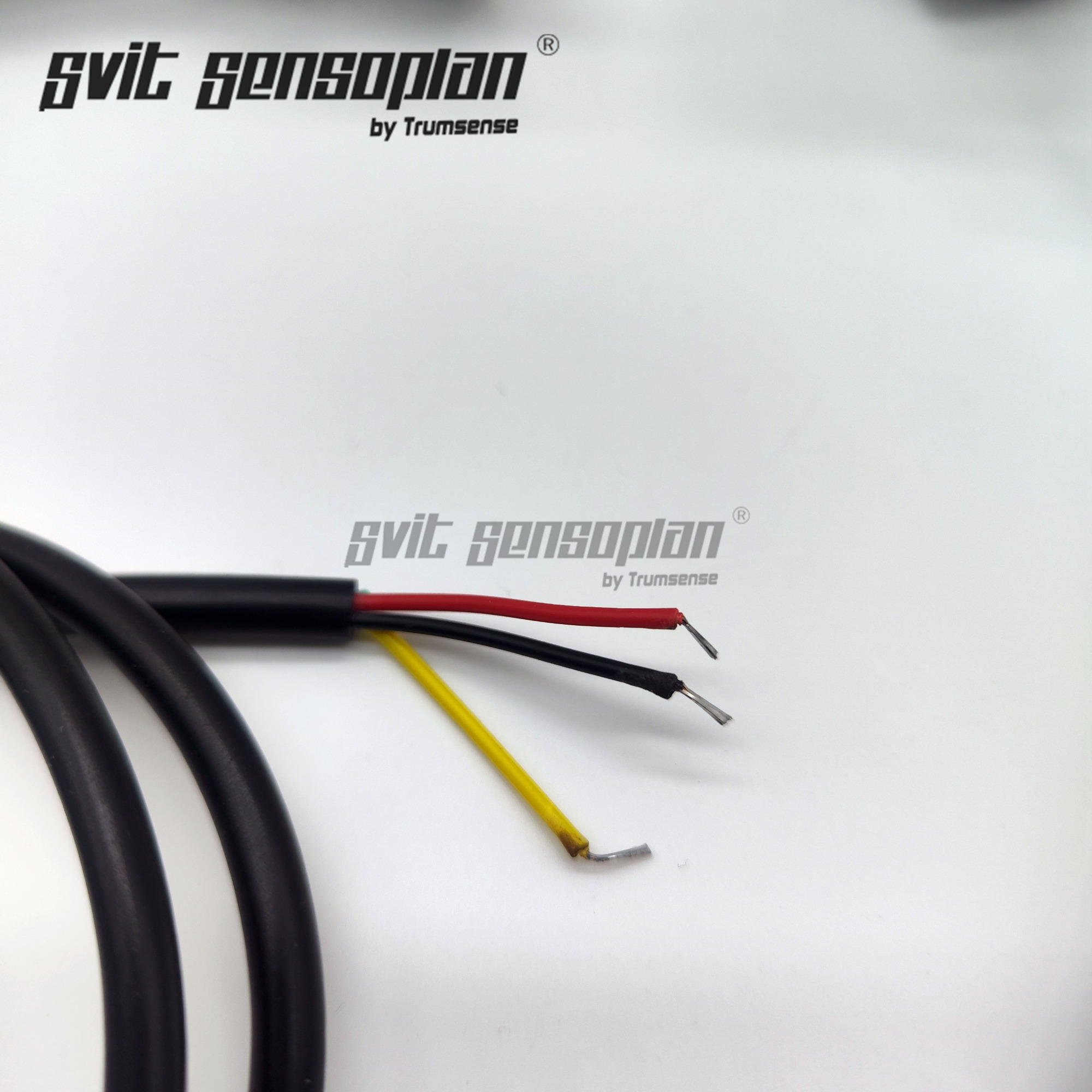

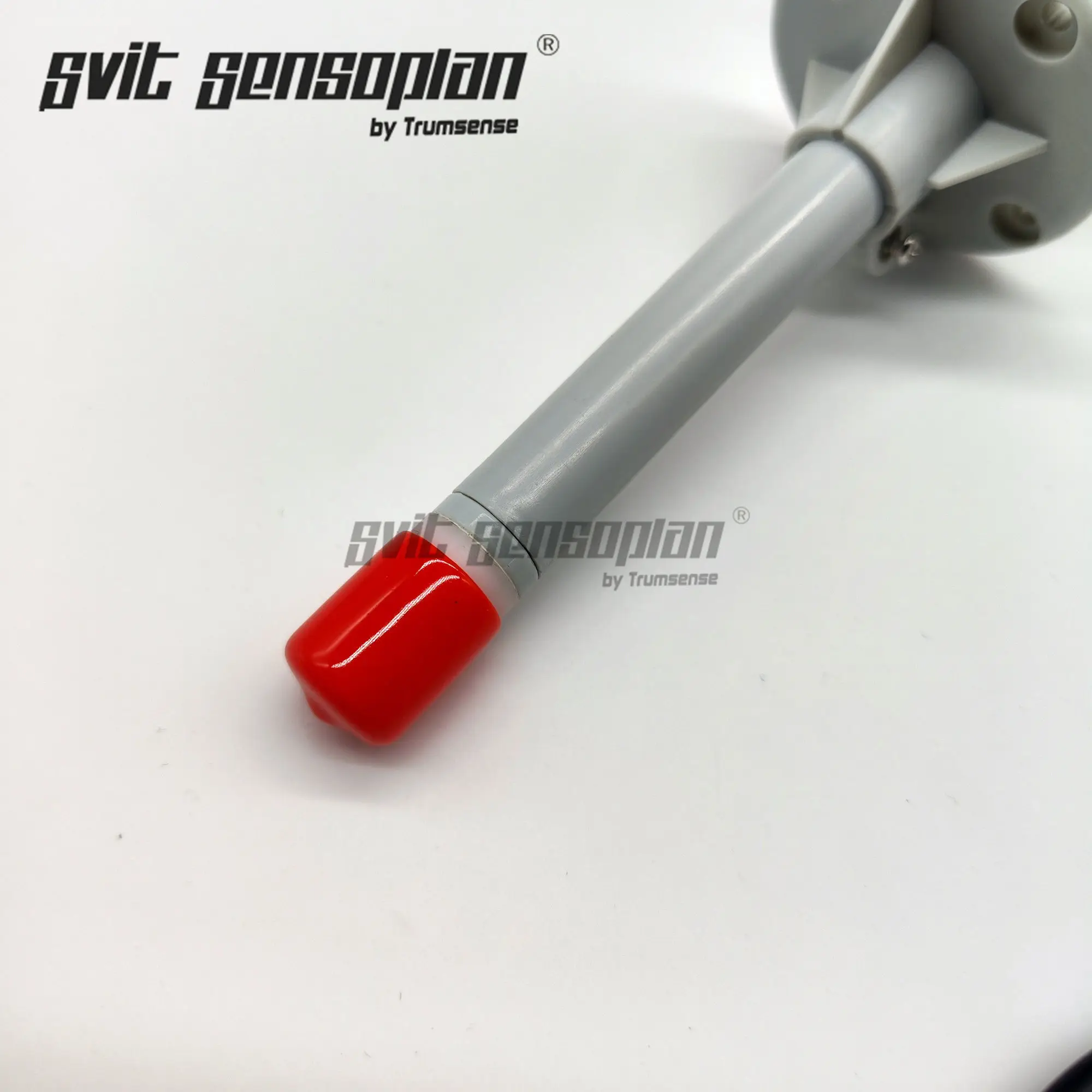

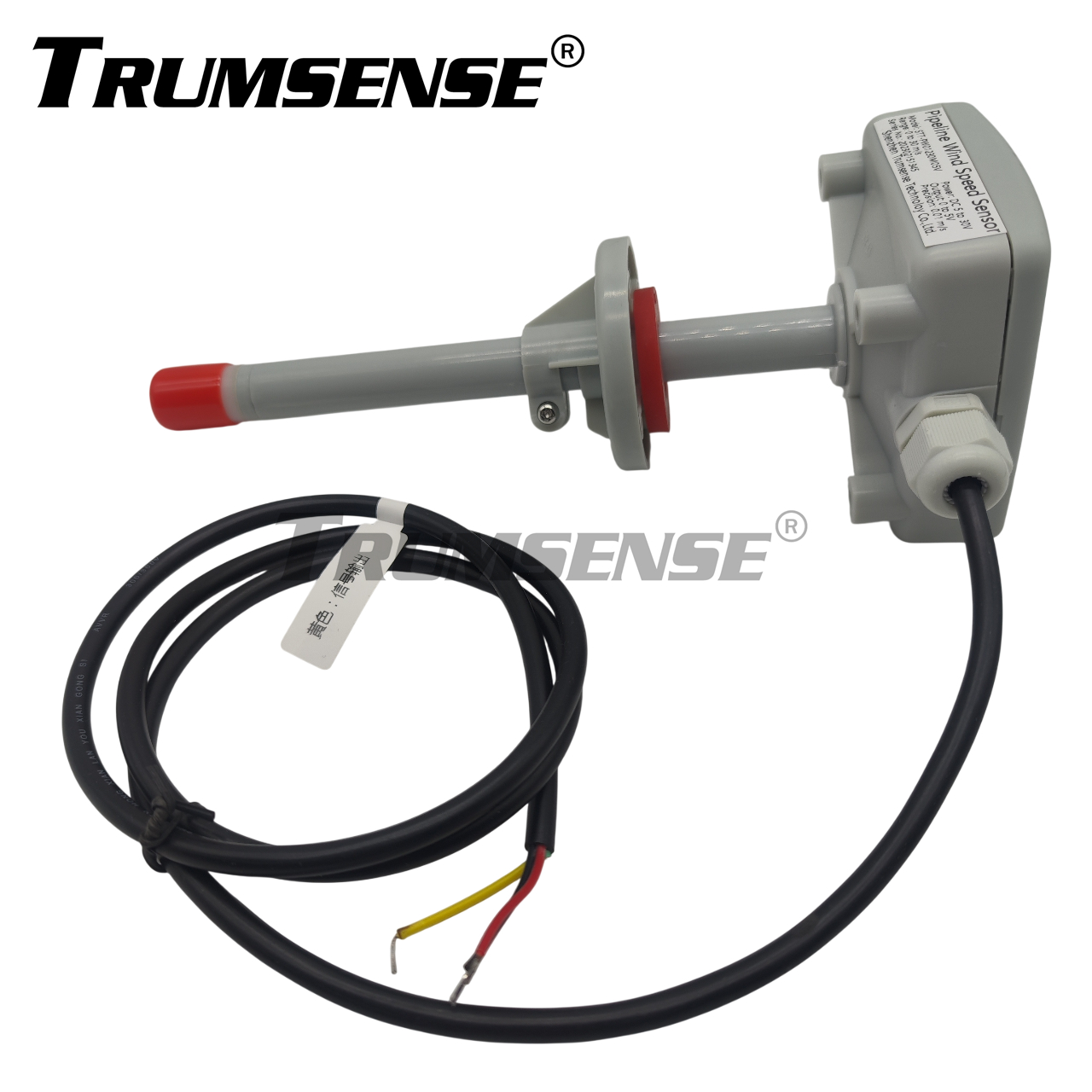

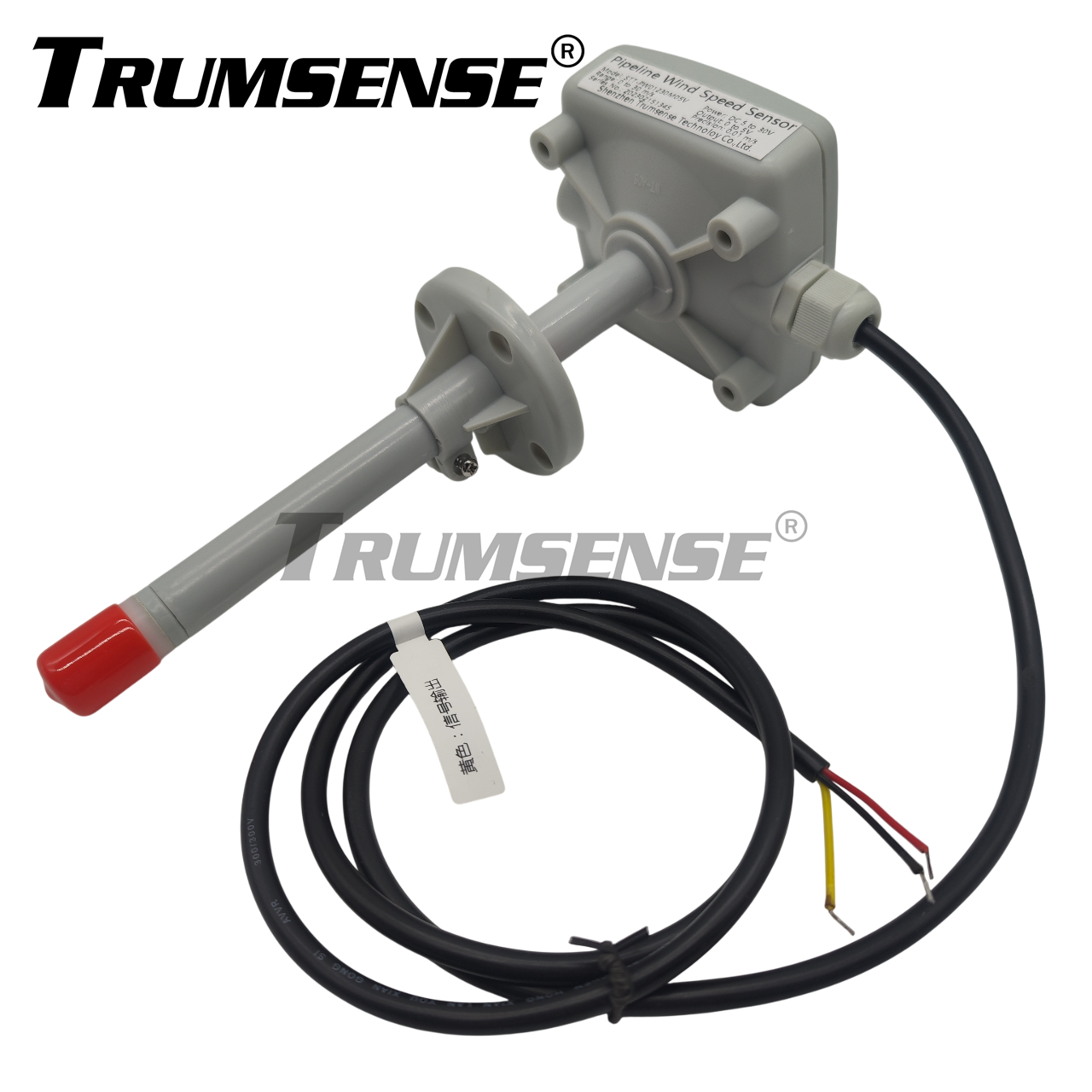

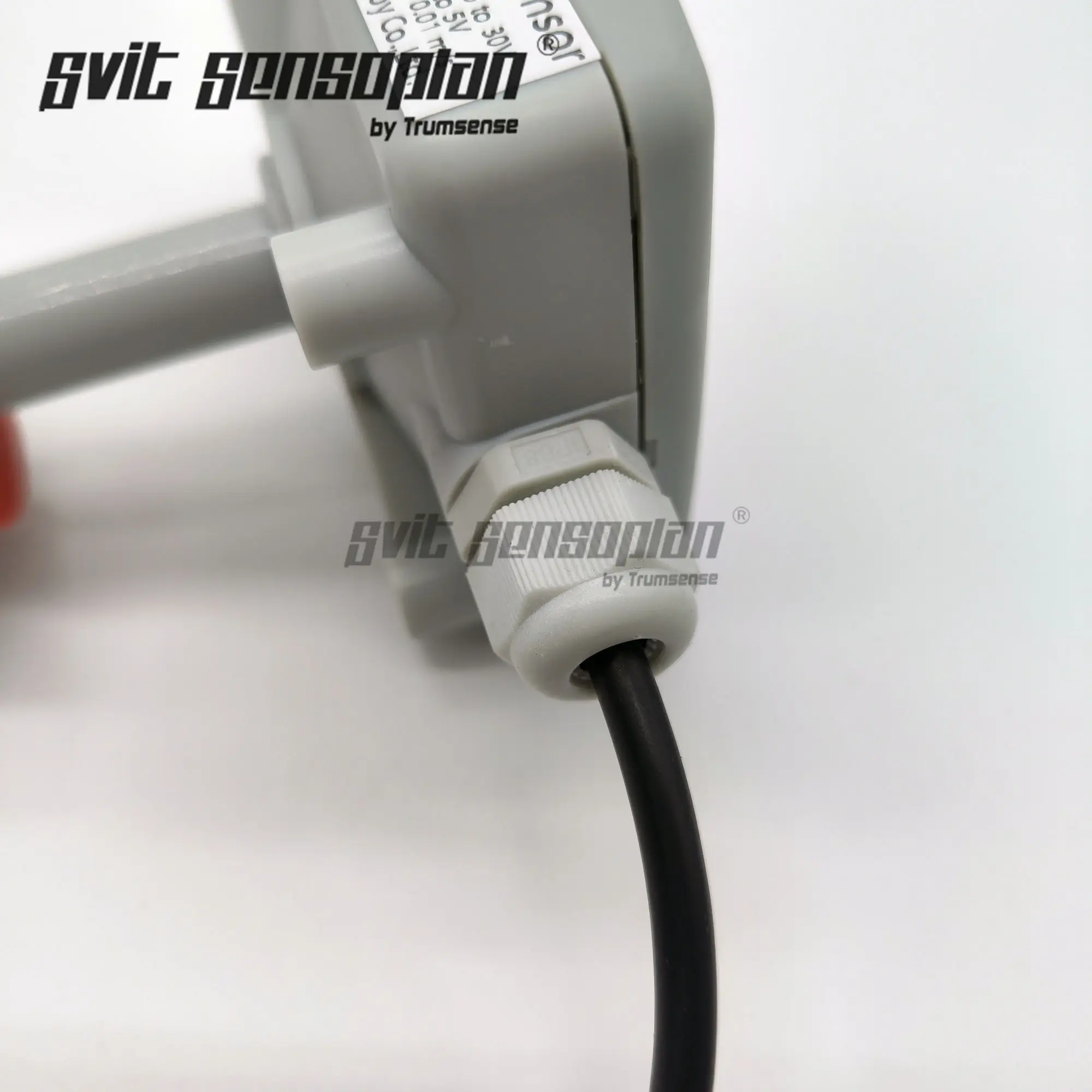

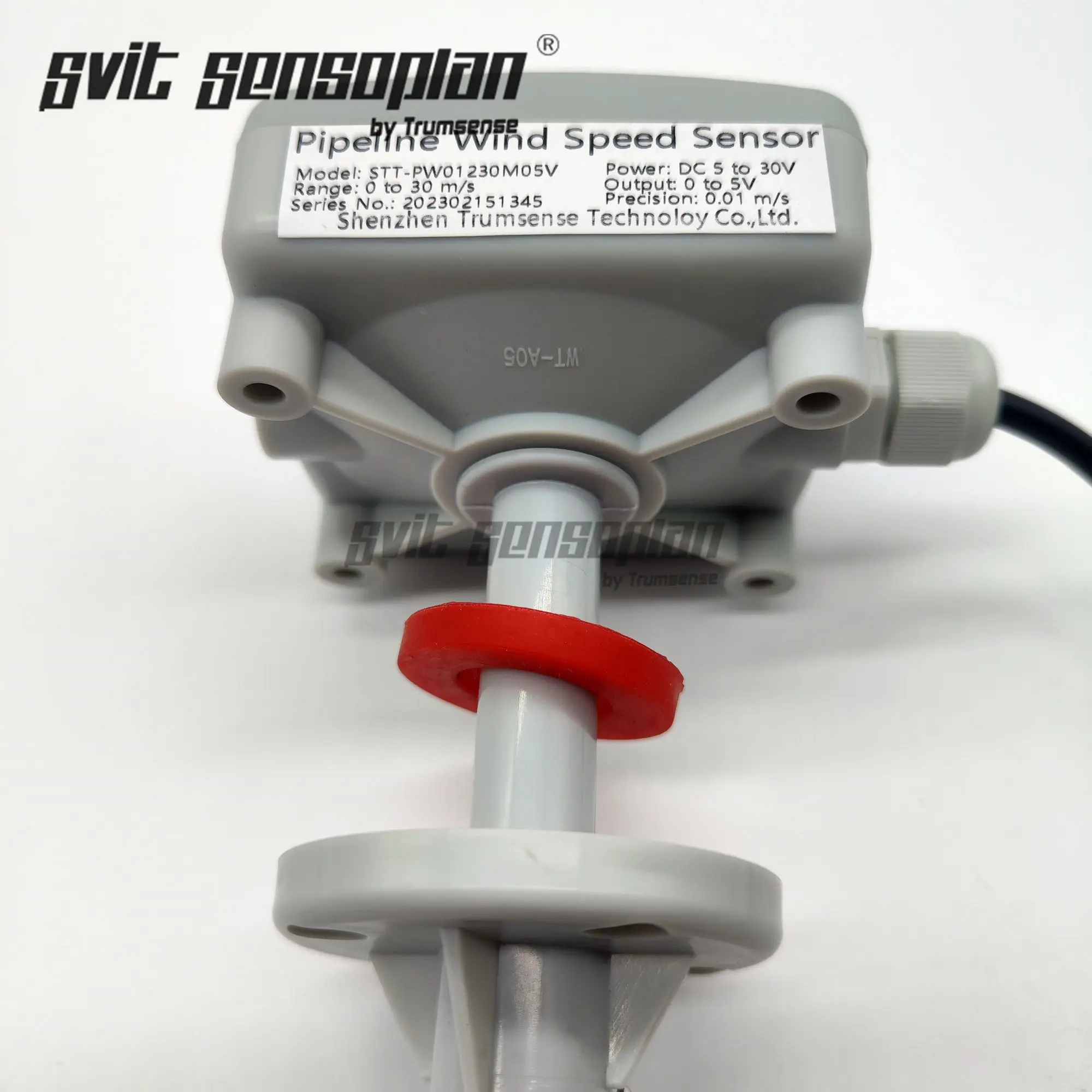

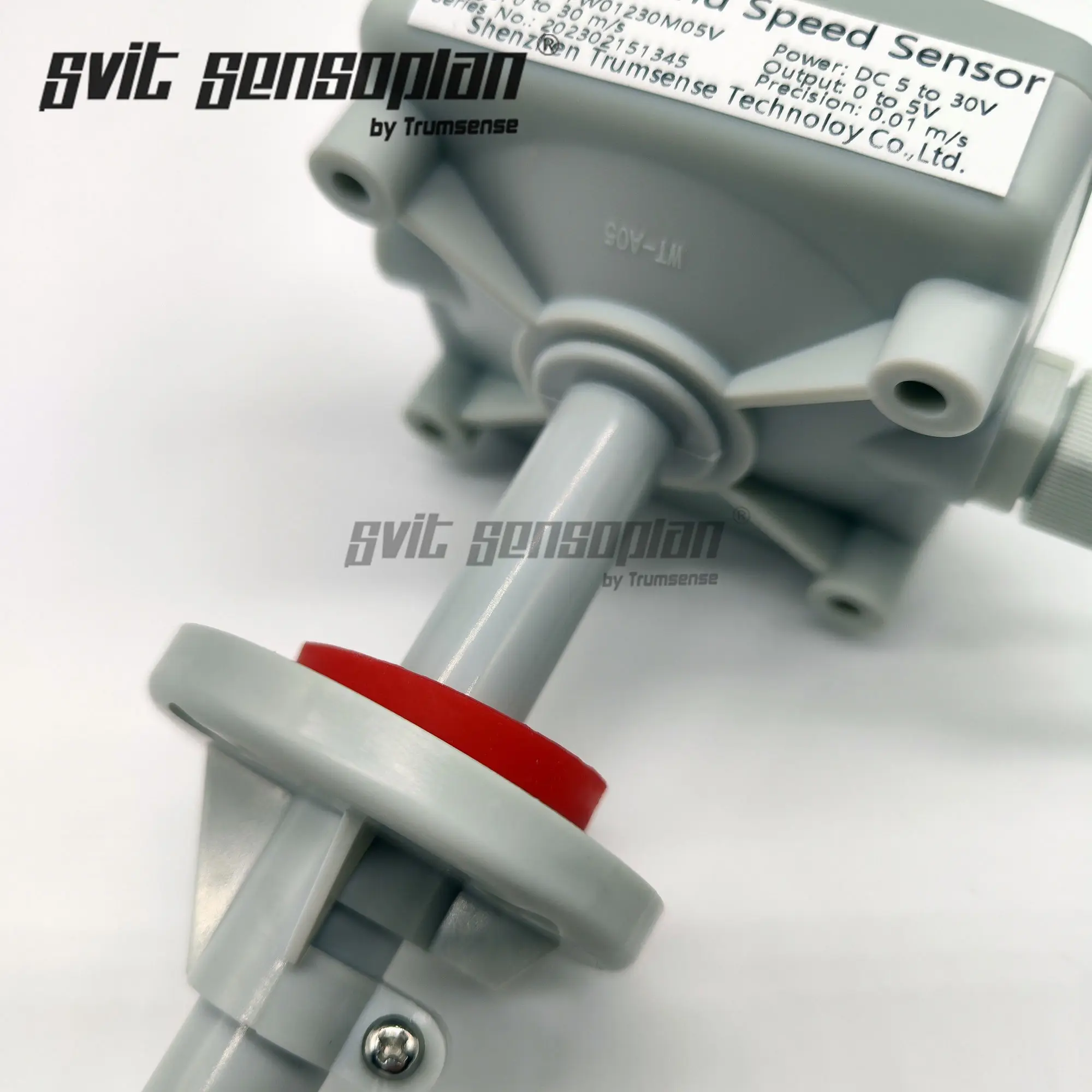

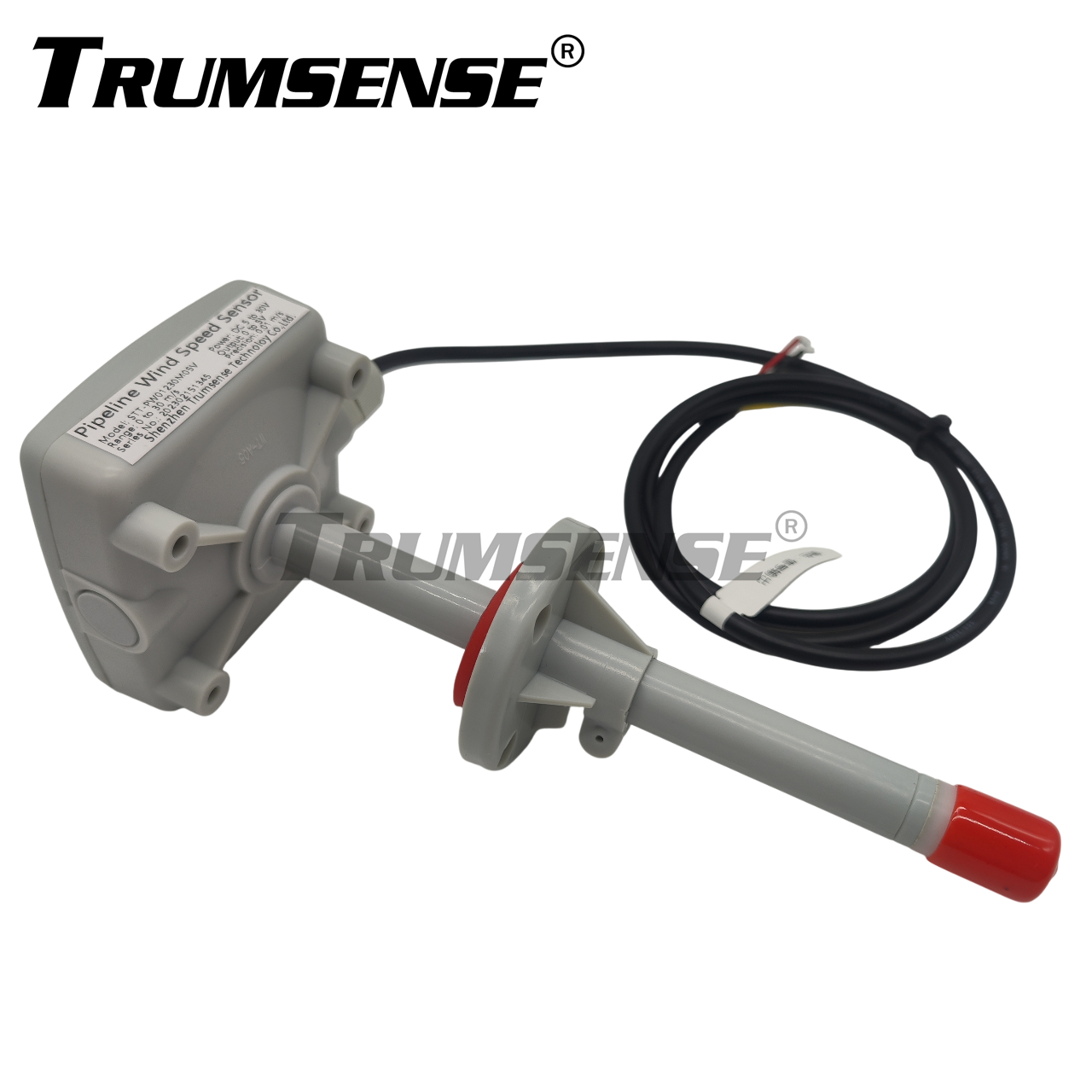

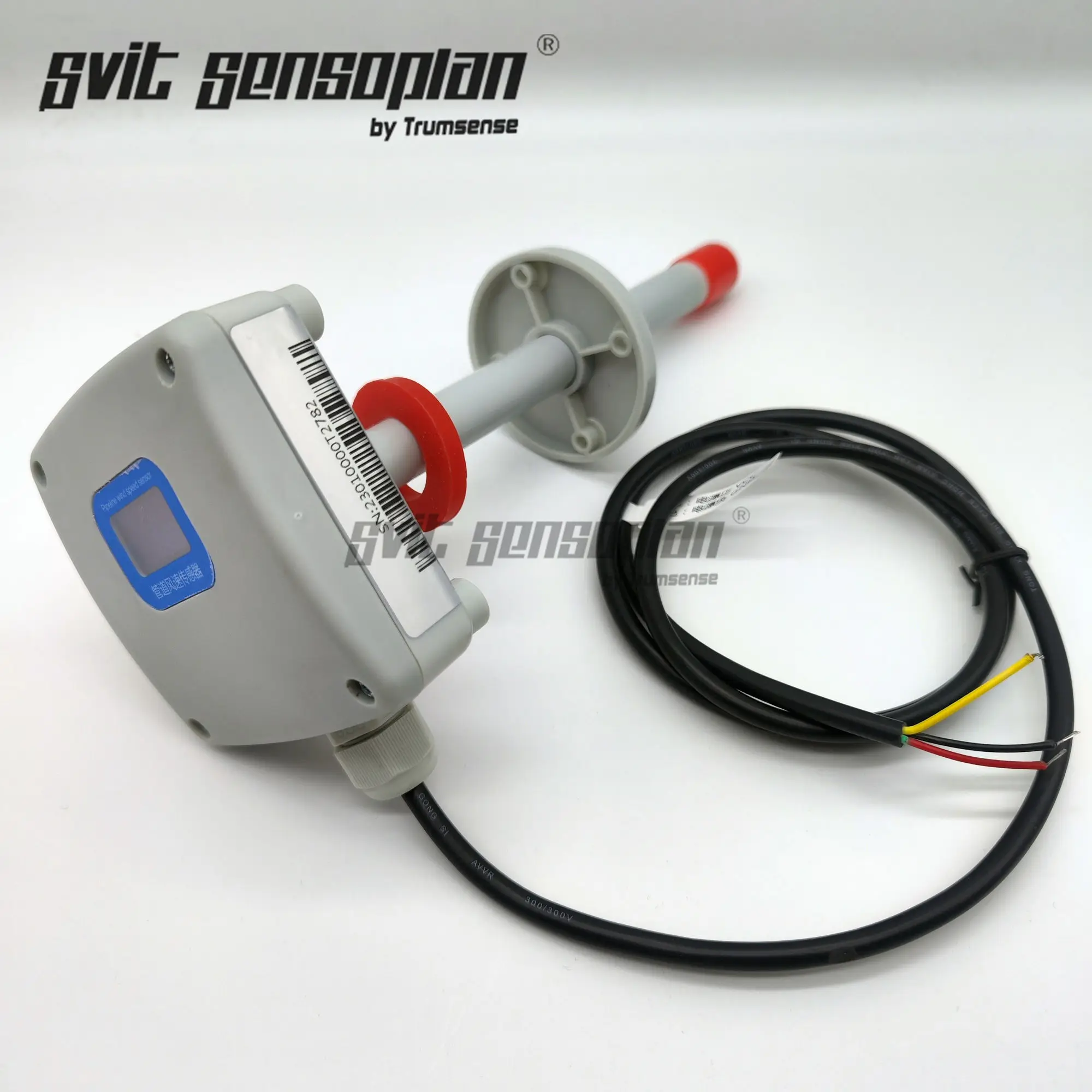

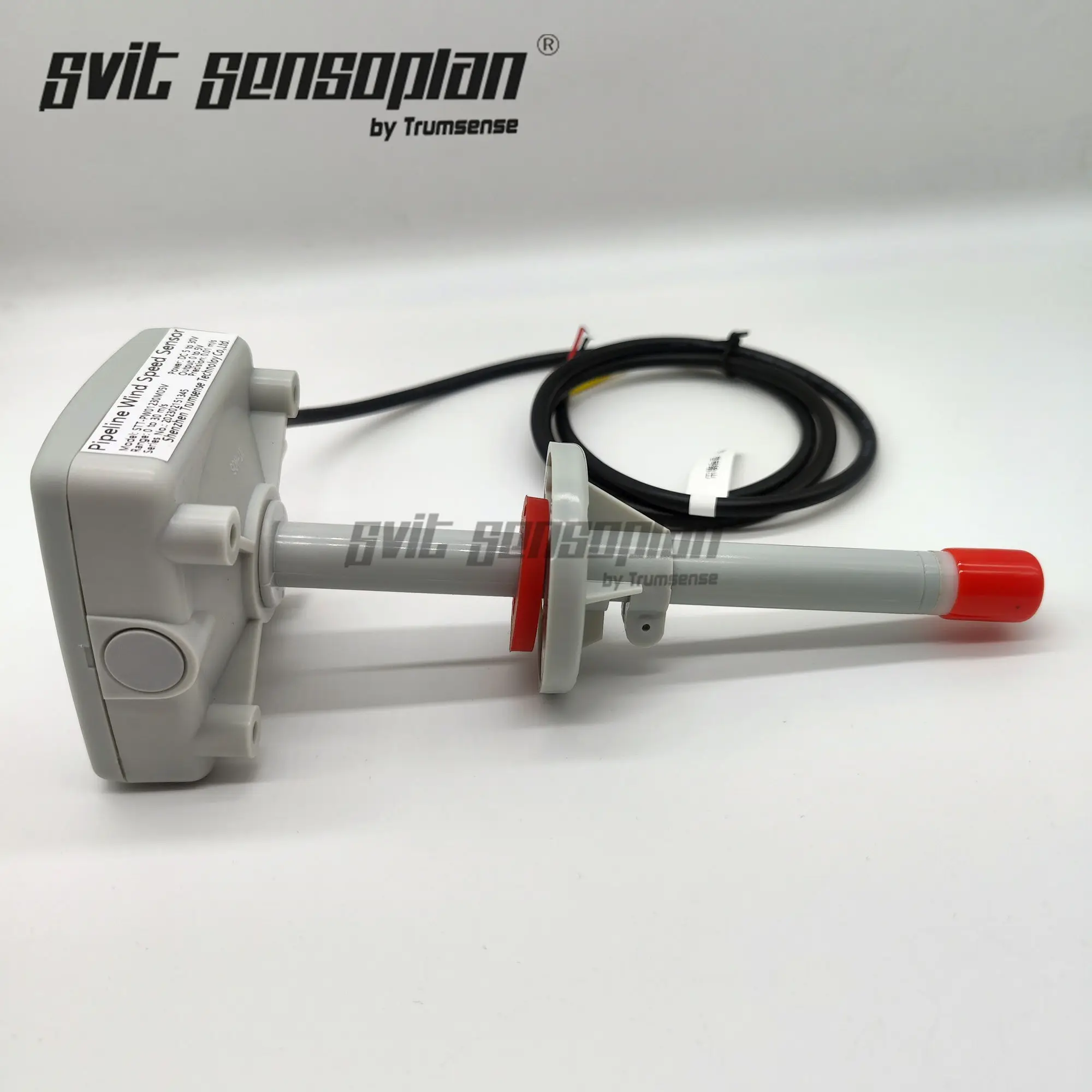

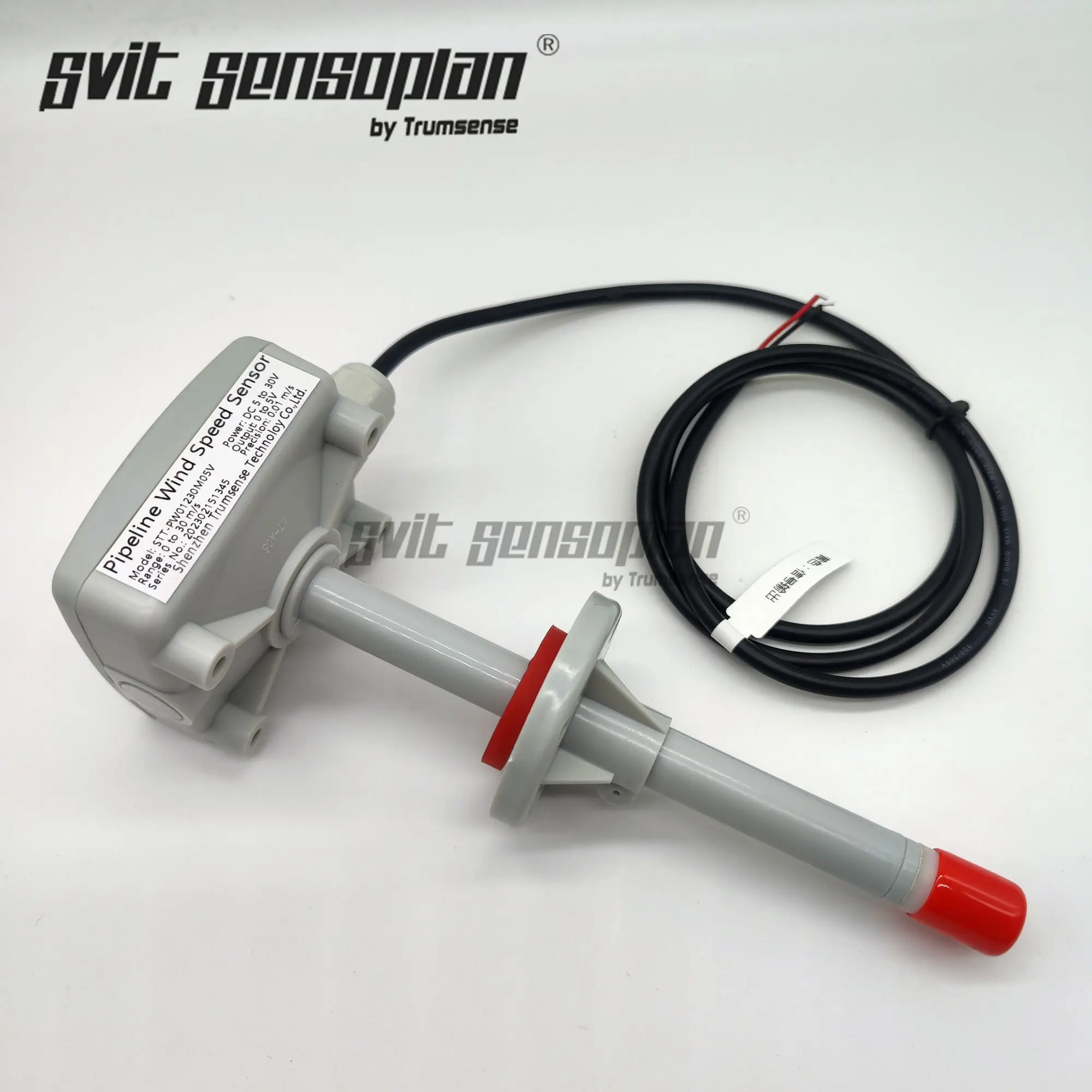

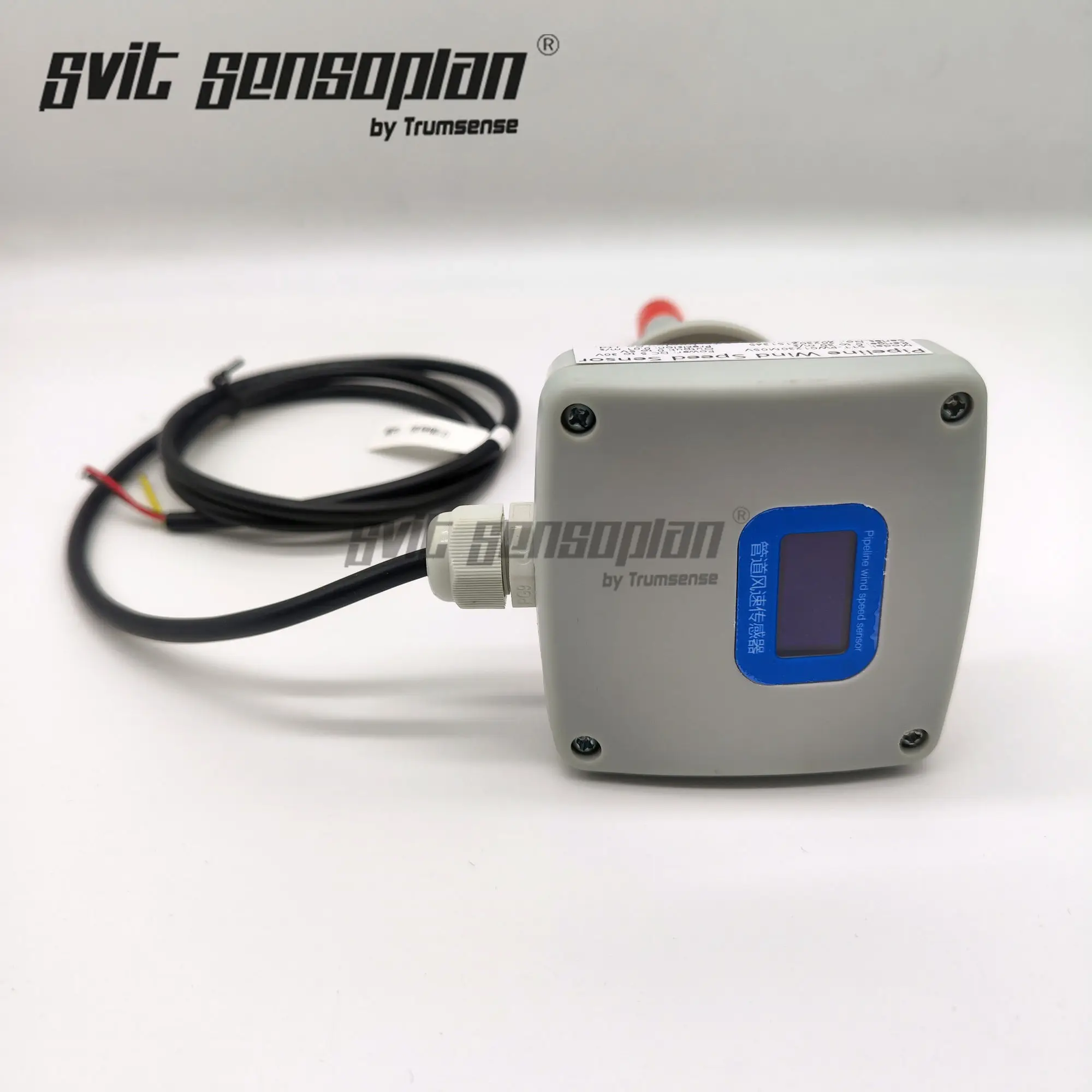

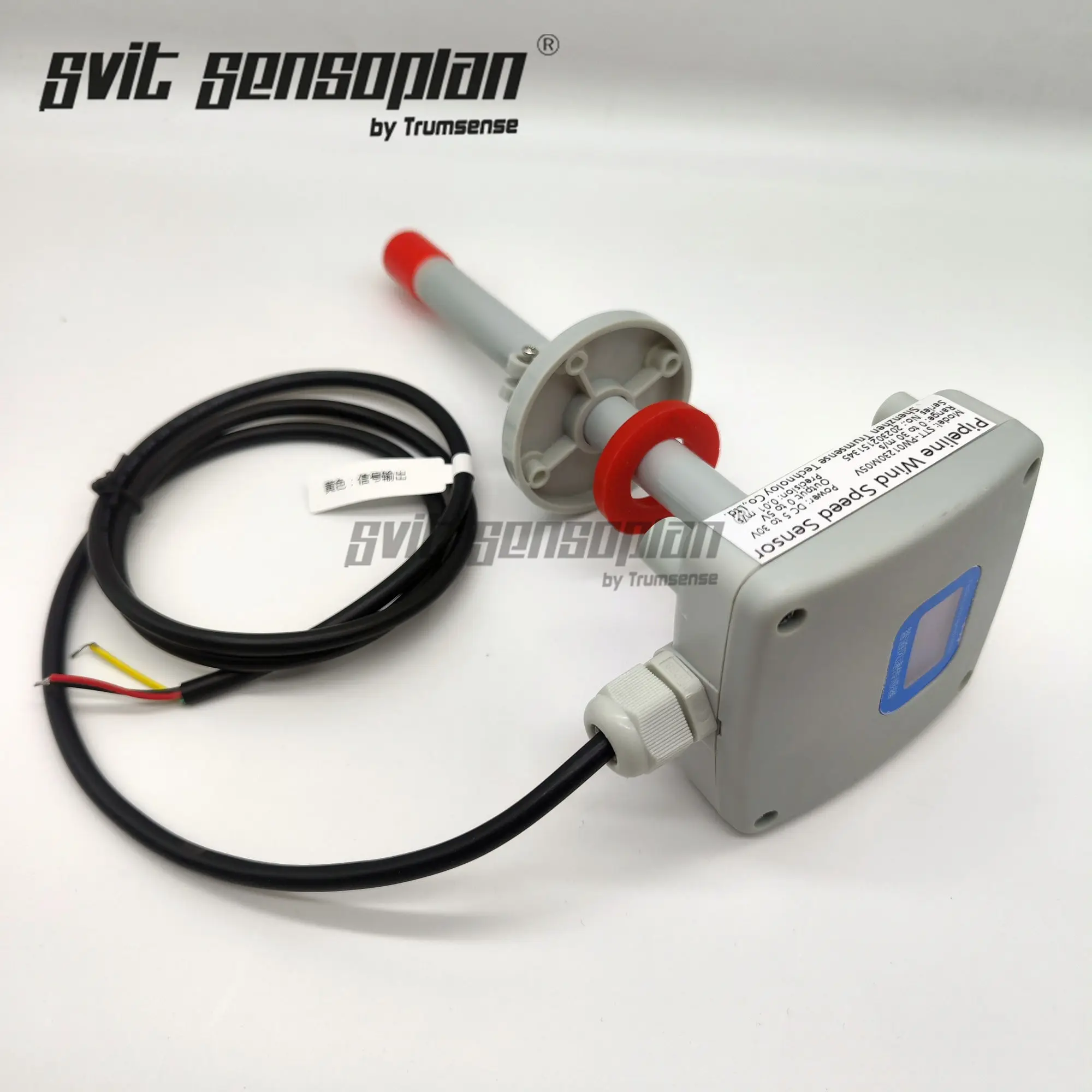

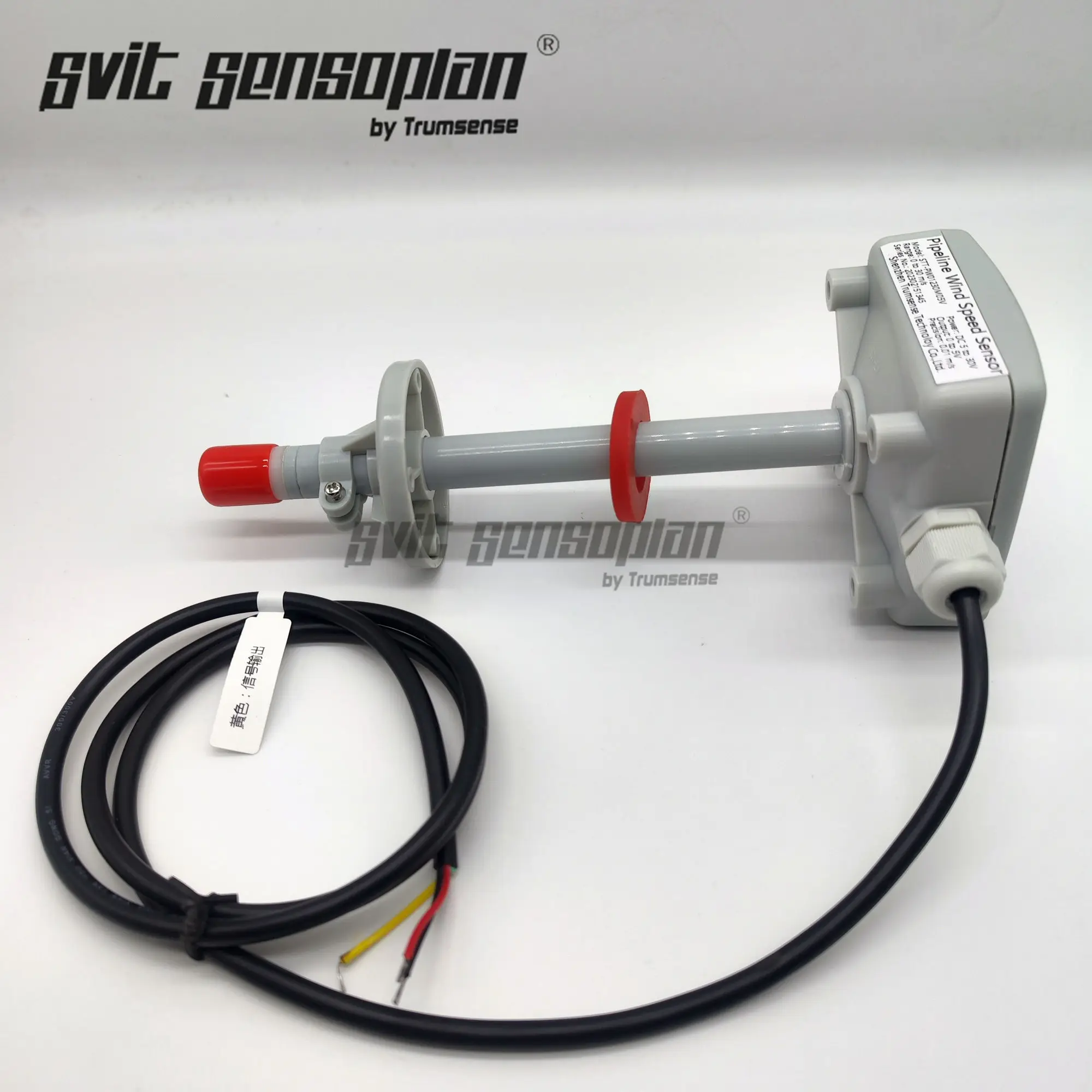

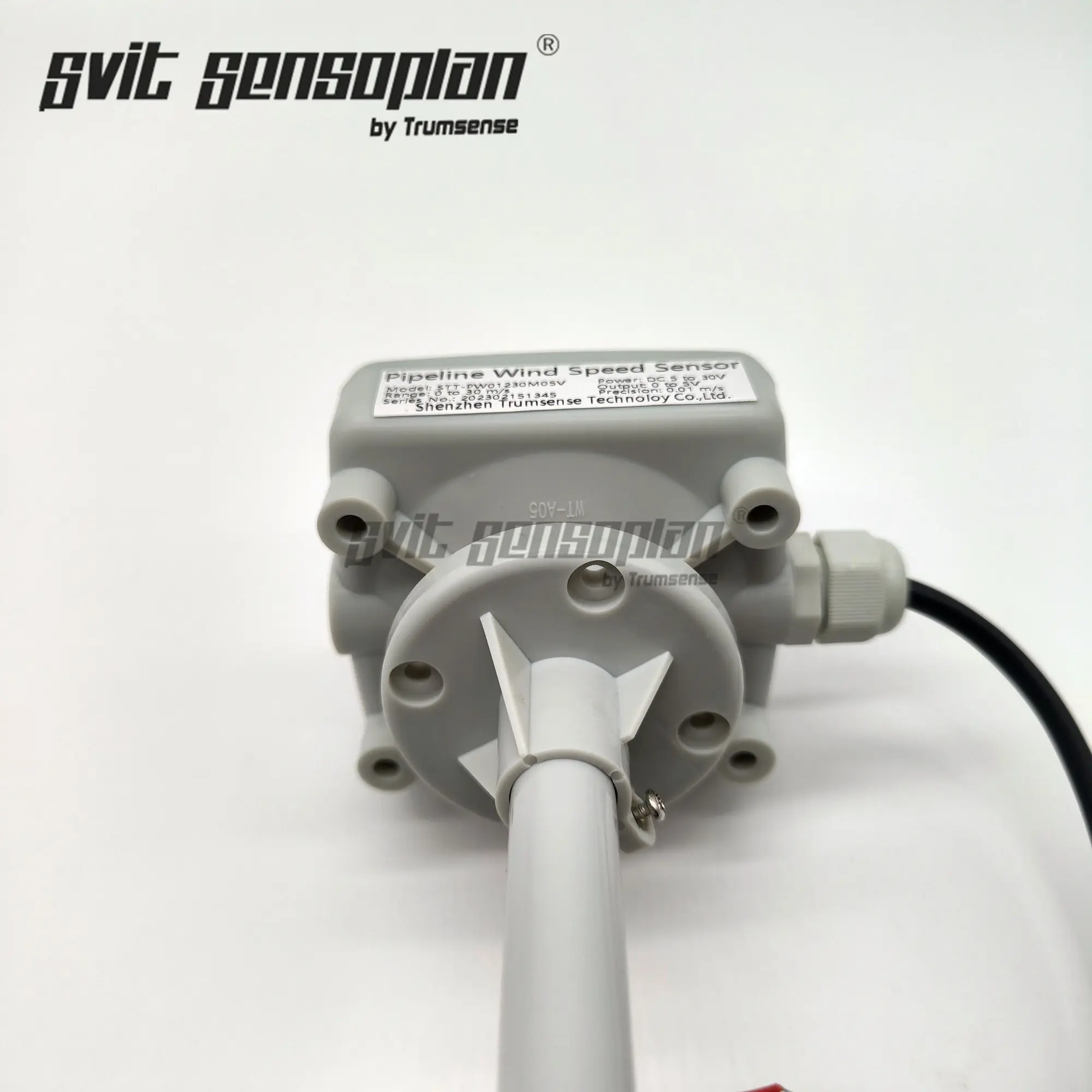

You will receive the pipeline wind speed sensor with DC 5 to 30V power supply, 0 to 5V output, 0 to 30 m/s range ,totally same as below detail photo:
