Multi-function DC 24V Power Supply Light Column Direct Displaying Instrument for Water Level or Pressure Tansmitter or Temperature Monitoring from Trumsense Precision Technology

Trumsense precision technology's single DC 24V Power supply light beam direct liquid level display controller is suitable for measurement and control of various temperatures, pressures, liquid levels, lengths, etc. Use the niche
The processor performs di
Description How to Make the Setting? System Parameter Description Typical Applications Review
The double column intelligent measurement and control instruments using dedicated integrated chip, measuring input and output with digital correction and self-calibration techniques, so the measurement is accurate and stable by eliminating the effects of temperature drift and time drift error. The instrument adopted a multi-protection and isolation optimization design, achieved the purpose of stronger anti-interference ability, higher reliability.

The double column intelligent measurement and control instrument’s hardware was greatly reduced, its composition is relatively simple,compatible with a variety of input signals (thermocouple / RTD / linear voltage / linear current / linear resistance, etc.).

By conjunction with variety of sensors, or transmitters, it can realize the measuring and control of temperature, pressure, level, length, capacity,force and other physical measurement, display and alarm control, so its application is very wide.
Technical Parameters:
1, Display: double row measuring value LED display, monochromatic beam simulation shows the percentage of the measured value
2, Display range: -1999 ~ 9999
3, Measurement accuracy: ± 0.5% FS ± 1d or ± 0.2% FS ± 1d
4, Input signal:
◆Thermocouple: K, E, S, B, J, T, R, N, etc., cold-side temperature    automatic compensation
◆Thermal resistance: Pt100, Cu50, etc., the lead resistance should be less than 10Ω
◆DC voltage: mV, 0 ~ 5V, 1 ~ 5V, 0 ~ 10V (external resistor divider) and so on
◆DC current: 0 ~ 10mA, 0 ~ 20mA, 4 ~ 20mA and so on
◆Linear resistance: 0 ~ 400Ω (remote pressure gauge)
5, Alarm function: ultimate upper limit, upper limit, ultimate lower limit, lower limit .
6, Transmission output accuracy: ± 0.3% FS, load capacity: 500Ω
7, Relay contact capacity: AC240V / 3A @ DC24V / 3A (no inductive load)
8, Instrument working voltage: 220V ± 10V, power consumption ≤ 5W
9, Instrument size: hole 152 * 76mm, shape 160 * 80 * 90mm
10, Working environment: temperature 0 ~ 50 ℃, relative humidity <85%, no corrosion and vibration occasions.

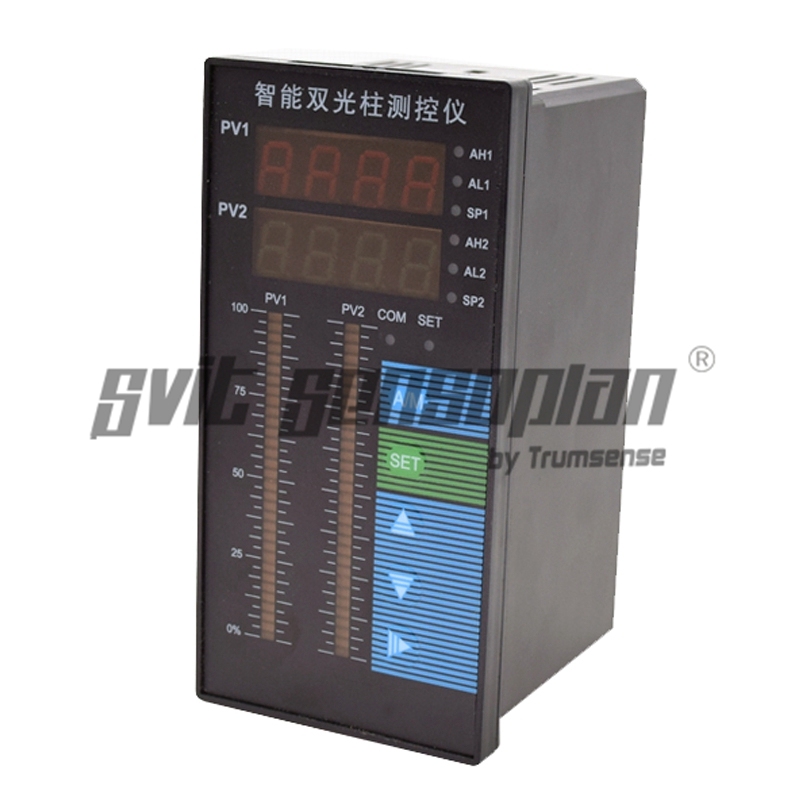

Instrument Panel:
Displaying instructions
A, Digital display:
  Display the measured value in running state;
  The setting code or parameter value is displayed in the setting status
B, Light bar display:
  Visual display of the ratio of the measured value
C, Indicator:
  AHH red light is the ultimate upper limit alarm indicator
  AH red light is the upper limit alarm indicator
  A green light is the lower alarm indicator
  ALL green light is the ultimate lower limit alarm indicator

Panel Key Instruction:

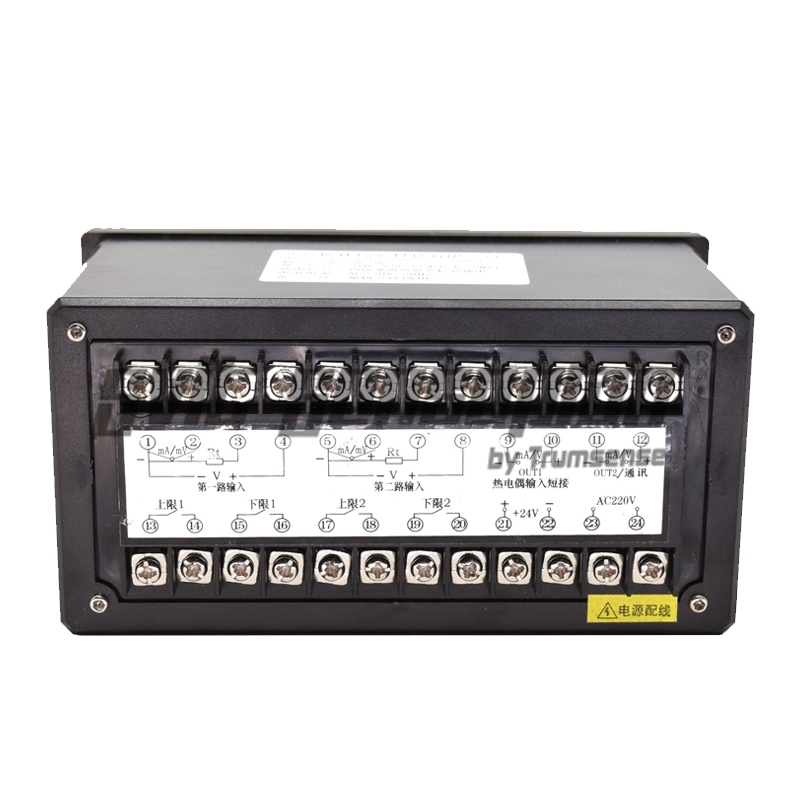

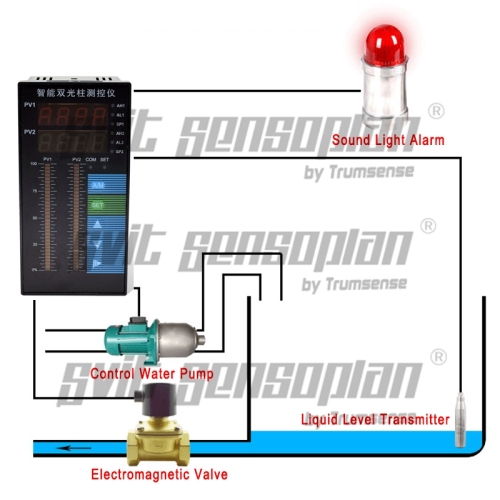

Typical Wiring Diagram For Liquid Level Transmitter:

Typical Wiring Diagram For Pressure Transmitter:

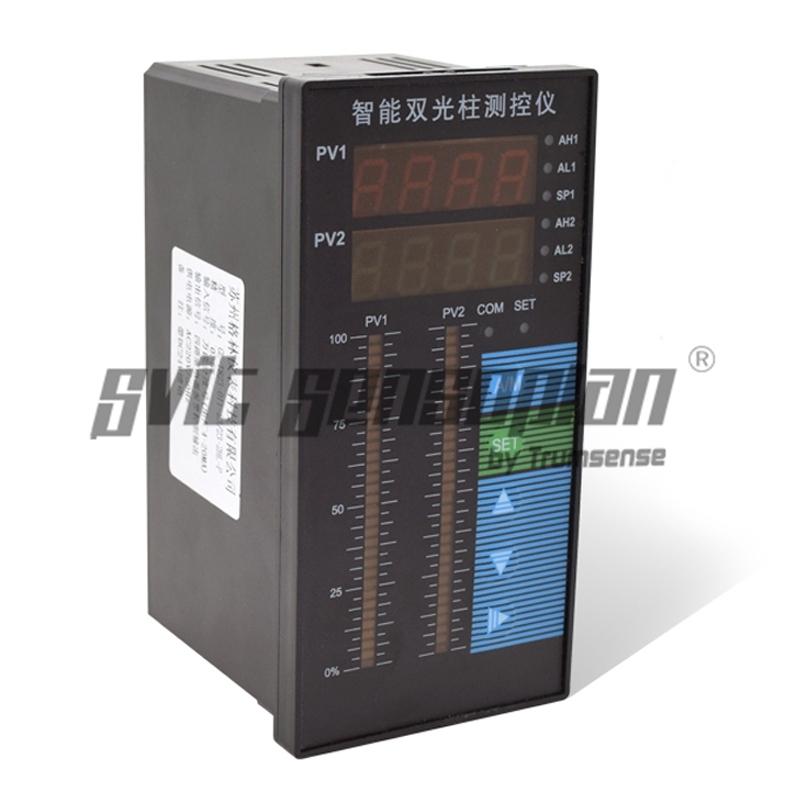

Recent Order Photo Show for This Single Column Liquid Level Display Instrument:


We are factory, and will always satisfy with your specific application:

★ Other output are available: (contact us for offer online if you are in need of them)

     4 wires relay output

     2 wires relay output + Transmitting output

     4 wires relay output + Transmitting output

     2 wires relay output + RS485

     other output acceptable to produce for you.

★ Other horizontal or double column instruments are available, please contact us:

How to Make the Setting?

1, Turn on the power, the instrument display the measured value.
2, Long press above 3 seconds
【SET】 key, enter the scene of     parameter setting state, the instrument shows AHI.
At this moment, the code can be changed by 【RIGHT】, 【DOWN】 and 【UP】 keys to change the code or adjust
Data, 【SET】 key to enter the parameter setting or confirm the parameter modification value, long press 【SET】 key to exit the setting state.
3, Press 【DOWN】 or 【UP】 to switch the code to display PASS, set PASS = 555, then press 【SET】 key to enter system parameter setting status.
4. Press 【SET】 key during setting to enter parameter setting or confirm parameter modification value, long press 【SET】
key to exit parameter setting status and return to running status.

Note: non-professionals may not change the system parameter menu content, set the readiness to view or modify alarm value (need to open the corresponding authority), communication address.

System Parameter Description
Typical Applications
Single light beam direct level display controller from Trumsense precision technology,
Compatible with input of 21 kinds of signals, thermal resistance, thermocouple, standard current, standard voltage, millivolt, remote pressure gauge resistance, etc. Because it is suitable for measurement and control of various parameters such as temperature, pressure and liquid level. Using microprocessor for digital operation, it can perform high-precision linear correction on various non-linear signals!

Based on the above product characteristics, it can be widely used in water plants, petroleum, coal, oil refineries, petroleum industry, metallurgy, sewage treatment plants, building materials, light industry, industrial automatic control, environmental protection energy fields, to achieve pressure on liquid, gas, steam Measurement.


Send your message to us
Get suggestion from our engineer !
Will Reply within 24 hours ! Whats app: 008613891846516
