Pipeline Wind Speed Sensors Are Used In Hvac Heating, Ventilation, Flue Gas Processing Pipelines, As Well As Operating Rooms, Biological Laboratories, Electronic Medical Environments And Other Fields For Measuring Micro-wind Speed.

Item No.: 00226
It can be widely used in meteorology, ocean, environment, airport, port, laboratory, industry and agriculture, transportation and other fields.
Description Basic Parameter Physical Dimension Installation & Application Review

The pipeline wind speed sensor is mainly used for pipeline wind speed measurement, which has good anti-erosion, anti-corrosion and anti-condensation characteristics. At the same time, it is used together with the internal sliding bearing system to effectively ensure the accuracy of information collection. Is an intelligent instrument, easy to use, good performance, high reliability. It can be widely used to measure the wind speed of pipelines, oil fume pipelines and other harsh environments.

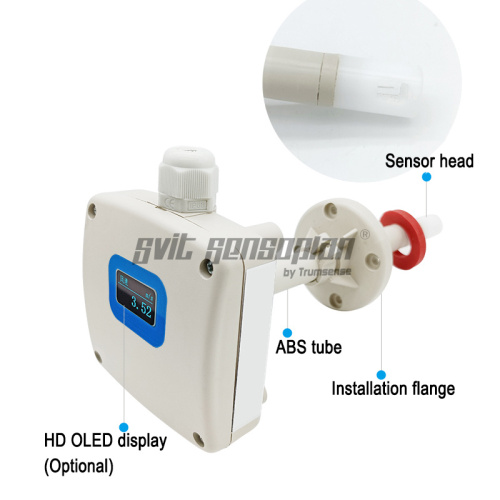

The ducted wind speed sensor, the shell is made of high temperature resistant and corrosion resistant material, the sensor is based on the principle of heat dissipation, and the breeze can also be detected. Even in harsh environments, the performance is stable and reliable; compared with other traditional wind speed sensors, better stability can be obtained, which can ensure faster and accurate micro wind measurement and accuracy. Linear compensation and temperature compensation are realized automatically, so the accuracy and High resolution; no zero offset, excellent long-term stability, and high cost performance. In addition, this series of sensors can withstand instantaneous high wind speed and high wind pressure.



Basic Parameter

Measuring range: 0~ 1m/s  or 0~ 3m/s or 0~5m/s or 0~ 10m/s or 0~ 15m/s or 0~ 20m/s or 0~ 30m/s

Air volume range: 0~ 9999999 m3/h

Cross-sectional area range: 0.01 ~ 100 m2

Accuracy: ±(0.2+2%FS) m/s

Resolution: 0.01m/s

Starting wind speed: ≤0.1m/s

Sampling frequency: 5Hz

Output form: RS485 (default Modbusm, optional: ASCII or SERVER) 0-5V 4-20mA

Powered by: DC 5-30V (The cable must be greater than or equal to 0.5mm2, and the length should be less than or equal to 5 meters when the power is supplied by 5V)

Instrument cable length: Standard: 0.8 meters or customized length

Maximum power consumption: 3W

Probe length: 190mm

Working environment temperature: -40°C~ +80°C

Humidity: 0 ~ 100%RH without condensation

Protection level: IP64

Cable grade: rated voltage: 300V 80°C

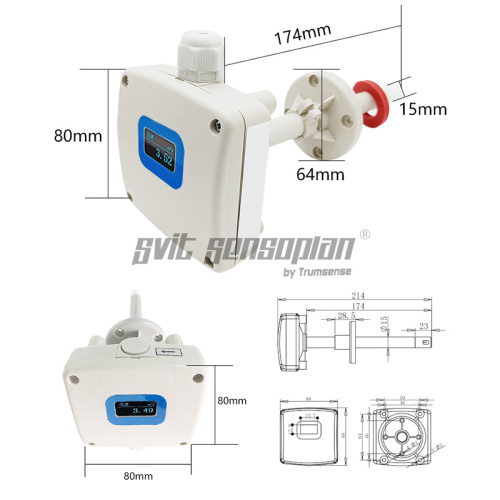

Physical Dimension

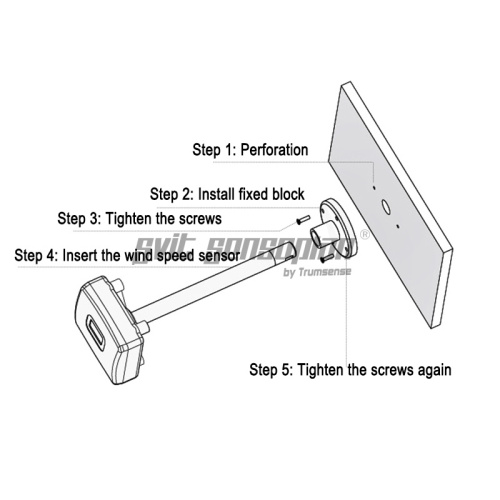

Installation & Application

Application field: It can be widely used in meteorology, ocean, environment, airport, port, laboratory, industry and agriculture, transportation and other fields. Mainly used in HVAC heating, ventilation and air conditioning, flue gas processing pipelines, coal mines and various pipeline systems. It is also suitable for small wind speed measurement in operating room, clean room, biological laboratory, electronic medicine environment and other fields.
