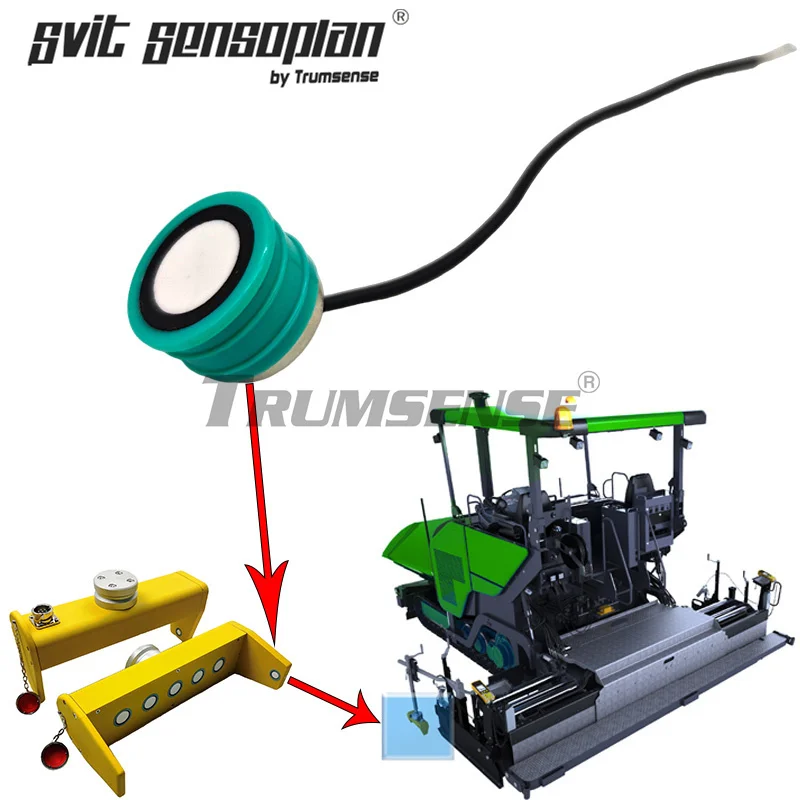

Trumsense STT200E15TR-2 Ultrasonic Sensor Module for Roadbuilding Paving Machine
Used for Parallel Road Surfaces, Curbstones, or String Lines Sampled as a Height Reference
or Used for Big Road Projects,like Interstates, Federal Highways and Airports
Trumsense was, is and will focusing on the R&D and production of ultrasonic distance sensor, ultrasonic material (liquid) level meters, ultrasonic liquid level difference meters, ultrasonic, ultrasonic open channel flow meters, ultrasonic mud level meters, sensors, transducers and other ultrasonic related products, it occupies nearly 45% of the ultrasonic liquid level and material level industry market.
Parameter of Trumsense STT200E15TR-2 Ultrasonic Sensor Module for Paving Machine:
* The above data are tested at 25°C. The final result will be affected by different test conditions, such as: test circuit/environment/distance/size and material of the object being tested. The reference value is for reference only.

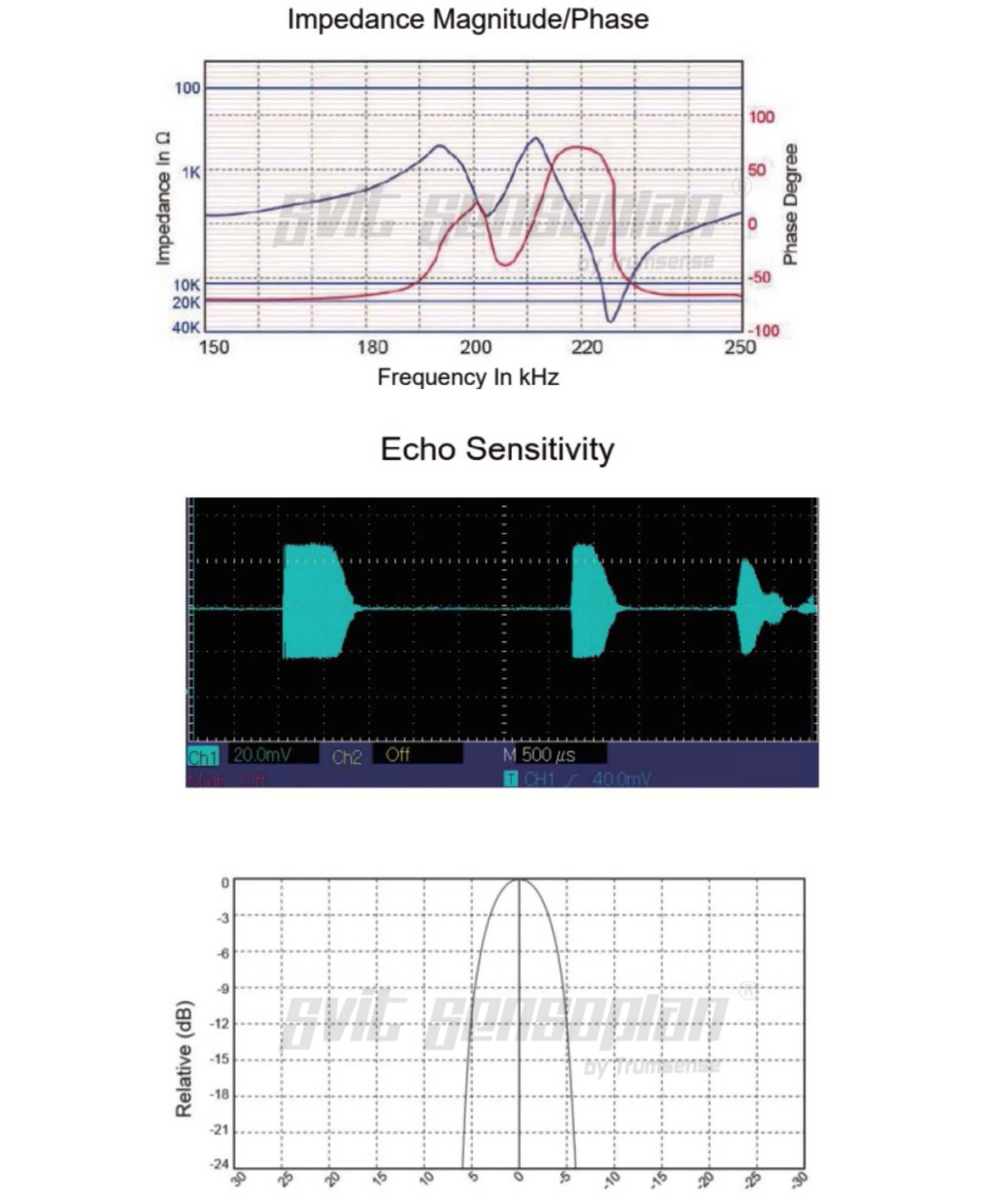

Sensitivity Test of Trumsense STT200E15TR-2 Ultrasonic Sensor Module for Paving Machine:

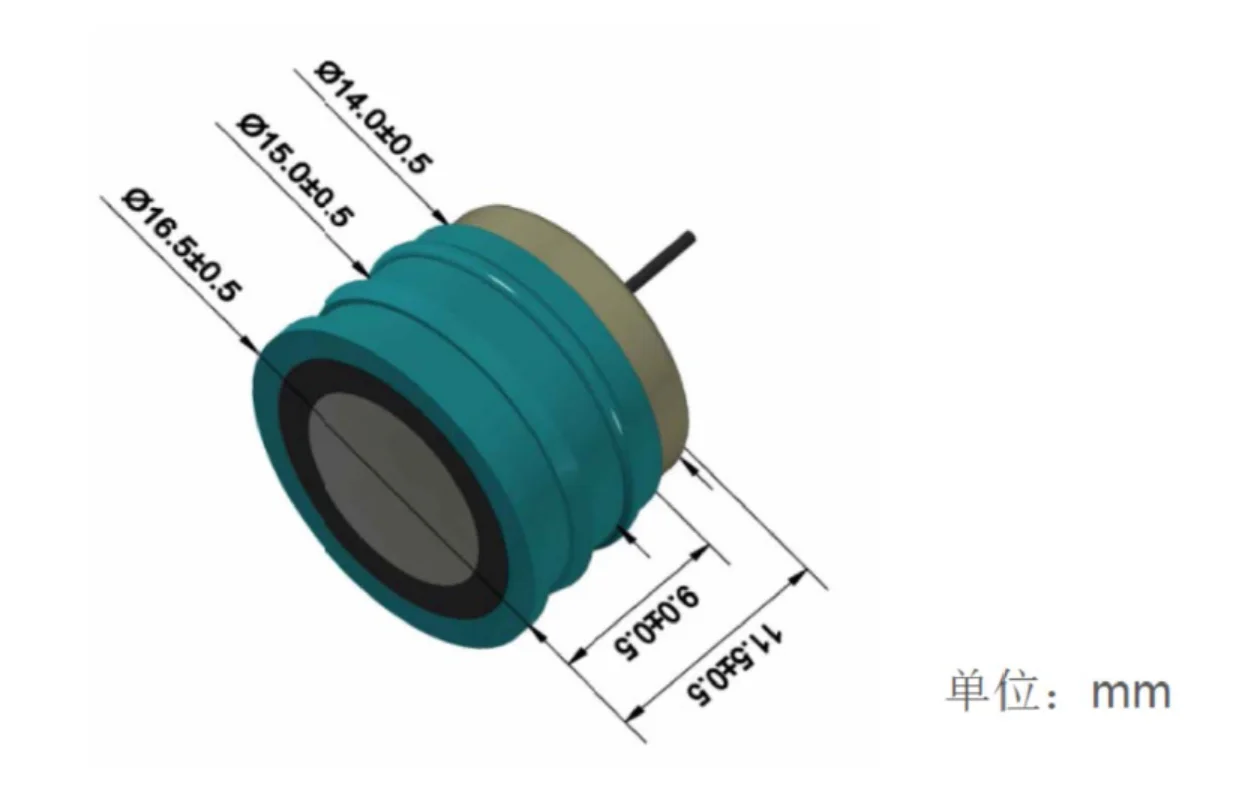

Product Size:
Precation:
To prevent sensor failure, operational failure or deterioration of its characteristics, do not use the sensor in the following or similar situations:
1.Since ultrasonic sensors are directional, be sure to pay attention to their installation position. It is recommended that the installation position is perpendicular to the object to be measured.
2.To ensure reliability and service life, do not use and store at temperatures higher than the rated temperature.
3.Do not use the sensor in vacuum or explosion-proof areas.
4. Do not use it in an environment where the atmosphere is uneven and produces a temperature gradient, which will cause measurement errors.
5.The product must not be used in an environment with dissolved organic matter orstored in corrosive gases, especially those containing hydrogen chloride gas,hydrogen sulfide gas, acid, alkali, salt or the like. Products stored inwarehouses should pay attention to normal temperature and humidity. During storage, pay attention to moisture-proof and prevent pin oxidation. Sudden changes in temperature and humidity may cause product performance failure or malfunction.
6.When installing the product directly on a circuit board or adding a casing,please add a cushioning material between the sensor and the circuit board as an improvement measure. At the same time, the sensor should not have strong mechanical vibration when used, and the working environment should not have strong electromagnetic interference.
7.If it is used in special conditions such as non-standard frequency, please inform our company of the specific working conditions, circuits, etc. you need,so that we can design and manufacture sensor products that meet your specific requirements.
8.If there is a problem with the use of Trumsense products, please contact the relevant staff of Trumsense in time. If the appearance of the sensor is not damaged, our company can replace the product.
9.The sensor shall not be disassembled privately. If it is disassembled privately and damaged, Trumsense will not bear any consequences caused by it. In serious cases, legal liability will be pursued.

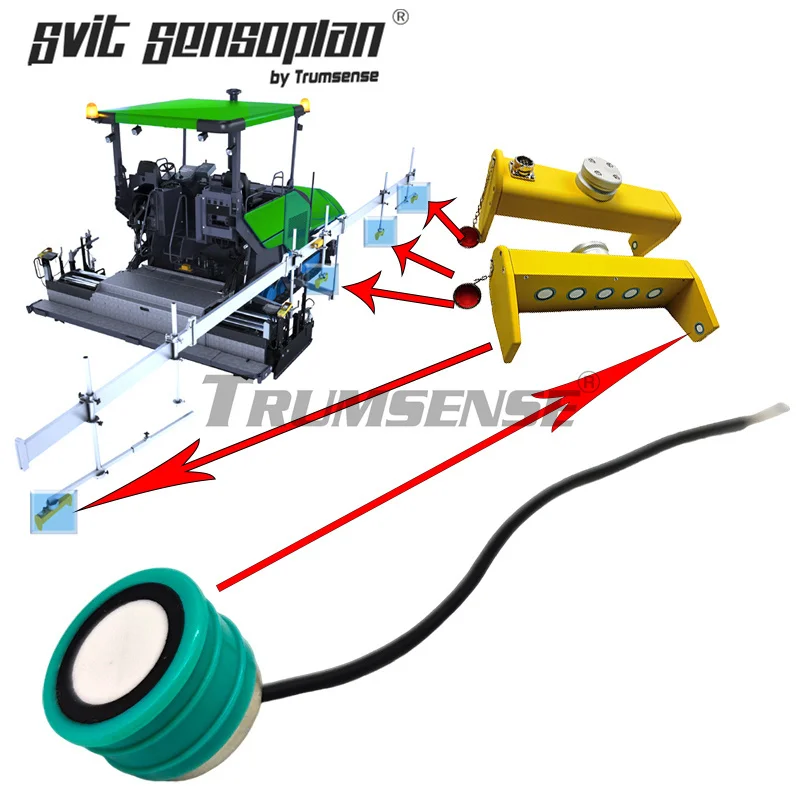

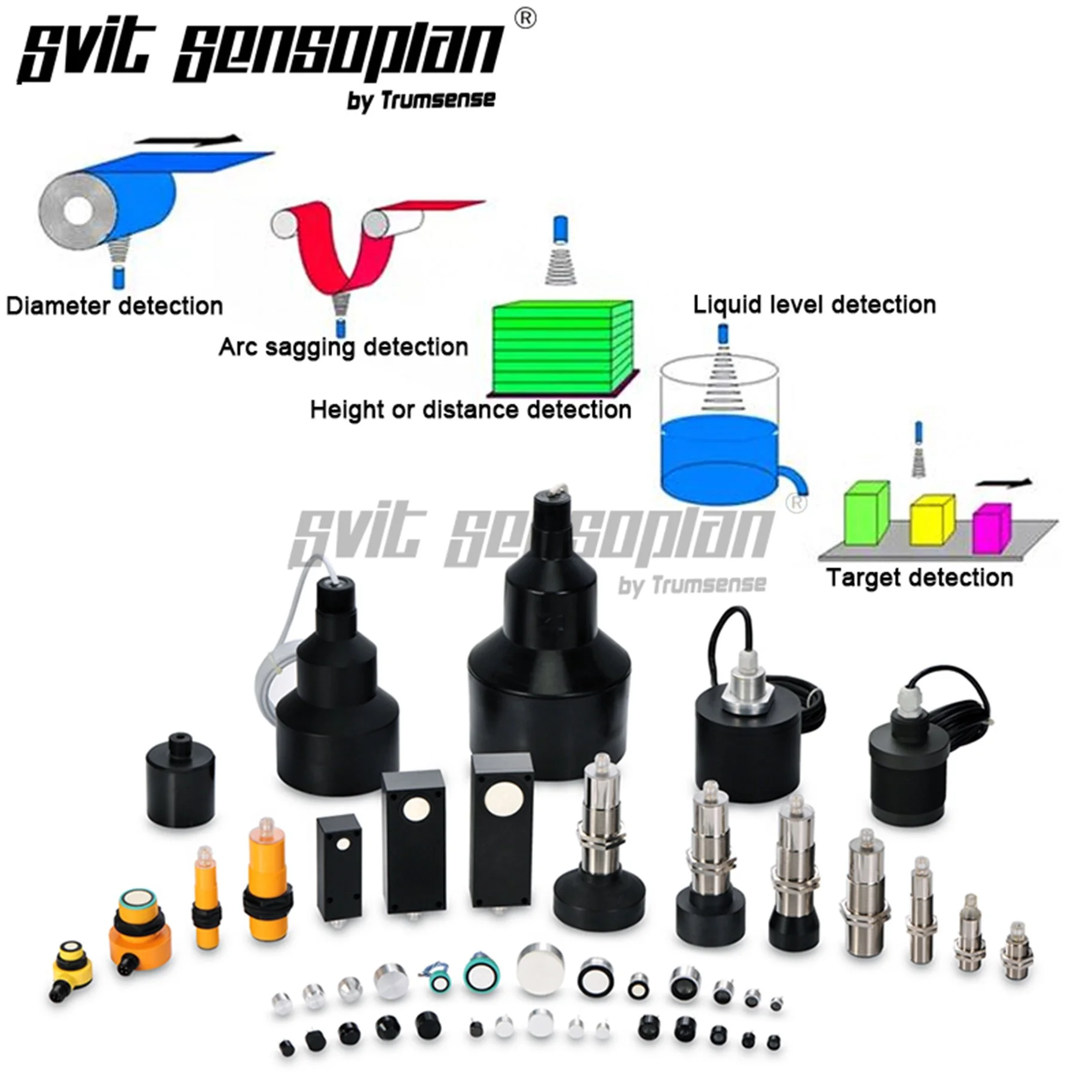

Application Examples of other Trumsense Ultrasonic Sensor Module:

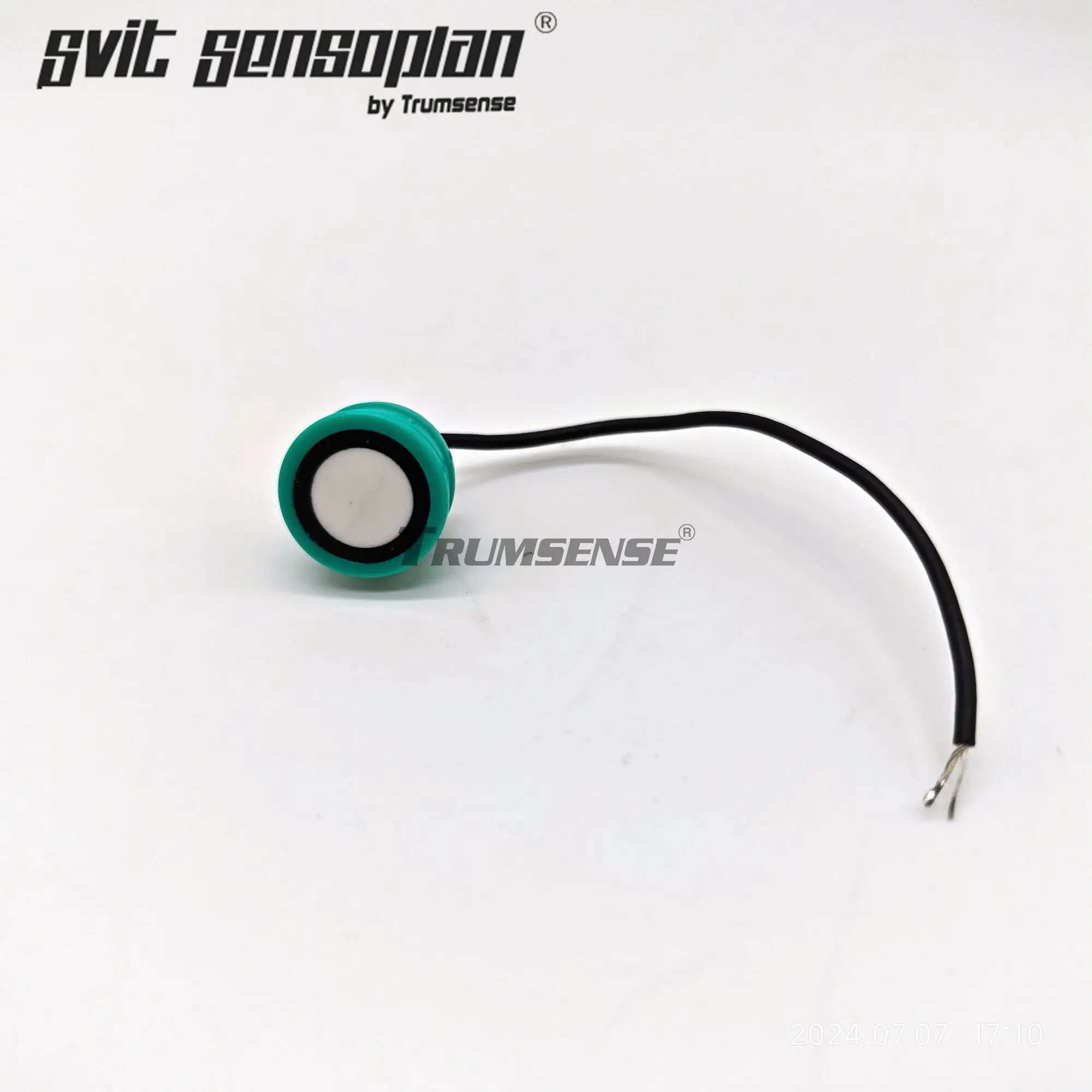

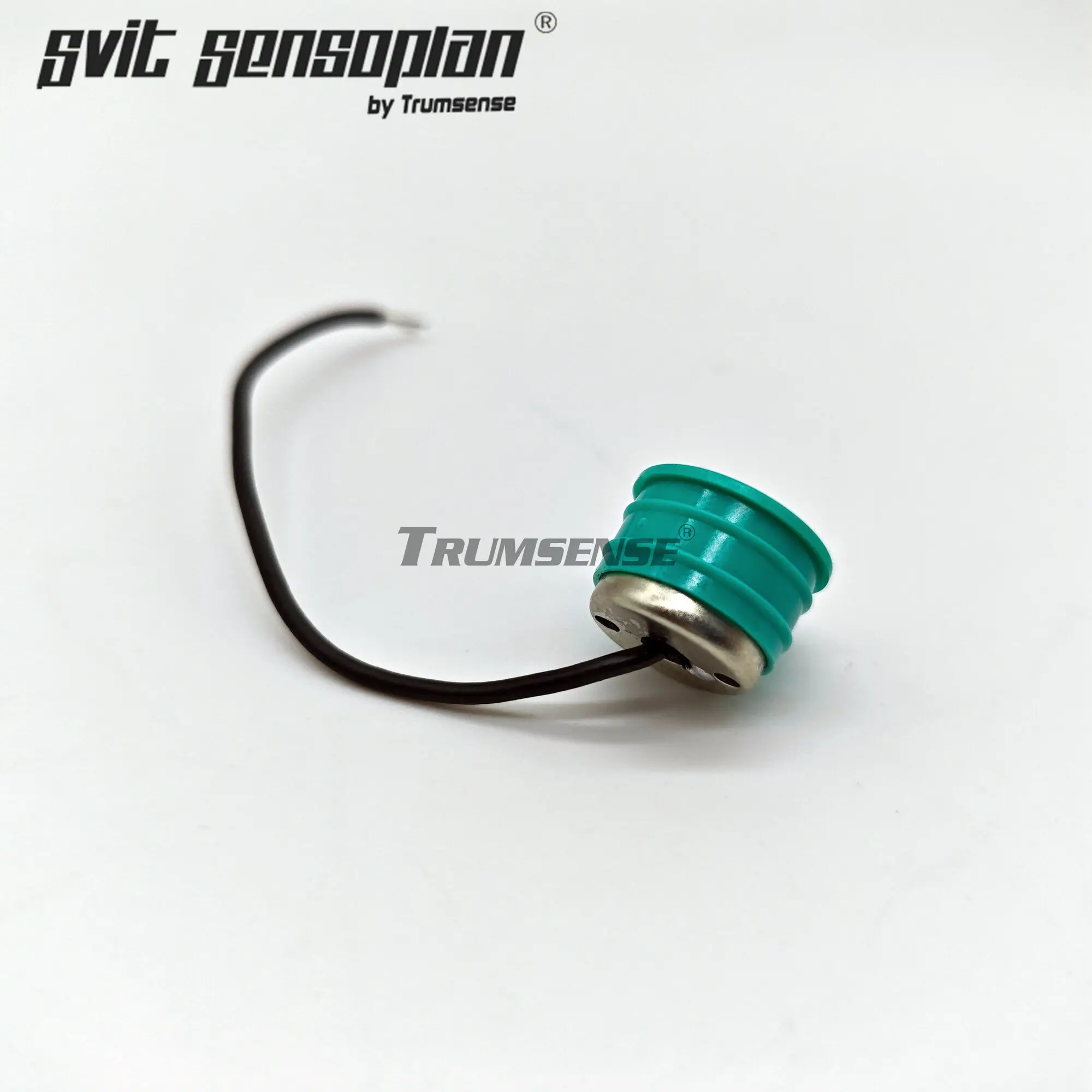

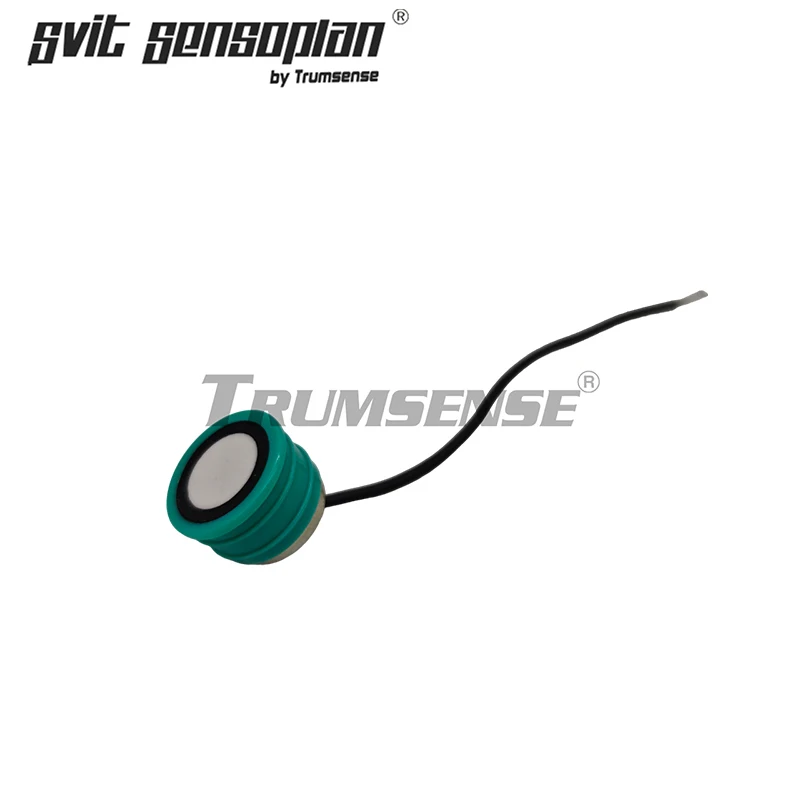

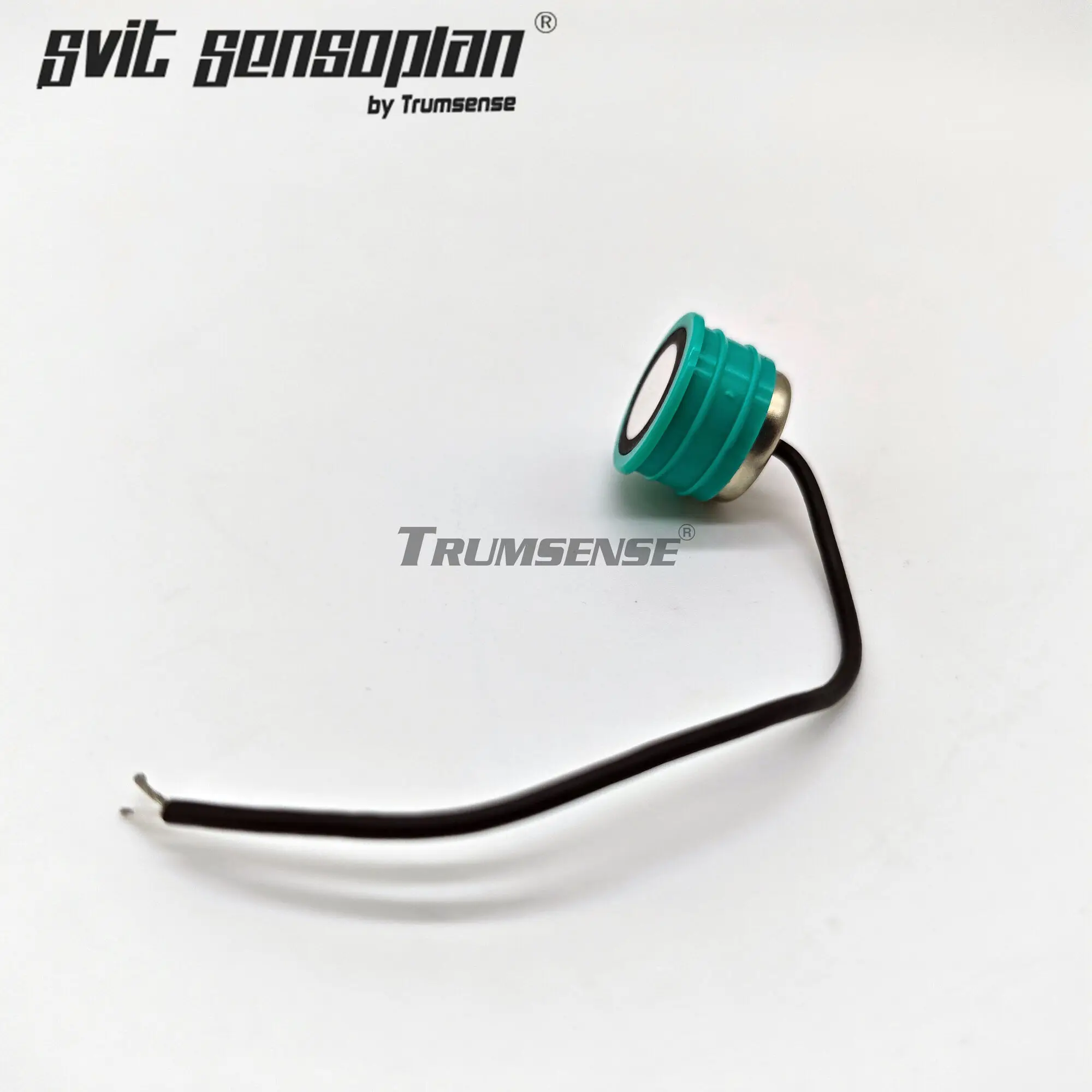

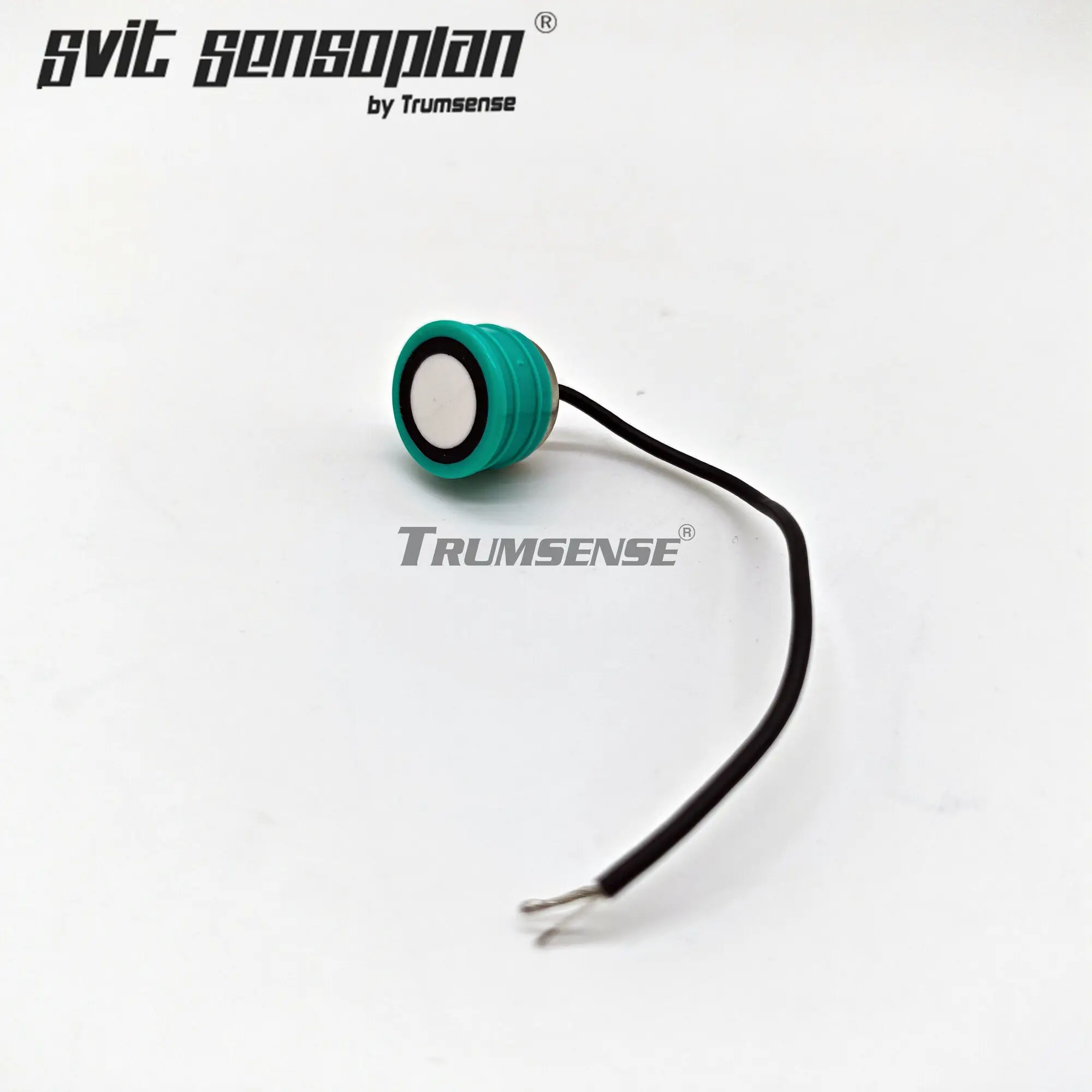

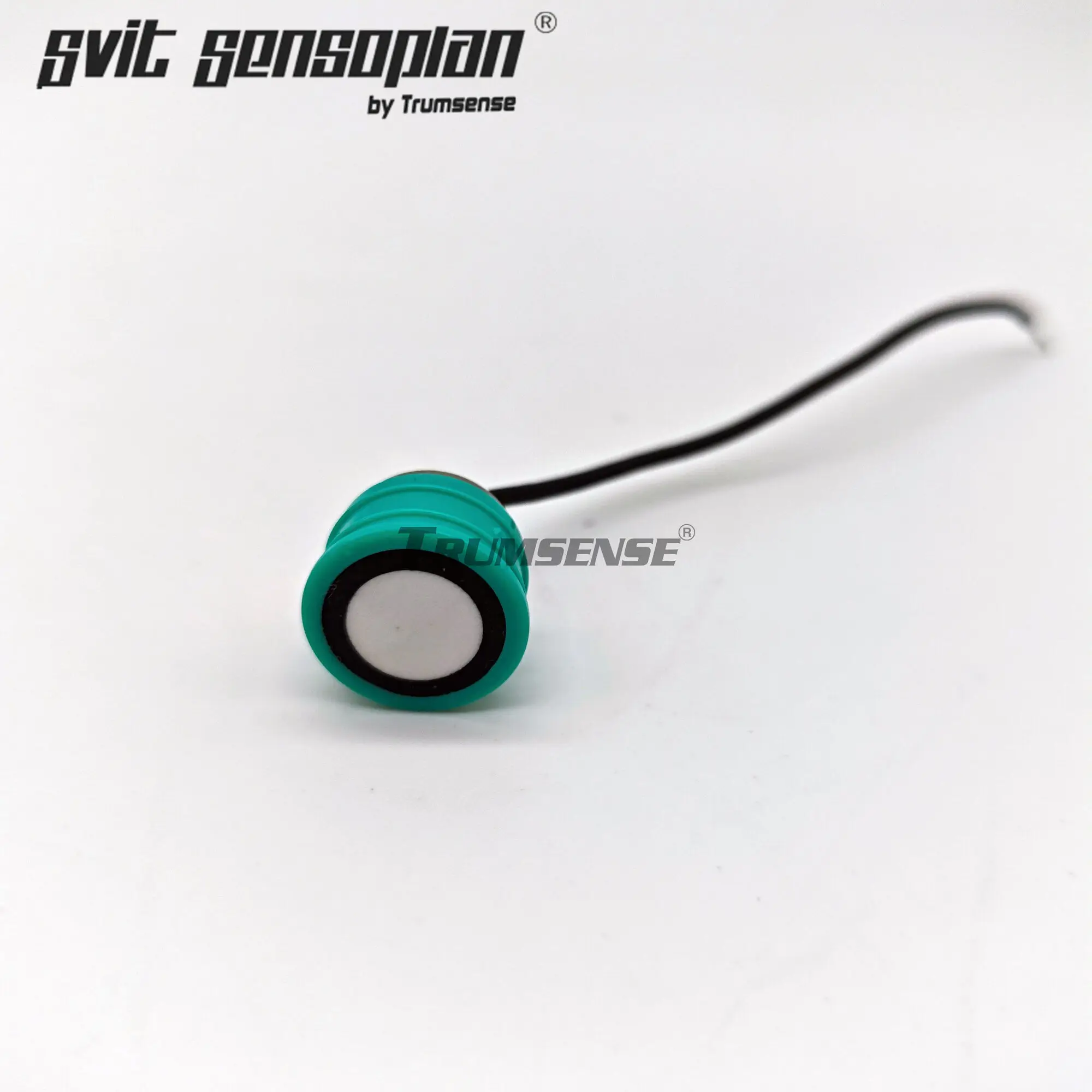

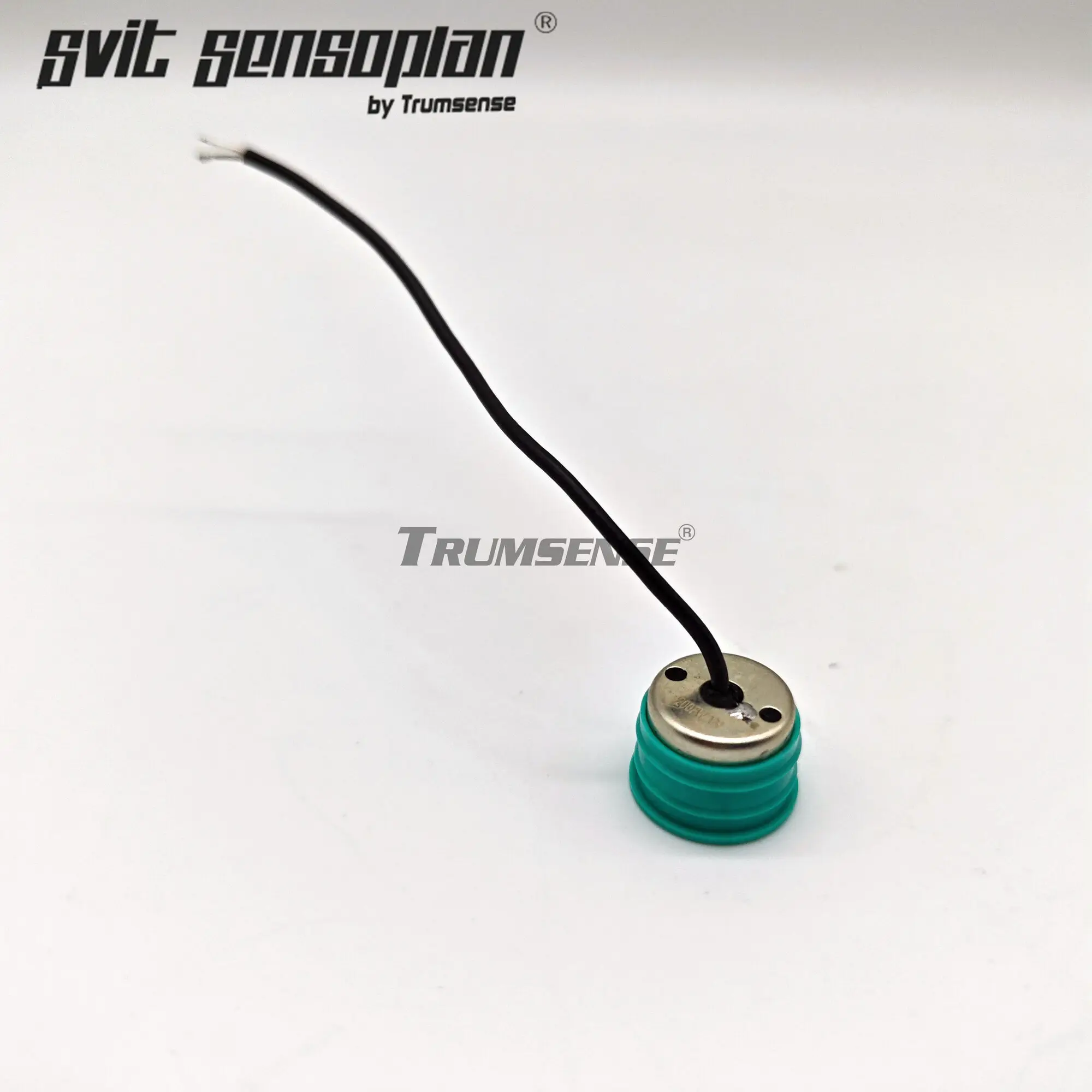

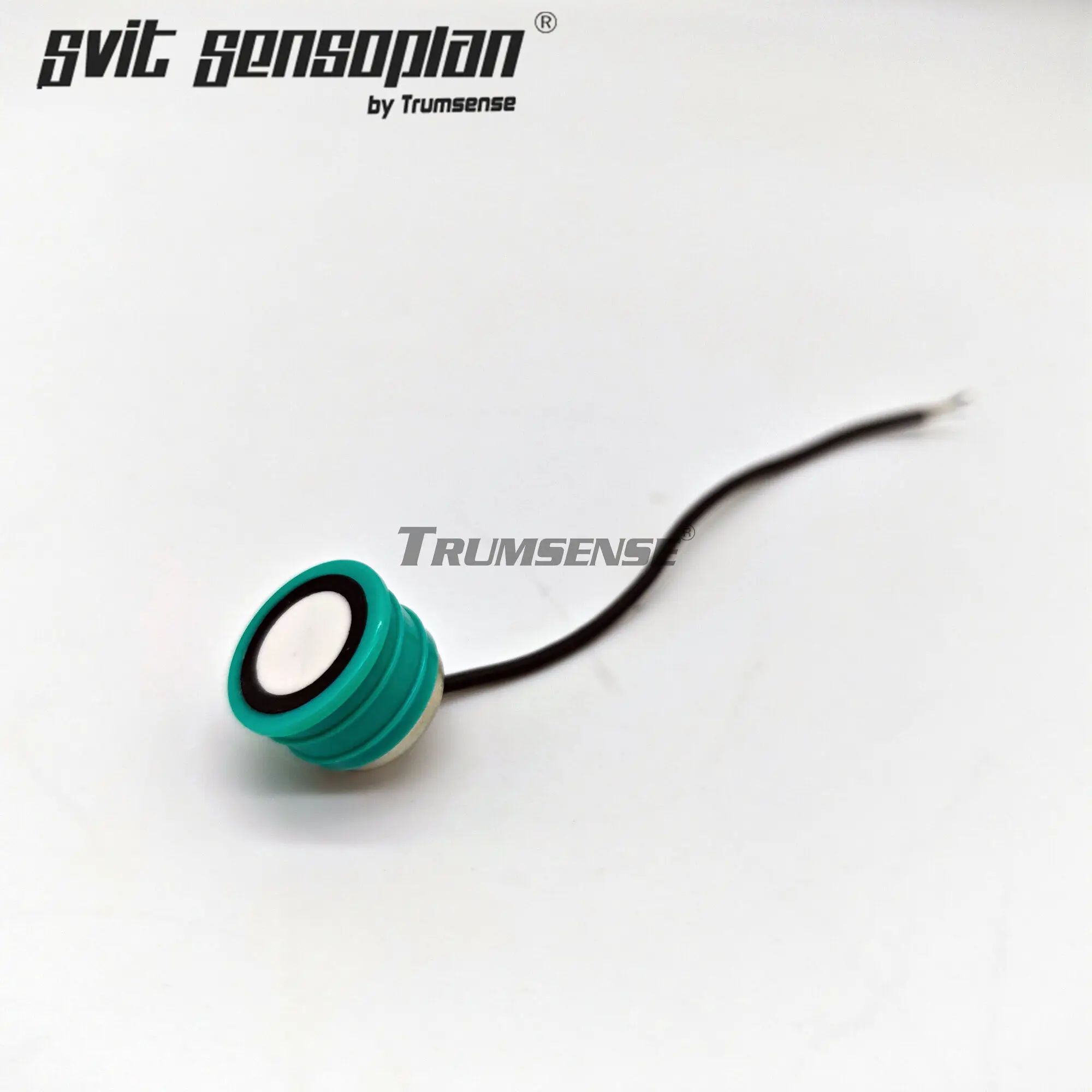

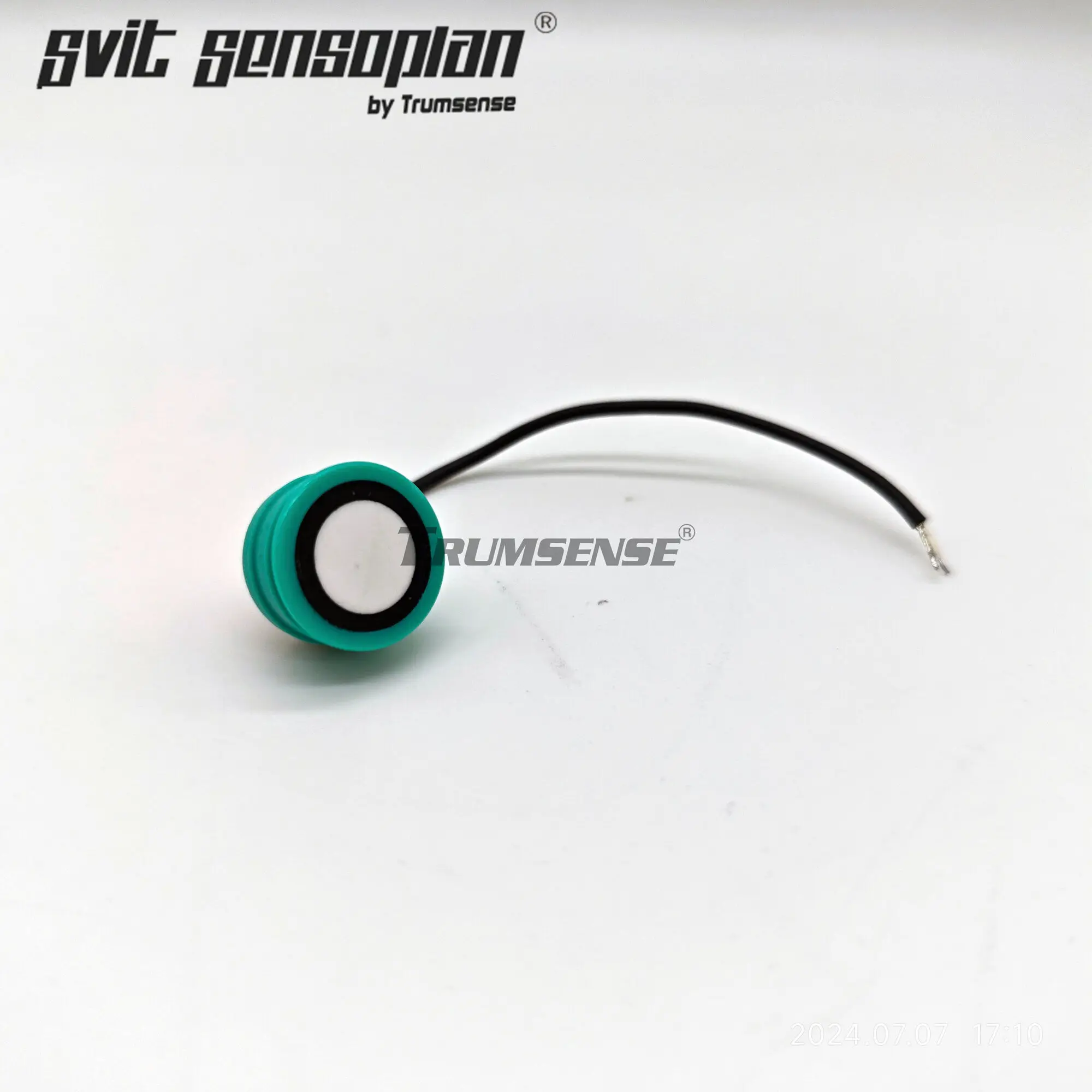

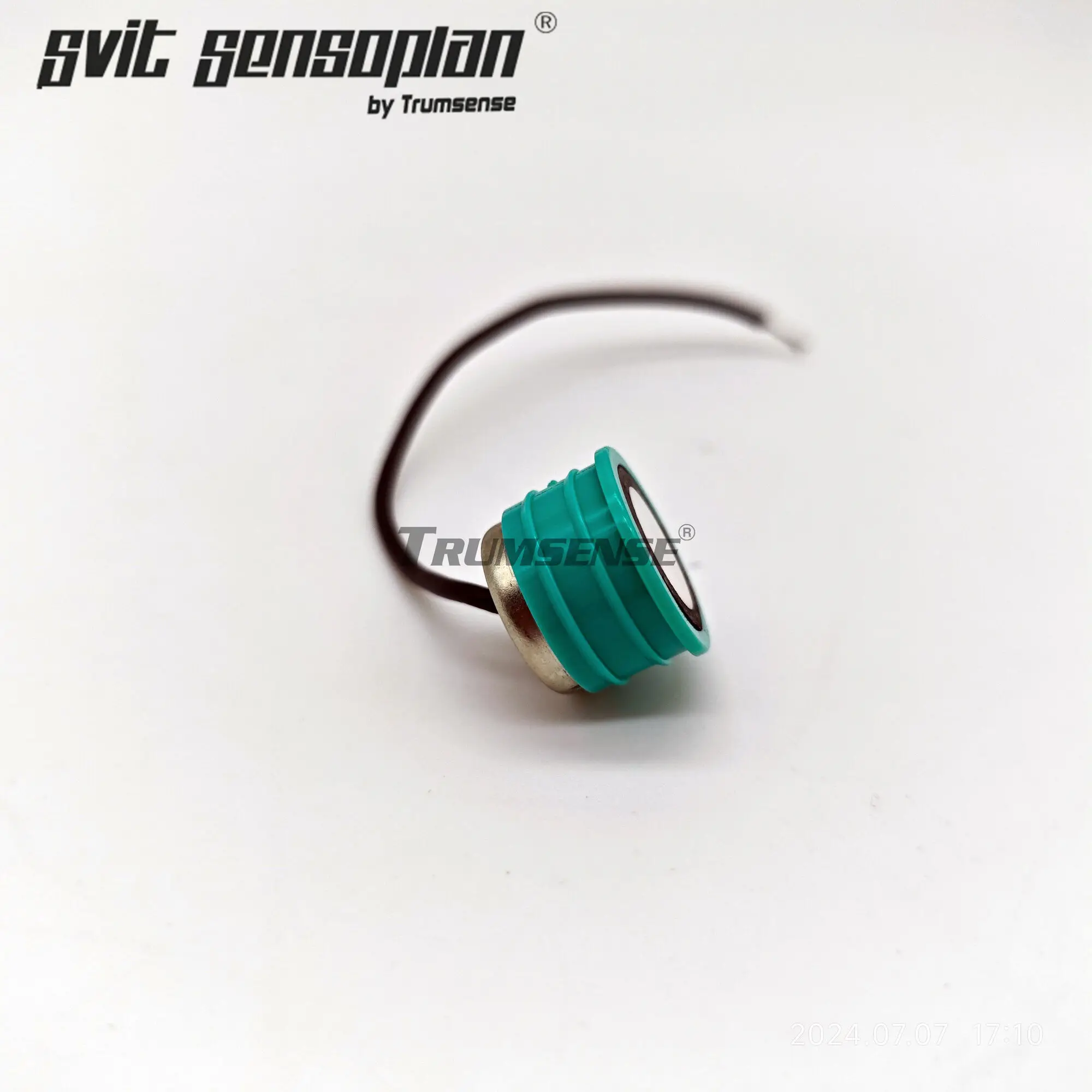

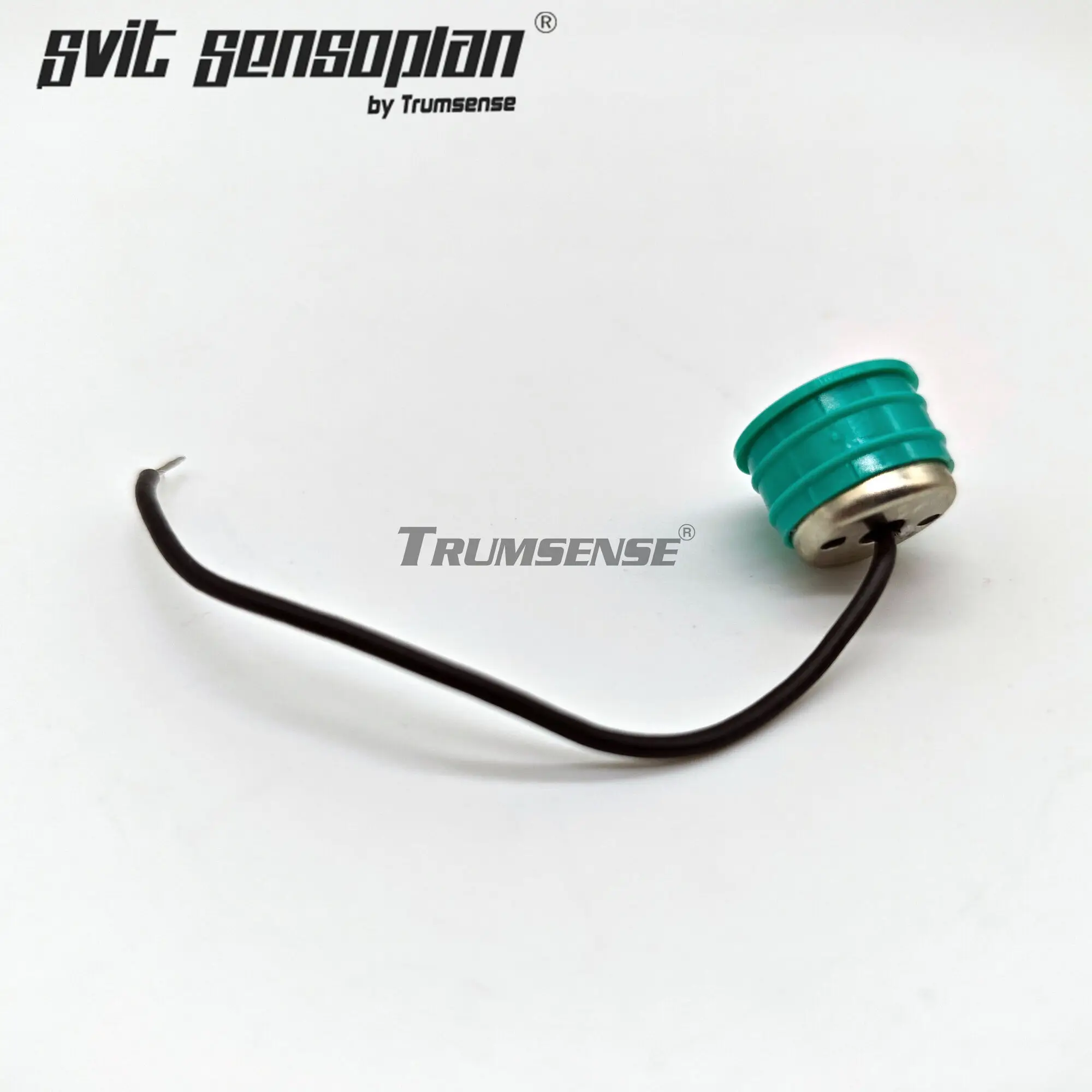

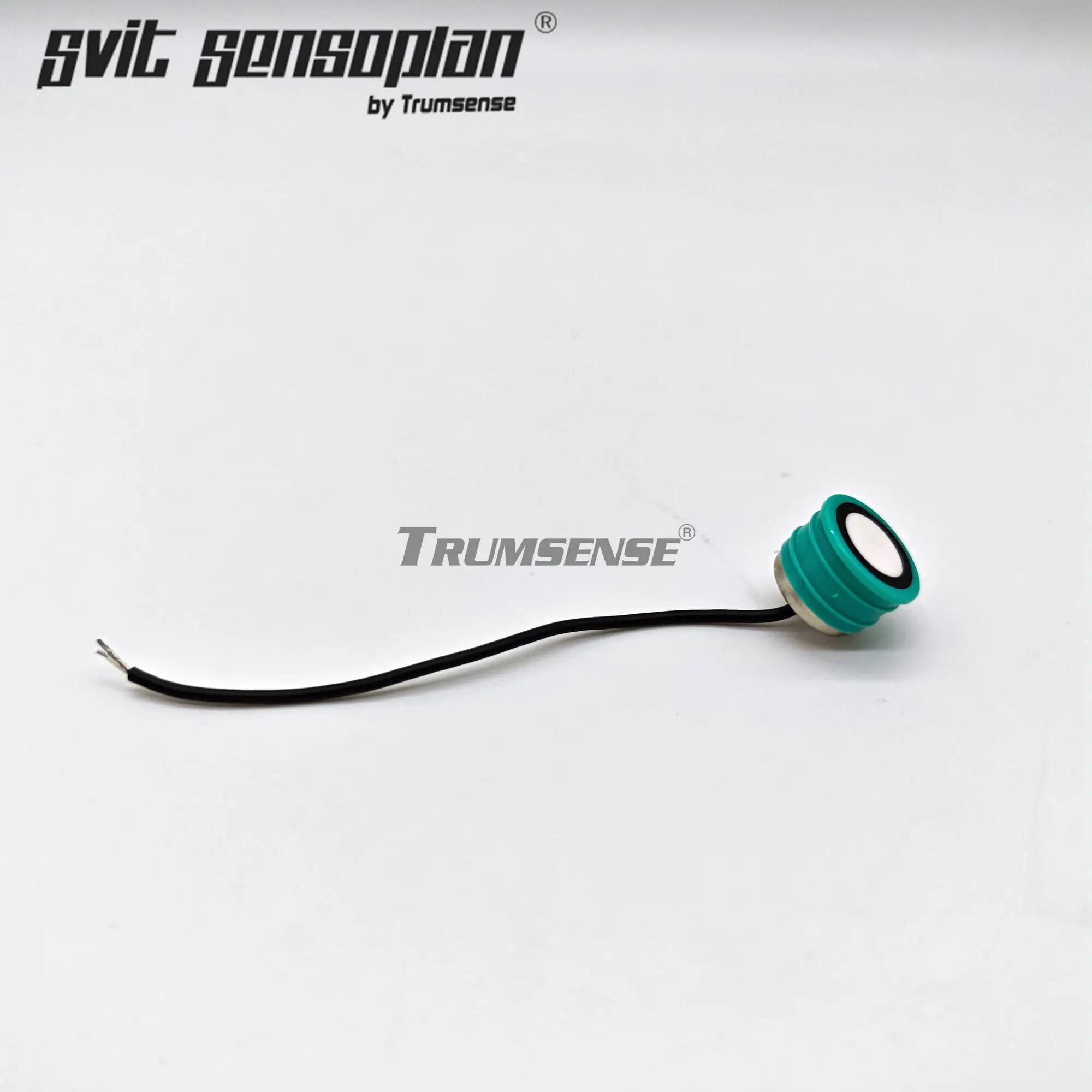

TYou Will Receive Trumsense STT200E15TR-2 Ultrasonic Sensor Module for Paving Machine, Totally Same As Below Detail Photos:
