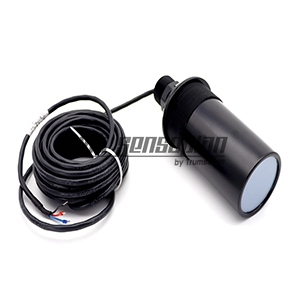

Split 25khz Ordinary Ultrasonic Transducer With 0.8 To 20 Meter Range

Item No.: 00215
Range: 0.8~20m
Working temperature: -40~+80℃
Frequency: 25KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!
Description Admittance Curve Of The Transducer Mechanical Size Review
Description

Basic Information :
Range: 0.8~20m
Working temperature: -40~+80℃
Frequency: 25KHz±5%
Working voltage: peak voltage <1500Vpp
This product is suitable for: ultrasonic level gauge, monitoring, anti-collision, security, etc.!


Technical Parameter:
Frequency: 25KHz±5%
Suggested range: 0.8~20m
Minimum impedance: 470Ω±20%
Electric capacity: 12700pF±20% @1KHz
Sensitivity: Load driving voltage: 600Vpp, distance 0.6m, echo amplitude 300mV
Working voltage: peak voltage <1500Vpp
Working temperature: -40~+80℃
Pressure: ≤3kg or 0.3MPa
Angle: (beam width) half power angle@-3dB: 11°±10%, sharpness angle: 26°±10%
Shell material: ABS
Purpose: Ultrasonic level gauge, monitoring, anti-collision, security... ...
Installation size:  refer to the "Mechanical Size"
Protection level: IP68
Weight: 1700 g±5%
Wiring instructions
Split (four wires): red: transducer +, white: transducer -, blue, black temperature sensor line (MF58);
Split (three-wire): red: transducer +, blue: temperature sensor +, black: public -;

This product is suitable for: ultrasonic level gauge, ultrasonic monitoring, ultrasonic anti-collision, ultrasonic security, ultrasonic switch
Admittance Curve Of The Transducer
Mechanical Size
