Trumsense Differential Pressure Transmitter 0.1 Mpa to 100 Mpa 15 to 30V DC Power Supply 4 to 20 mA Output Smart Differential Pressure Transducer

Item No.: 00429
TPT-AP- series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility.
Description Review
Description



Differential Pressure Transmitter

Important~~~~~ before your order :

1: For the output, we will send you 4~20mA in default. ---- if you are in need of other outputs, please contact us for fresh quote.

2: For the pressure range, this link is 300 Kpa, if you are need of other pressure range, please kindly contact us for fresh quote and production time.

3: The discount is available for quantity above 20 pieces, please kindly contact us for fresh quote.

​ ​

It is suitable for the measurement of wind pressure and flow velocity in the process, as well as the automatic measurement of low-pressure systems such as dry gas, pipeline and furnace pressure.

TPT-AP- series diffused silicon differential transmitters are consist of both isolation membrane differential pressure sensor and integrated circuit, Has characteristics of high precision, good stability, high reliability and good sensibility. Also can build high-performance microprocessor(MCU)which can correct nonlinearity and compensate temperature drift. Achieve accurate data transfer, local equipment diagnoses and long-distance bidirectional communication.

​ ​ ​

Feature

Pperformance is reliable and stable

Marking: ExiaIICT6;

CE certification

Application:

Compatible with 316LSS,noncorrosive gases& liquids

Wind pressure & velocity of flow in industry process.

Measuring pressure of pipeline &firepot

Petroleum industry, chemical industry

Meteorological monitoring

Hydraulic and pneumatic control system

Liquid level measurement and control

Petrochemical, environmental protection, air compression

Power station operation inspection, locomotive braking system

Thermoelectric unit

Light industry, machinery, metallurgy

Building automation, constant pressure water supply

Other automatic control and detection systems

Industrial process detection and control

Laboratory pressure calibration

Specification

Range

Ⅱ: 0~200Pa…..1000Kpa

Medium

Ⅱ: Dry gases compatible withAluminium casting or plastic

Proof pressure

1.5X rated range or 4MPa(Which ever is less)

Accuracy

±0.25%(Typical)±0.5%(Max.)

Static pressure

5X rated range or 4MPa which ever is less

Long term stability

±0.5%F.S/year(≤200KPa)±0.2%F.S/year(≤2000KPa)

Zero temperature Drift

±0.03%F.S/℃(≤100KPa)±0.02%F.S/℃(>100KPa)

Span temperature Drift

±0.03%F.S/℃(≤100KPa)±0.02%F.S/℃(>100KPa)

Operating temperature range

-20℃~80℃

Storage temperature range

-40℃~120℃

Power supply

15~36VDC

Output signal

Ⅱ:4~20mA in default, 0 to 5V, 0 to 10V, RS485 optional

Pressure port

G1/4 Female¢6 air cock or customize

Housing material

1Cr18Ni9TiStainless steel , aluminium casting or plastic

Diaphragm material

316L

O ring

Fluororubber

Cable

Polyethylene ​ventilate cable

Insulation resistance

100MΩ,100VDC

Protection

IP65

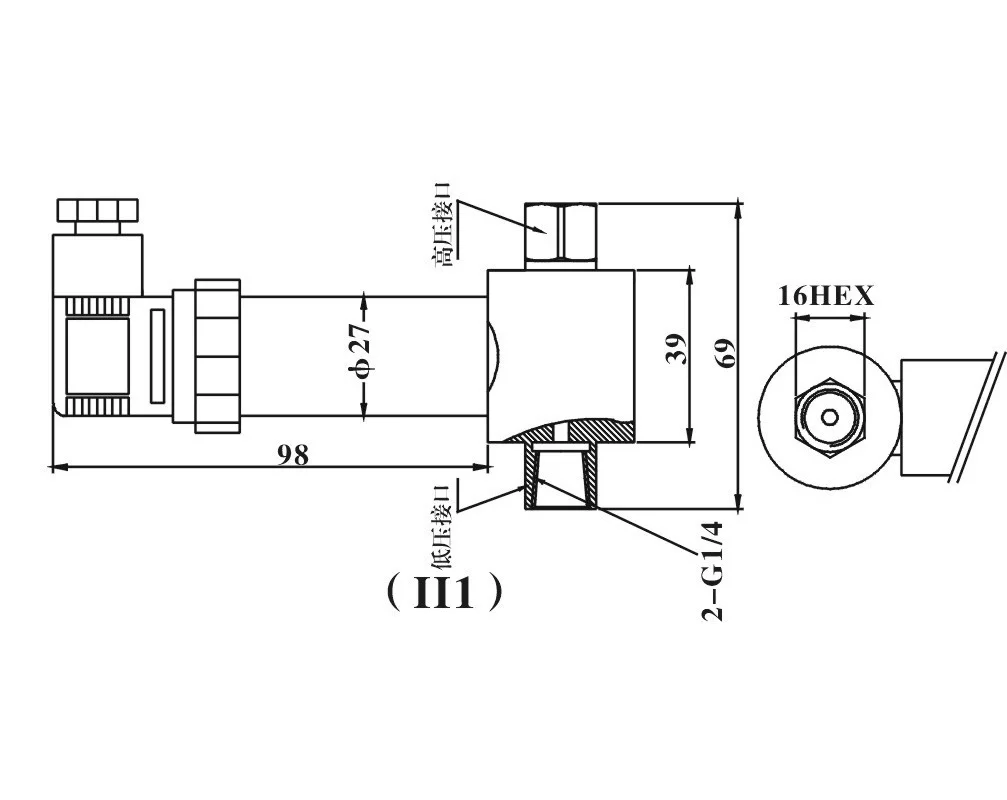

Dimension

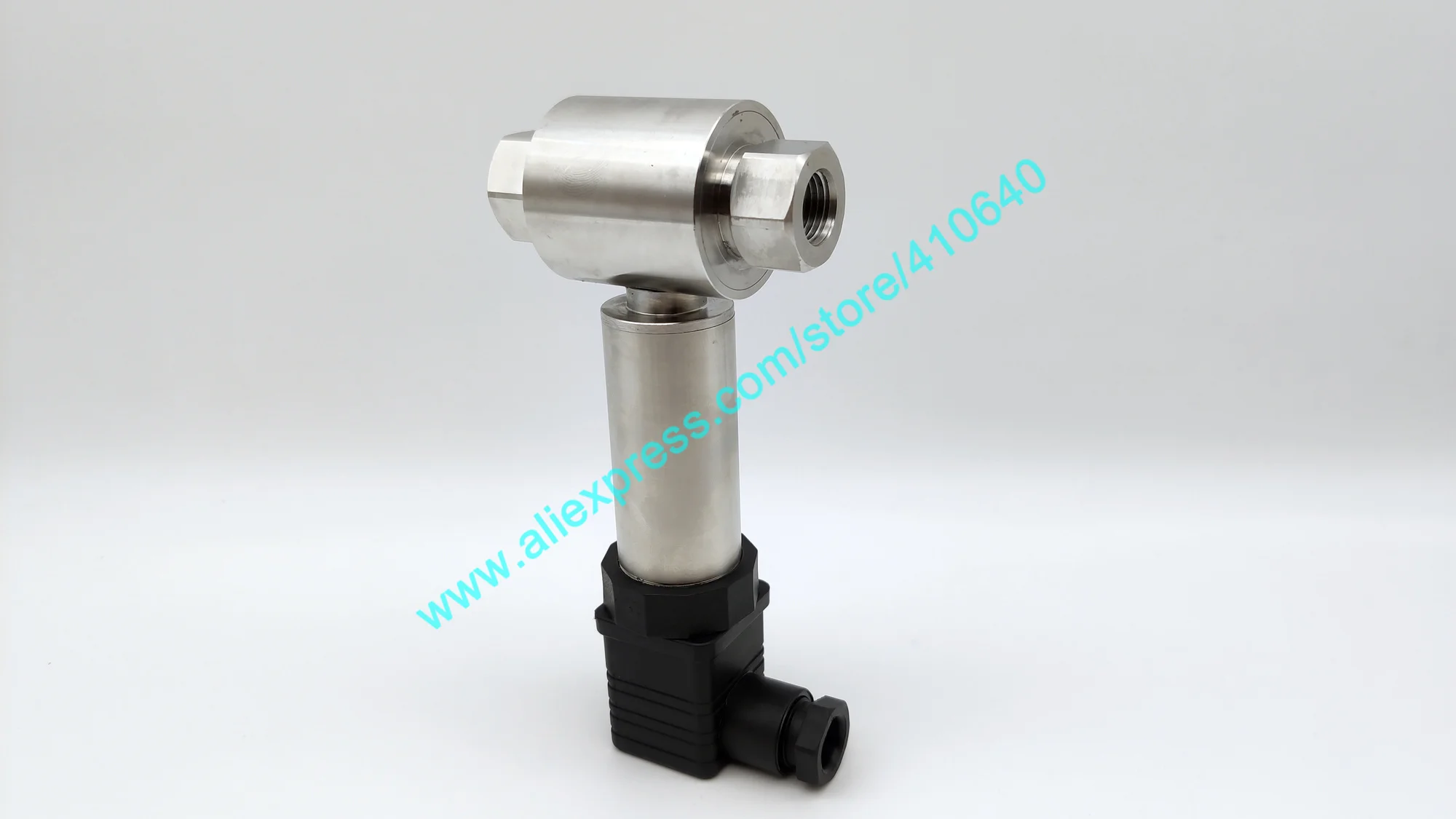

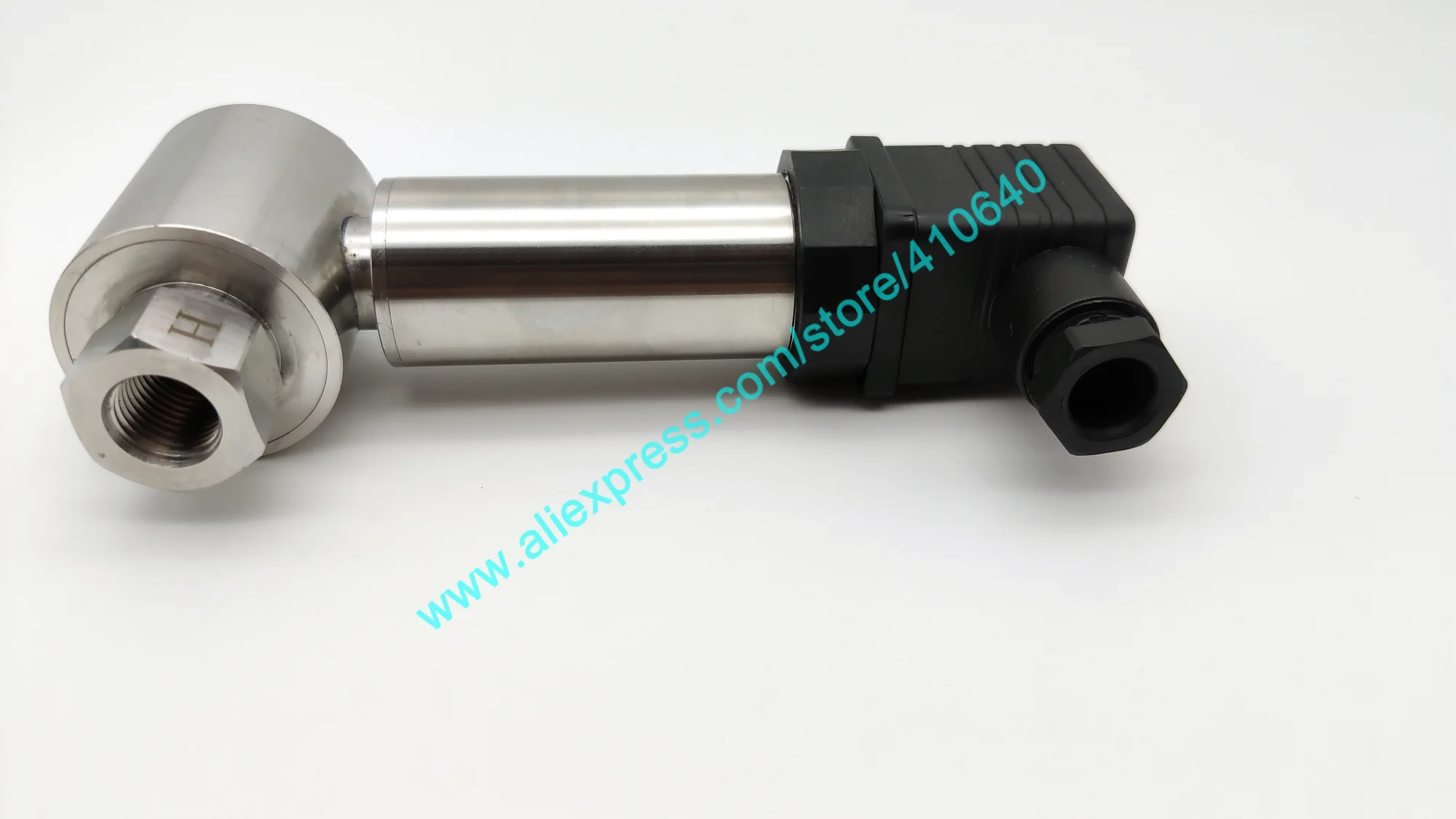

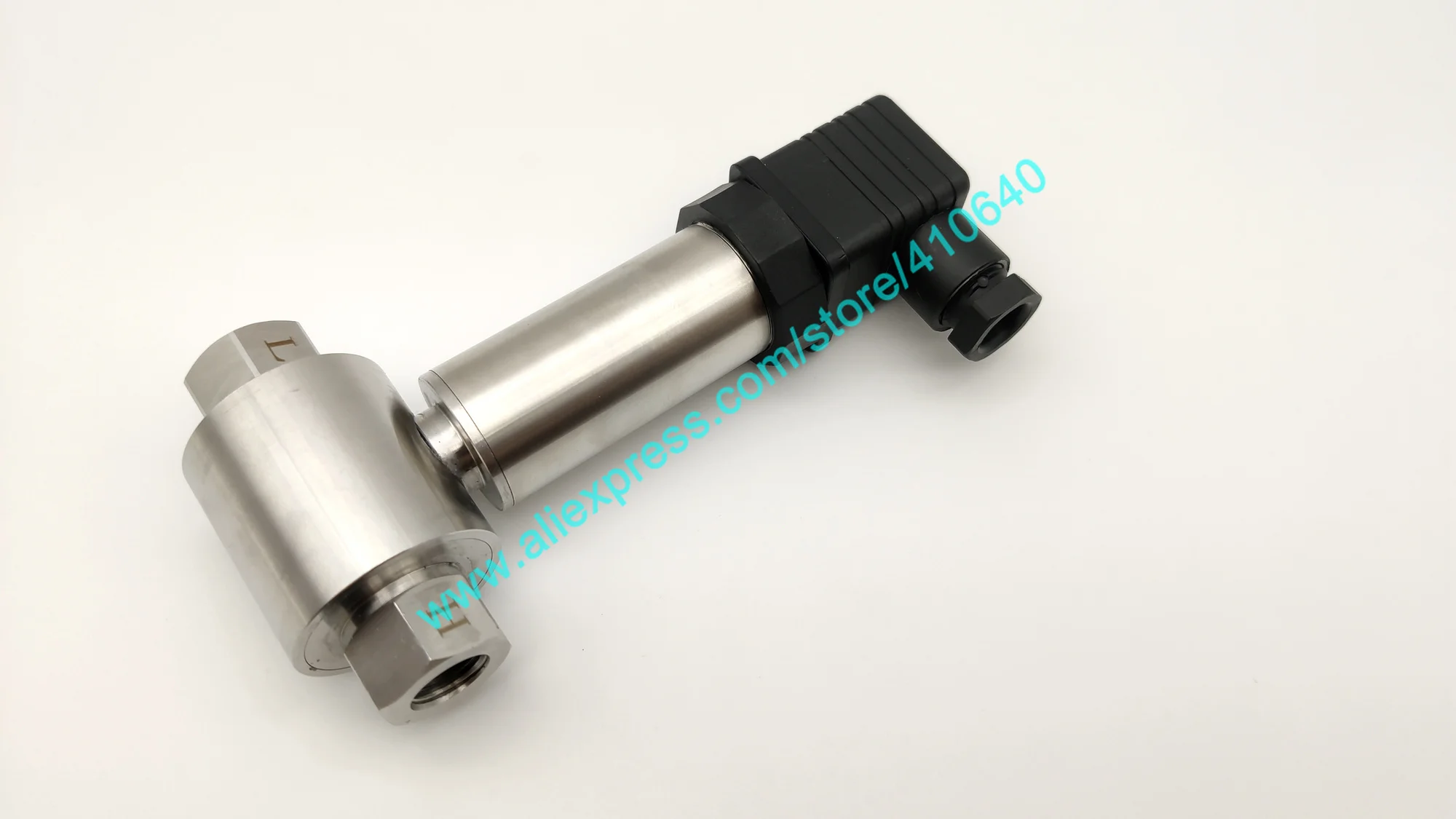

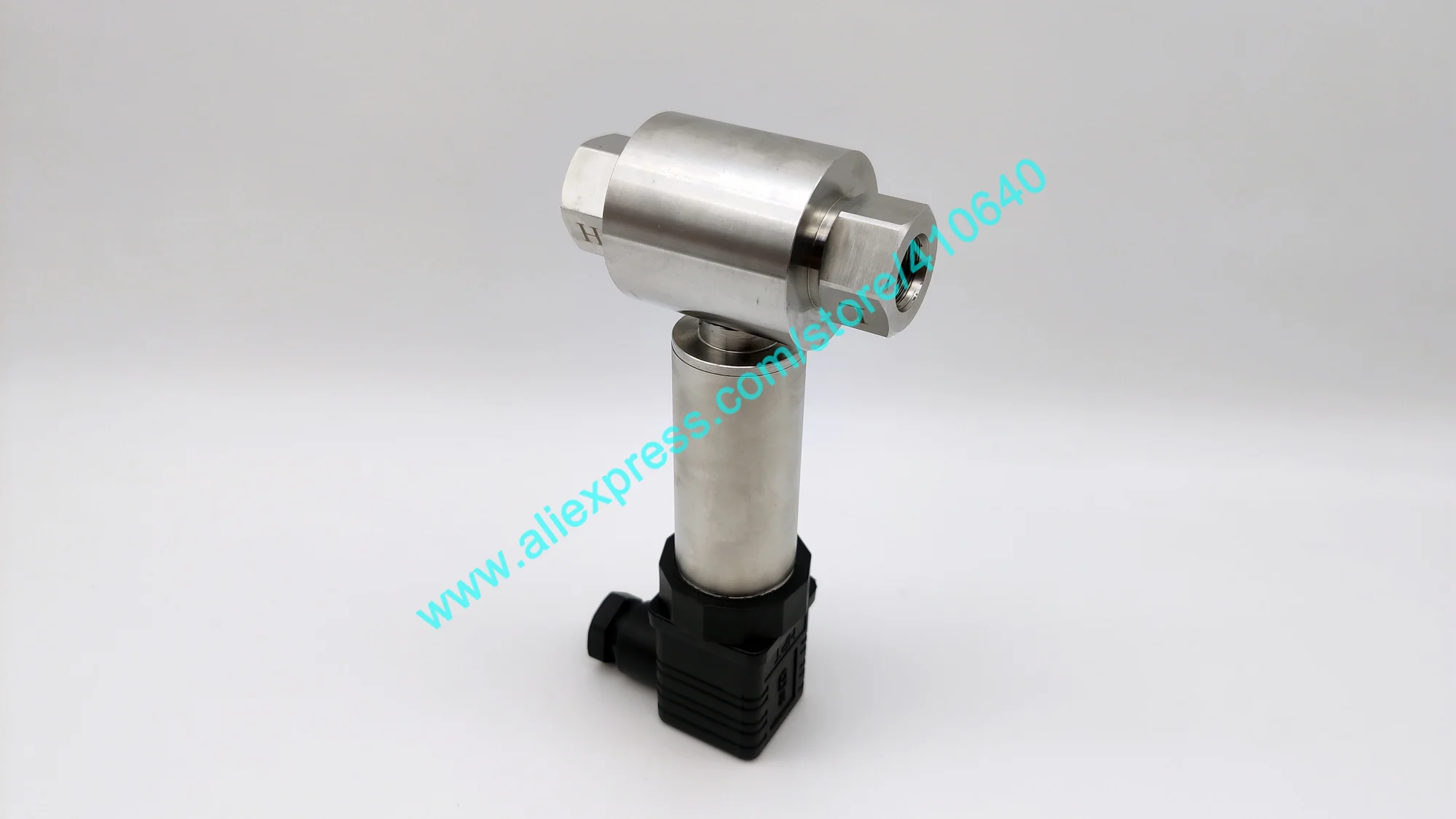

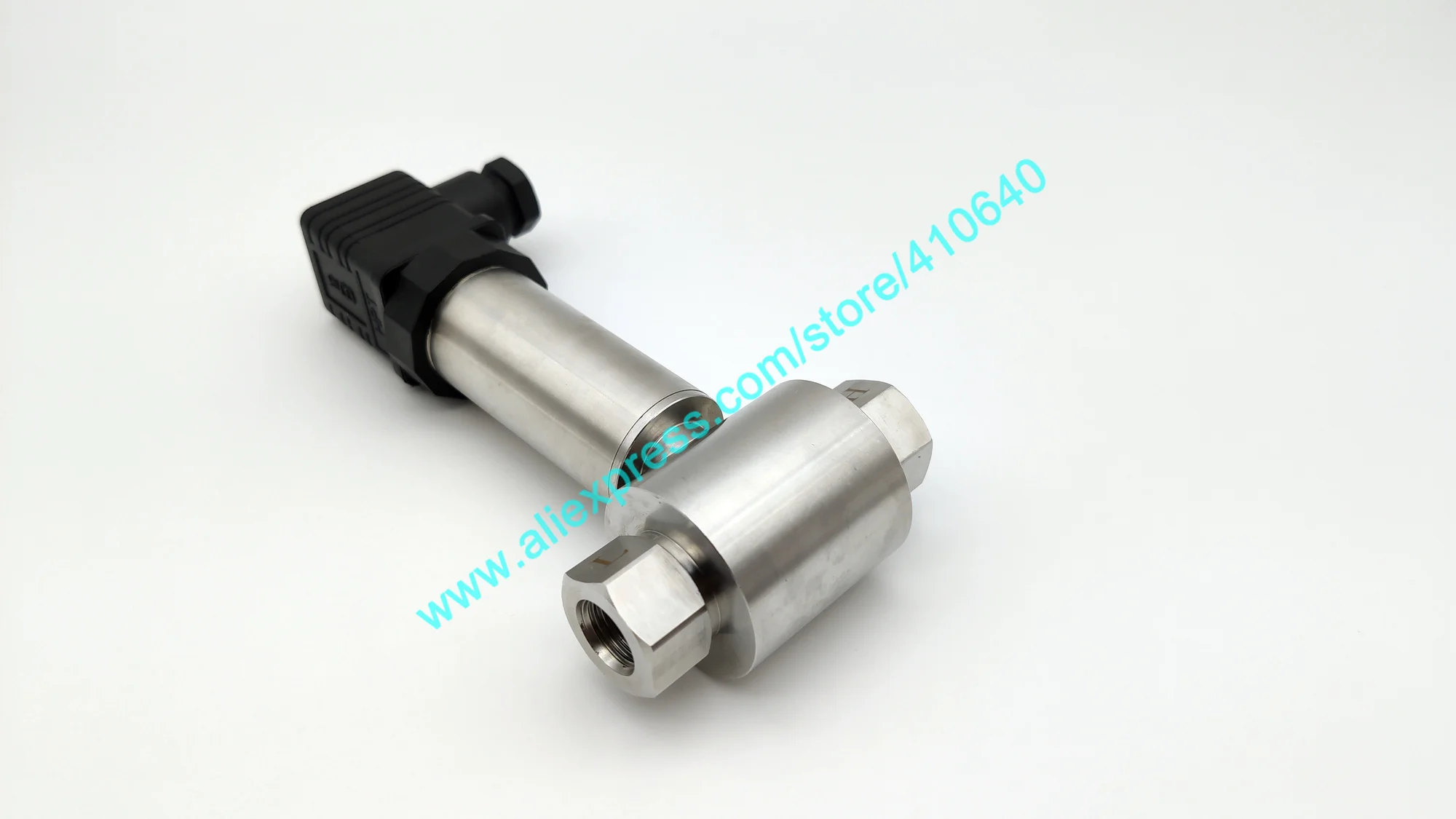

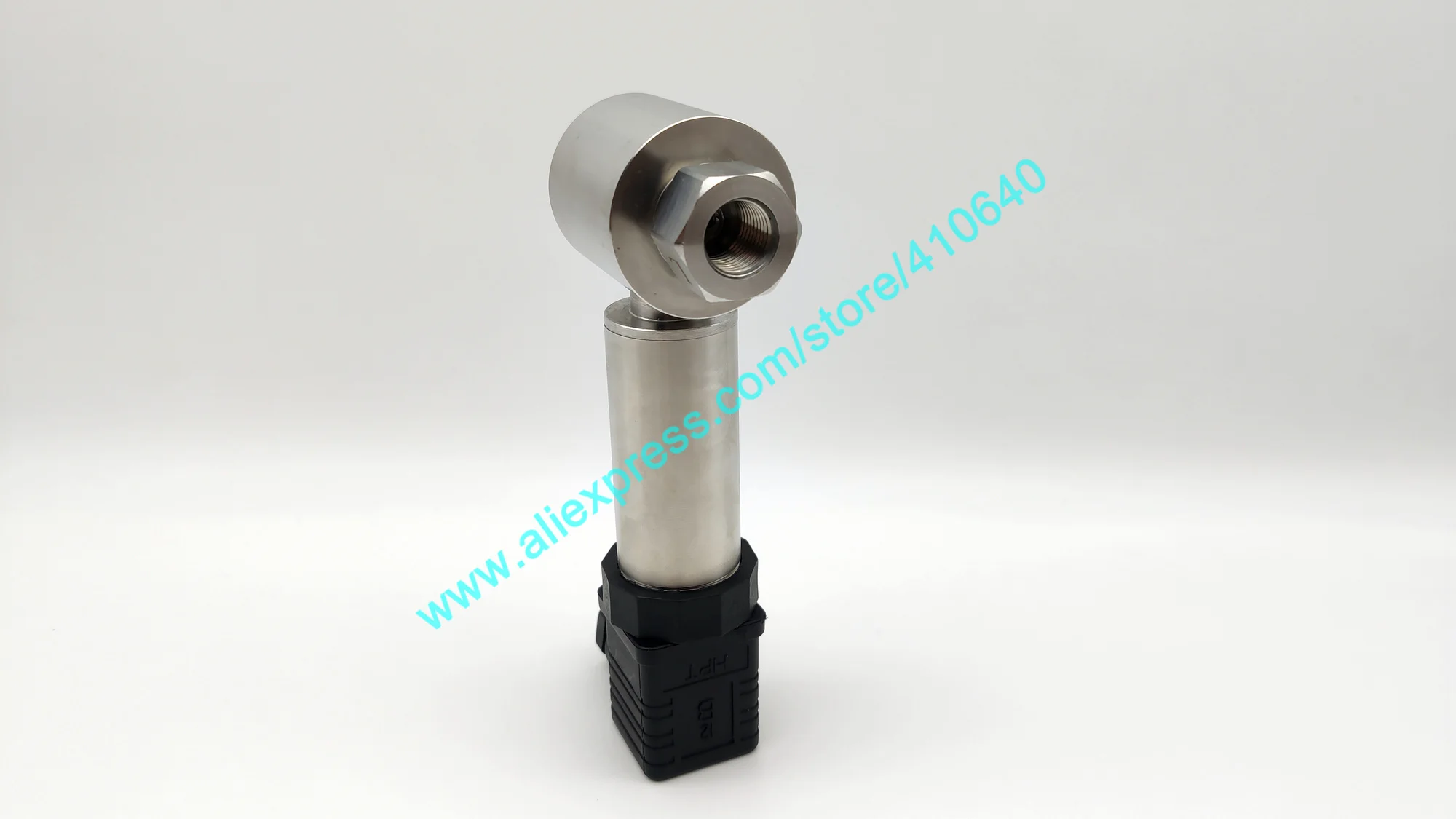

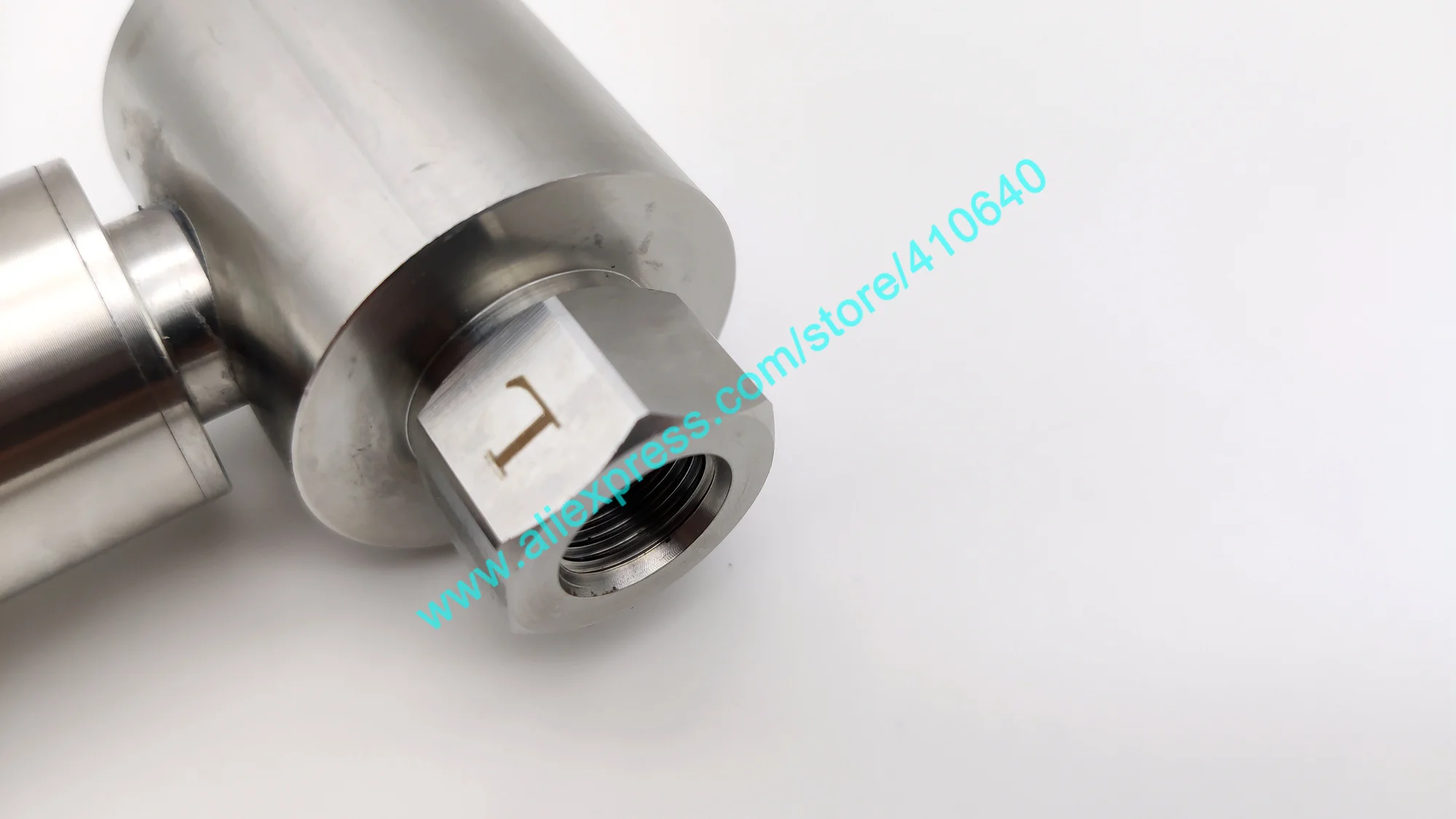

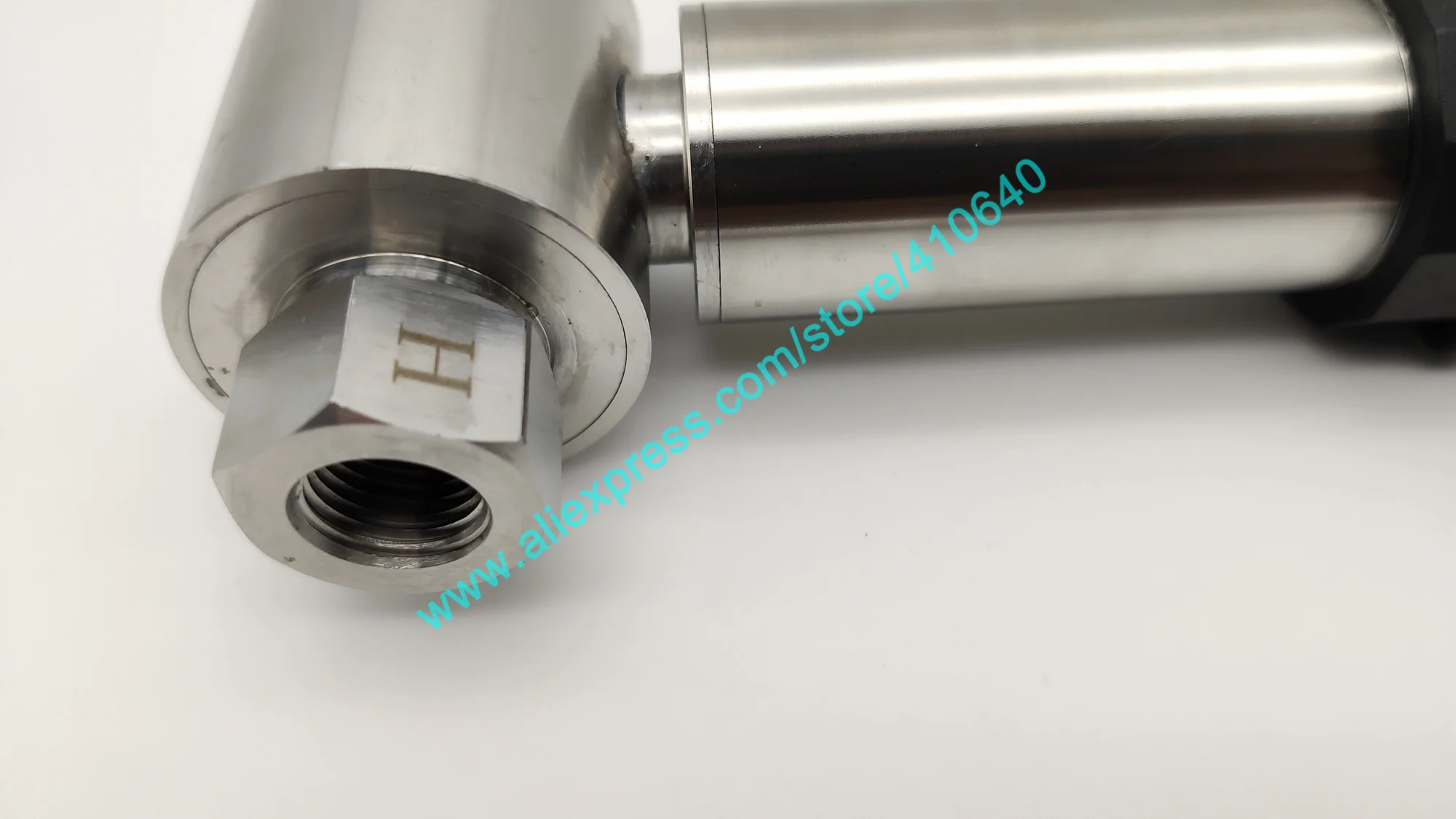

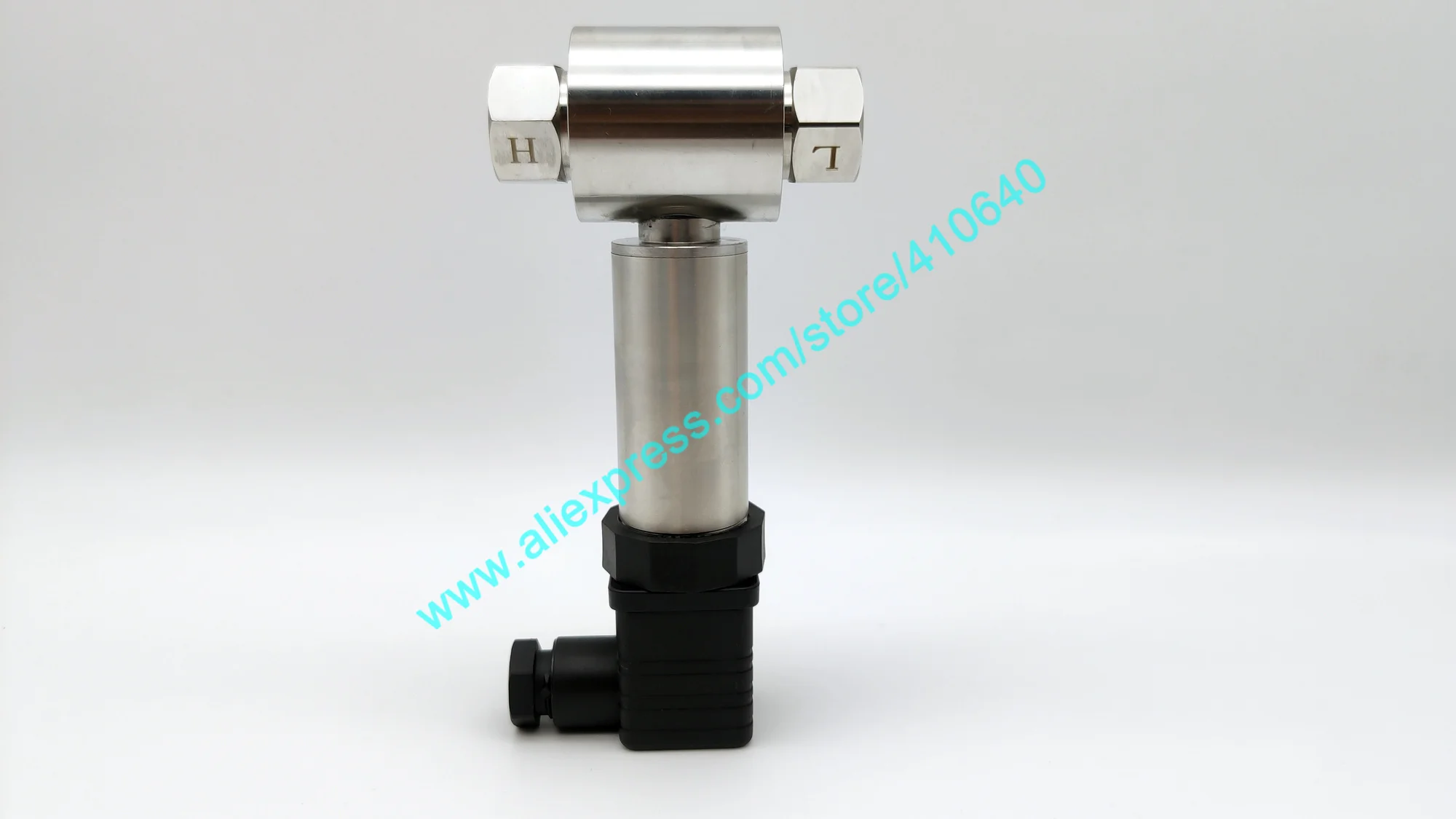

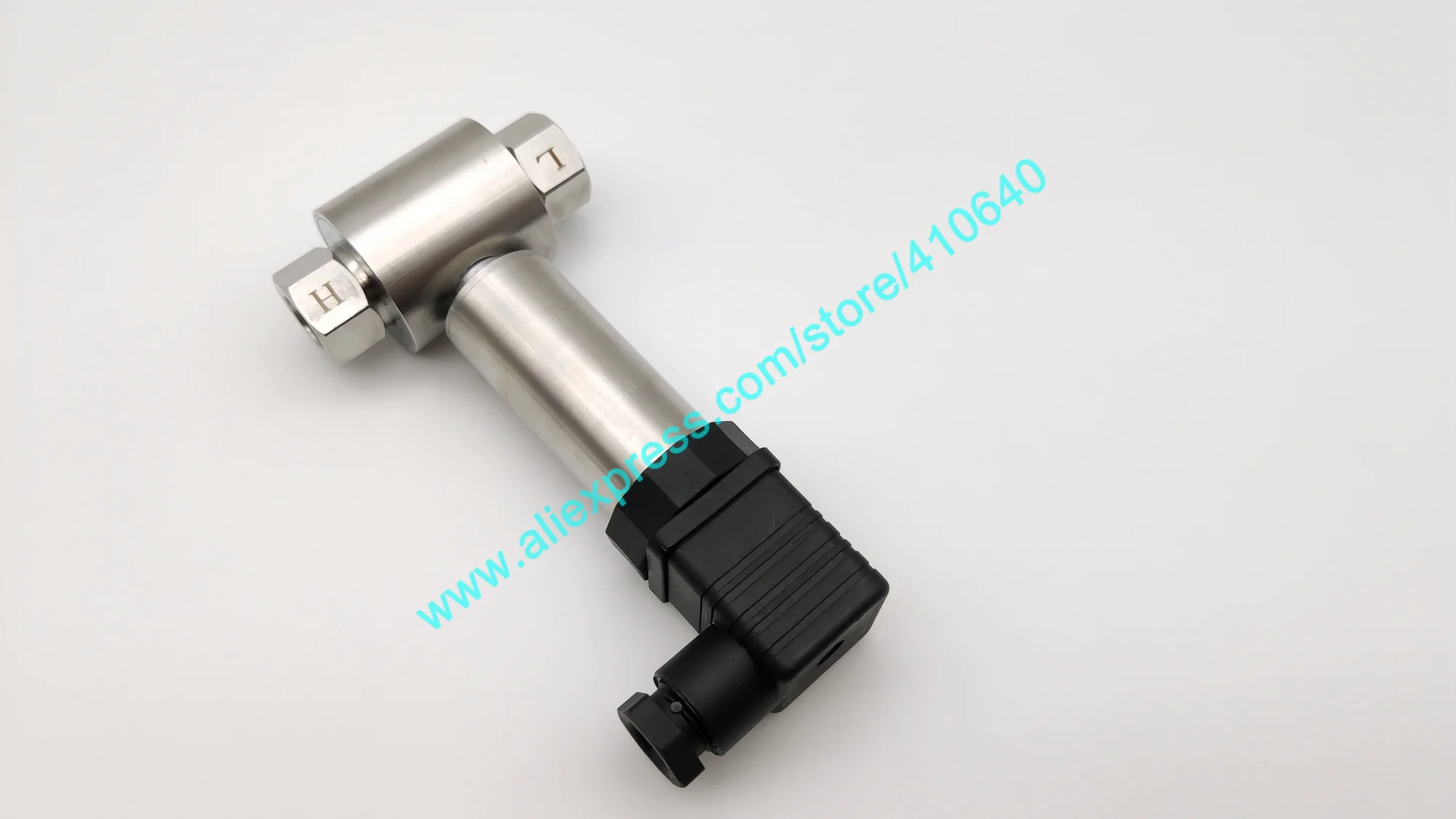

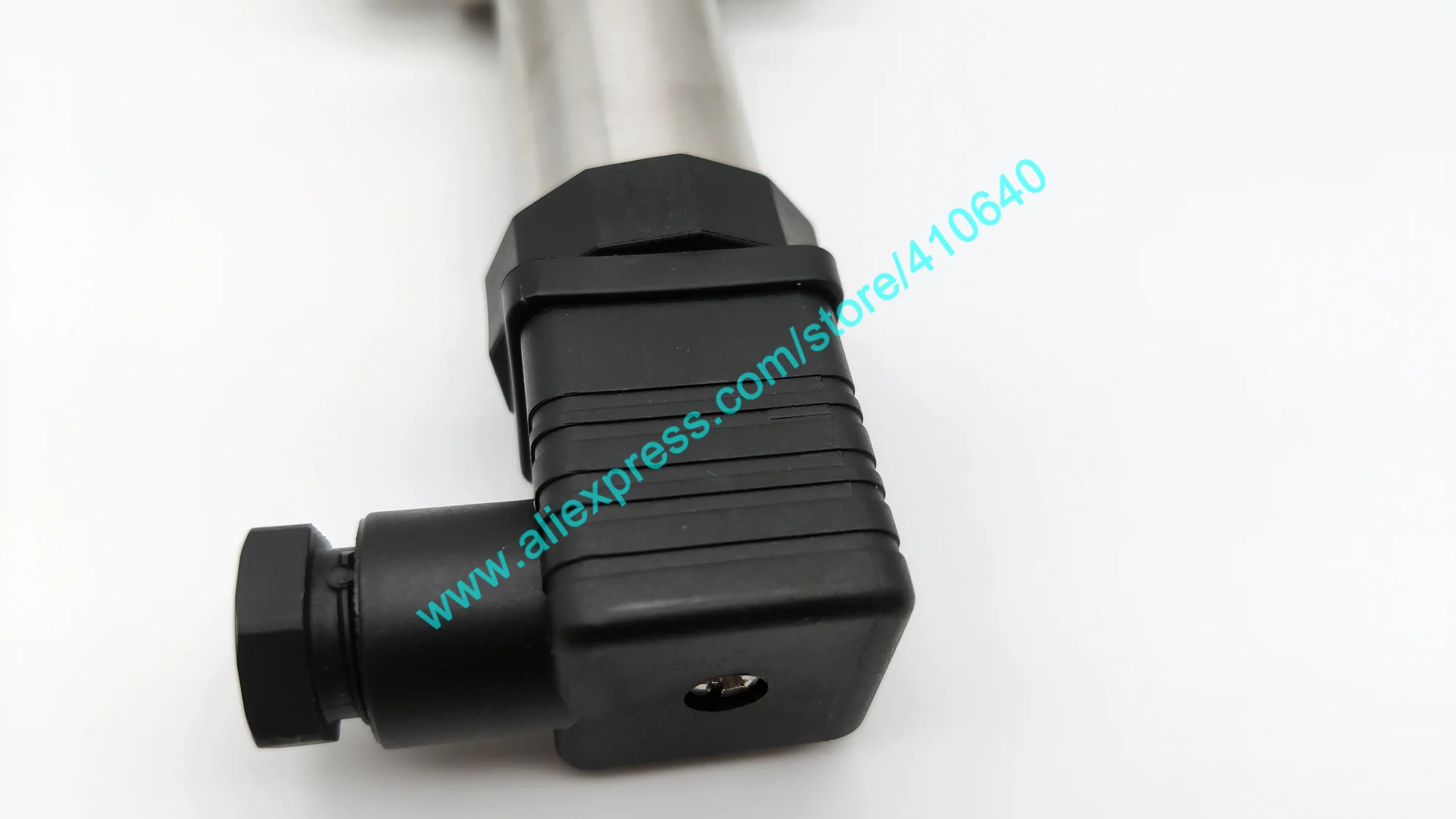

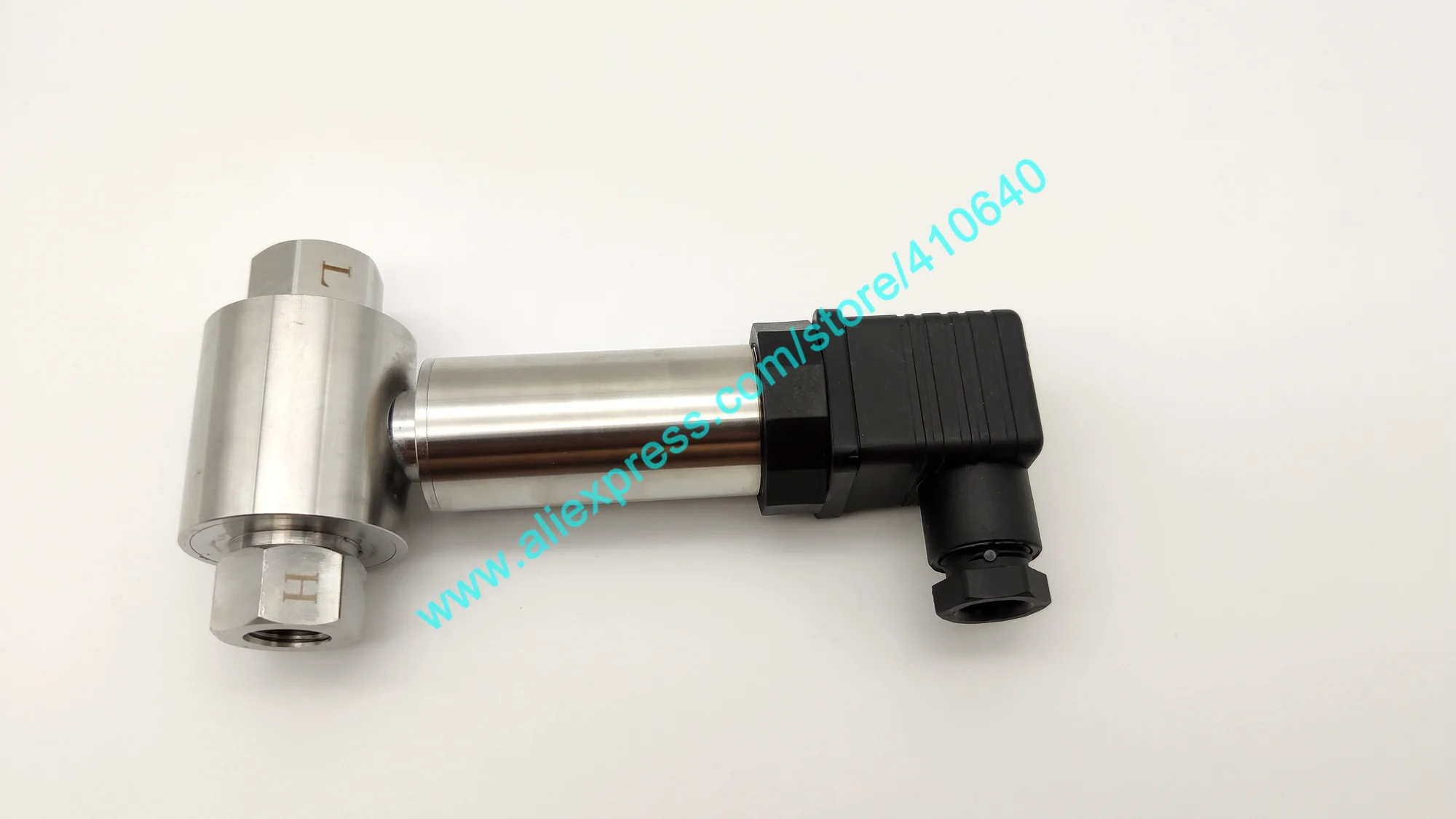

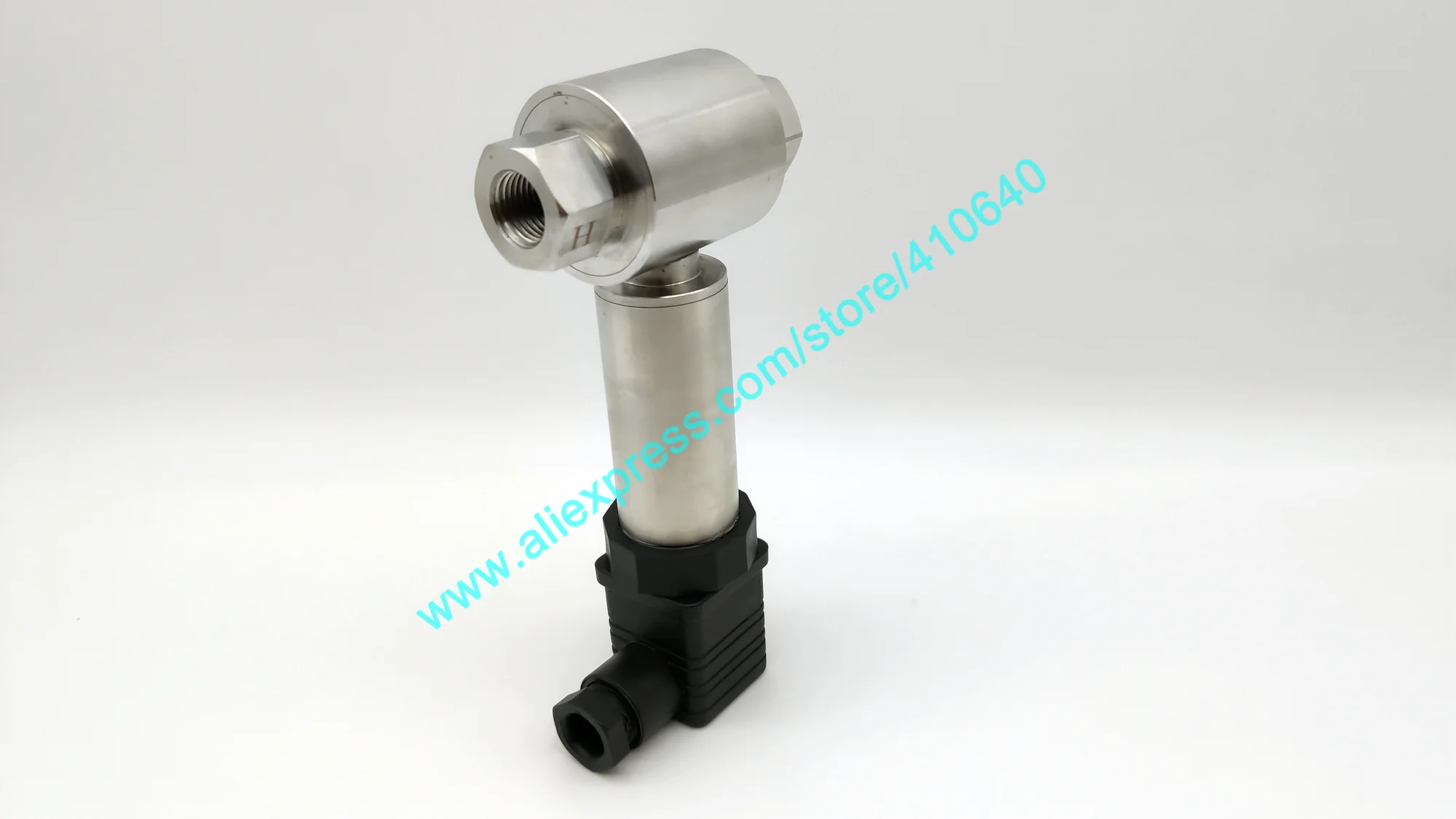

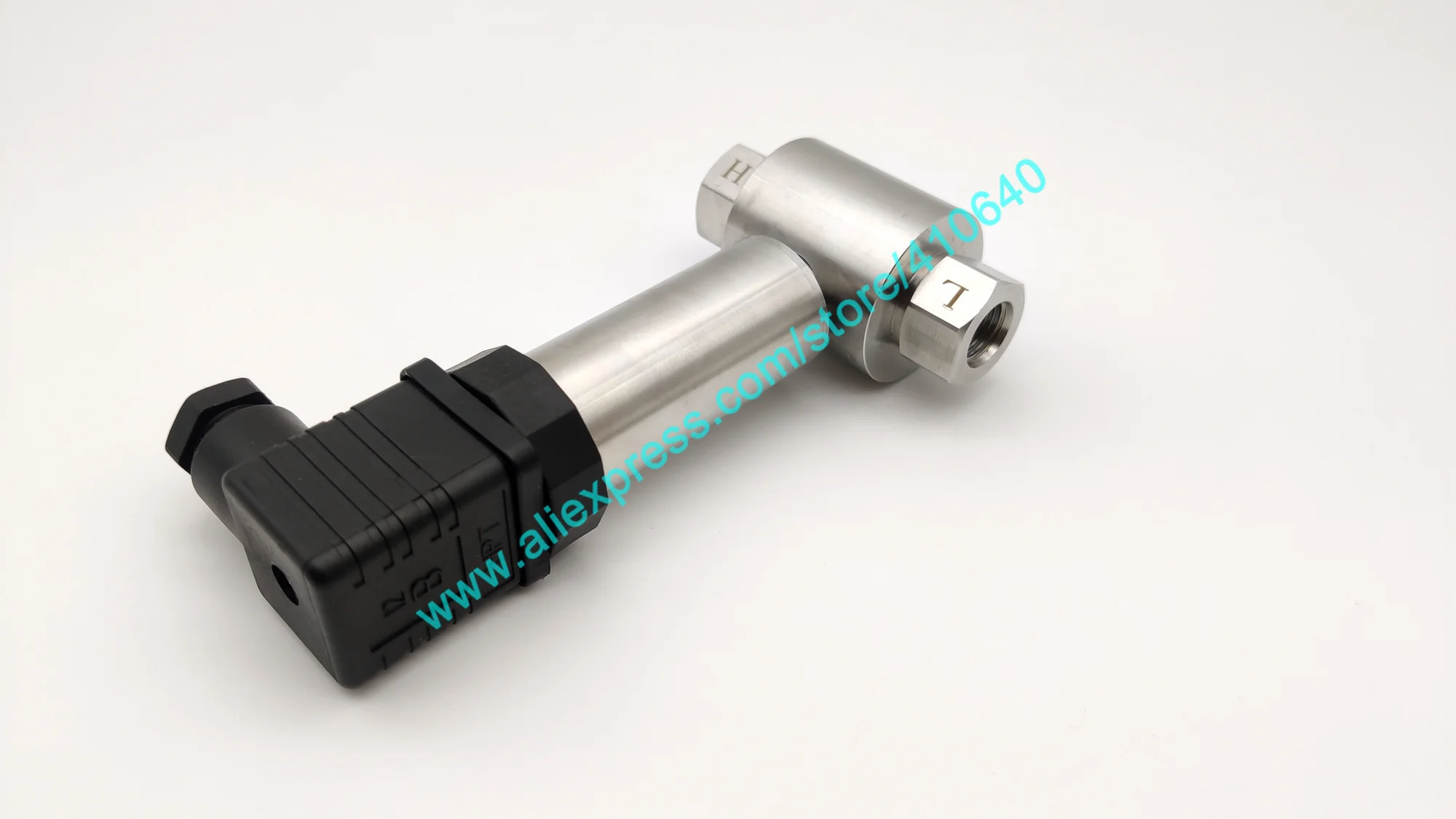

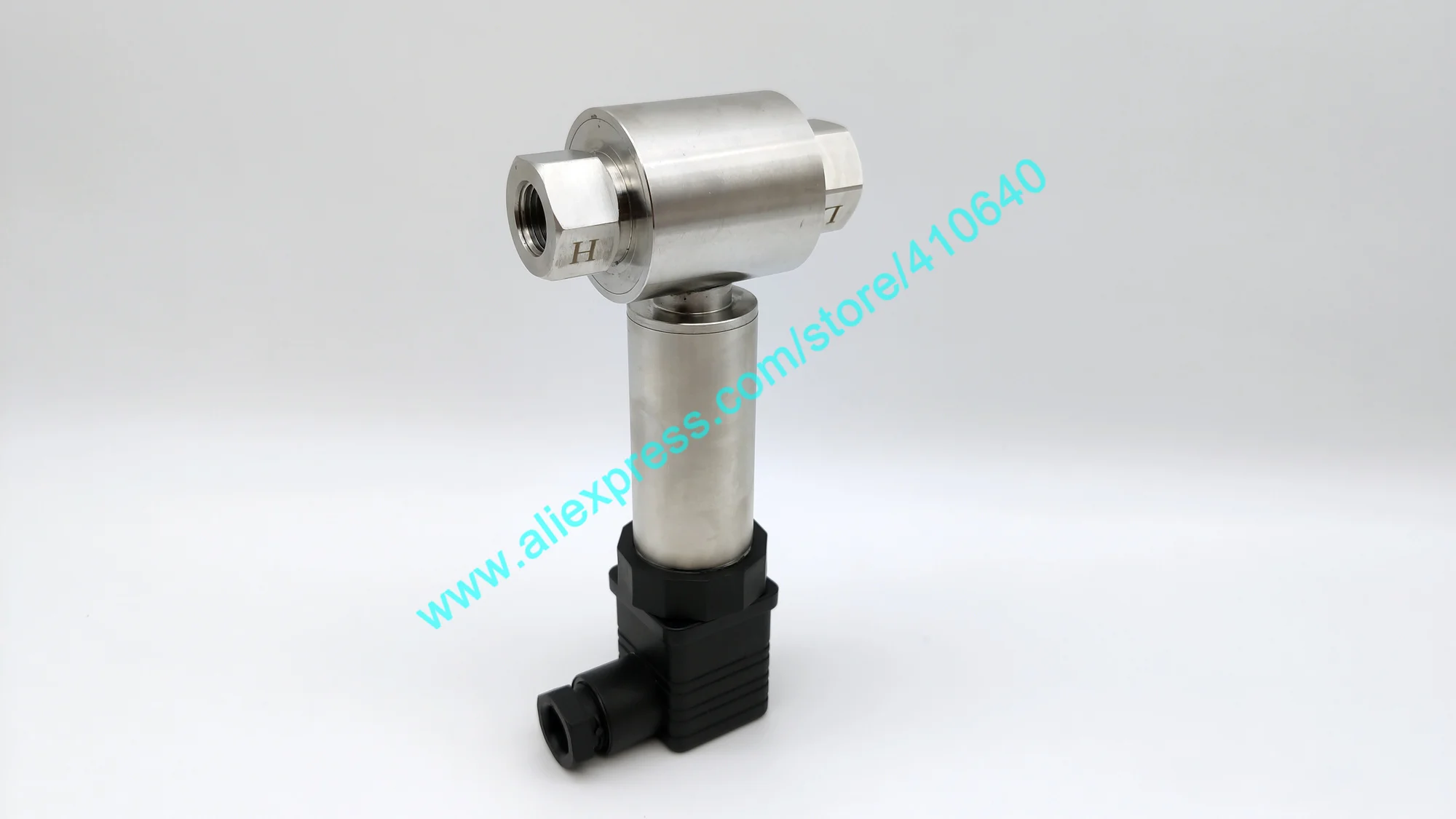

You will recevie the low differential pressure transmitter, totally same as the below detail photos:

differential pressure transmitter rosemount differential pressure transmitter valve differential pressure level transmitter pdf smart differential

We can also customize pressure transmitters based on your parameters, pls let us know following if you need a customized one:

1: Accuracy?

2: Pressure port?

3: Electrical connection?

4: Signal output?

5: Pressure range?

6: Power supply?

7: Your working media?

8: Quantity?
