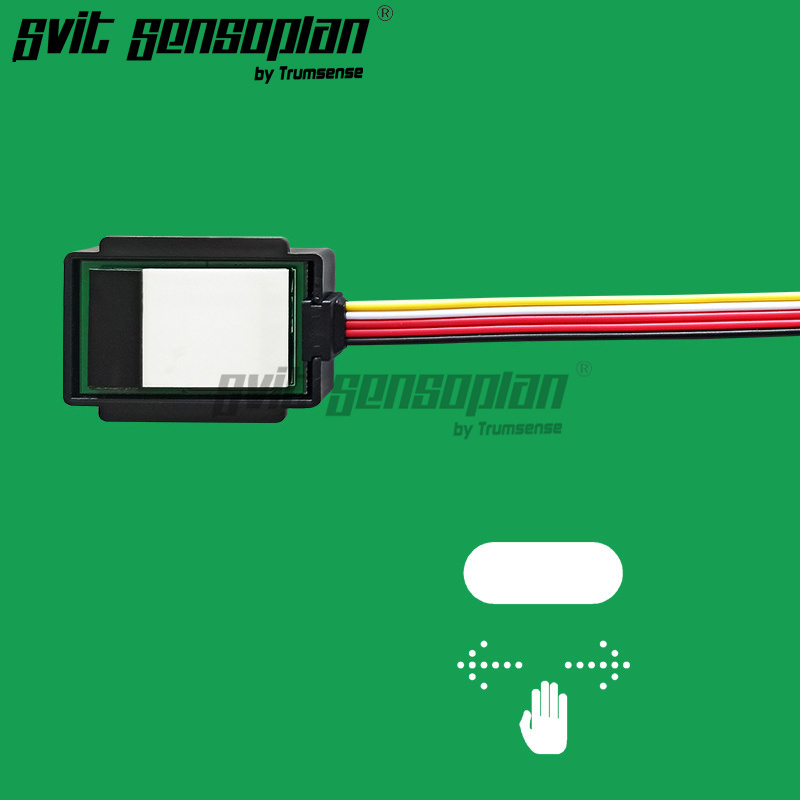

Trumsense Infrared Hand Scan Sensor Switch WS08CR-S5A-WV 60 W 15cm Sensing Distance Steplessly Dimming for Bathroom LED Mirror

Buying options explanation

▶Trumsense® WS08CR-S5A-WV

Control double colour LED strip

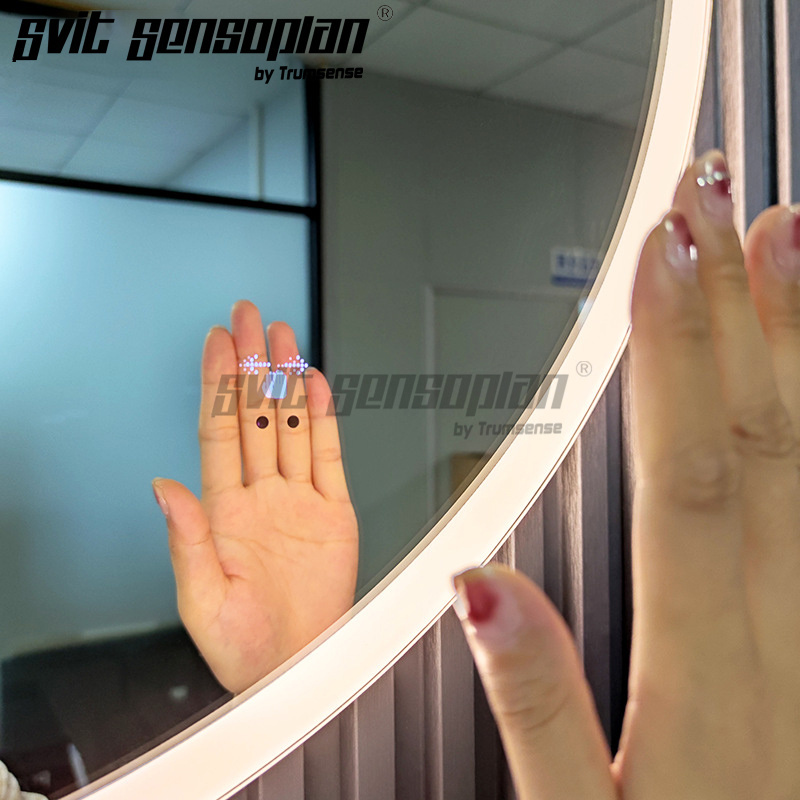

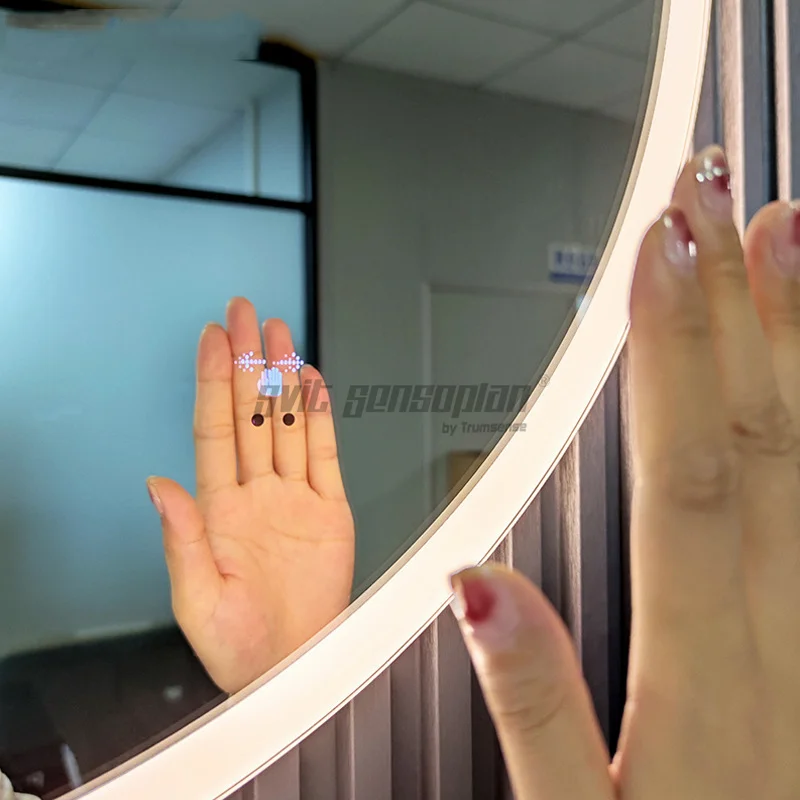

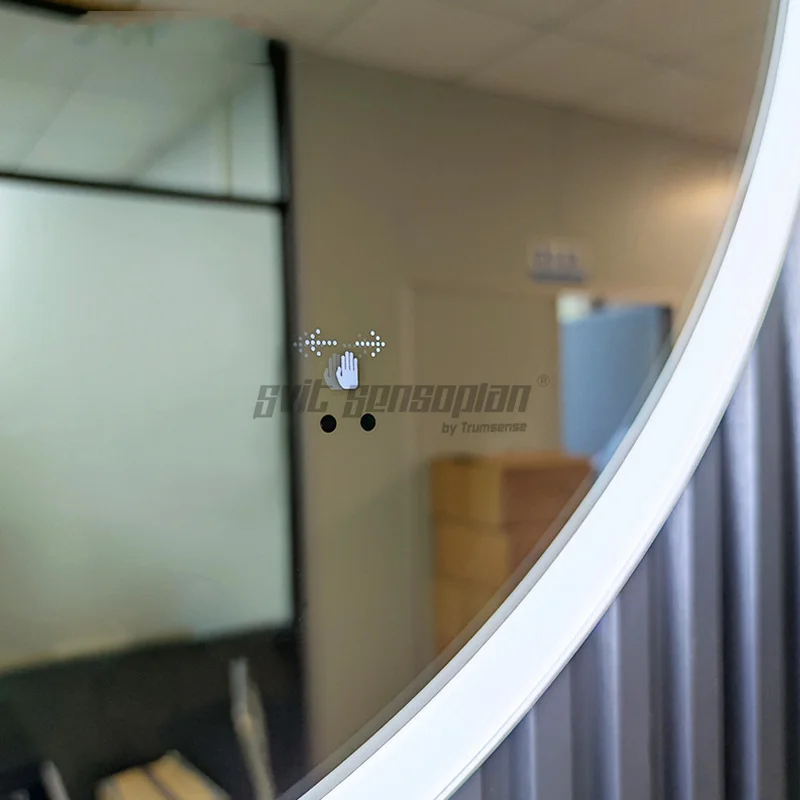

Swipe your palm to turn on the light.

Swipe your palm to switch between "cold light- natural light-warm light-off",

When the palm covers the sensor window, the brightness can be adjusted steplessly

Swipe again to turn off the light.

★ Product principle infrared sensor switch

★ Sensing range：front waving hands within 15 cm

★ Sensing distance: 3 to 15 cm

★ Rated voltage: DC 12V to 24V

★ Rated current: 4 A

★ Loading power: 48 to 60 W

★ Size:57x37x12 mm





★  Trumsense Factory Warehouse Directly Delivery

●   Model: WS08CR-S5A-WV

●  No need to touch, only need hand wave

●  Steplessly adjust the brightness

●  Steplessly adjust the LED light colour

●  Suitable for below 5 mm thickness mirror

●  Slowly become brighter or darker, protect your eyes

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ...




1: WS08CR-S5-A-WV IR Hand Waving Sensor Switch Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity

     purchasing plan,please kindly contact us for wholesales offer.



2: Important Before You Place An Order of IR Hand Waving Sensing Switch WS08CR-S5A-WV In This Link:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror IR hand waving  sensing switch, on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our mirror IR hand waving sensing switch, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file

          here.

      f: We are the factory, we will make the mirror IR hand waving sensing switch work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your

          province or your country.






3: Mirror IR Hand Waving Sensring Switch WS08CR-S5A-WV Working Principle:

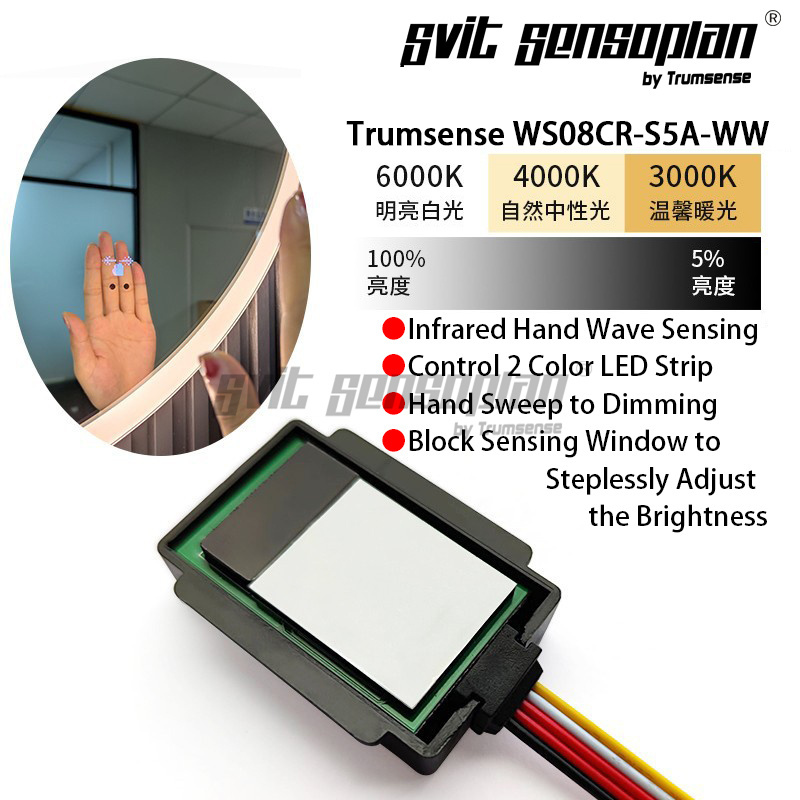

4: Basic Function of IR Hand Waving Sensring Switch WS08CR-S5A-WV:



WS08CR-S5A-WW: Control double colour LED strip

Swipe your palm to turn on the light.

Swipe your palm to switch between "cold light- natural light-warm light-off",

When the palm covers the sensor window, the brightness can be adjusted steplessly



Swipe again to turn off the light.

Product principle infrared sensor switch

Sensing range：front waving hands within 15 cm

Sensing distance: 3 to 15 cm

Rated voltage: DC 12V

Rated current: 4 A

Loading power: 48 W

Size:57x37x12 mm



5: Parameters of IR Hand Waving Sensring Switch WS08CR-S5A-WV:

Switch name: mirror infrared sensor switch

Item model number: WS08CR-S5-WW

Working voltage: DC12V ± 10%

Switching current: 4A

Quiescent current: 25mA

Control method: Active infrared induction

Induction distance: 10-15cm

Support mirror thickness: ≤5mm

Brightness adjustment range: 5%~ 100%

Color temperature adjustment: stepless color temperature / 3 color temperature

Icon Backlight: White Light

Load power: 48W

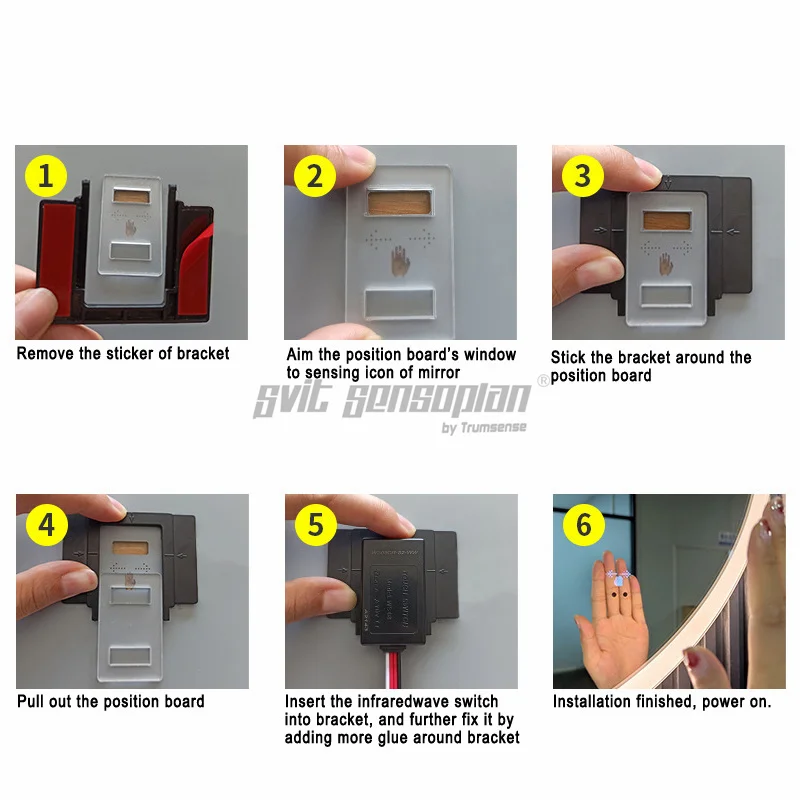

6: Installation of IR Hand Waving Sensring Switch WS08CR-S5A-WV :

a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

        the DWG format file for this laser engraving job, after you receive our touch switch, please contact us , our after-sale service colleague will send you DWG format file for laser engraving job

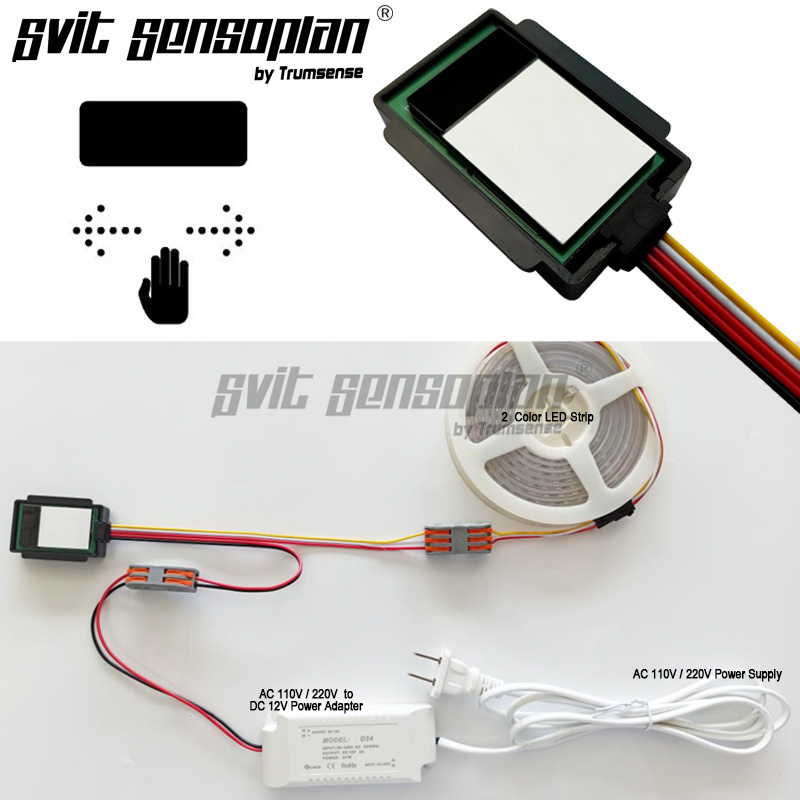

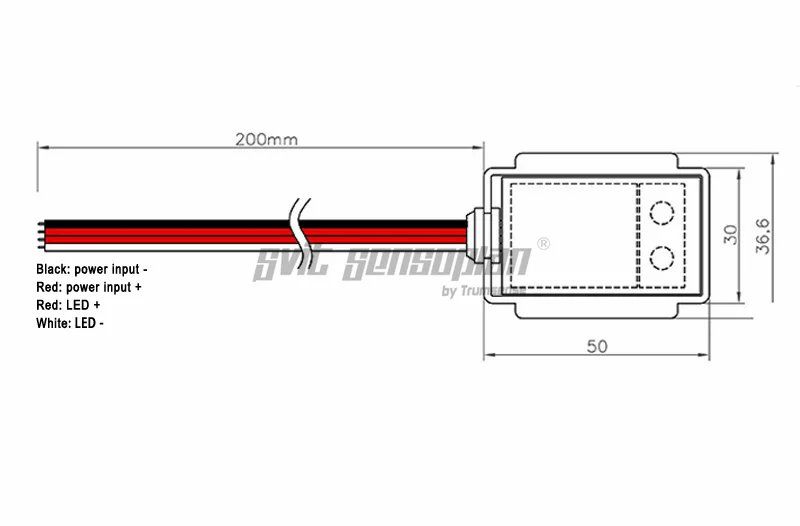

  b: Wiring Diagram:



7: Applications of the IR Hand Waving Sensing Switch WS08CR-S5A-WV,used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

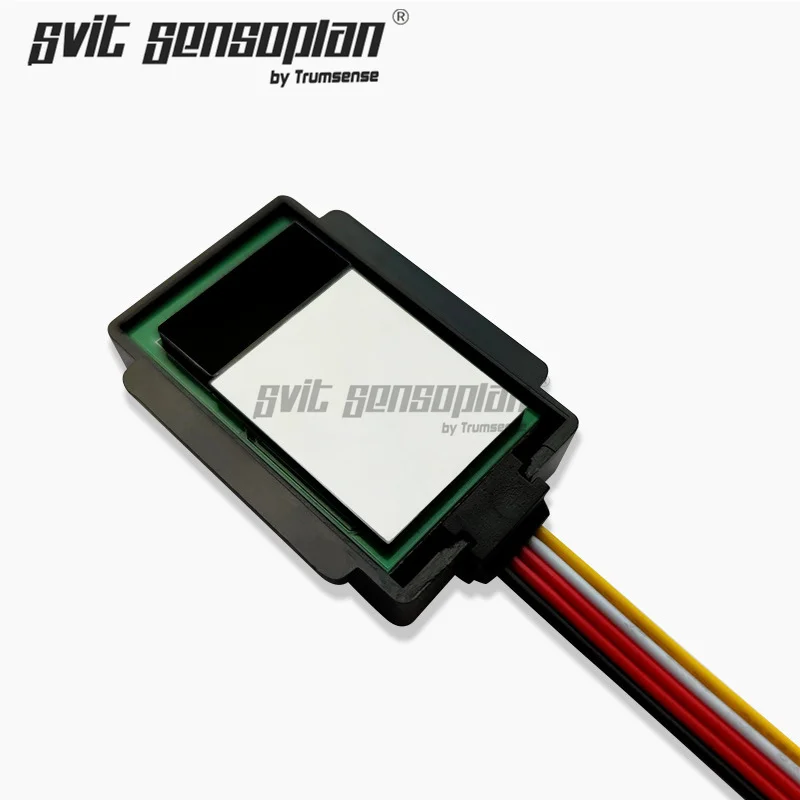

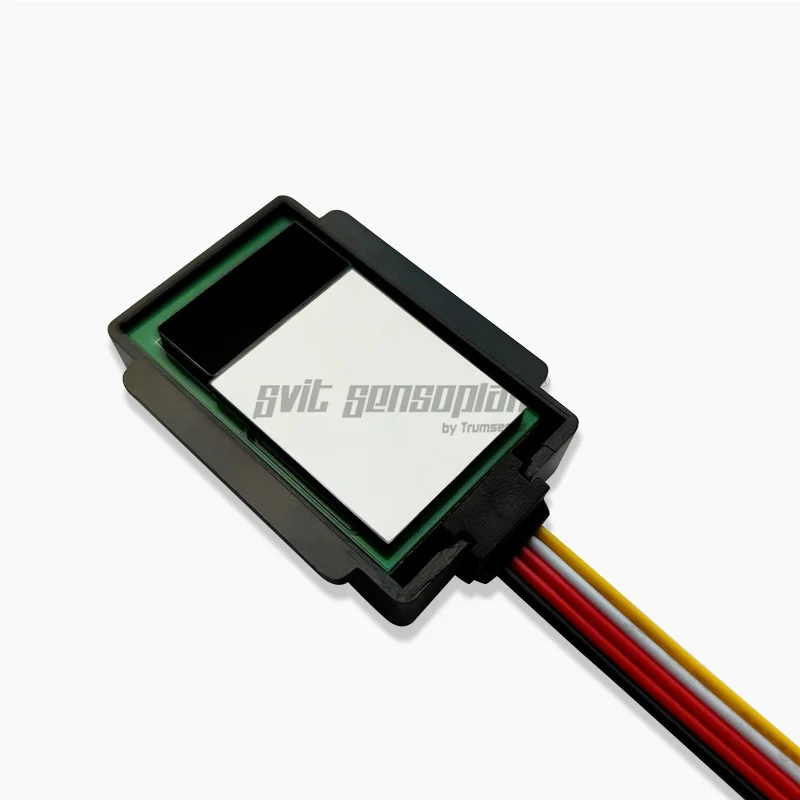

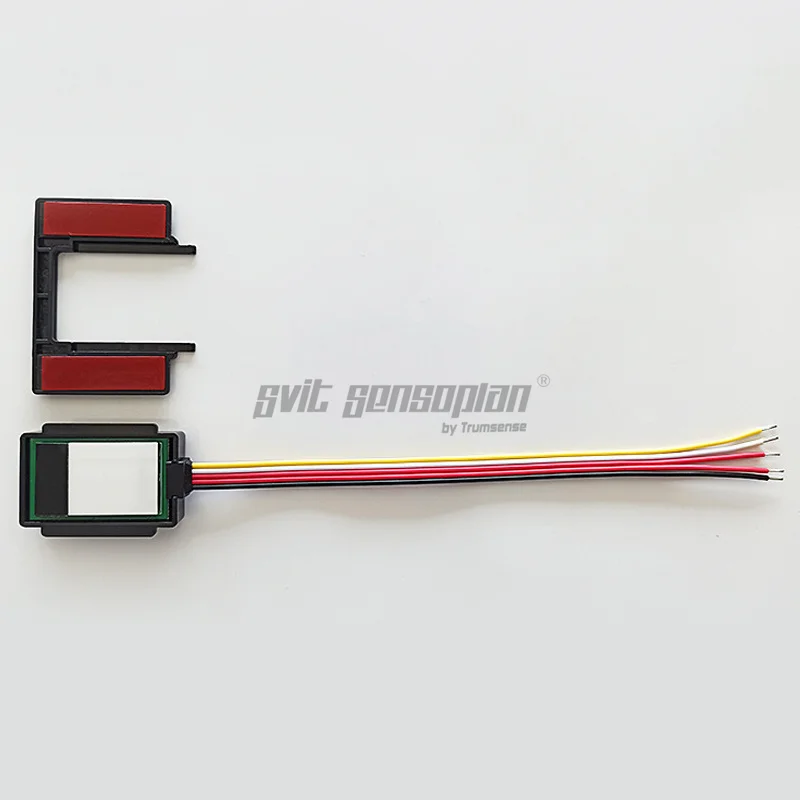

8: You Will Receive The Mirror IR Hand Waving Sensing Switch W0S8CR-S5A-WV, Totally Same As the Detail Photos Showed Below:

9:  Below Are The Products That is Compatible With The Mirror IR Hand Waving Sensing Switch WS08CR-S5A-WW, and Below products are all our own designed and products:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.

K3013BA，K3013CA，WS08CA，WS08CB，WS08D1，WS08D2，WS08F2，WS08F3，WS08，EX-01,FD-01，FD-04,

K3013,K3014A,k3014AF,K3030B,k3015CA,K3015CAL,K3015CAH,K3015CBF,k3015CA-USB,K3015CBH,WS08CB-S5A-BW,WS08CB-S1-BW,WS08CB-S2-BW,WS08CB-S4-BW,WS08CA-A0-B,WS08CA-A0-W,WS08CA-A2-BW,WS08CA-A1-B,WS08CA-A1-W,WS08D1-S3A-BW,WS08D1-S4-BW,WS08D1-S5-BW,WS08D1-S5A-BW,K3013BA-S1-BW,K3013BA-S1-RB,K3013BA-S1-B,K3013CA-A0-B,K3013CA-A2-BW,K3013CA-A1-B,K3013CA-A3-BW,K3013CA-A1-W,K3013CA-A0-W,K3100C-WB,K3102A-S2-WB,K3102A-S5A-WB,WS08F2-S2-BW,WS08F2-S3-BW,WS08F2-S3A-BW,WS08F2-S5-BW,WS08F2-S5A-BW,WS08D2-S1-BW,WS08D2-S2-BW,WS08F3-M2-BW,WS08F3-M2A-BW,
