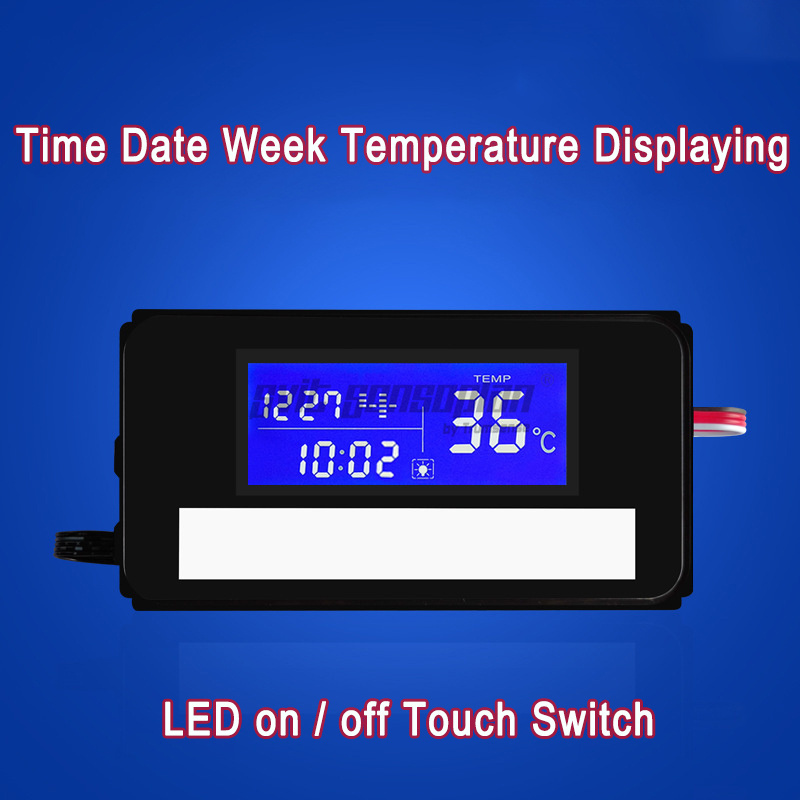

Trumsense Four-button Display Sensor Switch K3014a Time Temperature Date Display Led Mirror Touch Sensor Switch

Item No.: 00283
★  Trumsense Factory Warehouse Directly Delivery
●  Model: K3014A
●  Time + Date + Week + Temperature Displaying
●  LED Strip on / off
● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV...
Description Review
Description



Buying options explaination:

▶K3014A:

★ Time + Date + Week + Temperature Displaying

★ LED Strip on / off

★  Trumsense Factory Warehouse Directly Delivery

●   Model: K3014

●  Time + Date + Week + Temperature Displaying

●  LED Strip on / off

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ... ... ... ... ...

1: K3014A Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer


2: Important Before You Place An Order of Touch Switch K3014A In This Link:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.

      f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.



3: Touch Switch K3014A Working Principle:

This product is a four-key touch controller, which is installed on the glass mirror to achieve touch operation. It provides a switch with a load current of 3.5 A, which can connect and control electrical appliances such as lighting lamps. With liquid crystal display, can display time, date, week, room temperature, etc., and switch state.

4: Basic Function of Touch Switch K3014A:

▶K3014

● Short press the power button to turn on, short press the power button to turn on or off the lighting function, the light symbols on the display screen are displayed synchronously; if you press and hold the power button for 3 seconds, the screen display can be turned off;

● Press and hold the "Clock" key for a second, the hour number of the time flashes, press the "Add/Subtract" key to adjust the hour, press the "Clock" key again, the minute flashes, press the "plus/minus" key to adjust the minute, and then press the "Clock" key key, the month flashes, press the "plus/minus" key to adjust the month; press the "clock" key again, the date flashes, press the "plus/minus" key to adjust the date; press the "clock" key again, the year number flashes, by pressing the "plus/minus" key Press the "minus" key to set the year, when the number is still and does not flash, it means the setting is successful.

5: Parameters of Touch Switch K3014A :

Product Name: Mirror Touch Switch Controller

Product model: K3014A

Load power: 48W

Working voltage: DC12V

Switching current: 4A (Max)

Working current: 65mA (Max)

Display screen: 3.7 inch LCD screen

Display content: time, date, day of the week, temperature

Display method: white text on blue background

Temperature unit: Celsius/Fahrenheit

Sensing principle: capacitive touch sensing

Key Backlight: White

Dimensions: 165*88*17.5mm (L*W*H)

Support mirror thickness: 5mm

Outlet wire length: 200mm




6: Installation of Touch Switch K3014A :

     a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as below instruction:


     b: Wiring Diagram of K3014A:



7: Applications of the K3014A Used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...











8: You Will Receive The Touch Switch WS08F3-M2-BW / WS08F3-M2A-BW , Totally Same As the Detail Photos Showed Below:















9:  Below Are The Products That is Compatible With The Touch Switch K3014, and Below products are all our own designed and products:

      a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html

      b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html

      c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html

      d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html

​ ​ ​ ​

10: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
