Trumsense® Super Thin Design K3015DBL LED Mirror Touch Sensor Panel with Time Temperature Date And Bluetooth Music for Bathroom Refurbishment

▶1 set K3015DBL (Super thin thickness: only 10mm):

★ Time + Date + Week + Temperature Displaying

★ LED Strip on / off

★ Bluetooh display

★ Anti-fog film on off control







★  Trumsense Factory Warehouse Directly Delivery

●   Model: K3015DBL

●  Time + Date + Week + Temperature Displaying

1: Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity purchasing plan,please kindly contact us for wholesales offer.

2: Important Before You Place An Order of Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

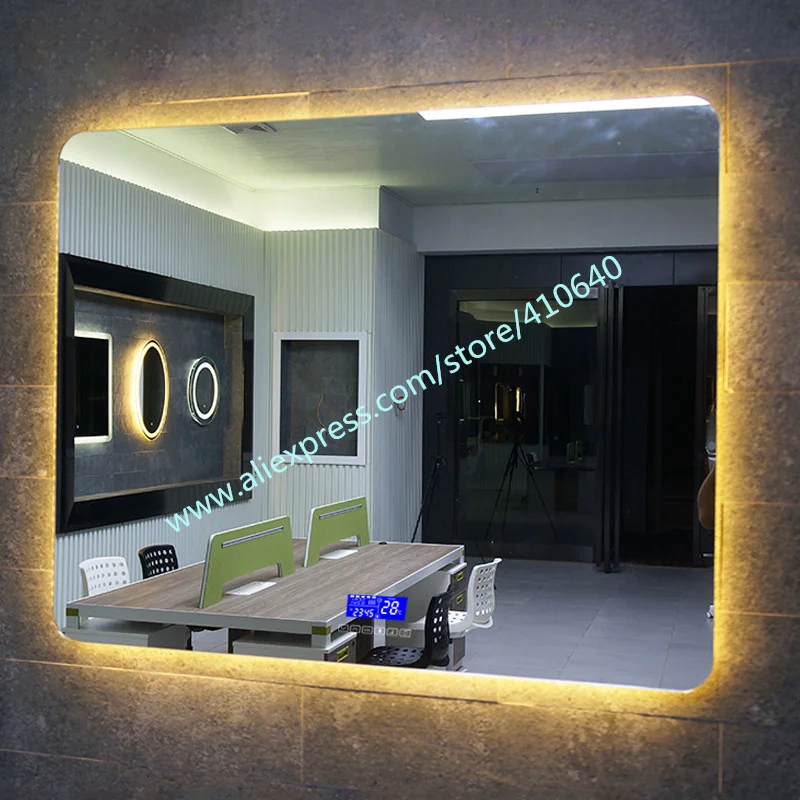

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror touch switch sensor , on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.

      f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your province or your country.











3: Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control Working Principle:

This product is a six-key touch controller, which is installed on the glass mirror to achieve touch operation. It provides a switch with a load current of 3.5 A, which can connect and control electrical appliances such as lighting lamps. With liquid crystal display, can display time, date, week, room temperature, etc., and switch state.







4: Basic Function of Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control:

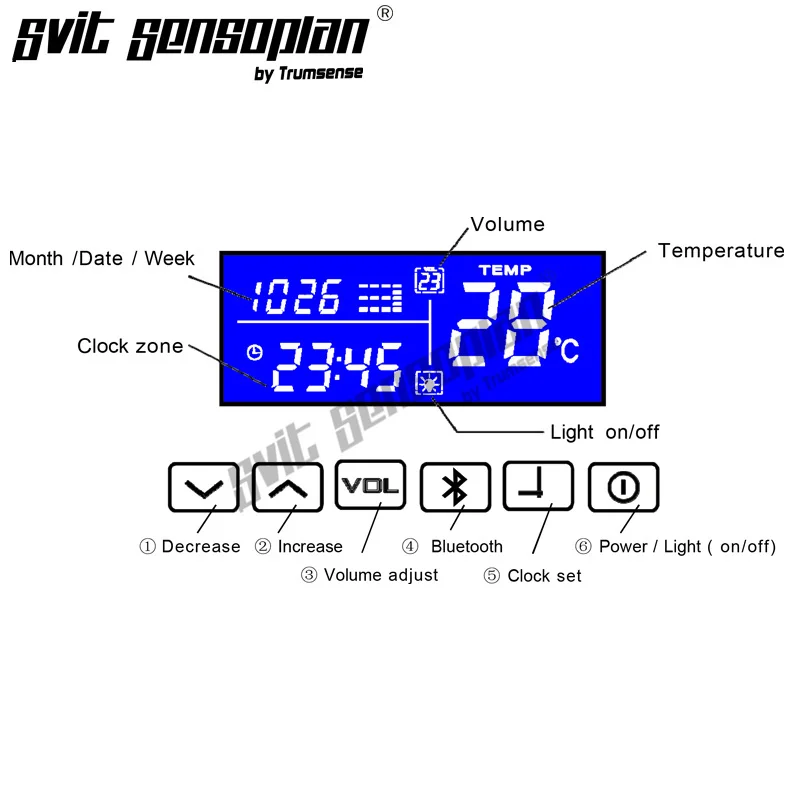

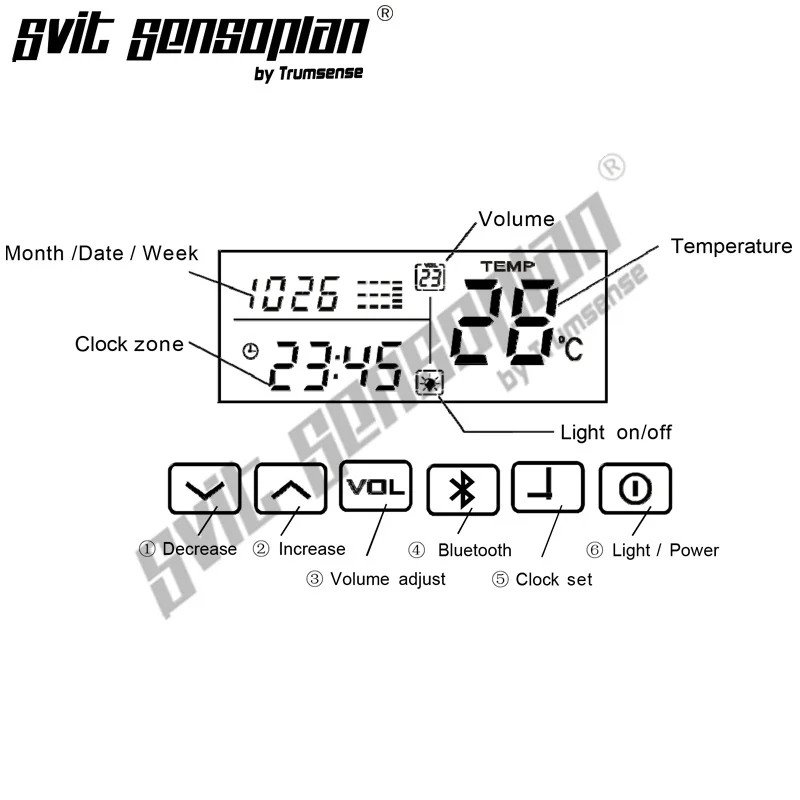

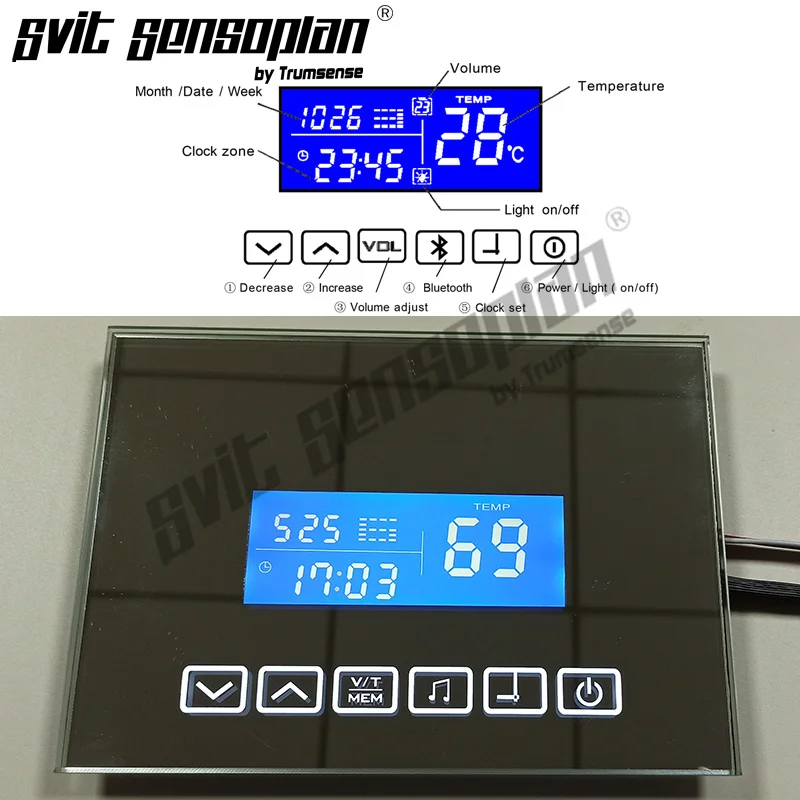

▶K3015DBL:












5: Parameters of Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control :

Product Name: Mirror Touch Switch Panel

Product model: K3015DBL

Working voltage: DC12-24V

Display screen: 3.7 inch LCD screen (segment)

Working current: 70mA(Max) /DC12V

Display content: time, date, day of the week, temperature

Switching current: 4 A (Max)

Time format: 12 hours/24 hours

Touch method: capacitive touch

Temperature unit: Celsius/Fahrenheit

Key Backlight: White

Bluetooth playback function: Bluetooth 5.0; AAC, SBC

Support mirror thickness:  below 6 mm

FM radio: 88MHz - 108MHz

Dimensions: Length x Width x Thickness = 167*105*10 mm

Anti-fog function: support driving relay switch



6: Installation of Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control :

a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

        the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation          as below instruction:




b: Wiring Diagram of K3015DBL:






7: Applications of Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

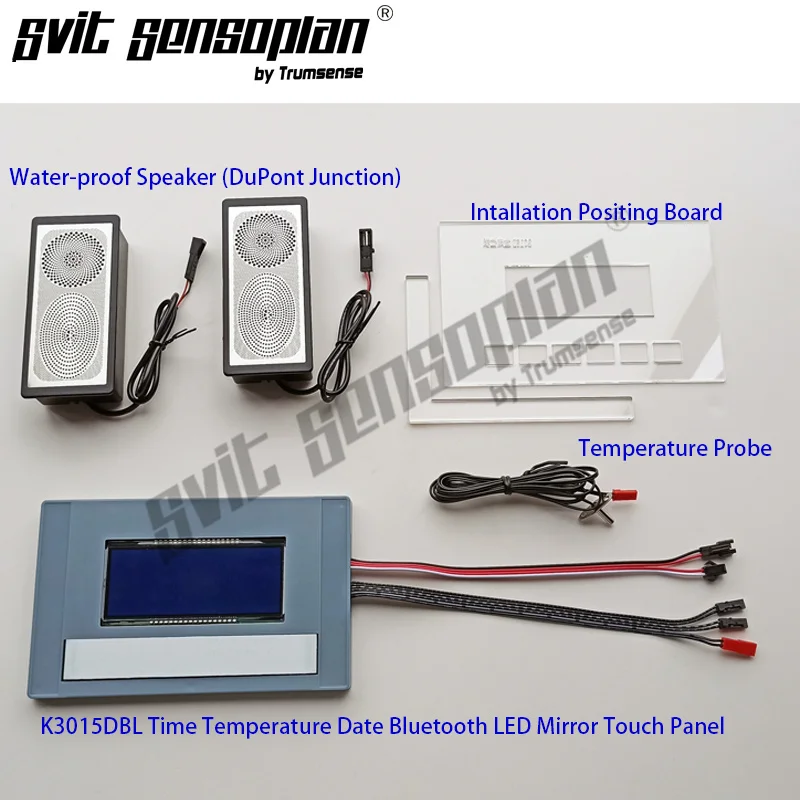

8: You Will Receive The Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control , Totally Same As the Detail Photos Showed Below:





9:  Below Are The Products That is Compatible With Trumsense K3015DBL (Super Thin Thickness : only 10 mm ) Time Temperature Date Clock with Bluetooth and LED Light On Off Control, and Below products are all our own designed and products:

10: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
