Buying options explaination:
▶ WS08D2-S2-BW :
★ Trumsense Factory Warehouse Directly Delivery

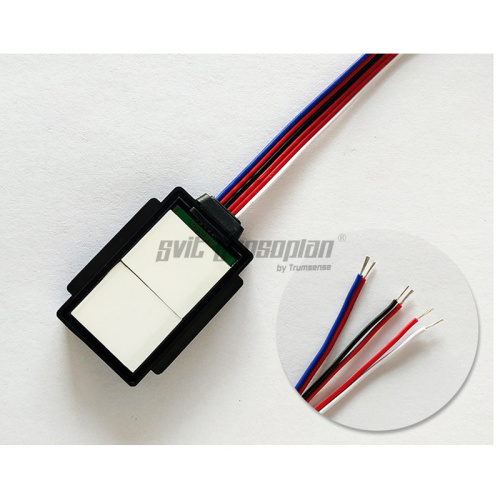

● Model: WS08D2-S2-BW Dual Key Touch Switch
● Can Steplessly Adjust the Brightness of the LED Strip
● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room... ... ... ... ... ...
1: WS08D2-S2-BW Touch Switch Wholesales Price Reminding:
We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity
purchasing plan,please kindly contact us for wholesales offer.
2: Important Before You Place An Order of Touch Switch WS08D2-S2-BW In This Link:
a: We only produce and sell touch switch sensor,do not produce and sell mirror.
b: We will only send you the touch switch sensor, do not send mirror.
c: You will only receive the touch switch, you will not receive any mirror.
d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other
possible places,only with the purpose to show the final performance or functions, after you install our mirror touch
switch sensor , on your old/existing mirrors.
e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please
contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file
f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.
g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your
province or your country.
3: Touch Switch WS08D2-S2-BWWorking Principle:
WS08D2-S2-BWis a LED touch stepless dimming switch for DC12V power supply, which realizes the touch switch control function of LED lamp, light tube, antifogging film and DC12V electrical appliance. WS08D2-S2-BW series mirror touch switch is a product specially designed for bathroom intelligent lamp mirror. The product has reliable performance, convenient installation, sensitive touch and high output power, which is suitable for the control of various mirror lights and other electrical appliances. A backlight is designed on the touch switch board. The backlight and the touch switch are designed as a whole. When the power supply and the switch are connected, the backlight on the switch board is lighted after the power supply is switched on. The backlight is always bright and can be closed by long-touch.

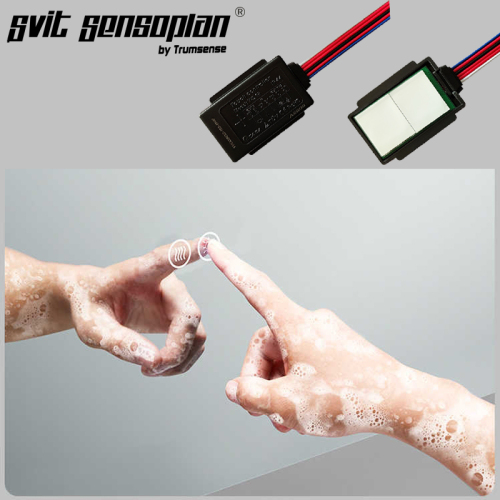

The switch is activated by the touch of a finger, and stopped when you leave your hand. The touch is sensitive, and the illuminated keys can be easily seen even in the dark.
Multiple functional models available,the design of WS08D2-S2-BW includes general switch function, stepless brightness adjustment.
4: Basic Function of Touch Switch WS08D2-S2-BW:
5: Parameters of Touch Switch WS08CB-S5A-BW (WS08CB Series):
Switch name: mirror touch sensor switch double key
Switch Model: WS08D2-S2-BW
Load power: 48W (DC12V)
Working voltage: DC12V
Working current: 30mA (Max)
Switch channel: 2 (independent
Switching current: Channel 1: 3.5A (Max) Channel 2: 0.5A (Max)
Brightness adjustment range: continuous 25%-100% (channel 1)
Sensing principle: capacitive touch sensing
Support mirror thickness: 5mm
Key backlight: blue and white
Switch size: 50*30*10mm (L*W*H)
Switch life: touch more than 300,000 times

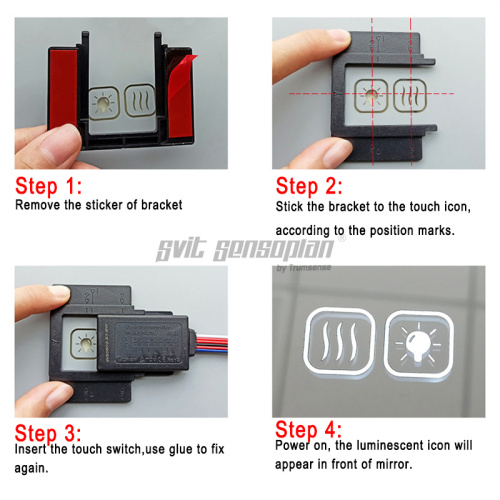

6: Installation of Touch Switch WS08D2-S2-BW:

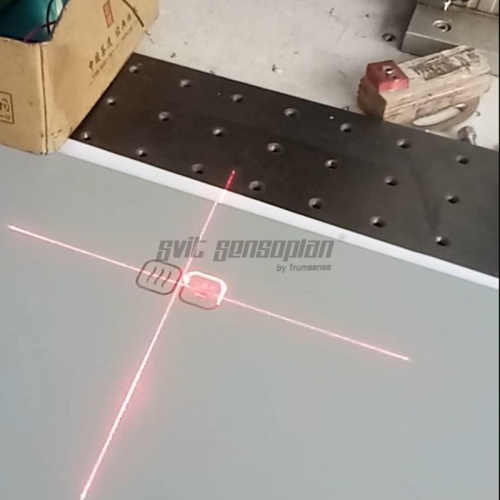

a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you
the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as

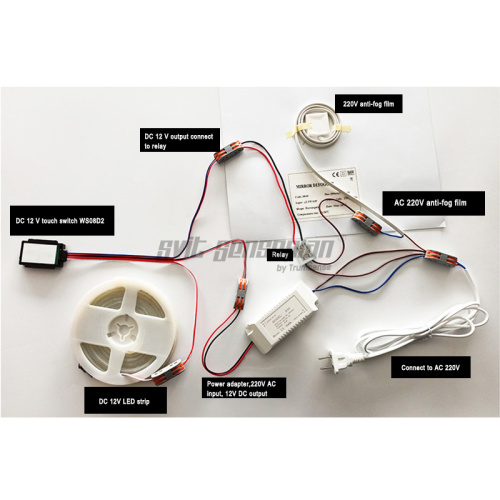

b: Wiring Diagram of WS08D2-S2-BW:
7: Applications of the Touch Switch WS08D2-S2-BW is Used In Below Fields Widely Where There Is A Led Mirror :
like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

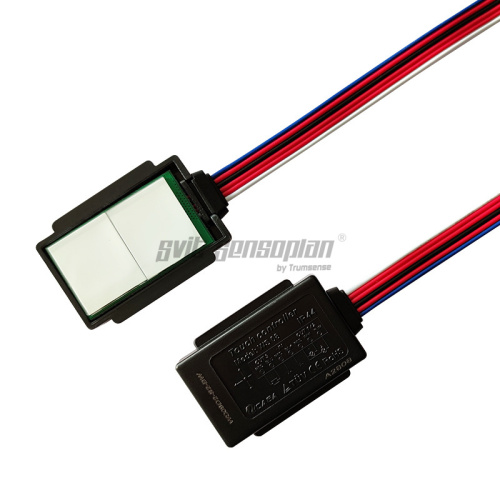

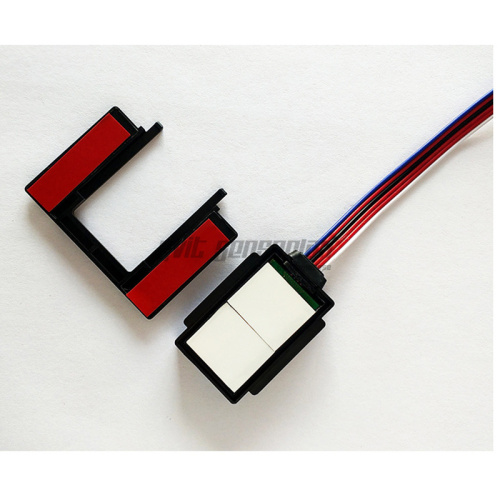

8: You Will Receive The Touch Switch WS08D2-S2-BW, Totally Same As the Detail Photos Showed Below:
9: Below Are The Products That is Compatible With The Touch Switch WS08D2-S2-BW, and Below products are all our own designed and products:
a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html
b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html
c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html
d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html
10: Customized Products Available:
In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above
function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.
