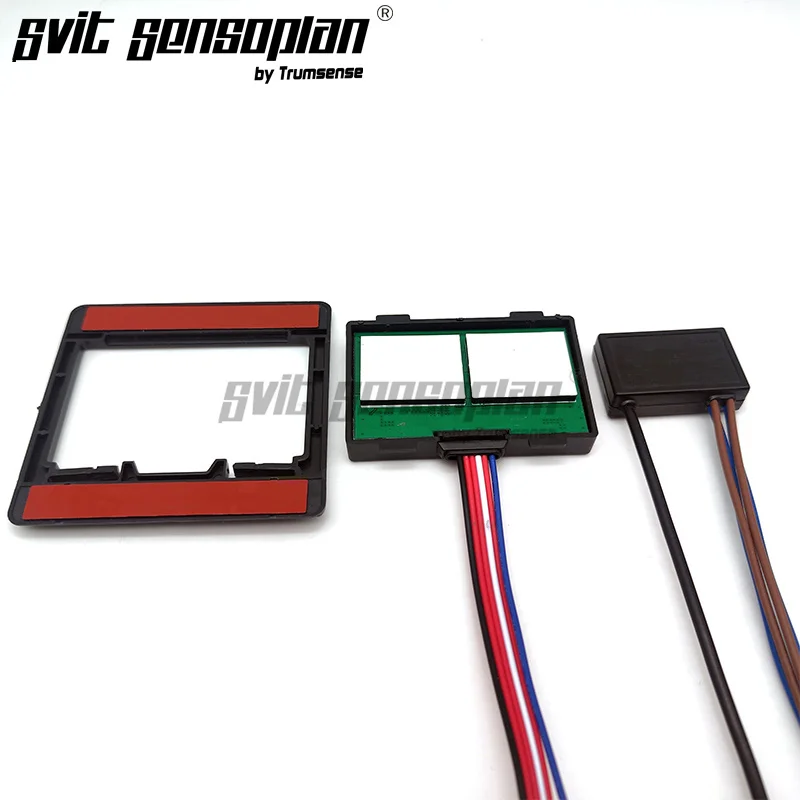

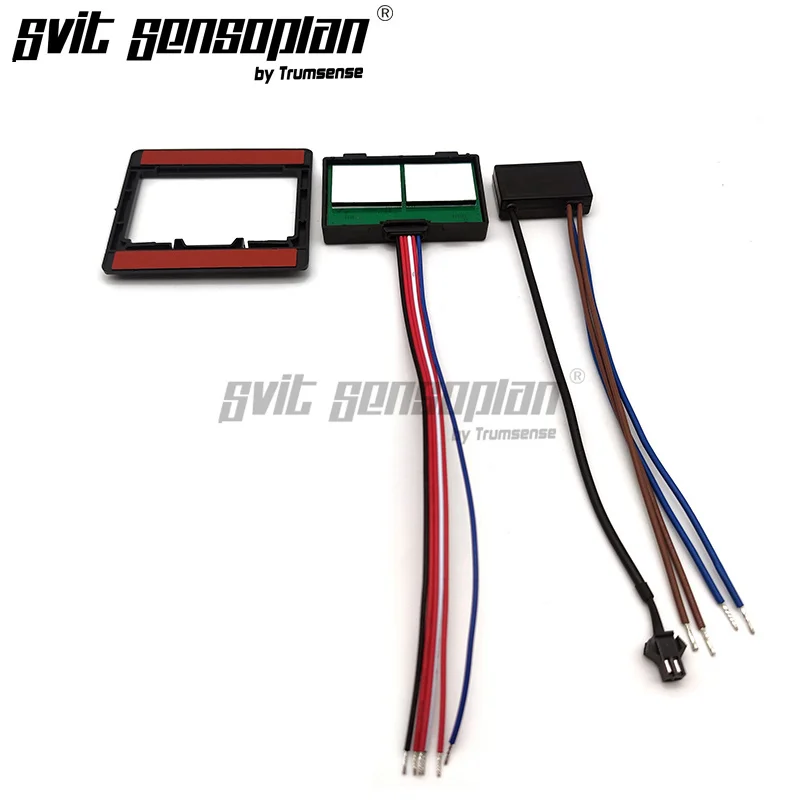

Trumsense New Developed 2 Key Bathroom LED Mirror Dimming 3 Colour LED Strip Touch Sensor Switch Control Defogger with Relay

★  Trumsense Factory Warehouse Directly Delivery

●   Model: WS08G2A-S2-BW with Relay

●  K1 Steplessly Adjust the Brightness of 1 Color LED Strip

●  K2 Control Anti-fog Film On Off

1: Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with Relay Wholesales Price Reminding:

    ●We design,develop and produce with our own teams for the mirror touch switch, hand wave sensor switch and human sensing       radar switch

    ●The components and chip are top quality, ensure the perfect sensitivity and long life-span

    ●Our major clinets are famous smart mirror factory worldwide in America,European,South-America,Africa, Mid-east... ...

    ●Please ignore the RETAIL price you are seeing, if you has bulk quantity purchasing pla, will offer you bottom price.

2: Important Before You Place An Order of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror IR hand waving sensing switch, on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our mirror IR hand waving sensing switch,                 please contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file here.

      f: We are the factory, we will make the mirror IR hand waving sensing switch work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your

          province or your country.








3: Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with Relay Working Principle:

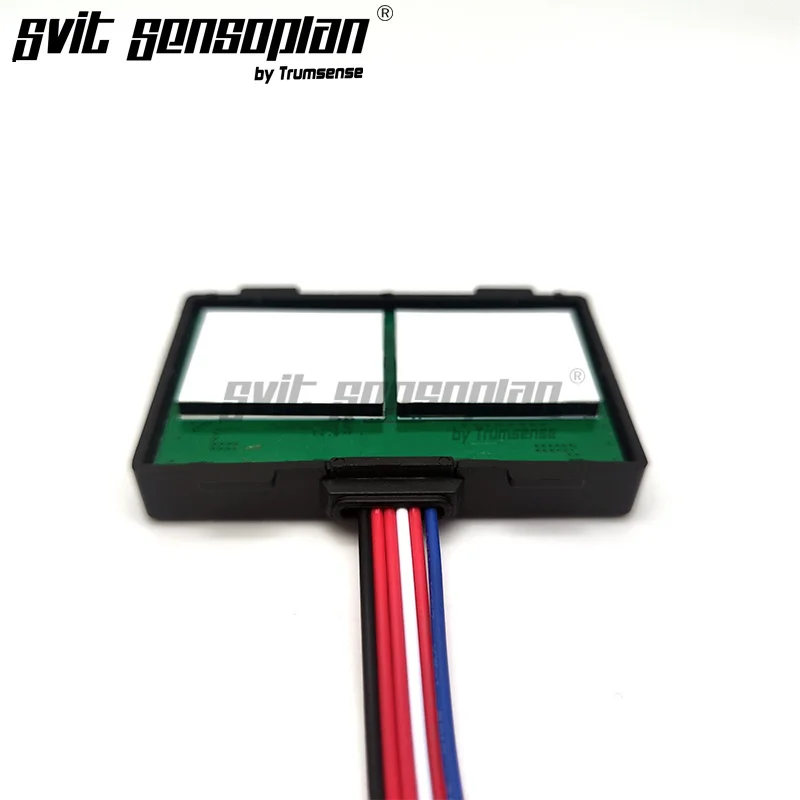

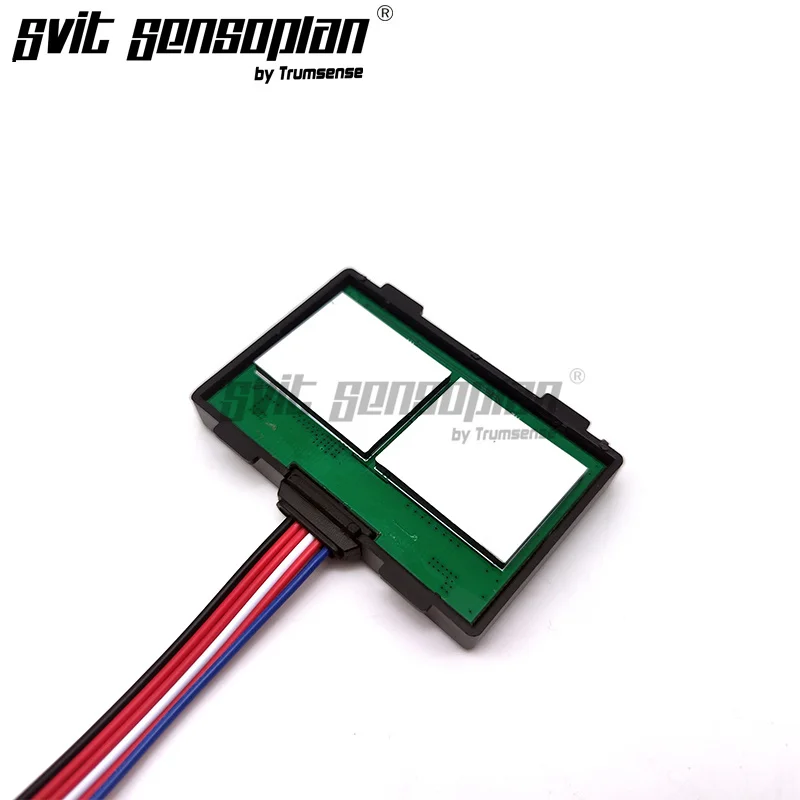

This product is a double-button touch switch. The sensing principle is capacitive sensing. When the watermark laser on the back of the mirror is removed to form a touch icon, it is installed in the corresponding area behind the mirror, and then the mirror touch operation is realized on the front of the mirror.

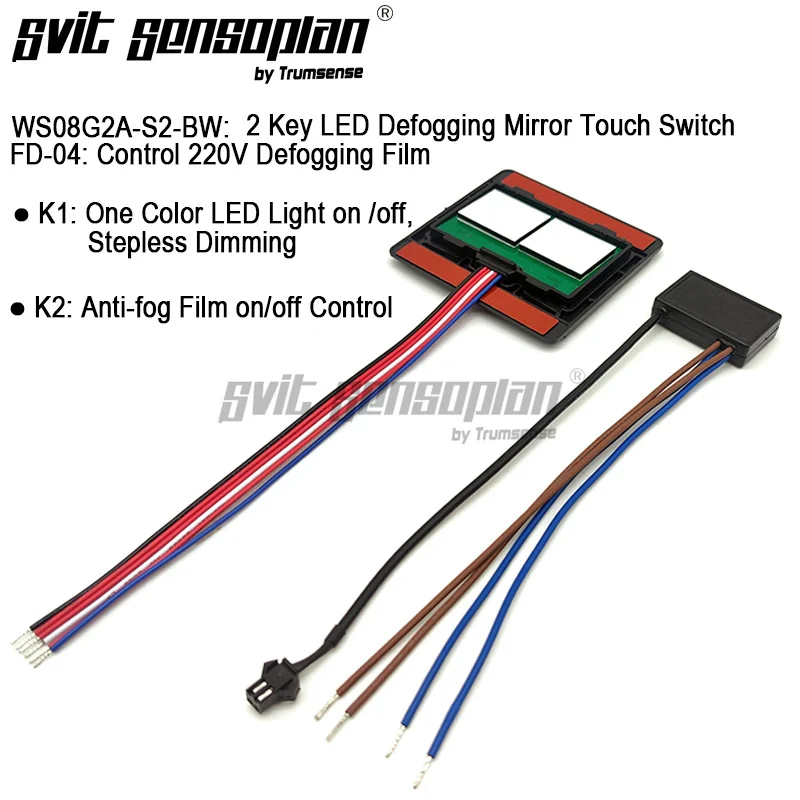

4: Basic Function of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with Relay :

●K1 is a LED strip light control switch, which can be switched and brightness adjusted.

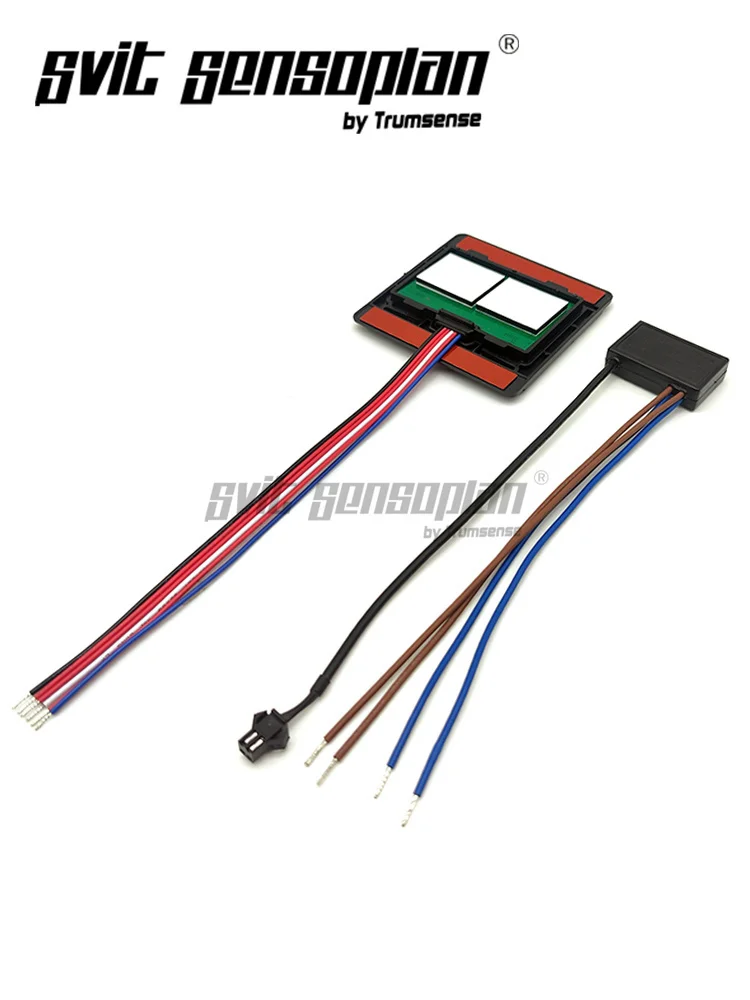

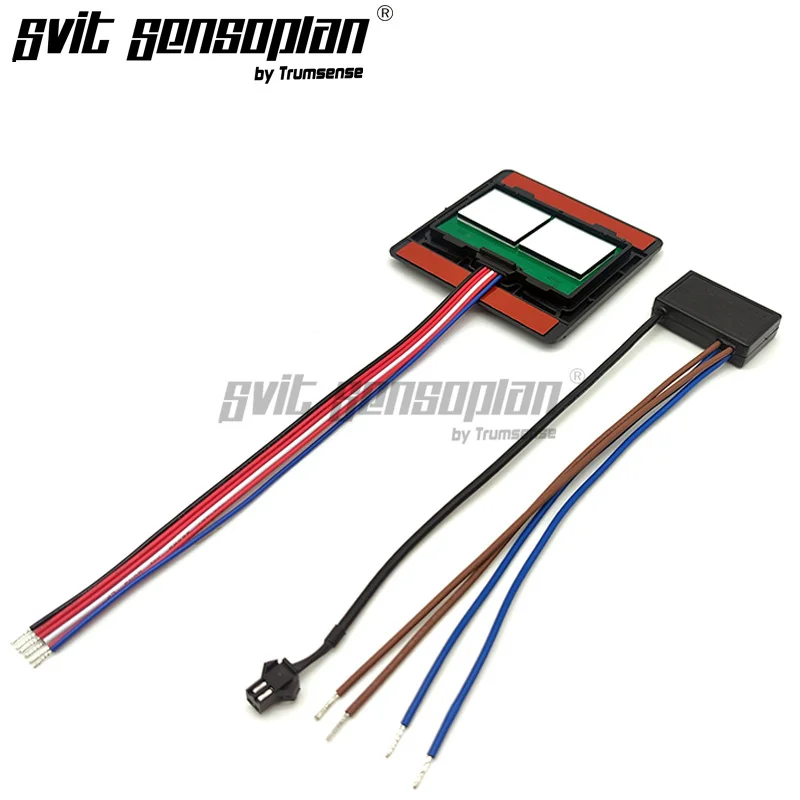

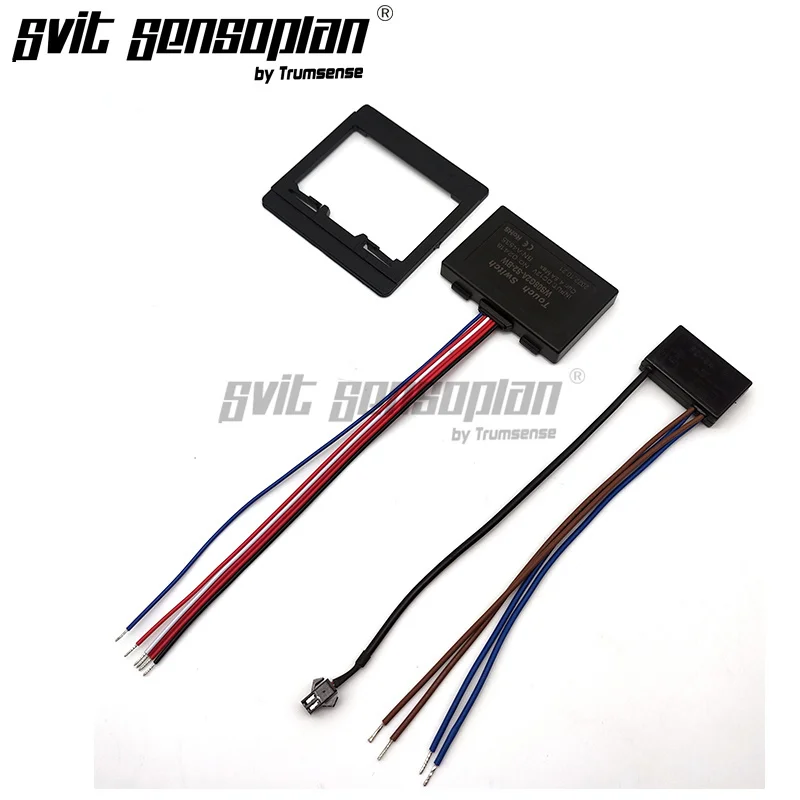

●K2 is an anti-fog control switch, which can directly control the low-voltage DC anti-fog film or control the high-voltage anti-fog film

  through the relay ;

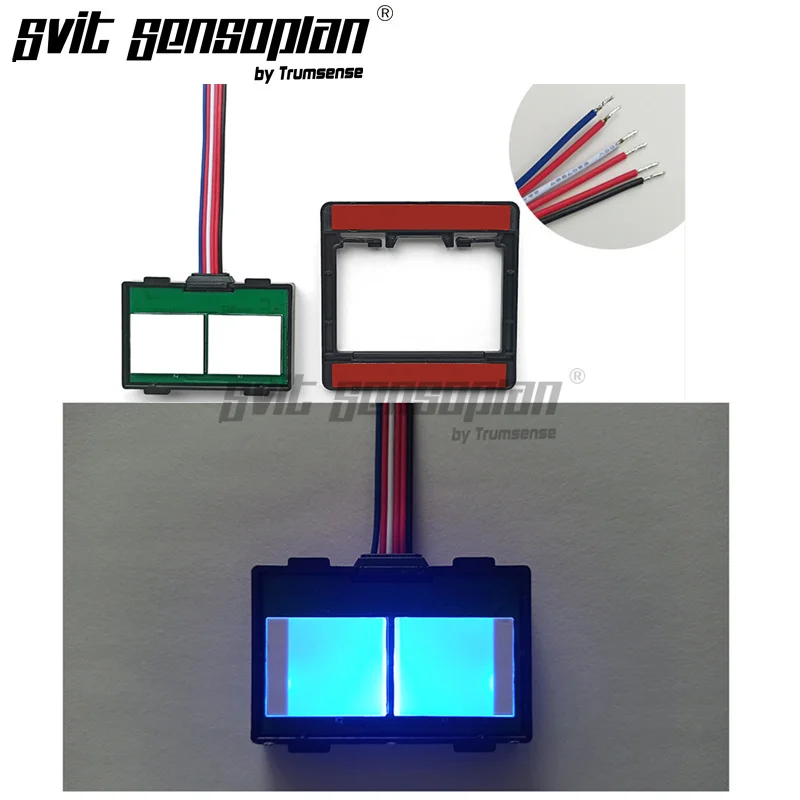

●Power on, touch buttons bright blue backlight.

  Short press K1 can turn on the light, and at the same time, the key backlight becomes white. After the short press turns off the

  light, the key backlight turns back to blue, recycle.

 The brightness can be adjusted steplessly according to K1 in the light-on state ;

●short press K2 can open the anti-fog output, and the key backlight becomes white. Short press again can close the anti-fog

  output, and the key backlight becomes blue.

●The LED light switch channel is gradually closed.







5: Parameters of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with relay:

6: Installation of Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with Relay

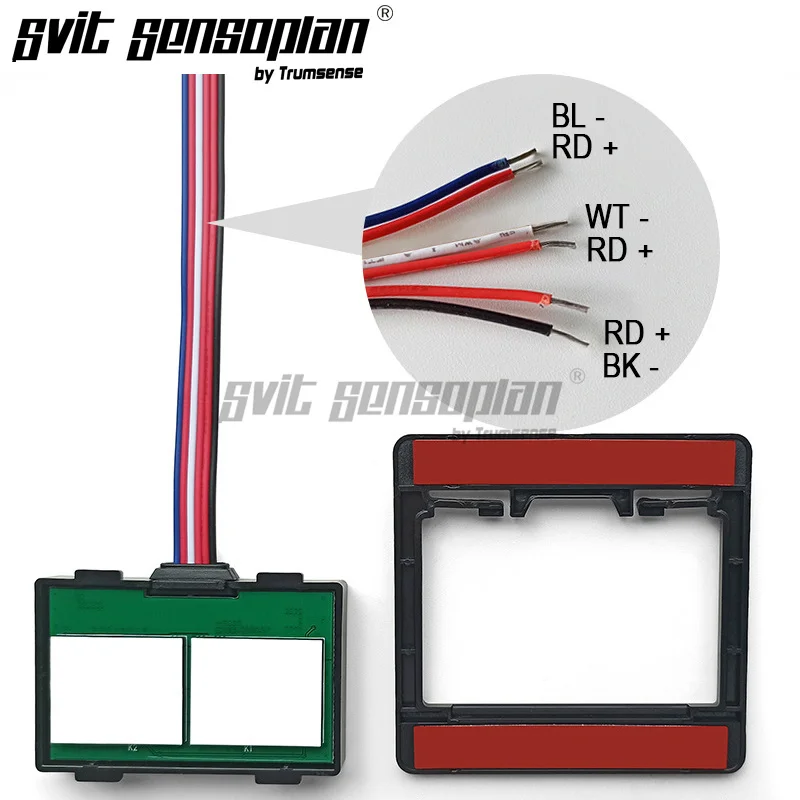

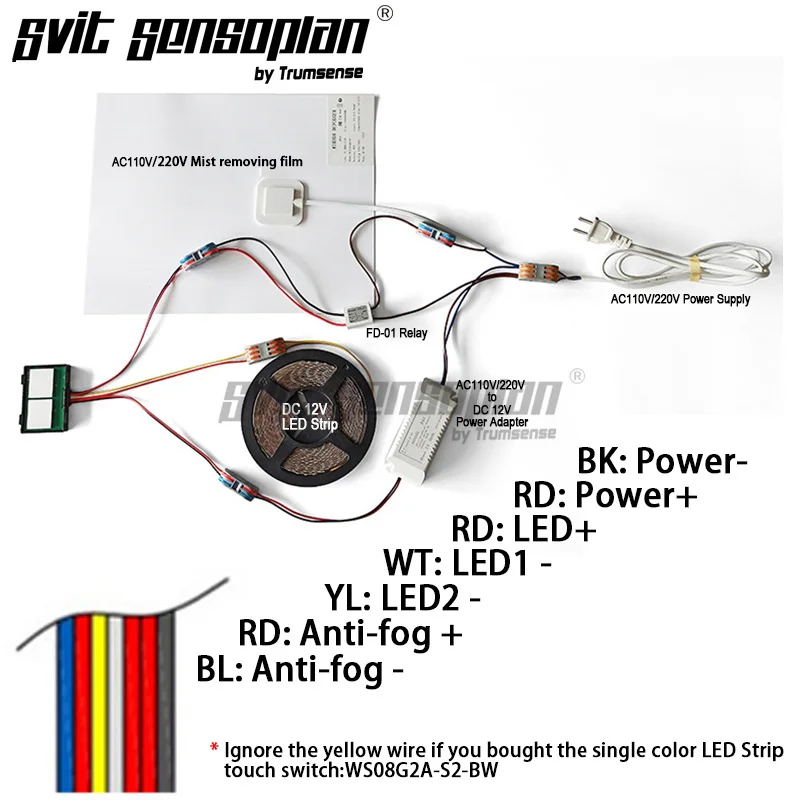

b: Wiring Diagram:

7: Applications of the Trumsense WS08G2A-S2-BW 2 Key Touch Sensor Switch with Relay,used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

c: installation:
