Trumsense RS08G1A-S7-WB Radar Sensing Switch Human Motion Sensor for Modern LED Light Mirror with Touch and Anti-fog On Off Control Stepelss Dimming for Bathroom Makingup KTV LED Mirror

1.Millimeter wave radar is a device that is highly sensitive to metal objects. In actual installation and use, please ensure that there is no large area of metal objects ( such as metal background wall, metal coated lens or other metal decoration board, etc. ) in the 40CM distance range behind the switch, otherwise the radar induction will not work properly.

2.Please use in the voltage and power range in strict accordance with the requirements of technical specifications, beyond which may lead to product damage ;

3.Please be sure to do anti-static measures when installing wiring, otherwise it may damage the sensitive components inside the product ;

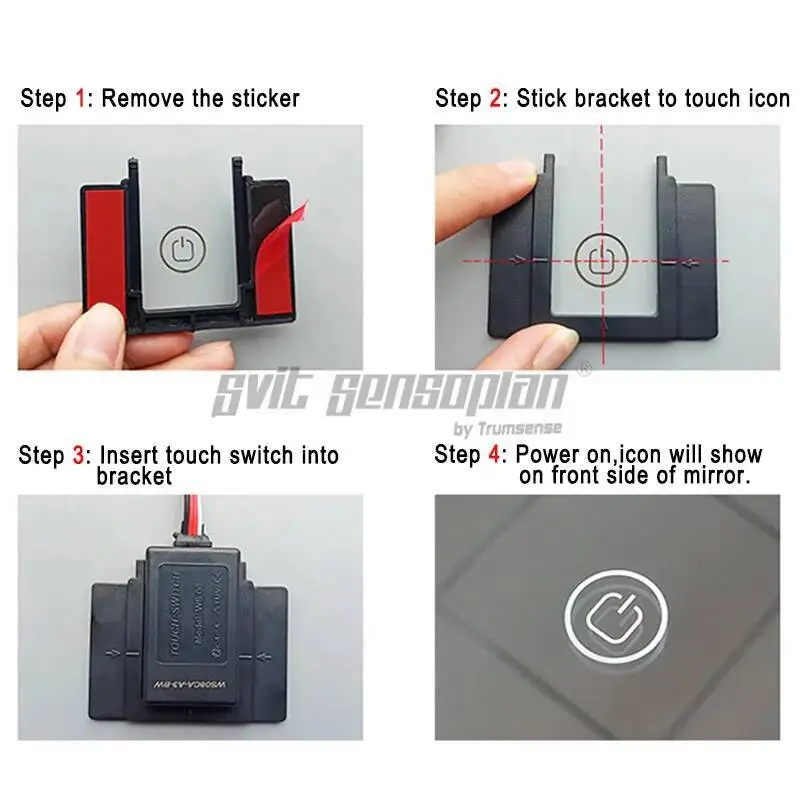

4.When installing, make sure that the switch induction surface is in close contact with the glass mirror surface, otherwise it may affect the induction distance and touch sensitivity ;

the difference in the thickness of the glass mirror and the size of the laser marking will have different effects on the sensing distance and angle, please use it after evaluating according to the actual situation.

6.In the mirror laser marking, it is necessary to ensure that the metal coating in the icon range has no residue, otherwise it will seriously affect the sensing distance.

7.Stent comes with double-sided adhesive, only for installation and positioning use, can not guarantee the long-term effective bonding firmly, after the installation is completed, please hit the glass glue or organic silica gel reinforcement around the bracket, to ensure that the installation can be durable and stable.
