Trumsense STT-93420I Submersible Liquid Level Transducer 1 m range 3.3V DC Power 0.5 to 2.5V Output PTFE Material for Diesel Voltage Output Liquid Level Transmitter

Item No.: 00673
● Power Supply: DC 3.3V
● Output:  0.5 to 2.5V
● Range: 1 m
● Cable Length: 3 meters
● Probe material: SS316
● Cable material and structure: PTFE with stainless steel wire weaving with air duct
● Anti-corrosive: yes
● Precision: 0.5%
Description Review
Description


Trumsense STT-93420I Submersible Liquid Level Transducer

1 m range

3.3V DC Power

0.5 to 2.5V Output

PTFE Material for Diesel



Introduction of Trumsense STT-93420I Submersible Fuel Level Transmitter:

It can throw into medium directly, the installation and use is quite convenient, solid structure, no moving parts, high reliability, long service life, from water, oil to the viscosity of the paste can be high-precision measurement, not subject to the measured medium foaming, deposition, electrical characteristics of the material fatigue wear, vibration.

Working Principle of STT-93420I Submersibe Liquid Level Transmitter:

It adots the principle of static pressure measurement

When the liquid level transmitter is put into a certain depth in the measured liquid, the pressure formula of the sensor facing the liquid level is :

P = ρ.g.h + P0

In this formula :

P : Pressure on the sensor facing the liquid level

ρ : Liquid density to be measured

g : local gravity acceleration

P0 : Atmospheric pressure at liquid level

H : Sensor depth into the liquid

The pressure signal sensed by the sensor is amplified by circuit conversion and output as a standard signal after compensation.

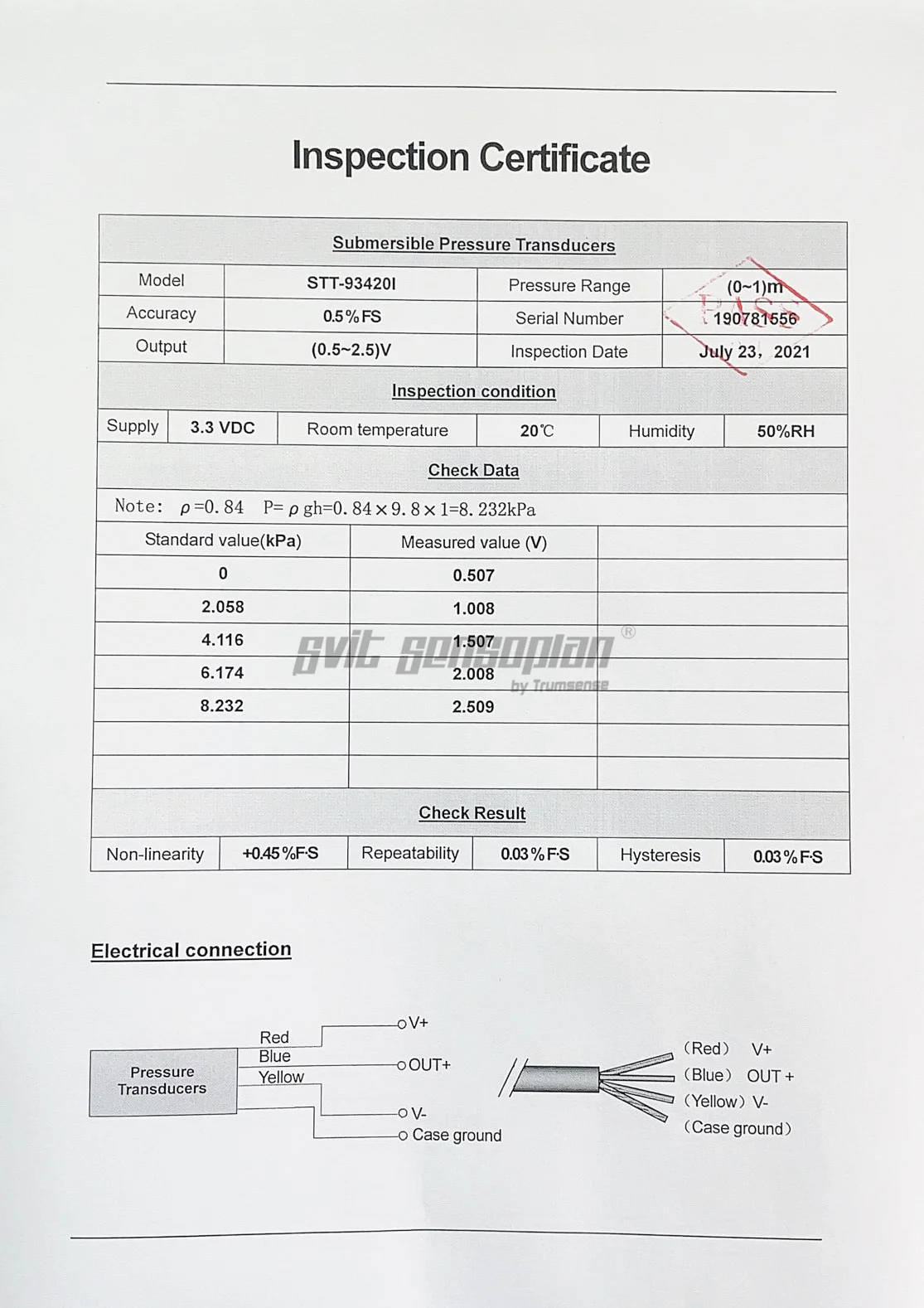

Inspection Report and Wiring Diagram:

We are the ODM factory, each pressure core and product has unique series number, means each product has its production history, testing history history, each transducer will reach you with a unique inspection report as below :

Basic Parameter

Power Supply: DC 3.3V

Output:  0.5 to 2.5V

Range: 1 m

Cable Length: 3 meters

Probe material: SS316

Cable material and structure: PTFE with stainless steel wire weaving with air duct

Anti-corrosive: yes

Precision: 0.5%

Typical Application: for diesel tank liquid level data collection or output

We are the original factory, if the above parameters can not satisfy your ​specific needs, contact at any time, our technician team will offer you ​the proposal within 24 hours.

Installation Examples of Trumsense STT-93420I Submersible Fuel Level Transmitter:

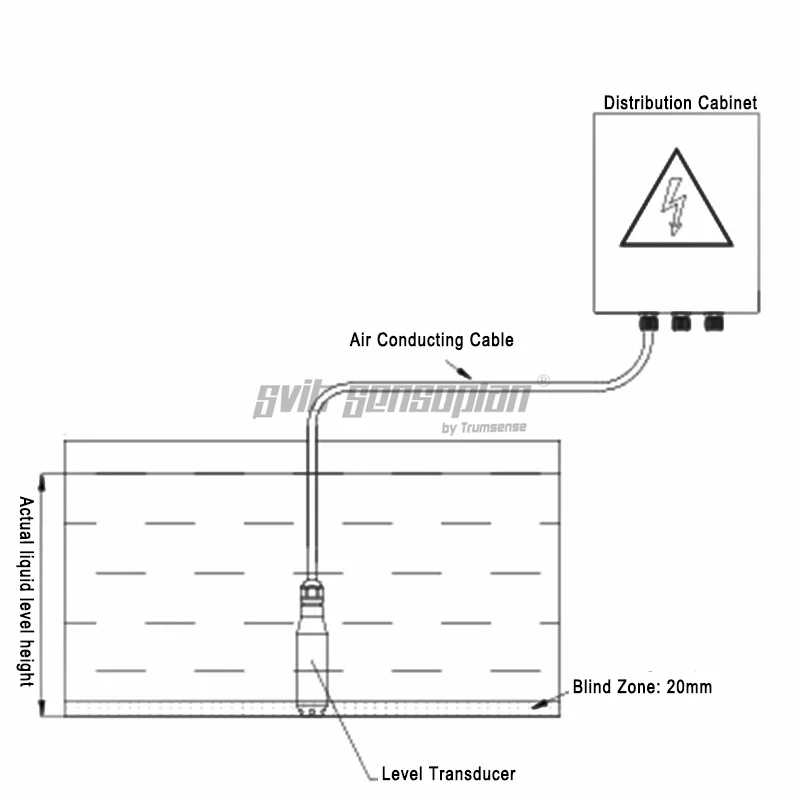

a: Direct installation :

The transmitter is directly put into the measured liquid, and the cable terminal is connected to the distribution box.

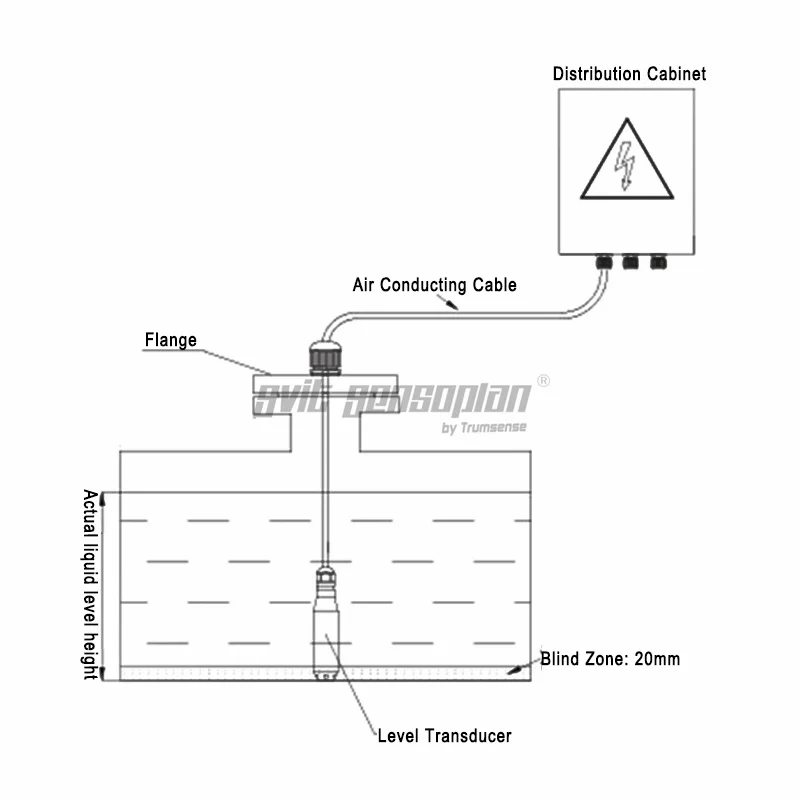

b: Flange installation:

1. Put the gas-conducting cable into the cable fixed flange.

2. Put transmitter into the measured liquid, adjust the input depth, lock the cable

3. Fix the mounting flange.

4. Cable terminal connected to the distribution box.

Note : Cable fixed flange needs to be purchased separately.

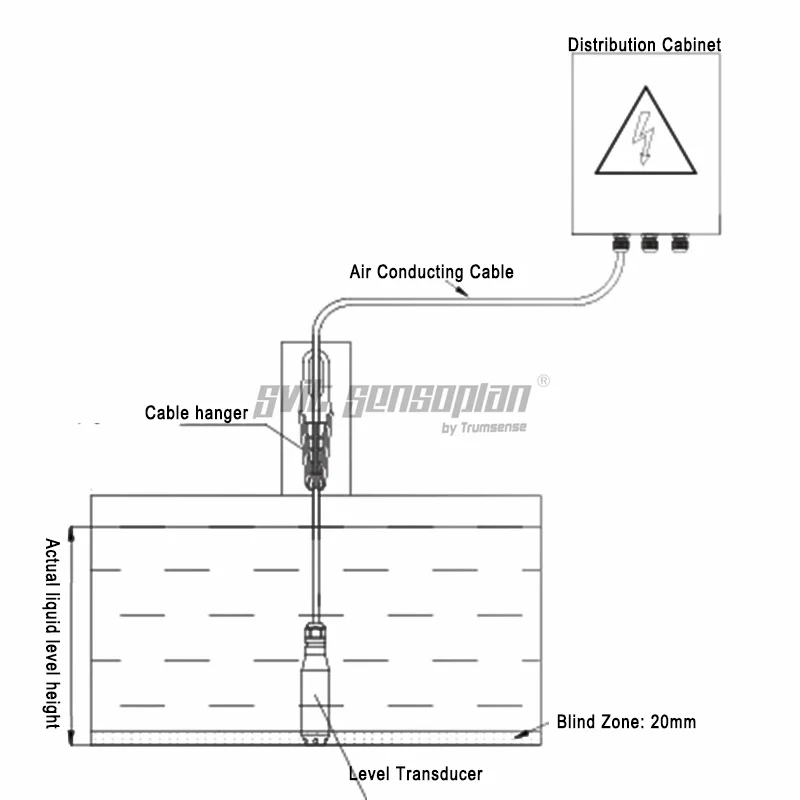

c. Cable hanger installation :

1. Cable hanger fixed to the installation surface.

2. The transmitter is put into the measured liquid.

3. gas guide cable through the cable fixed hanger to adjust the input depth, locking cable fixed hanger.

4. Cable terminal connected to the distribution box.

Note : Cable fixed hangers need to be purchased separately.

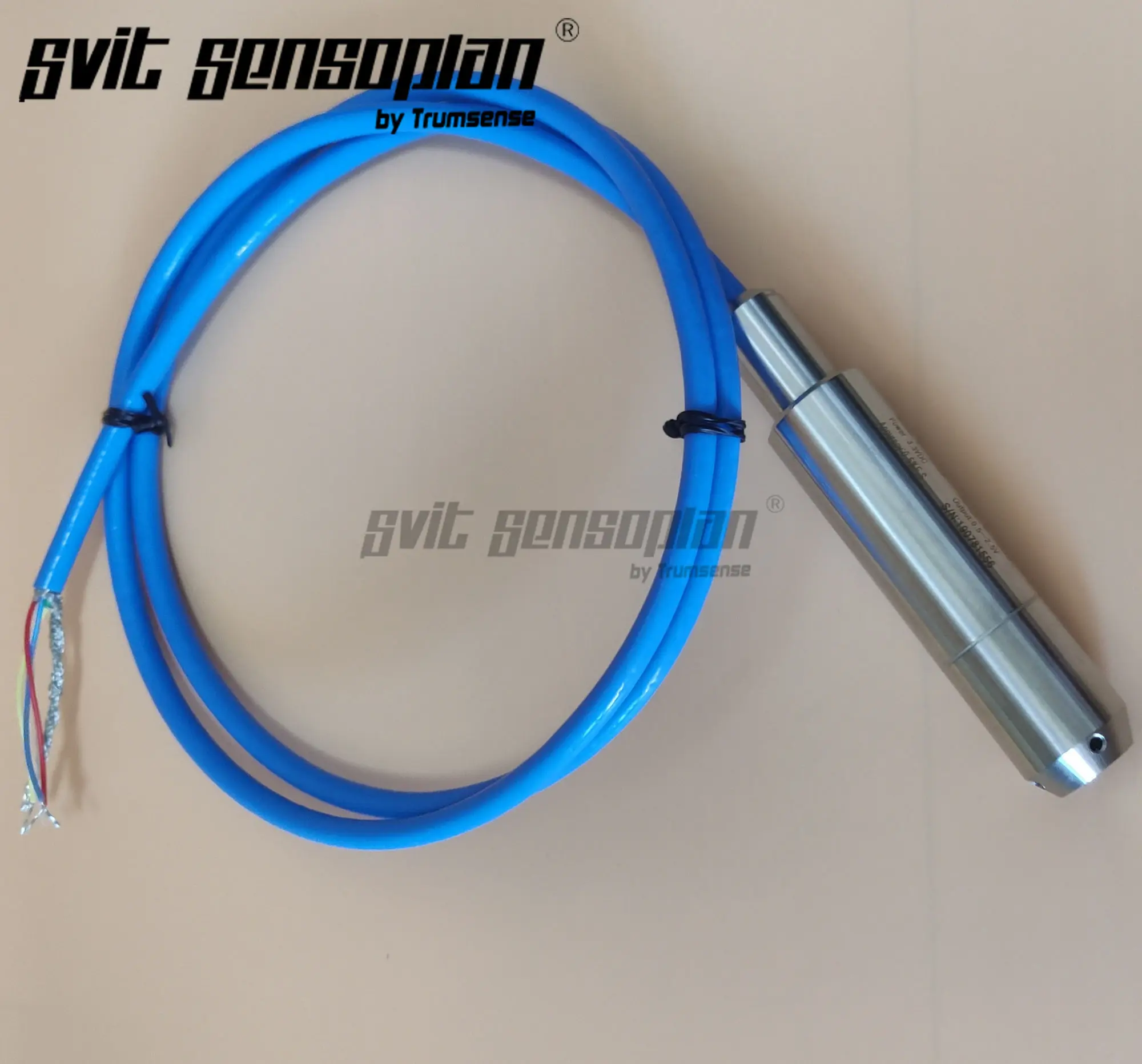

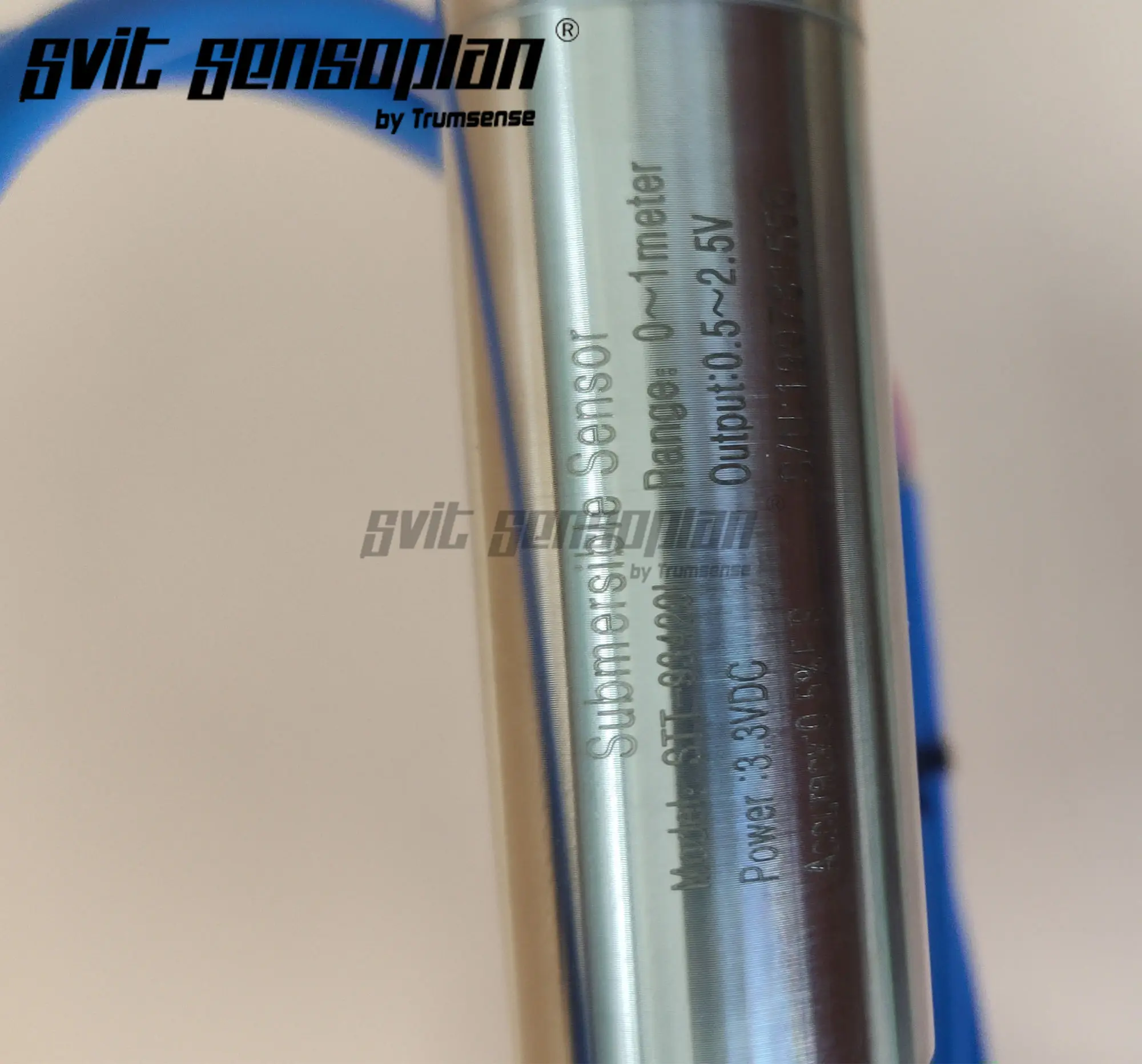

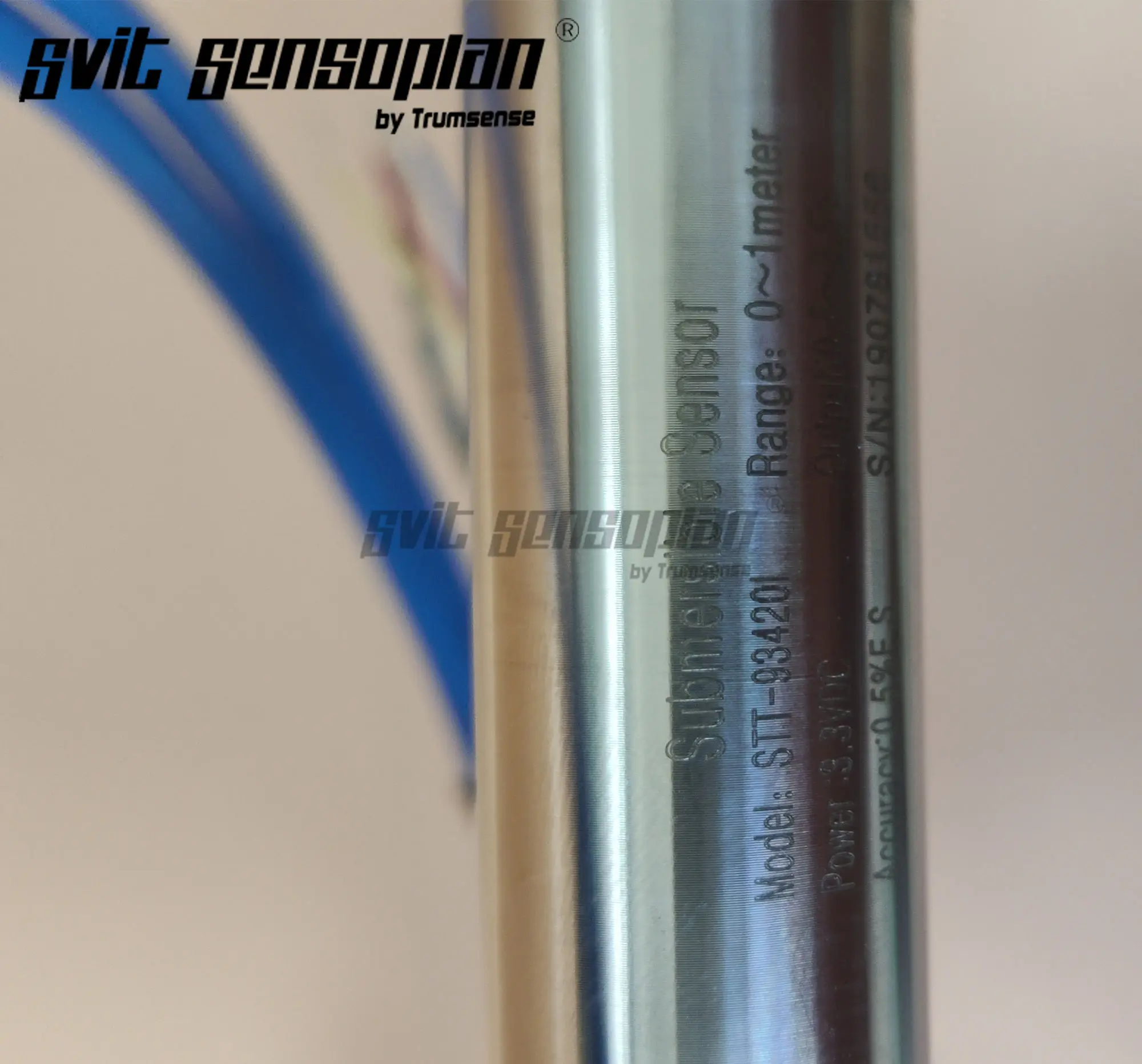

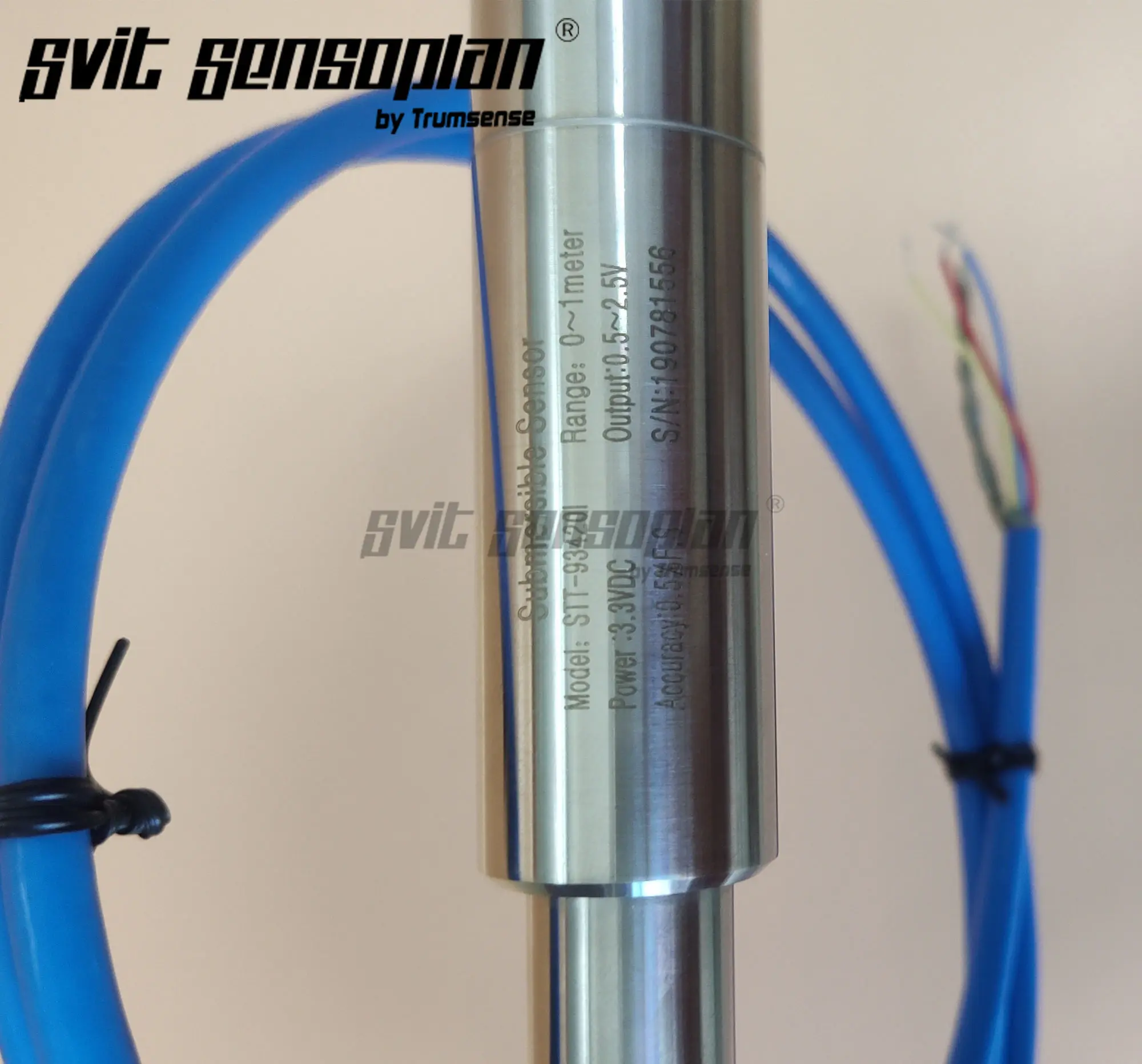

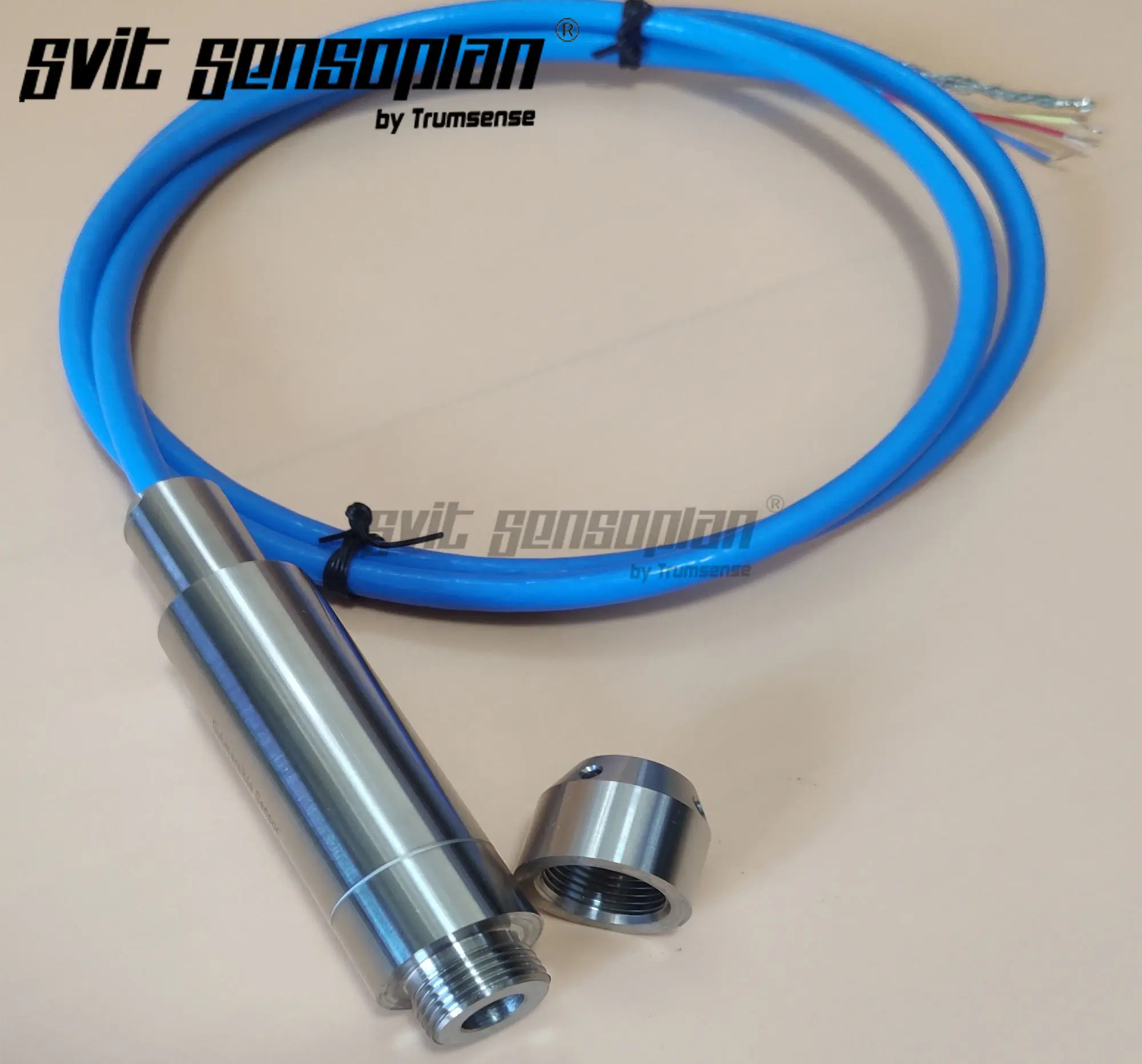

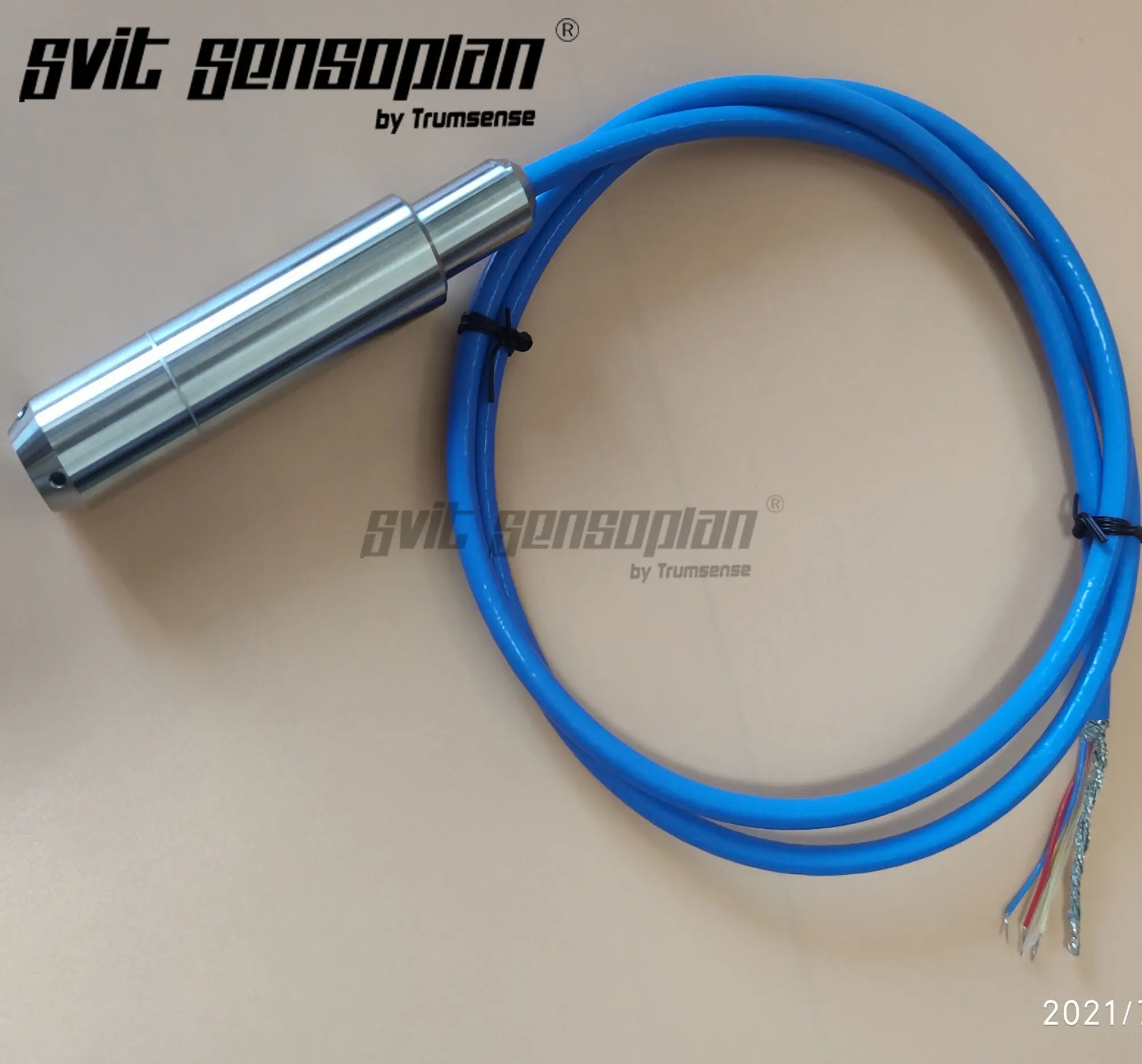

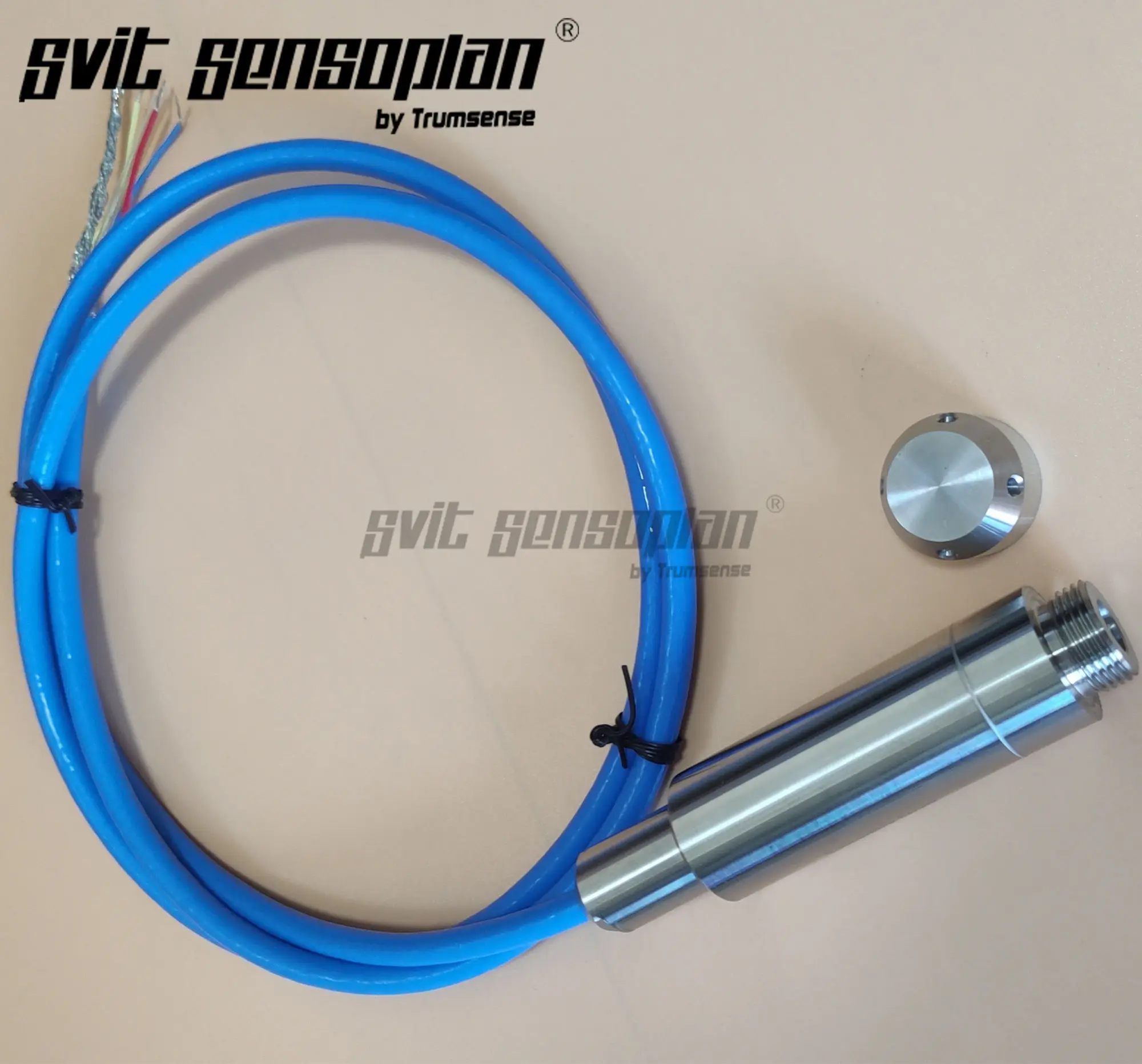

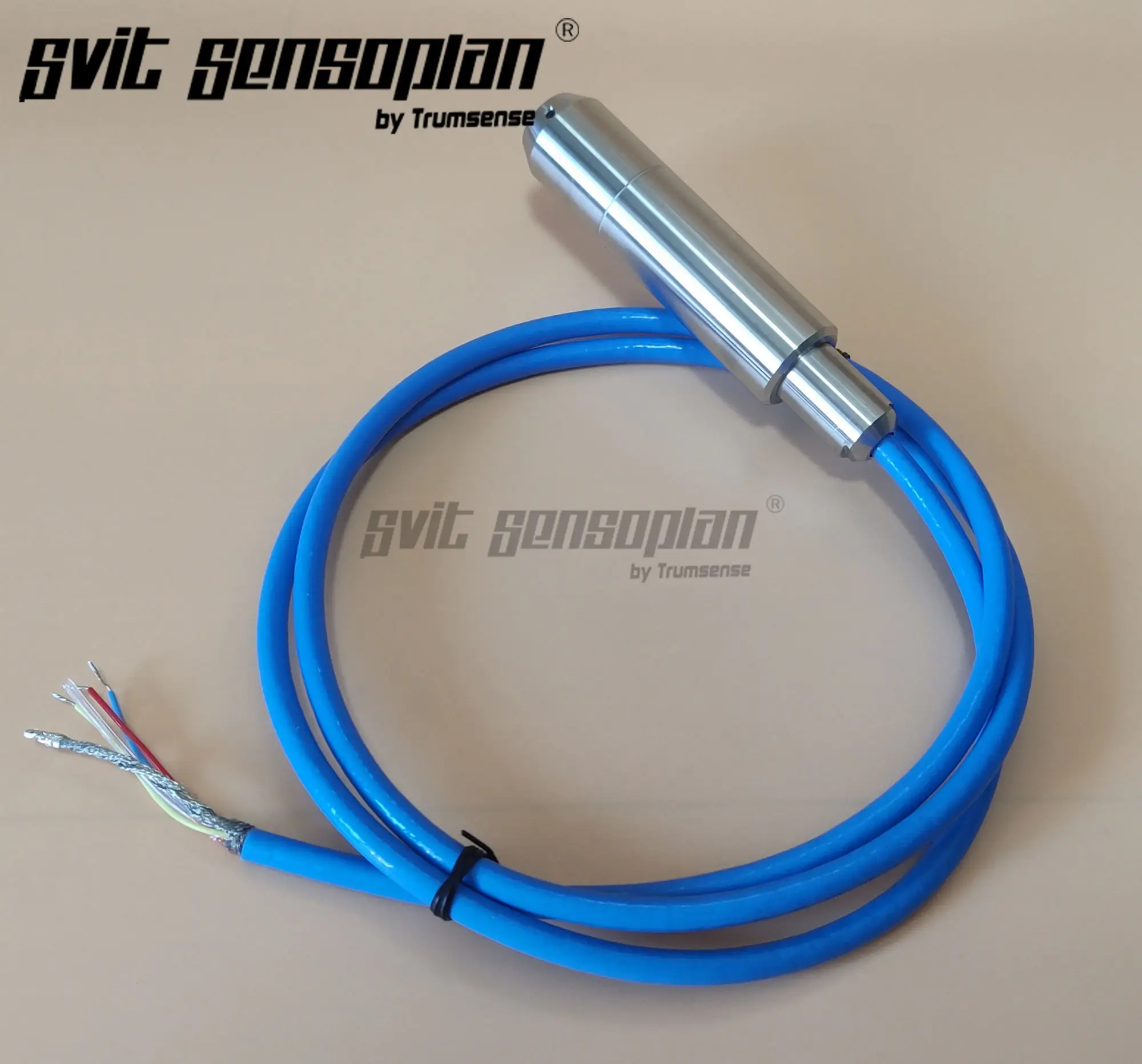

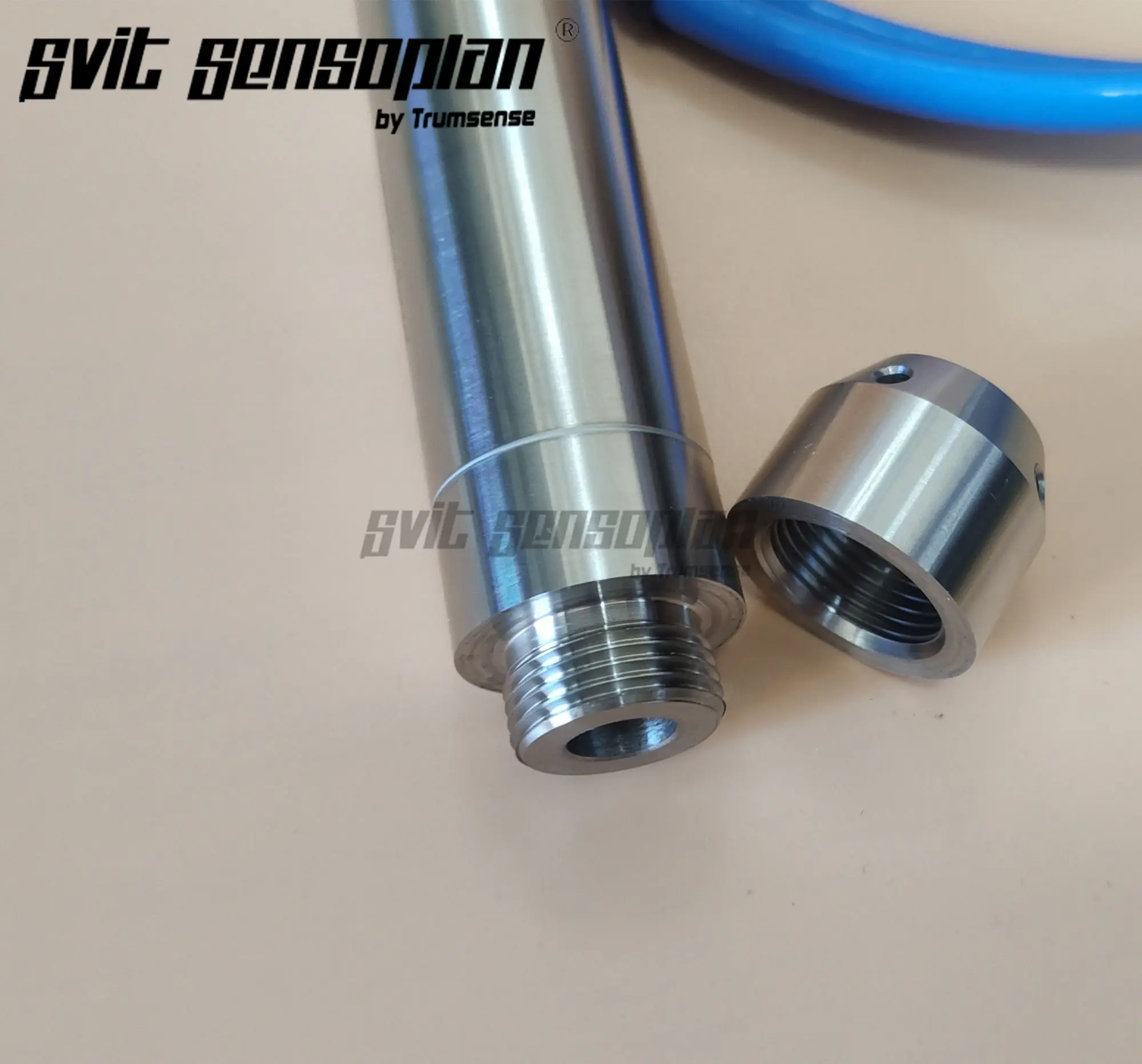

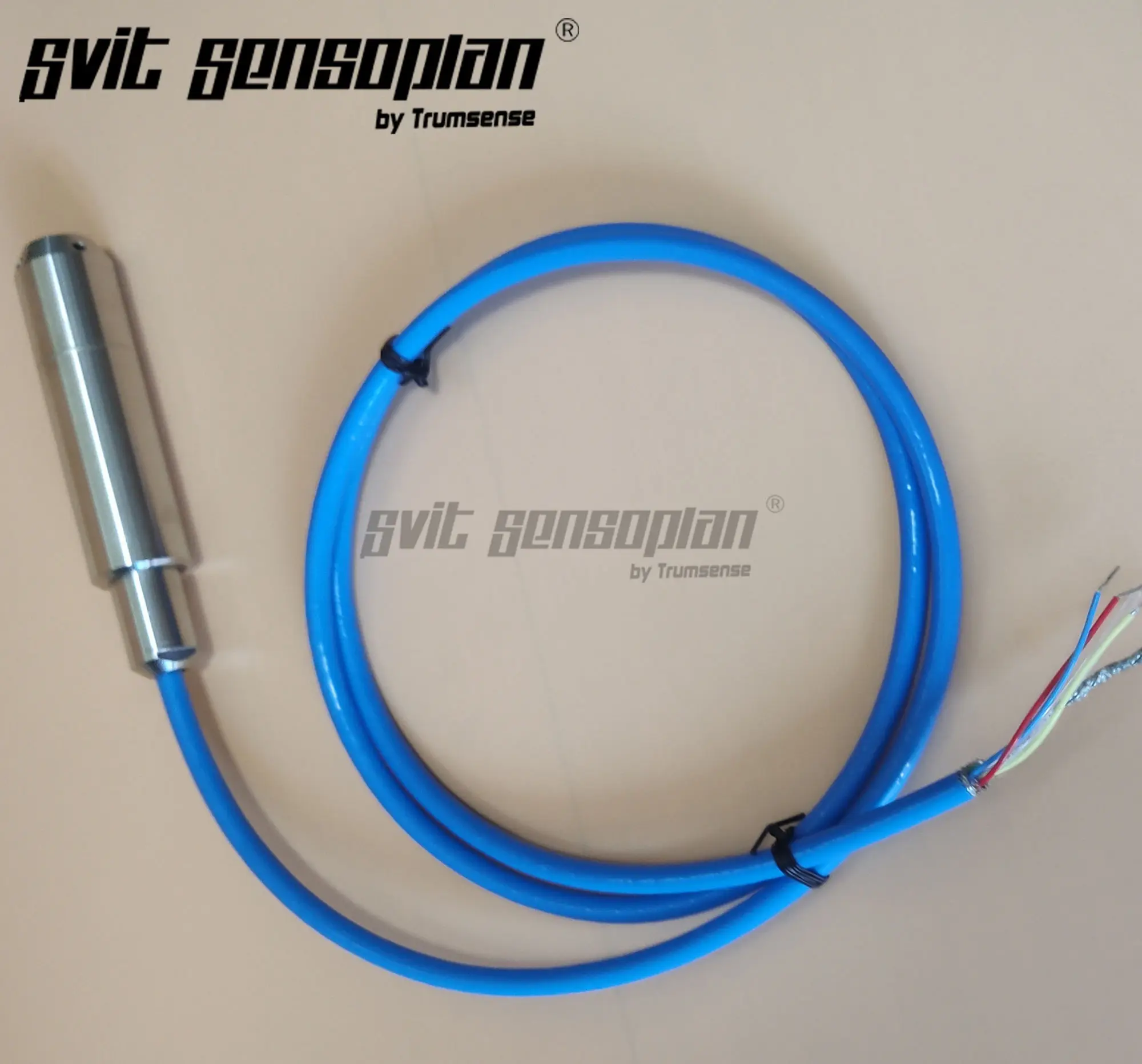

You will receive the Trumsense STT-93420I Submersible Fuel Level Transmitter

as below detail photo:

​ ​

We are the original factory, if the above parameters can not satisfy your ​specific needs, contact at any time, our technician team will offer you ​the proposal within 24 hours.
