Trumsense WS08F2 Series Home Hotel Bathroom LED Mirror Touch Sensor Switch with High Sensitivity With Dimming

Item No.: 00524
★  Trumsense Factory Warehouse Directly Delivery
● Model: WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW
●Steplessly Adjust the Brightness of the LED Strip
●  Can Adjust the LED Strip Colour (control dual colour LED strip)
Description Review
Description


Buying options explaination:

▶WS08F2-S2-BW:

K1: Short press the switch, long press to adjust the brightness steplessly

K2: Short press the switch, long press to turn off the backlight and sleep

▶WS08F2-S3-BW:

K1: Short press the "cold light - warm light off" state cycle; long press to turn off the light to turn off the backlight and sleep

K2: Short press the switch, long press to turn off the backlight and sleep

▶WS08F2-S3A-BW:

K1: Short press "cold light-neutral light-warm light-off" state cycle; long press to turn off the light to turn off the backlight and sleep

K2: Short press the switch, long press to sleep

▶WS08F2-S5-BW:

K1: Short press the "cold light-warm light-off" state cycle; long press the stepless color temperature

K2: Short press the switch, long press to turn off the backlight and sleep

▶WS08F2-S5A-BW:

K1: Short press "cold light-neutral light-warm light-off" state cycle; long press to adjust brightness steplessly

K2: Short press the switch, long press to turn off the backlight and sleep

★  Trumsense Factory Warehouse Directly Delivery

● Model: WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW

●  Can Steplessly Adjust the Brightness of the LED Strip

●  Can Adjust the LED Strip Colour (control dual colour LED strip)

●  Switch for on off of anti-fog film

● Used for LED Light Mirror of Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting    Room,KTV,Homestay,Makeup Room... ... ... ... ... ...

图片链接已损坏

​ ​

​ ​ ​ ​ ​

1: WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW Wholesales Price Reminding:

     We are the direct factory, our mainly users are from the smart mirror manufacturer worldwide, if you has bulk quantity

     purchasing plan,please kindly contact us for wholesales offer.

2: Important Before You Place An Order of Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW In This Link:

      a: We only produce and sell touch switch sensor,do not produce and sell mirror.

      b: We will only send you the touch switch sensor, do not send mirror.

      c: You will only receive the touch switch, you will not receive any mirror.

      d: All the photos with mirror you can see in main photos, in description, in advertisement , in videos,or any other

          possible places,only with the purpose to show the final performance or functions, after you install our mirror touch

          switch sensor , on your old/existing mirrors.

      e: The most important job is: remove the mercury, to make it transparent, to match our touch switch's touch key, please

          contact us for the video, if you has a plan to buy or already receive the goods, because we can not upload large file

          here.

      f: We are the factory, we will make the touch panel work perfectly with our instruction, after your parcel was received.

      g: If your quantity is very big, please contact us and we will offer you the best prices or maybe exclusive prices in your

          province or your country.

​ ​

3: Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW Working Principle:

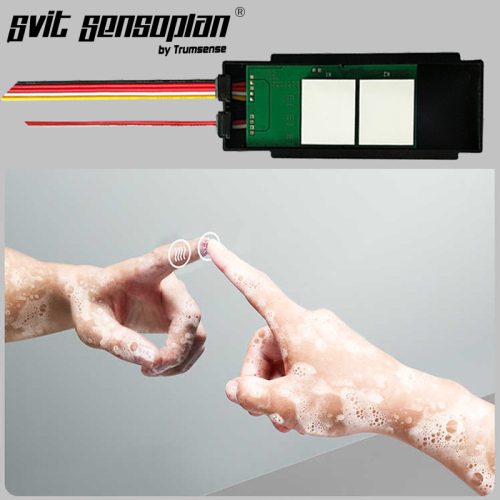

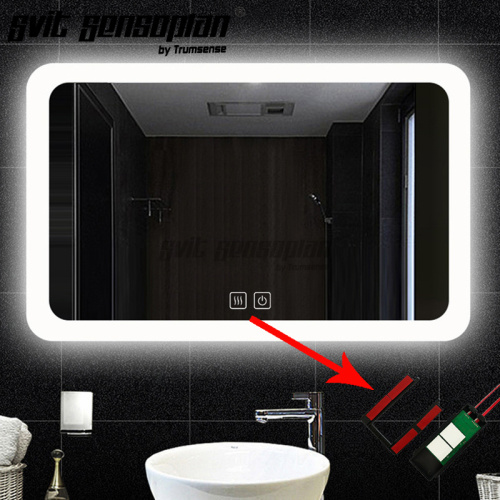

This product is a double key touch switch, suitable for installation behind the mirror to achieve mirror touch operation. K1 is the light control switch, which can select the functions of light switch, brightness adjustment, and color temperature adjustment. K2 is an antifogging control switch, which can directly control the low voltage DC antifogging film or control the high voltage antifogging film by relay.

After power on, the key bright blue backlight, short press K1 can turn on the light, while the key backlight white, short press the light, the key backlight back to blue, so cycle. The brightness or color temperature can be adjusted steplessly according to K1 ( see the functional description of each model in the table below ) ; short press K2 can open anti-fogging output, while the key back light becomes white, short press the light, the key back light becomes blue. When the switch is closed, the button backlight and LED lights can be closed for 3 seconds by long pressing the button, and then they can be awakened again by short pressing. The button backlight is blue, and the system enters the standby state.

The switch is activated by the touch of a finger, and stopped when you leave your hand. The touch is sensitive, and the illuminated keys can be easily seen even in the dark.

Multiple functional models available,the design of WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW includes general switch function, stepless brightness adjustment, dual LED colour strip dimmer, mist removing film on off controlling.

图片链接已损坏

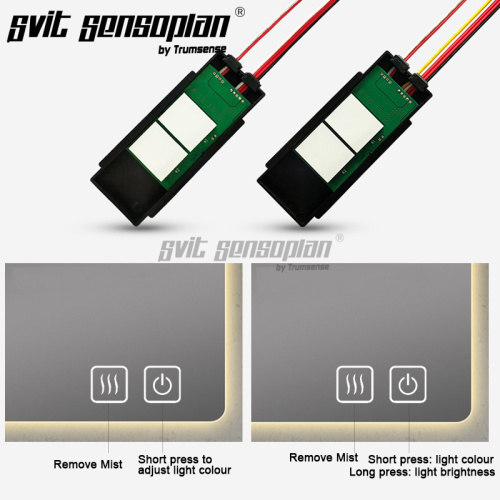

4: Basic Function of Touch Switch WS08D2-S2-BW:

WS08F2-S1-BW:

K1: Short press the switch, long press to turn off the light and turn off the backlight and sleep
K2: Short press the switch, long press to turn off the backlight and sleep

WS08F2-S2-BW:

K1: Short press the switch, long press to adjust the brightness steplessly
K2: Short press the switch, long press to turn off the backlight and sleep

WS08F2-S3-BW:

K1: Short press the "cold light - warm light off" state cycle; long press to turn off the light to turn off the backlight and sleep
K2: Short press the switch, long press to turn off the backlight and sleep

WS08F2-S3A-BW:

K1: Short press "cold light-neutral light-warm light-off" state cycle; long press to turn off the light to turn off the backlight and sleep
K2: Short press the switch, long press to sleep

WS08F2-S4-BW:

K1: Short press the switch, long press the stepless color temperature
K2: Short press the switch, long press to turn off the light and turn off the backlight and sleep

WS08F2-S5-BW:

K1: Short press the "cold light-warm light-off" state cycle; long press the stepless color temperature
K2: Short press the switch, long press to turn off the backlight and sleep

WS08F2-S5A-BW:

K1: Short press "cold light-neutral light-warm light-off" state cycle; long press to adjust brightness steplessly
K2: Short press the switch, long press to turn off the backlight and sleep

​ ​

​ ​

5: Parameters of Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW :

Switch name: mirror touch switch double key

Switch model: WS08F2-Sx (BW)

Working voltage: DC12-24V

Switch channel: 2 channels (LED light + anti-fog)

Working current: 30mA (Max)

Dimming method: PWM (segment/stepless dimming)

Switching current: 5A (Max) total current

Brightness adjustment range: stepless 5%-100%

Touch method: capacitive touch sensing

Color temperature adjustment range:

          a.Grading: cold light - neutral light - warm light

          b.Stepless: cold light - warm light

Support mirror thickness: 5mm

Button backlight: blue and white

Input and output cable length: 200mm

Dimensions: 116*46*12mm

Switch service life: more than 300,000 touches

​ ​

6: Installation of Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW :

     a: Before the installation ,you need to remove the mercury of your mirror with the laser machine and we will send you

        the DWG format file for this laser engraving job, after you receive our touch switch, please kindly do the installation as

        below instruction:

     b: Wiring Diagram of WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW:

​ ​ ​

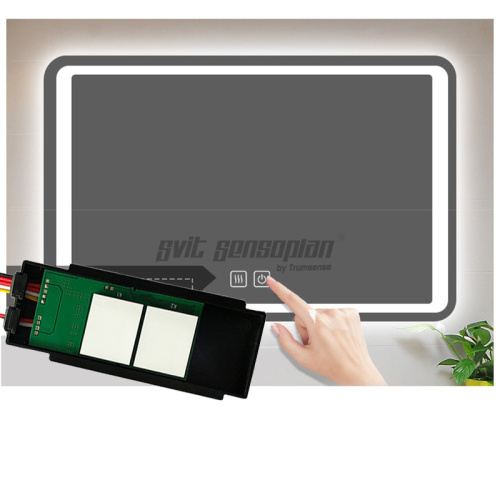

7: Applications of the Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW are Used In Below Fields Widely Where There Is A Led Mirror :

like: Bathroom,Washroom,Bedroom, Bar,Hotel,Beauty Salon,Coffee Shop,Sitting Room,KTV,Homestay,Makeup Room...

图片链接已损坏

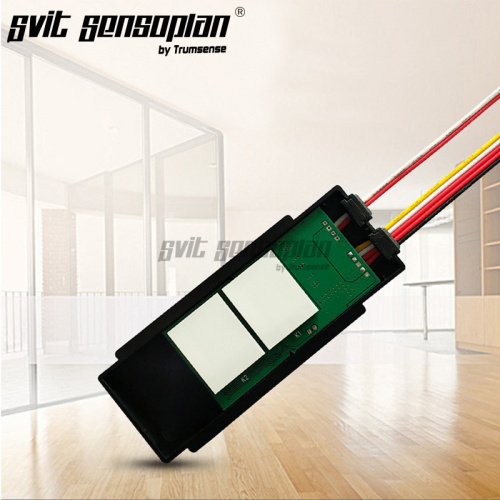

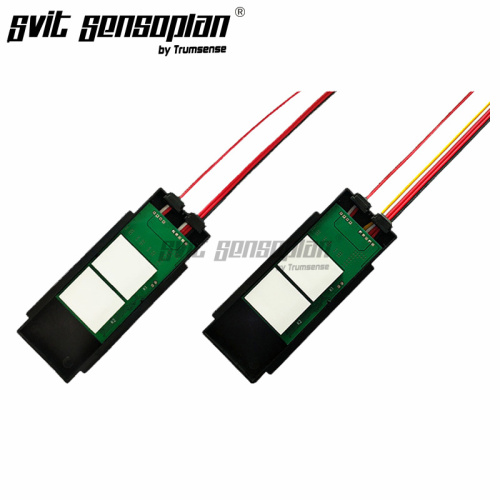

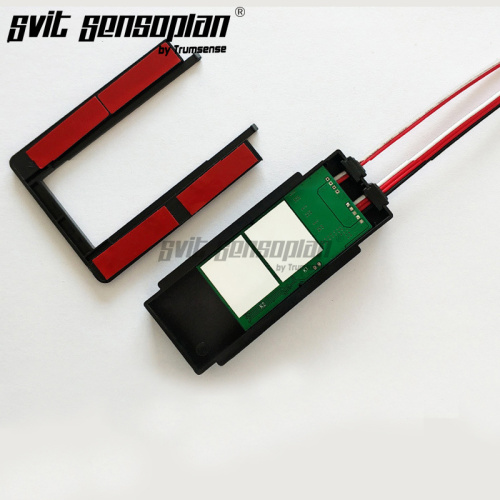

8: You Will Receive The Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW , Totally Same As the Detail Photos Showed Below:

图片链接已损坏
图片链接已损坏

9:  Below Are The Products That is Compatible With The Touch Switch WS08F2-S2-BW / WS08F2-S3-BW / WS08F2-S3A-BW / WS08F2-S5-BW / WS08F2-S5A-BW , and Below products are all our own designed and products:

      a: Power Adapter: D14 http://www.aliexpress.com/item/4001143977296.html

      b: Power Adapter: D24 http://www.aliexpress.com/item/4001148019275.html

      c: Power Amplifier: http://www.aliexpress.com/item/4001189815565.html

      d: Big Power Supply Adapter: http://www.aliexpress.com/item/4001226295374.html

e: mist removing film: http://www.aliexpress.com/item/32917242459.html

​ ​

10: Customized Products Available:

       In past years, plenty of smart mirror factory purchased from us and many of the items was customzied, if the above

       function can not meet your needs, please conact us to discuss, our enginner will share our suggestion with you.

K3013BA,K3013CA,WS08CA,WS08CB,WS08D1,WS08D2,WS08F2,WS08F3,WS08,EX-01,FD-01,FD-04,

K3013,K3014A,k3014AF,K3030B,k3015CA,K3015CAL,K3015CAH,K3015CBF,k3015CA-USB,K3015CBH,WS08CB-S5A-BW,WS08CB-S1-BW,WS08CB-S2-BW,WS08CB-S4-BW,WS08CA-A0-B,WS08CA-A0-W,WS08CA-A2-BW,WS08CA-A1-B,WS08CA-A1-W,WS08D1-S3A-BW,WS08D1-S4-BW,WS08D1-S5-BW,WS08D1-S5A-BW,K3013BA-S1-BW,K3013BA-S1-RB,K3013BA-S1-B,K3013CA-A0-B,K3013CA-A2-BW,K3013CA-A1-B,K3013CA-A3-BW,K3013CA-A1-W,K3013CA-A0-W,K3100C-WB,K3102A-S2-WB,K3102A-S5A-WB,WS08F2-S2-BW,WS08F2-S3-BW,WS08F2-S3A-BW,WS08F2-S5-BW,WS08F2-S5A-BW,WS08D2-S1-BW,WS08D2-S2-BW,WS08F3-M2-BW,WS08F3-M2A-BW,
