Trumsense XKC-Y28A 5V Water Level Sensor to Detect Liquid of Inner Small Hose Install on Outer Surface Work With Relay IC Board PCB Solenoid Valve
We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

Trumsense XKC-Y28A 5V Water Level Sensor to Detect Liquid of Inner Small Hose Install on Outer Surface Work With Relay IC Board PCB Solenoid Valve with Adjustable Sensitivity

Item No.: 00480
●Genuine Trumsense Product
●Specially For Liquid / Water Hose with 5 to 10 mm Diameter
●Jaw Type Installation Sensing
●For Liquid with Conductivity
●For any Non-metallic Material Liquid / Water Container Material
●Built-in Relay
Description Review
Description

 ​

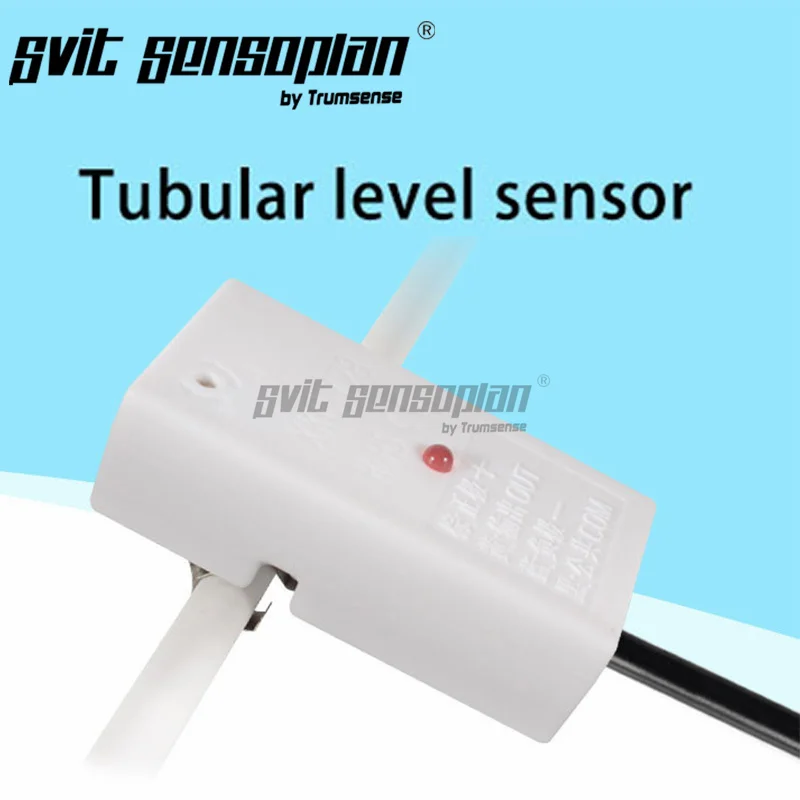

Genuine Trumsense XKC-Y28A-NC

DC 5V Contactless Liquid / Water Level Sensor

Specially For Liquid / Water Hose with 5 to 10 mm Diameter

Jaw Type Installation Sensing

Suitable for any Liquid with Conductivity

Suitalble for any Non-metallic Material Liquid / Water Hose

1. Working Principle of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor or Detector :

Intelligent non-contact liquid level sensor produced by Shenzhen Trumsense Technology Co.,Ltd. uses the inductive capacitance of water to detect whether there is liquid. When there is no liquid approaching the sensor, due to the presence of distributed capacitance on the sensor, there is a certain static capacitance on the ground of the sensor. When the liquid level slowly rises and approaches the sensor, the parasitic capacitance of the liquid will be coupled to the static capacitance, so that the final capacitance value of the sensor becomes larger, the changed capacitance signal is then input to the control IC for signal conversion, the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value. The capacitance signal is then input to the control IC for signal conversion, and the changed capacitance is converted into a certain amount of change in electrical signal, and then a certain algorithm is used to detect and judge the degree of this change, when this change exceeds a certain threshold value It is considered that the liquid level has reached the sensing point.

2. Brief Introdution of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor or Detector :

The intelligent non-contact liquid level sensor (hereinafter referred to as the liquid level sensor) adopts advanced signal processing technology and high-speed signal processing chip, which breaks through the influence of the wall thickness of the container and realizes the true non-contact detection of the liquid level height in the closed container.The liquid level sensor (probe) is installed above and below the outer wall of the container under test (the high and low levels of the liquid level). There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used.

XKC-Y28A-xxx series products are specially developed for liquid level detection in non-metallic pipelines. This series of liquid level sensors supports three signal output interfaces, namely high and low level output interface, NPN output interface, and PNP output interface; the output methods of the three models correspond to the following three models:

    ●Normally open output interface — Model: XKC-Y28A-NO (DC 5V), (DC 12V), (DC 24V)

    ●Normally closed output interface — Model: XKC-Y28A-NC (DC 5V), (DC 12V), (DC 24V)

    ●RS485 communication output interface — Model: XKC-Y28A-RS485(DC24V)(DC 5V-12V optional)

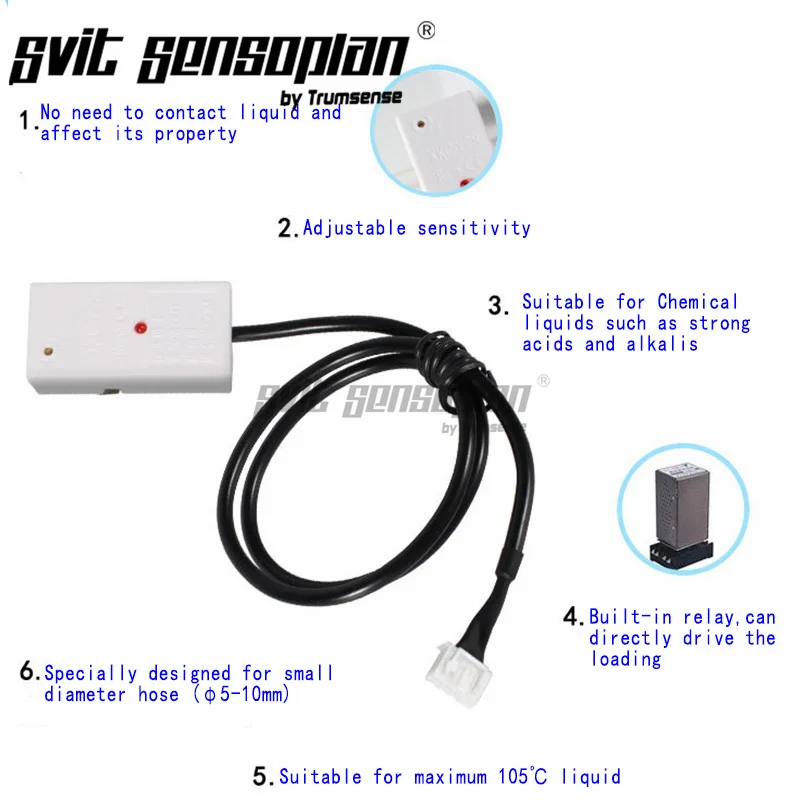

3. Elite Features of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

● Trumsense XKC-Y28A-XXX non-contact liquid level sensor, suitable for all kinds of non-metallic containers, the outer wall of non-metallic pipes does not need to be in direct contact with the liquid, will not be corroded by corrosive liquids such as strong acids and alkalis, and will not be affected by scale or other debris. It can be completed outside the container or pipeline to detect whether there is liquid inside.

● Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, multi-point series wiring can be realized.It can support high and NPN, PNP and RS485output (please contact the manufacturer for instructions when selecting the model).

● The detection is accurate and stable, and the liquid level of boiling water can be detected.

● Pure electronic circuit structure, non-mechanical working method, stable performance and durable life.

● High stability, high sensitivity, strong interference ability, not subject to external electromagnetic interference, special treatment for power frequency interference and common-mode interference is made to be compatible with all 5V,12V, 24V power adapters on the market.

● Strong compatibility, penetrates containers and pipes of various non-metallic materials, such as plastic, glass, ceramics and other containers, and the diameter of the sensor tube is 5-10 (mm); it is suitable for liquid level detection of various curved, curved, and cylindrical containers or pipes.

● Wide voltage range (5V or 12V or 24V), suitable for connecting various circuits and product applications.

4. Application Prerequisites of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

a. Viscosity of measured liquid medium

Dynamic viscosity < 10mPaS normal measurement. 10mPaS < dynamic viscosity < 30mPaS may affect the detection. Dynamic viscosity > 30mPaS due to a large number of liquid attached to the container wall, can not be measured.

b.With the increase of temperature viscosity decreases, most of the high viscosity of the liquid is more affected by temperature, so pay attention to the liquid temperature effect when measuring liquid viscosity.

c. Pay attention to keep the sensor clean, as far as possible to achieve anti-corrosion and avoid other objects violent collision, hit.

d. Outdoor installation should avoid direct sunlight and rain direct flow to the sensor body, and away from the high heat source and pay attention to ventilation, if the ambient temperature exceeds the rated temperature, the corresponding cooling protection measures should be taken.

e. When the ambient temperature is lower than the normal operating temperature range of the sensor, the instrument protection box or other protective rain cap device can be used for antifreeze protection, and pay attention to keep the sensor dry. Sensors should be regularly maintained. ( The detection time interval is determined by the user according to the specific situation ).

5. Application Environment of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

1. This product is suitable for pipes with an outer diameter of 5mm~10mm, and the maximum shall not exceed 11mm.

2. The maximum opening angle of the spring sheet shall not exceed 60°

The height of the sensed liquid level is related to the sensitivity of the sensor. The higher the sensitivity, the lower the sensed liquid level.

Note: The liquid level is sensed in the upper and lower edges of the sensor sheet, which is a normal phenomenon

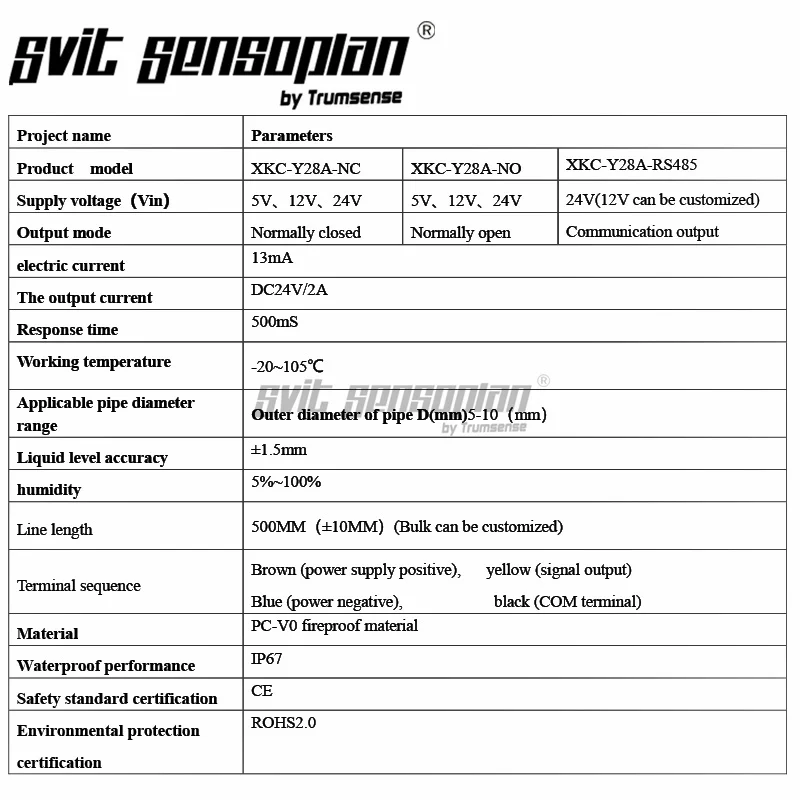

6. Parameters of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

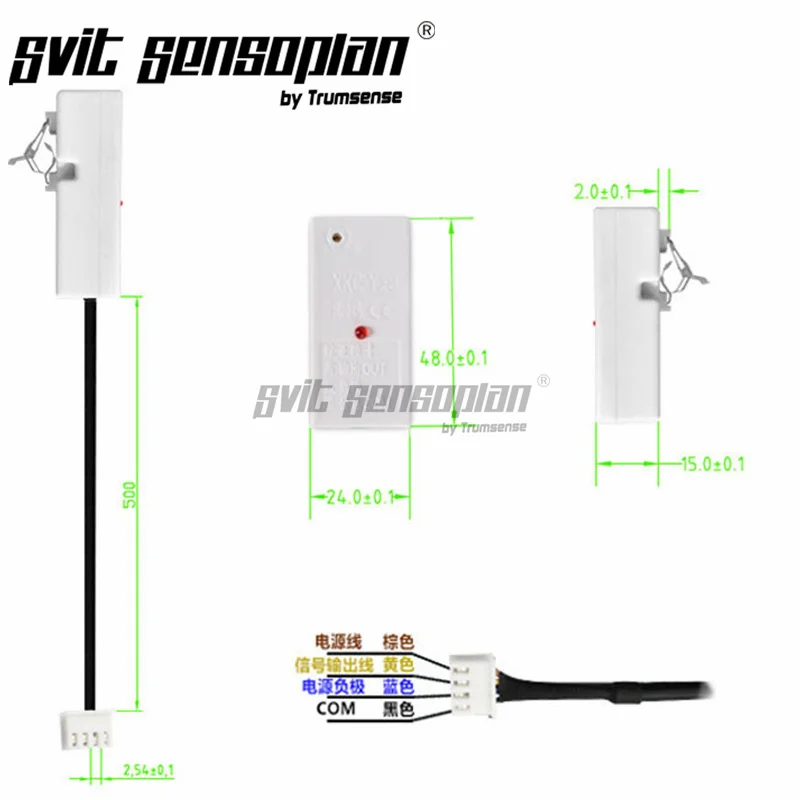

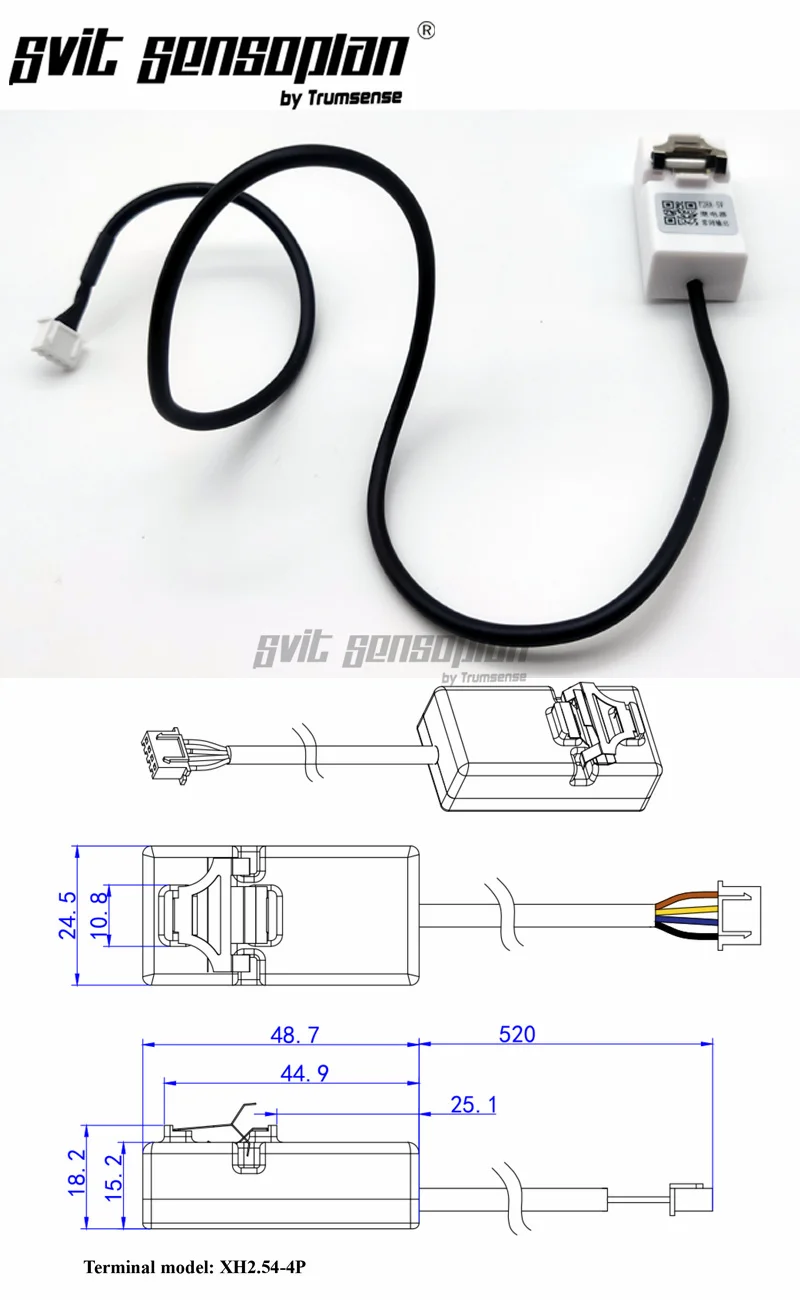

7. Size of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

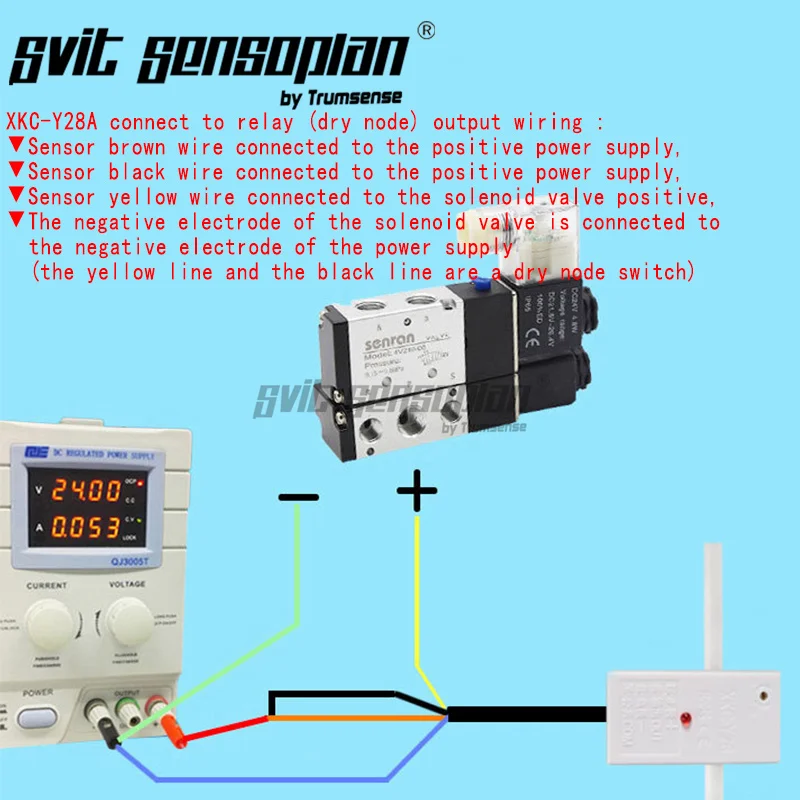

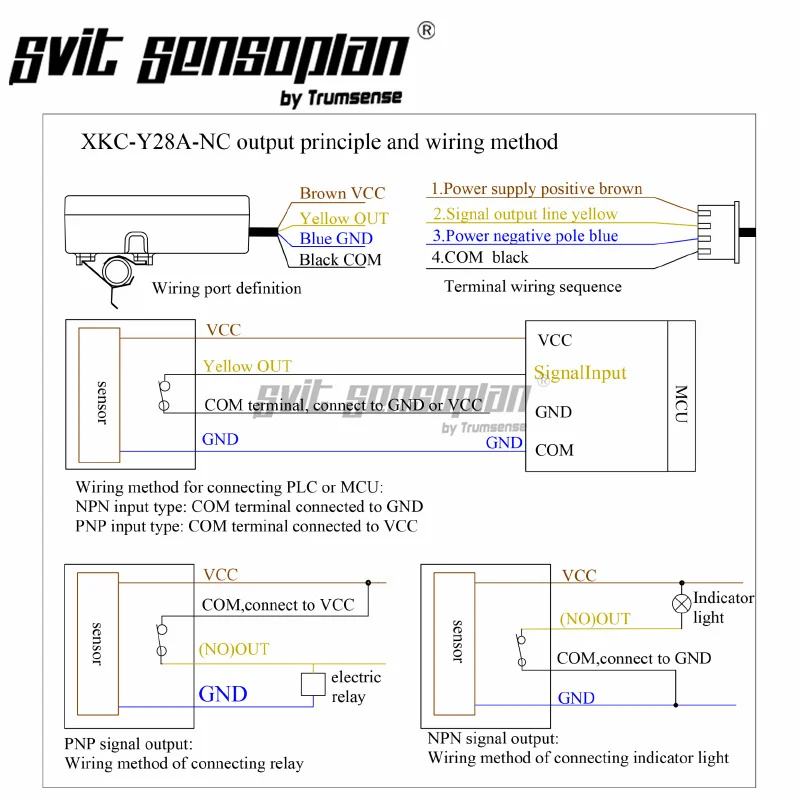

8. Wiring Diagram of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

Product Applications of relay NC point output:

a. When the black wire is connected to Vcc:

When liquid is sensed, the relay is closed and the relay NC point is disconnected;

When no liquid is sensed, the relay is disconnected, the NC point of the relay is turned on, and the VCC

voltage output.

b. When the black wire is connected to GND:

When liquid is sensed, the relay closes, and the relay NC point opens;

When no liquid is sensed, the relay is disconnected, the relayNC' point is turned on, and the GND voltage output.

9. Sensitivity Admustment of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

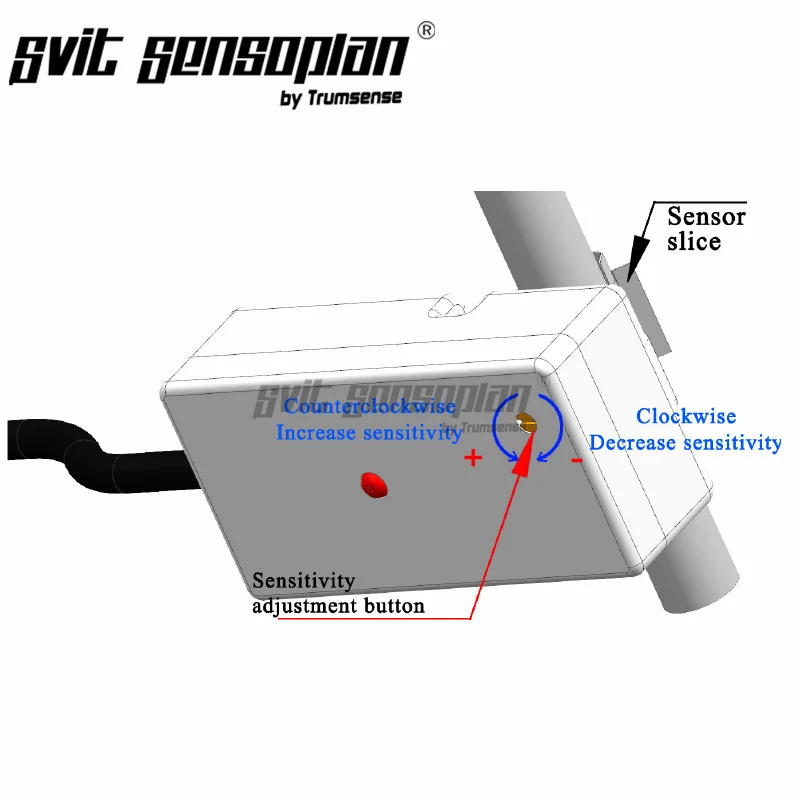

Use a small screwdriver to rotate the potentiometer at the side of the sensor. The anti-clockwise rotation sensitivity increases, and the clockwise rotation sensitivity decreases. As show below:

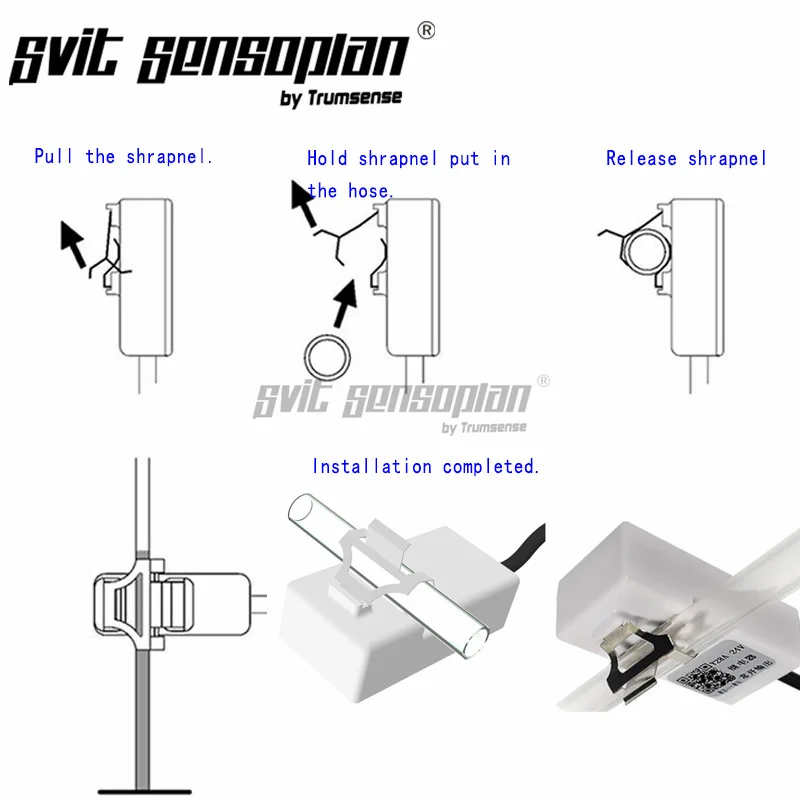

10. Installation of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

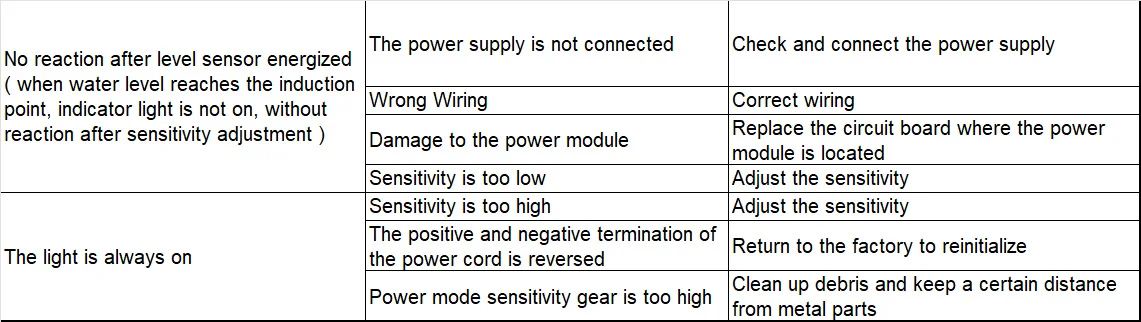

11. Trouble Shooting of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Non Contact Liquid / Water Hose Level Sensor Detector :

12. Product Maintenance of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

Pay attention to keeping the liquid level gauge clean, try to prevent corrosion and avoid violent collisions and strikes by other objects.When installing outdoors, avoid direct sunlight on the main body of the level gauge, stay away from heat sources and pay attention to ventilation. If the ambient temperature exceeds the rated temperature, corresponding cooling and protection measures should be taken.

When the ambient temperature is too low, the instrument protection box or other protective devices can be used for antifreeze protection, and care should be taken to keep the liquid level meter dry.

The sensor should be regularly maintained and inspected.(The detection time interval is determined by the unit used according to the specific circumstances).

13. Typical Application of Trumsense XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector :

The liquid level sensor (probe) is installed with jaw on the outer wall of the small hose. There is no need to open holes in the non-metallic container, the installation is simple, and the production is not affected.It can realize the detection of various toxic substances, strong acids, strong alkalis and the liquid levels of various liquids in high-pressure airtight containers.The liquid level sensor has no special requirements for the material of the liquid medium and container, and can be widely used, it can be used for anywhere there is a hose,pipe,tube with diamter from 5 to 20mm, like the application fields of medical equipment,smart appliances,agricultural machinery,intelligent water supply for animal husbandry or agriculture drip irrigation, agriculture infiltration irrigation, or agriculture sprinkler irrigation,sewage environmental protection equipment,industrial automation control,Water tower, water tank, boiler to prevent dry burning and fish tank living water control and so on... ... ​ ​ ​

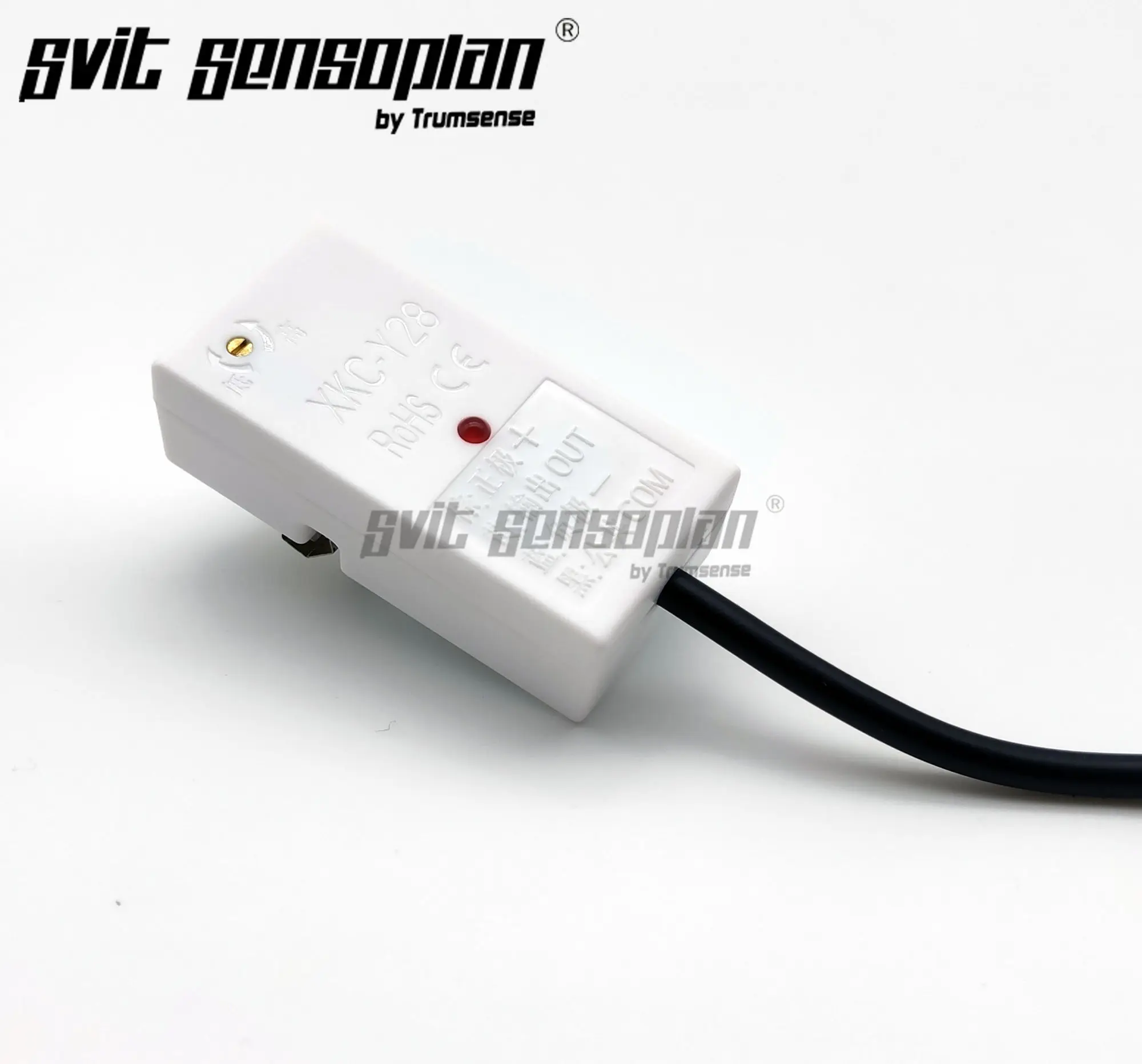

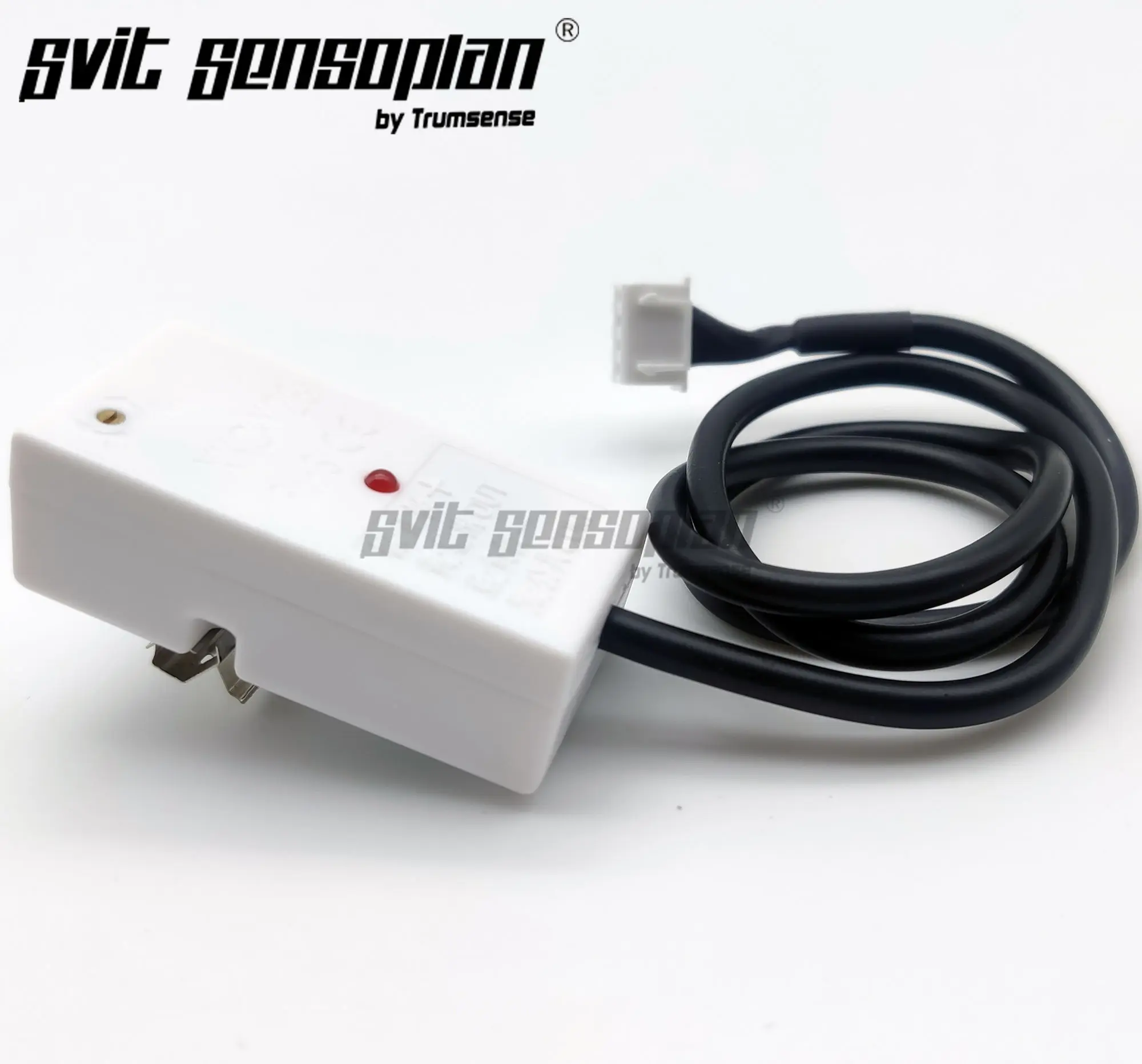

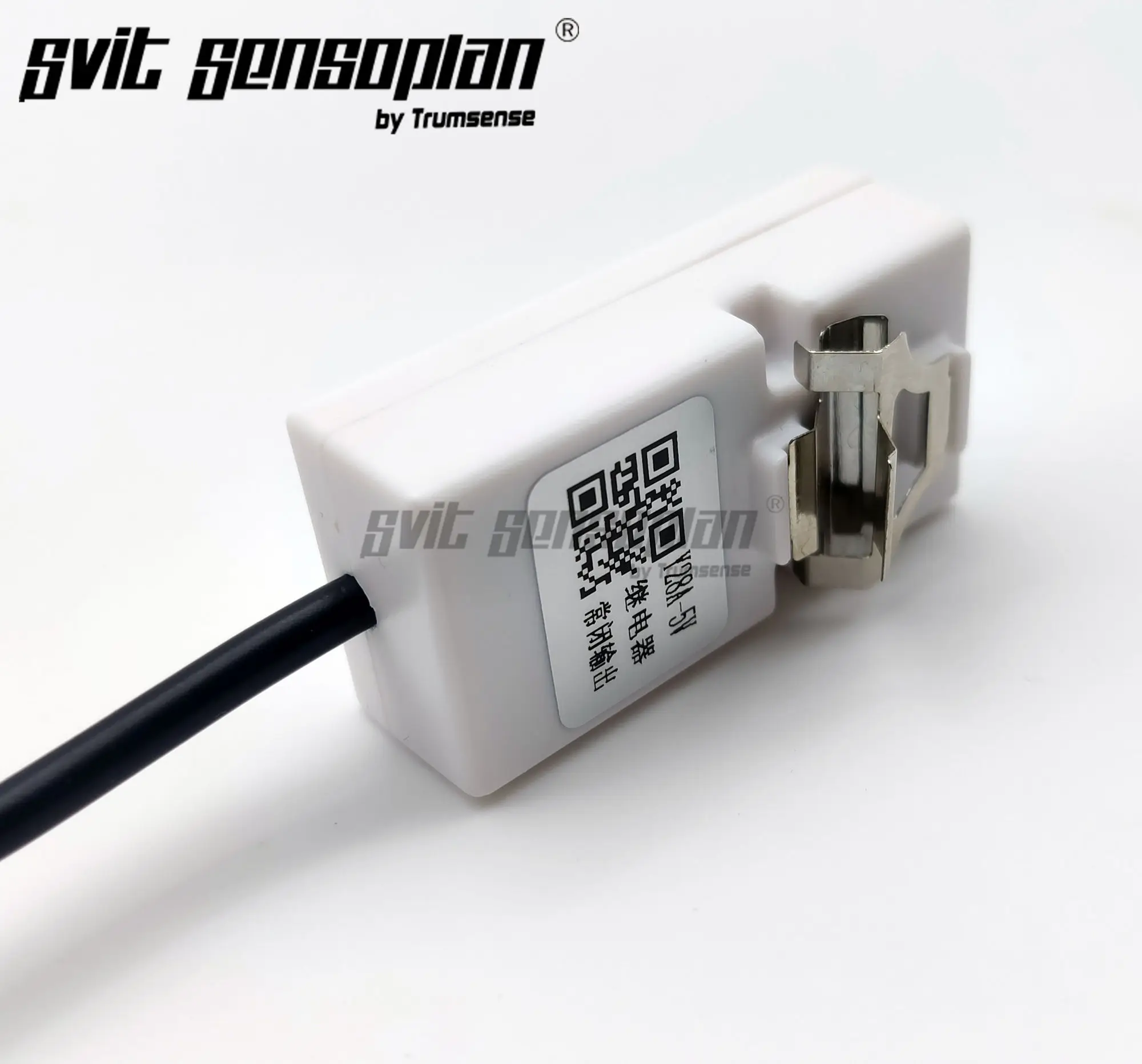

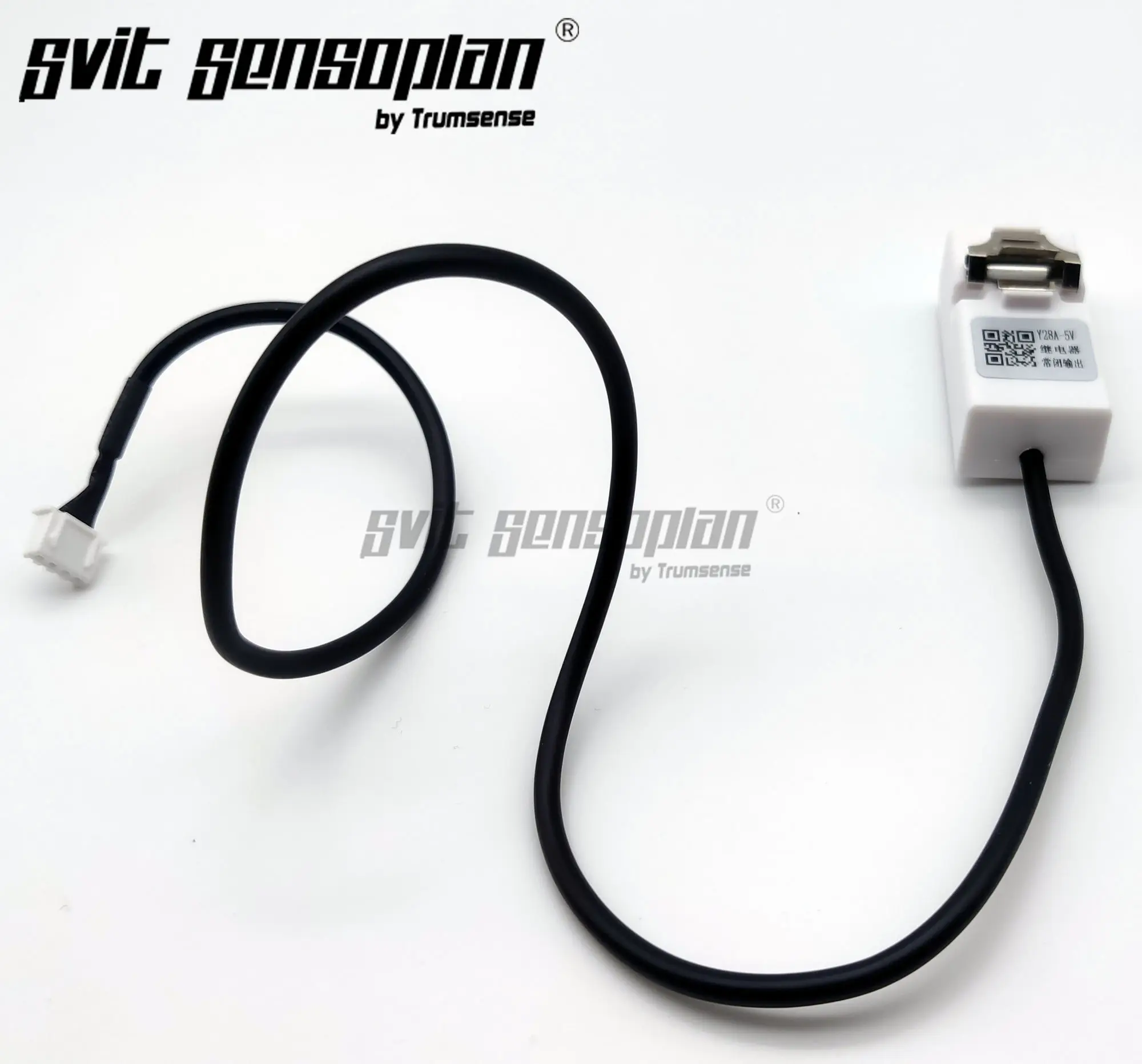

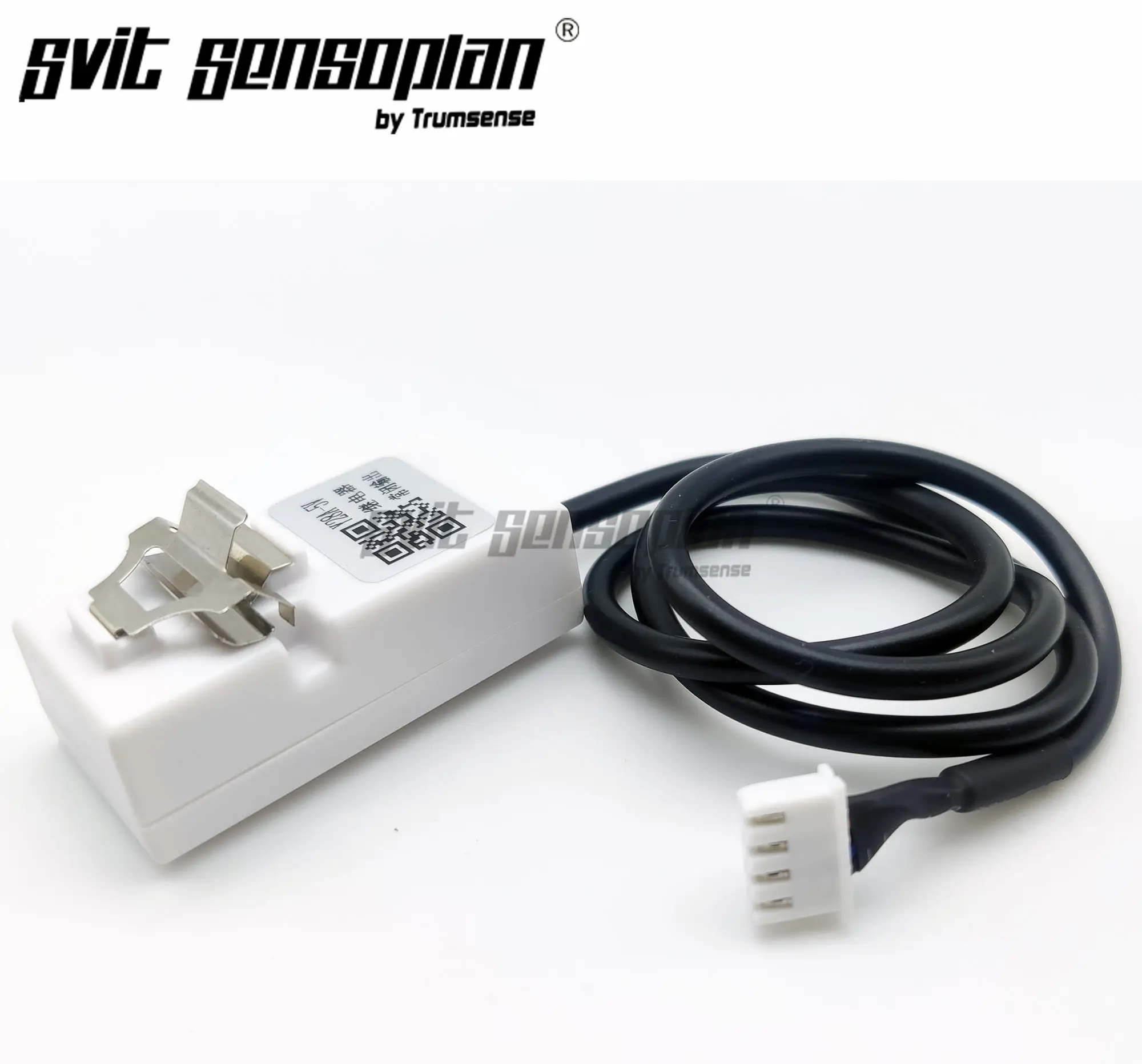

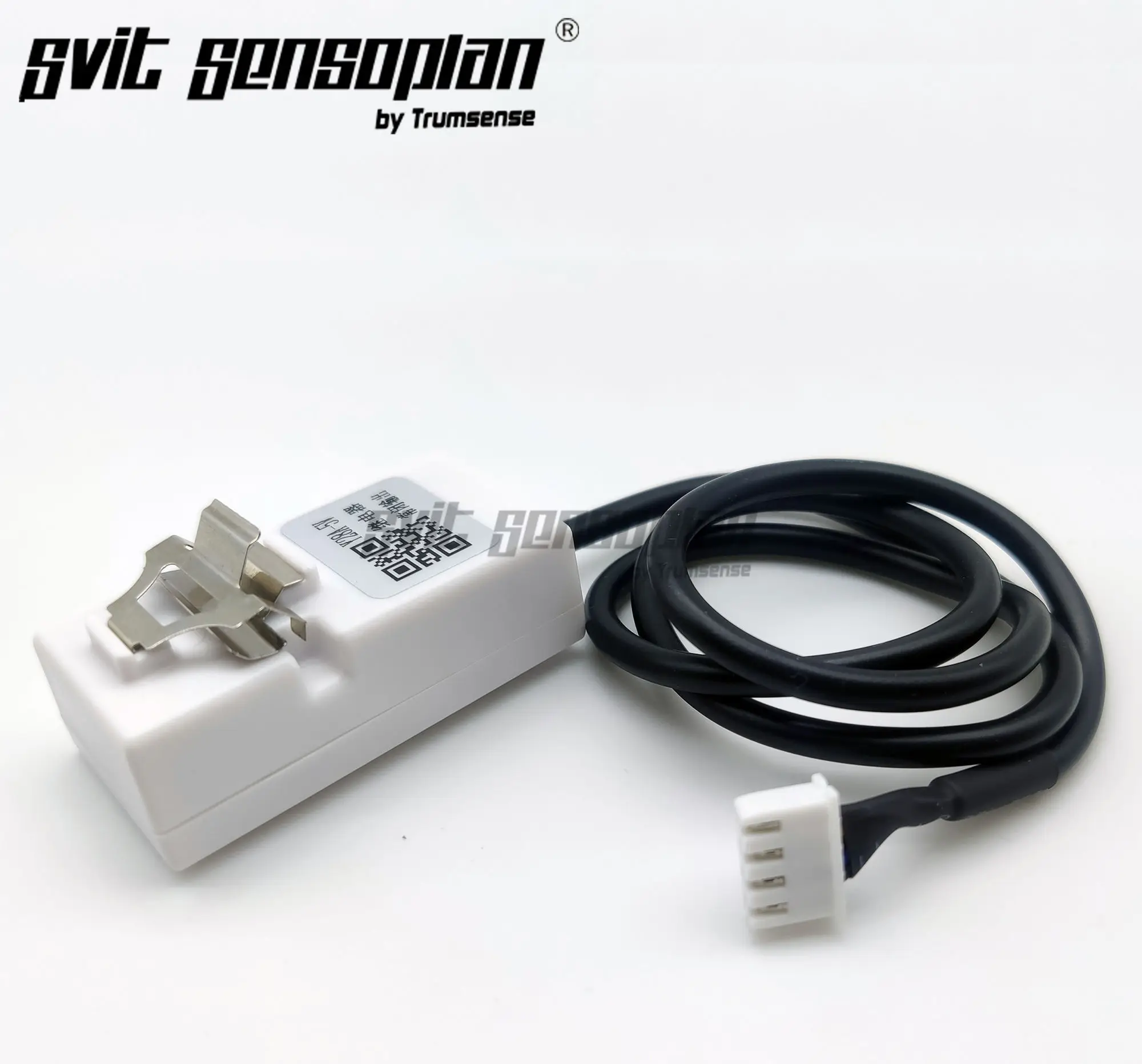

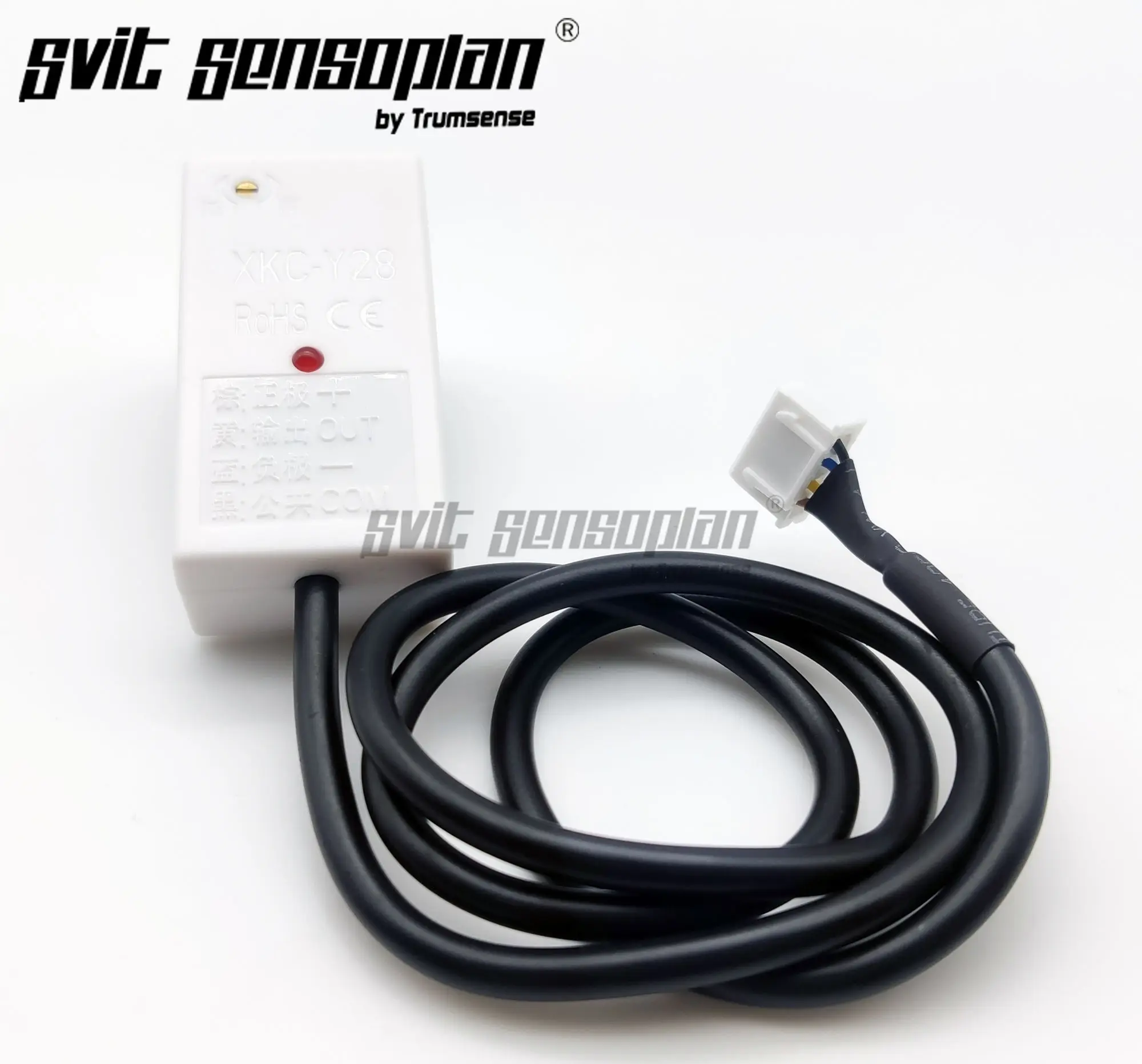

14. You Will Receive the XKC-Y28A-NC (  DC 5V ) Contactless Liquid / Water Hose Level Sensor Detector , Totally Same as Below Detail Photos:

15. The above sensor is used for Non-metallic material liquid container, if your liquid hose or container is metal ,please refer to the below product, which is specially designed for the metal material contaner or hose because its working principle is ultrasonic:

​Ultrasonic Working Ultrasonic Liquid Level Detector For Metal Container Wall Used For Special Industry Contactless Level Sensor:

http://www.aliexpress.com/item/32948776110.htmlhttp://www.aliexpress.com/item/1005002071930161.html

We are the original factory, if the above parameters can not satisfy your ​specific needs, contact at any time, our technician team will offer you ​the proposal within 24 hours.

tube liquid level sensor,tube liquid level detector,tube liquid level monitor,pipe liquid level sensor,pipe liquid level detector,pipe liquid level monitor,hose liquid level sensor,hose liquid level detector,hose liquid level monitor,tubular liquid level sensor,tubular liquid level detector,tubular liquid level monitor,pipe water level sensor,pipe water level detector,pipe water level monitor,hose water level sensor,hose water level detector,hose water level monitor,tubular water level sensor,tubular water level detector,tubular water level monitor, trumsense,china smart sensor,XKC-Y26A-NPN,XKC-Y26A-PNP, XKC-Y26A-RS485, hose water level sensor, hose water level detector,hose liquid level sensor, hose liquid level detector,pipe water level detector,pipe liquid level sensor, pipe liquid level detector,contactless,contactless sensor, sensor, water,level,liquid,water sensor,water level sensor, liquid level sensor, contactless water level sensor, contactless liquid level sensor, non-contact water level sensor, non-contact liquid level sensor,touchless water level sensor, touchless liquid level sensor,capacitive type water sensor,water tank sensoe,coffe machine water level sensor,china smart sensor, trumsense, trumsense precision technology,svitsensoplan, svitsensoplan by trumsense,smarter sensor,smarter sensor by kaishengsi, kaishengsi,XKC-y28A, XKC-y28,water level controller,water pump controller,water pump for level detecting,water pool level sensor,water level sensor,contactless water level sensor,touchless water level sensor,water level pump controller,liquid level sensor,china smart sensor,trumsense,trumsense precision technology,svitsensoplan,svitsensoplan by trumsense,smarter sensor,smarter sensor by kaishengsi,kaishengsi XKC-y26-NPN,XKC-y26-PNP,XKC-y26-V, XKC-Y25-NPN, XKC-Y25-PNP, XKC-y25-V,XKC-y25-RS485,XKC-Y23-V,XKC-Y23,XKC-Y27,XKC-y28A,XKC-Y28,china smart sensor,trumsense,trumsense precision technology,svitsensoplan,svitsensoplan by trumsense,smarter sensor,smarter sensor by kaishengsi,kaishengsi, XKC-C352,XKC-C352-2P,XKC-C352-3P,XKC-C362-2P,XKC-C362-3P,XKC-C372,XKC-C372-2P,XKC-C372-3P,

China smart sensor Co.,Ltd. tank level switch NPN Output level sensor NPN Output level switch NPN Output level indicator water level sensor water level switch non cotnact level sensor non contact level switch non contact water level sensor non contact water level switch contactless water level sensor contactless water level switch PNP Output level sensor PNP Output level switch Off Contact Liquid Level Controller Off Contact Liquid Level swtich liquid Level Automatic Controlling Sensor water Level Automatic Controlling Sensor liquid Level Automatic Control Sensor water Level Automatic Control SensorLiquid Level Switch Liquid Level Sensor water Level Switch water Level sensor Liquid Level Inductive Switch Liquid Level Inductive control Liquid Level Monitor Sensor Liquid Level Monitor Liquid Level Sensor RS485 Intelligent Non-contact Liquid Level Sensor RS485 Non-contact Liquid Level Sensor RS485 Liquid Level Sensor RS485 Level Sensor RS485 Intelligent Non contact Liquid Level Sensor RS485 Non contact Level Sensor RS485 water Level Sensor RS485 Level Sensors Water Level Switch liquid Level Switch Liquid Level Inductive Switch NPN Liquid Level Inductive Switch NPN Liquid Level Switch level sensor level sensor for tank tank level sensor tank level switch NPN Output level sensor NPN Output level switch NPN Output level indicator water level sensor liquid Level Switchwater level switch non cotnact level sensor non contact level switch non contact water level sensor non contact water level switch contactless water level sensorcontactless water level switch PNP Output level sensor PNP Output level switch Off Contact Liquid Level Controller Off Contact Liquid Level swtich liquid Level Automatic Controlling Sensor water Level Automatic Controlling Sensor liquid Level Automatic Control Sensor water Level Automatic Control Sensor Liquid Level Switch Liquid Level Sensor Level Switch water Level sensor Liquid Level Inductive Switch Liquid Level Inductive control Liquid Level Monitor Sensor Liquid Level Monitor Liquid Level Sensor RS485 Intelligent Non-contact Liquid Level Sensor RS485 Non-contact Liquid Level Sensor RS485 Liquid Level Sensor RS485 Level SensormRS485 Intelligent Non contact Liquid Level Sensor RS485 Non contact Level Sensor RS485 water Level Sensor RS485 Level Sensors Water Level Switch touchless type water level sensor touchless water level sensor contactless water level sensor contactless liquid level sensor contactless type water tank sensor contactless water level probe contactless liquid level probe touchless water level probe touchless liquid level probe Shenzhen trumsense technology Co.,Ltd. Trumsense Precision Technology Limited fish tank automatic level controller level controller water level controller water tower level control water tank level controller water pump level controlling switch automatic pump automatic water pump automatic switch water pump water tank pump water pump automatic control automatic water level controller pump tank level fish tank water pump control water pump fish pump water pump automatic water tower pump pump water pump automatic switch pump tank water pump tank pump fish tank pump automatic control water pump water tank level fish water pump control pump Water Tank Level Controller Floater Level Controller Water Level Controlling Valve Water Pump Controller level control level controller water level controller

liquid level control liquid level controller tank level control tank level controller Water Level Detection System liquid Level Detection System
