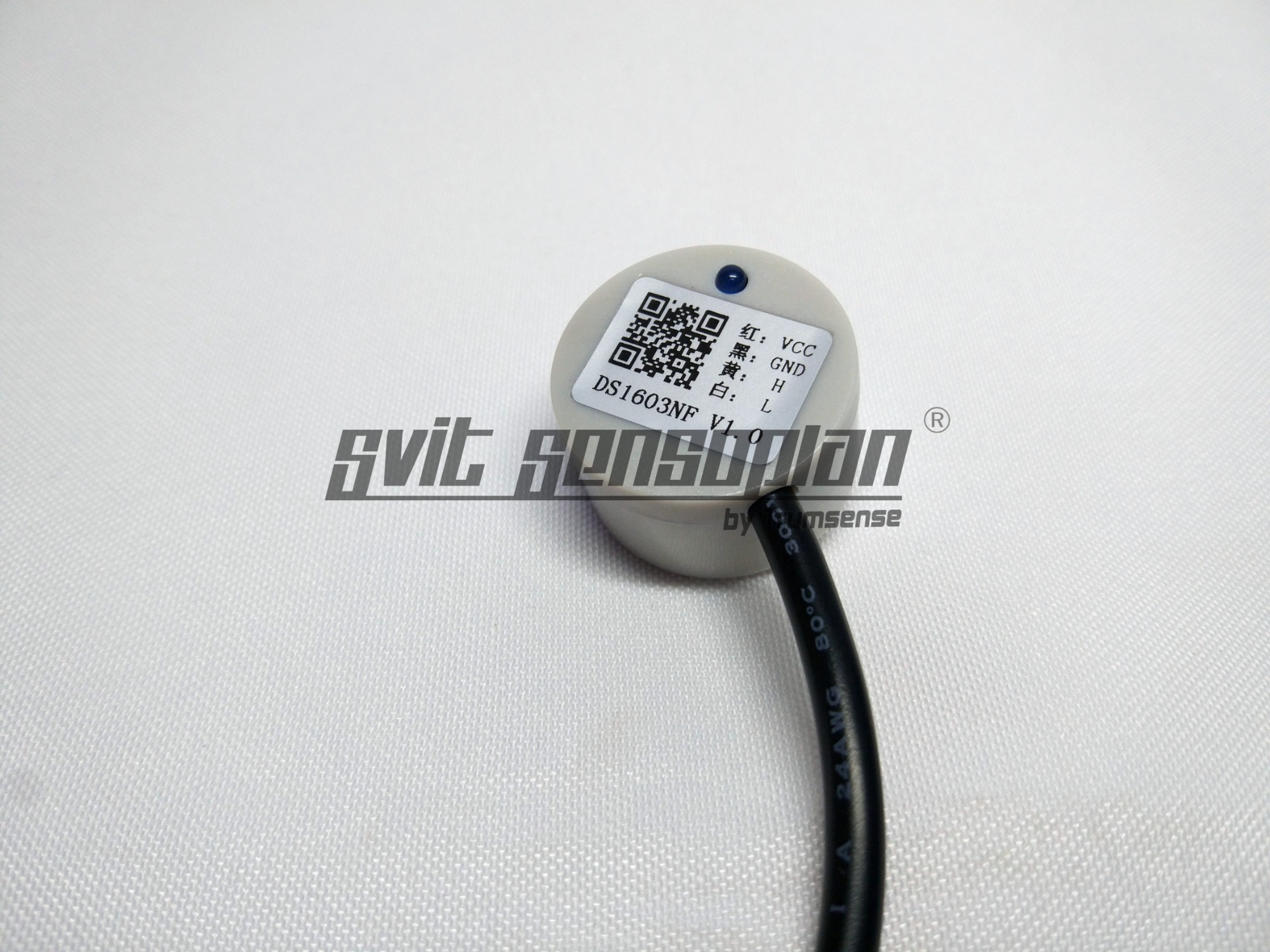

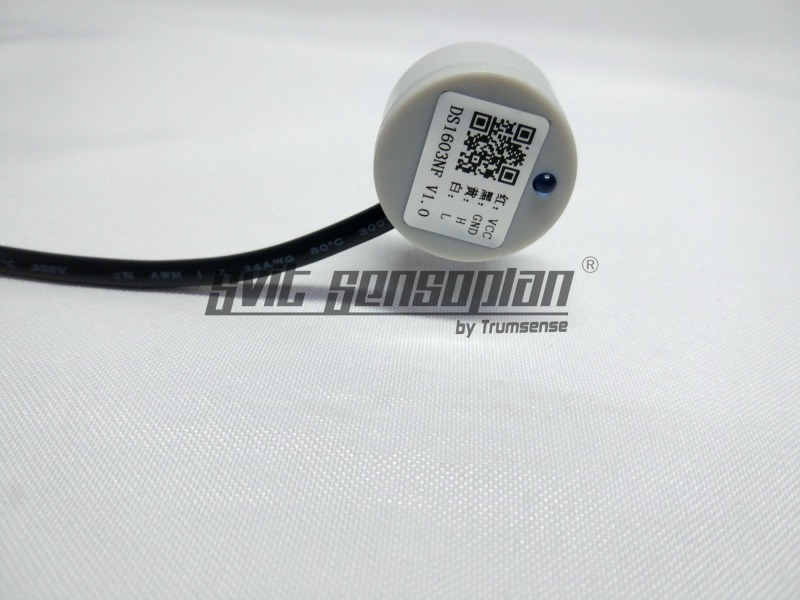

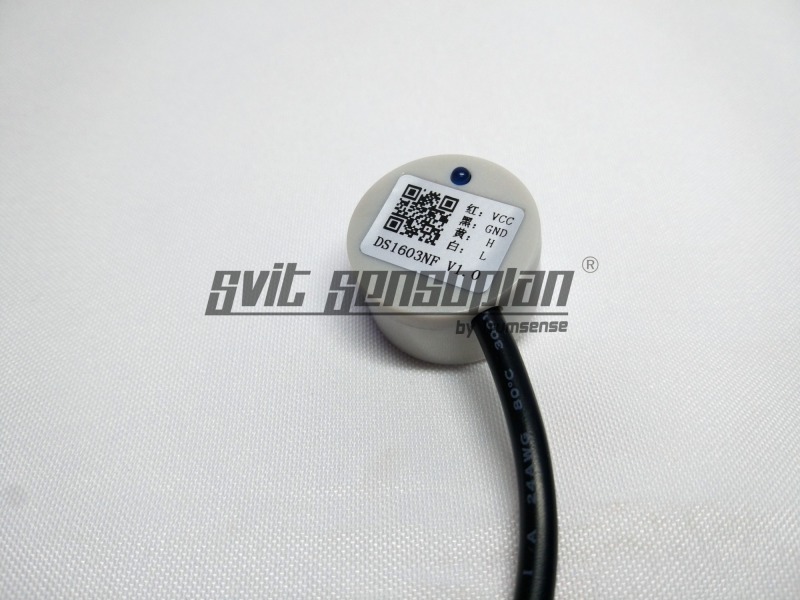

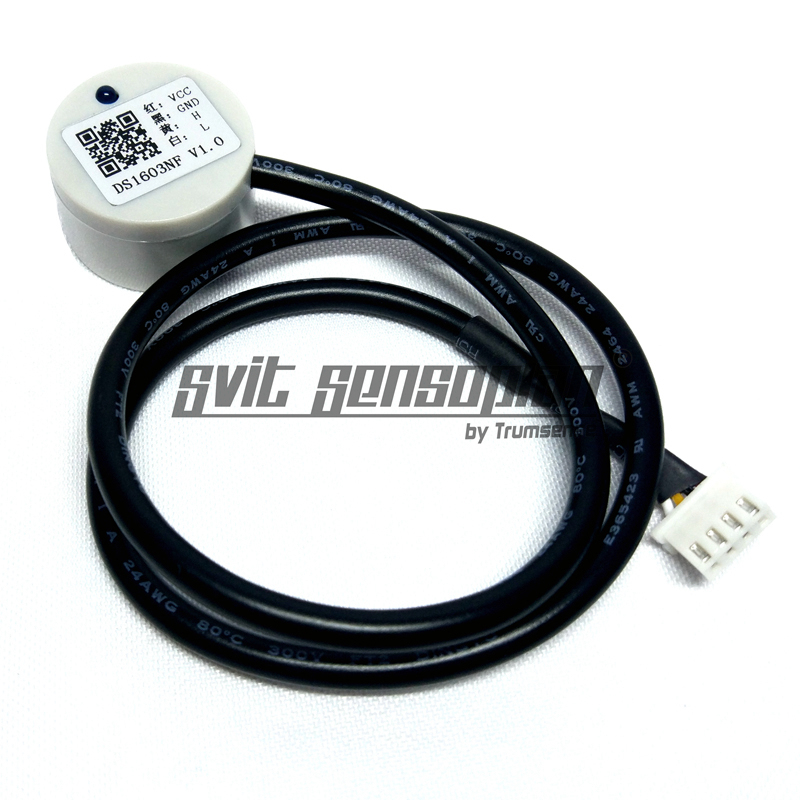

Contactless Type Ultrasonic Liquid Level Sensor---Specially Used for theMetal MaterialContainer Wall
The ultrasonic liquid level detecting sensor designed and produced by our company adopts ultrasonic penetration technology to realize high-level non-contact detection of liquid in the container, and convert the liquid height value into level signal output, which can be used for various high-temperature and high-pressure sealed containers.Accurate measurement of toxic substances, strong acids, strong bases and liquids of various pure liquids.Especially suitable for containers made of metal.
1: Measuring Method: Ultrasonic
2: Product Material： ABS polymer
3: Rated Current: 25 to 35 ma
4: Wire: 4 Core Wire

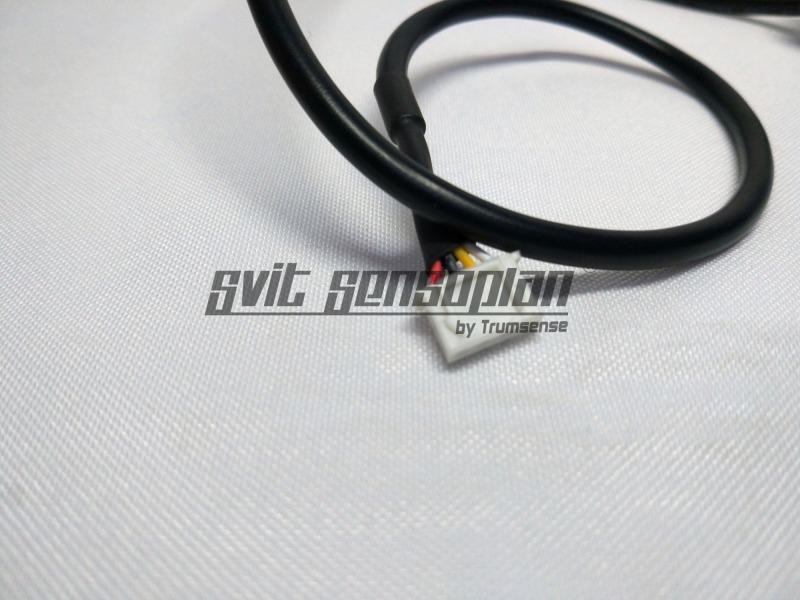

5: Wire Connection: 2.54 terminal
6: Suitable container wall material: metal
7: Suitable to sense the material in the container: it can accurately measure the liquid level of various toxicsubstances, strong acids, strong alkalis and various pure liquids
8: Installation position: container outter bottom or outter side wall.
9: Suitable container wall thickness: 3mm to 8mm
C: PNP (Switching positive output lead)
D: NPN (Switching negative output lead, normally open or normally closed)

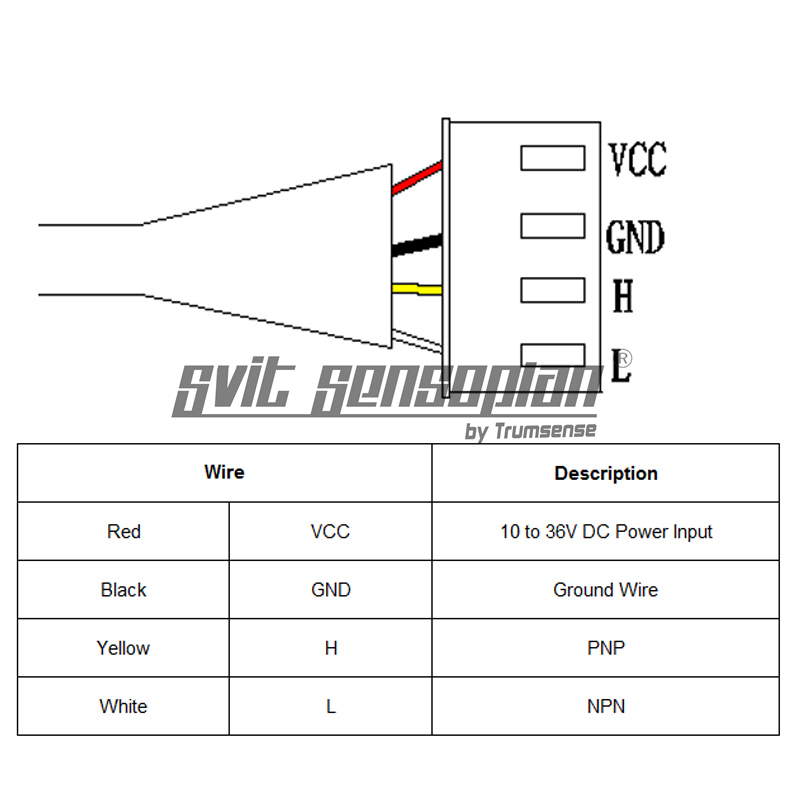

Ultrasonic Liquid Level Sensor Wiring Diagram:
