Working Principle:
XKC-C362-2P non-contact high and low level controller is composed of XKC-Y25-V two liquid level detection heads and a C362 controller to achieve the level control function: when the container level is too low, the low level sensor is triggered The low-level alarm signal issued triggers the C352 controller to close the relay to start the pump to add liquid level. When the liquid level reaches a certain level, the high-level sensor sends a signal to trigger the C362 controller to open the relay to automatically stop the pump to work in this way. Thus, the function of automatically controlling the level of the container liquid level is realized, and the container liquid level is kept stable.
Application:
Automatic replenishment of water tanks, buckets, water towers and other liquid containers, intelligent pump solenoid valves, fish tank live water control, automatic pumping of domestic wells, automatic industrial equipment level monitoringVideo link for the working principle:https://cloud.video.taobao.com/play/u/17296513330/p/1/e/6/t/10301/240667220102.mp4
Elite Characteristic:►compatibility with contactless level sensor input can use a variety of control;
► strong protection ability, with anti-slip protection and pump water overflow detection output, comes with 4 hours overtime pumping alarm;
► relay dry contact output, suitable for a variety of load control;
► the control diversification can be manual or automatic mode to control the pump;
► easy to install, can be installed positioning screws rail mounting electrical boxes;
Basic Parameter:

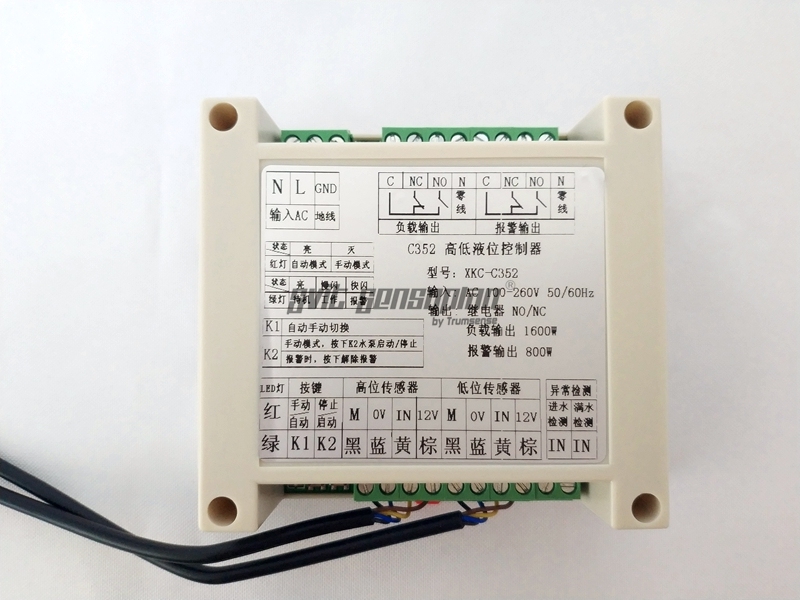

Model: XKC-C362-2P
Name: C362 high and low level automatic controller
Input voltage: AC100V-220V, 50 / 60Hz
Operating voltage: DC12V
Current job: working current ≤110 mA, static current consumption ≤20mA
Load power: 1.6KW or less (for three-phase pump overload or the need to install AC contactor)
Alarm output: 800W (resistive load) normally open normally closed output
Output: normally closed or normally open relay AC AC110V / 220V (please leave a message, the default setting to send 220V)
input signal Low sensor signal input;High induction signal input;
Pump idling detection signal;
Water overflow alarm signal input;
Sensing head interface voltage: DC 12V
Working temperature: -10 ~ 75C
Dimensions: 115 * 90 * 40
Wiring Diagram:
