Our non-contact liquid level sensor designed by our company can only be installed in non-metallic containers or pipes such as plastic, glass and ceramics. It is installed on the outer wall side of the container and does not need to be in direct contact with the liquid to be tested. It will not be corroded by strong acid and alkali liquid, nor by scale. After installation, depending on the thickness of the container, if you need to adjust the detection sensitivity of the sensor, you can open the QC label, fix the sensor on the container or pipe to be tested, adjust the liquid level to the position that needs to be sensed, and then press and hold the small circle. Press the button inside the hole for about 3 seconds until the blue status indicator flashes. At this time, release the button, and the liquid level will be sensed when it is lifted to the position.
Feature:1: level status LED light display mode,
2: pure electronic circuit structure, non-mechanical working mode, stable performance and longevity,
3: high stability, high sensitivity, good anti-interference, free from external electromagnetic interference, suitable for complex environments,
4: strong compatibility, penetrate a variety of non-metallic materials such as plastic, glass, ceramics and other containers, the sensing distance can reach 10mm; suitable for water, alcohol, acid, alkali and other dielectric properties of liquid and powdery small particles detection It is suitable for non-metallic containers such as plastics, glass, ceramics and the outer wall of containers or pipes. It can be used with different mounting brackets for different occasions.
5: open electrode output, suitable for various control circuits, maximum 300mA output current.
Parameter:
| 【Model】 WS03M |
【Product Name】 Non-contact Flat Liquid Level Sensor |
| 【Working Voltage】 DC5-24V |
【Outter Working Voltage VCC】 DC5-24V |
| 【Output VoltageVoh（Hi）】 Vdd V |
【Output Voltage Vol（Lo）】 0.5V |
| 【Output Current Iol（Lo）】 300mA |
【Current consumption】 5mA |
| 【Response Time】 0.5秒 |
【Operating Temperature】 0~60°C |

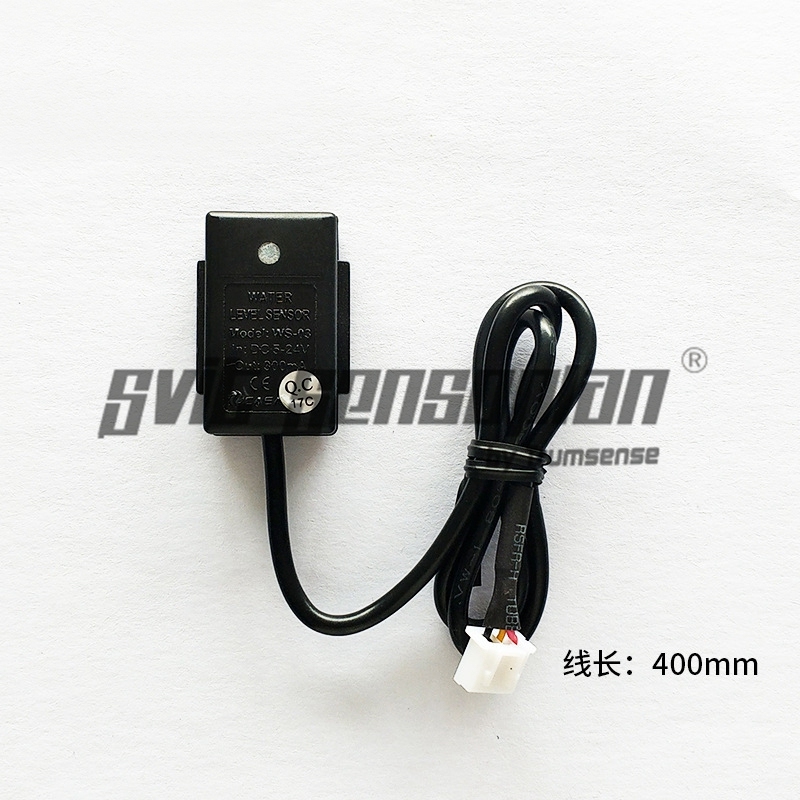

| 【Cable Length】 40 or 150cm |
【Bracket Type】 A,B or C Bracket |
| 【Size】 LxWxH=30*19*10mm |
【Installation Method】 Bracket Fixed Installation
|
Applications:It is suitable for non-metallic containers or pipes such as plastics, glass, and ceramics.
The application is as following:
Household appliances
Smart bathroom
Water purification equipment
Water treatment equipment
Medical equipment
Food Machinery
Chemical Equipment
other devices
. . . . . .
Wiring and sensitivity adjustment:
Installation:
Order photo show:
